  • PCE Instruments VD 3 Vibration Analyzer 0 to 60 Hz with FFT Analysis

    # VD 3

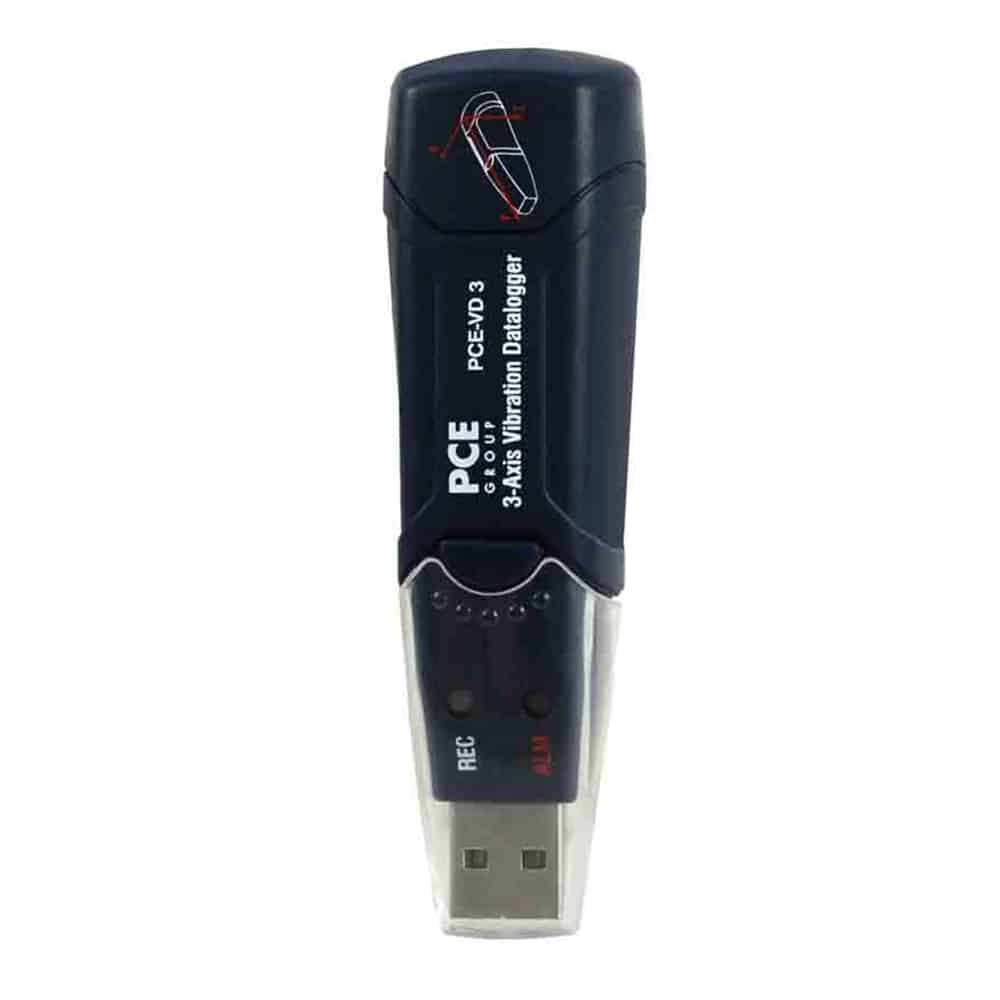

    • The PCE-VD 3 Vibration Analyser is a miniaturized universal Vibration Analyser with an included built-in three-axes acceleration sensor (X, Y, Z axis). The internal sensor of the PCE-VD 3 Vibration Analyser measures acceleration force along the X, Y, and Z axes with a measurement range of ±16 g per axis.

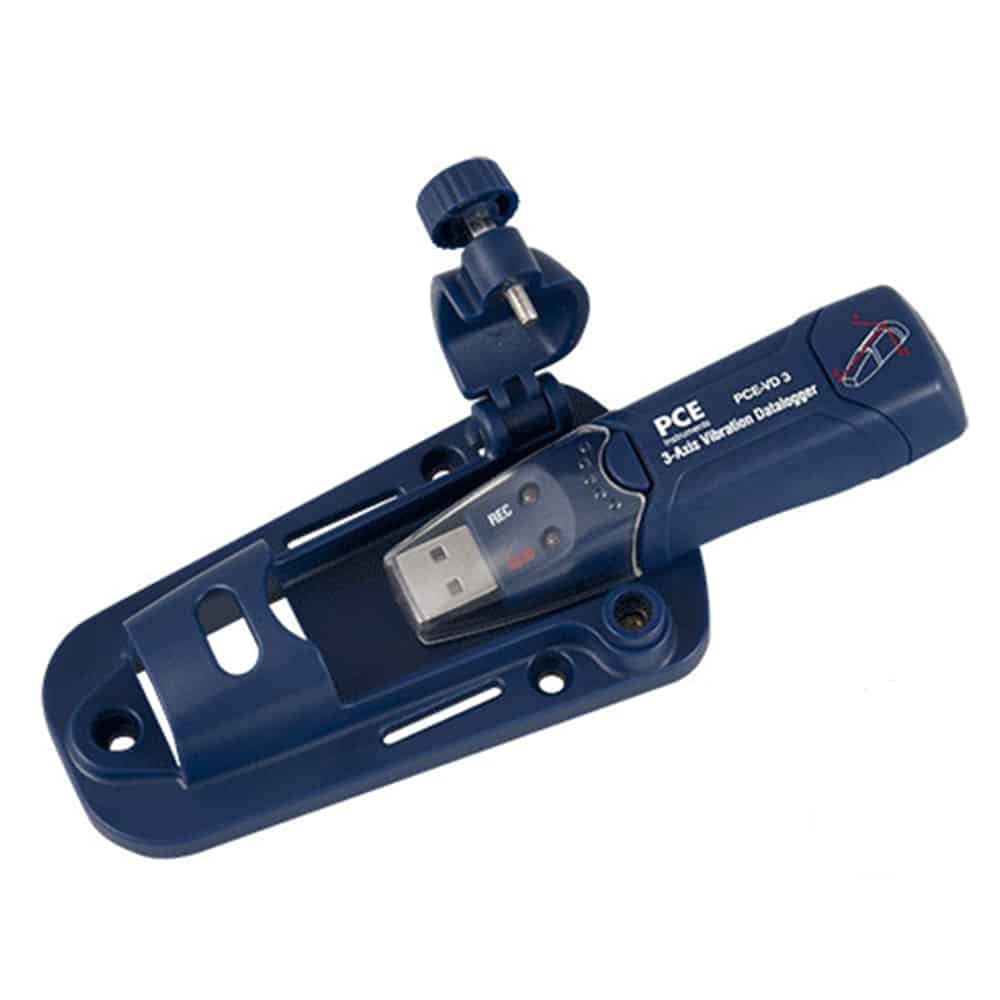

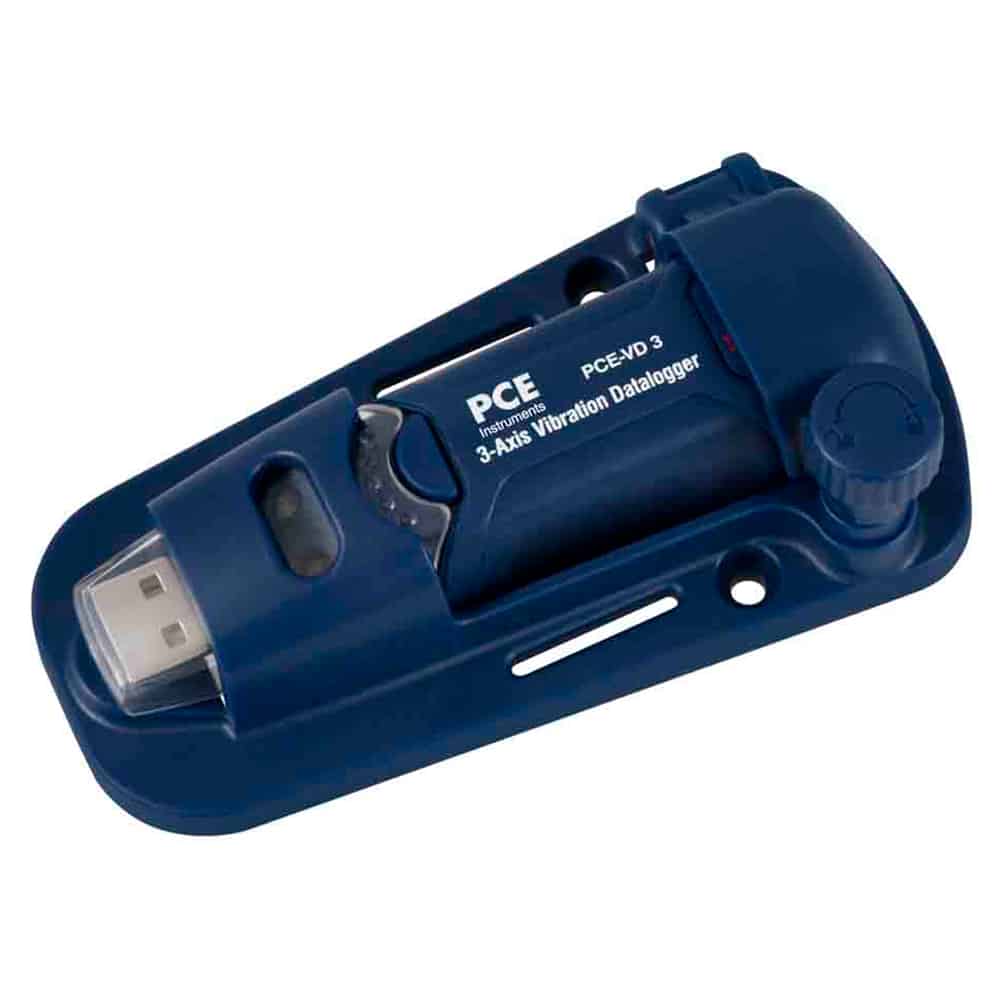

    • The PCE-VD 3 Vibration Analyser can be placed anywhere due to its robust and magnetic bracket. Moreover, due to its small size and lightweight, the Vibration Analyser can be used for many different applications, such as shipment control, sports, medicine, or for any application requiring the recording of movements of 1 to 3 axes.
    • The PCE-VD 3 Vibration Analyser can be easily programmed through the included software. All data can be sent to a PC or laptop via the USB port easily and quickly.
    PCE Instruments
    • PCE Instruments
    • VD 3
    • The PCE-VD 3 Vibration Analyser is a miniaturized universal Vibration Analyser with an included built-in three-axes acceleration sensor (X, Y, Z axis). The internal sensor of the PCE-VD 3 Vibration Analyser measures acceleration force along the X, Y, and Z axes with a measurement range of ±16 g per axis. Since the PCE-VD 3 Vibration Analyser is in motion while it is recording data, alterations are recorded for the three axes. The PCE-VD 3 Vibration Analyser can be placed anywhere due to its robust and magnetic bracket. Moreover, due to its small size and lightweight, the Vibration Analyser can be used for many different applications, such as shipment control, sports, medicine, or for any application requiring the recording of movements of 1 to 3 axes. The PCE-VD 3 Vibration Analyser can be easily programmed through the included software. All data can be sent to a PC or laptop via the USB port easily and quickly.
    Measurement range ±16 g
    Accuracy ± 0.5 g
    Resolution 0.004 g
    Frequency range 0 to 60 Hz
    Memory 8 Mbit
    normal measuring mode: 168042 records
    motion detection: 112028 records
    Measurement rate / Record interval 50 ms to 12 hours
    Power supply 1 x 3.6 V, 1/2 AA, 14250, battery
    Power consumption ca. 2.8 mA during a measurement <1.5 µA idle
    Battery life ca. 400 hours
    Status display via 2 LEDs (recording in progress / alarm)
    Interface USB
    Operating conditions 0 to 40 ºC (32 to 104 ºF), 10 to 75 % RH non-condensing
    Storage conditions -10 to 60 °C (14 to 140 °F), 10 to 90 % RH, non-condensing
    Dimensions of device 95 x 28 x 21 mm / 3.7 x 1.1 x 0.8″
    Dimensions of wall bracket 106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3″
    Weight 25 g / 0.88 oz
    • 1 x PCE-VD 3 Vibration Meter
    • 1 x Wall bracket
    • 1 x Battery
    • 1 x Software
    • 2 x Screws
    • 1 x Instructions
