    PCE Instruments TDS 100HSH Ultrasonic Flow Meter Kit 32 m/s, 105 ft/s

    # TDS 100HSH

    This product has been discontinued by the manufacturer.
    Alternate products: TDS 200 M, TDS 200 S, TDS 200 SM.

    • 0.5% linearity, 0.2% repeatability
    • Bi-directional flow measurement, Quick and adjustable response time, Eliminates interfering frequencies
    • Auto power-off battery-saving function (can be disabled)
    • Saves time- and date-stamped measurement data to internal memory
    • Rechargeable, battery-operated flow measuring device
    PCE Instruments
    • PCE Instruments
    • TDS 100HSH

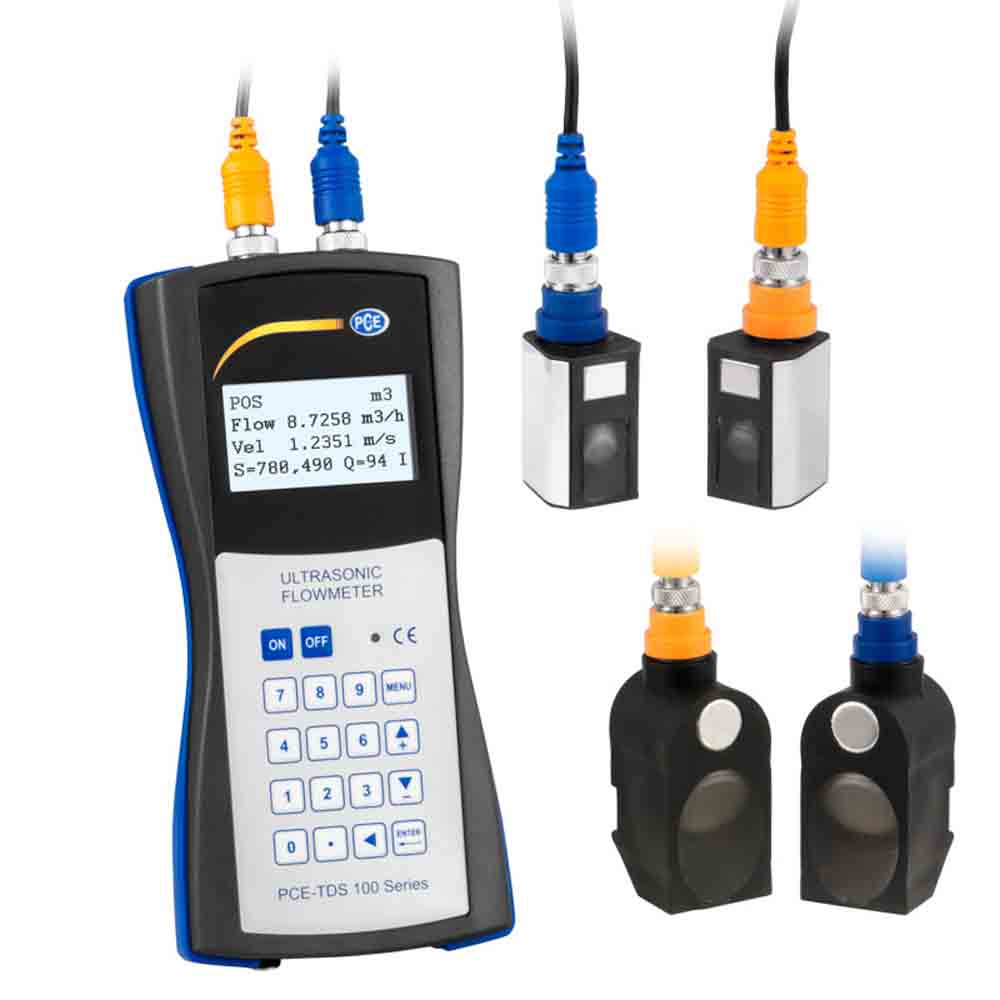

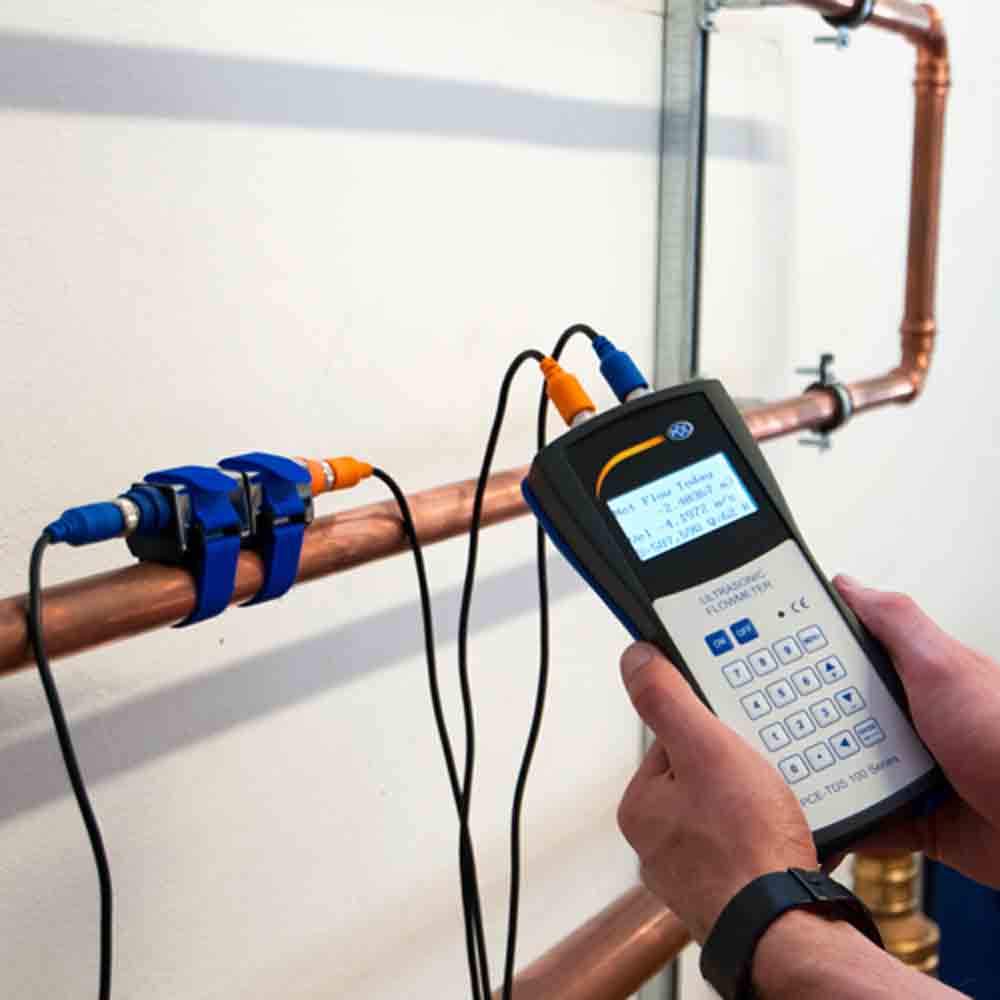

    • PCE-TDS 100HSH is a portable handheld clamp-on ultrasonic flow meter kit used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 720 mm / approx. 3/4″ … 28″. Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning and refrigeration (HVACR) industries, this ultrasonic flow meter kit features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.
    • Measurable liquids include acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichloroethylene, 1, 1, 1 – trichloroethane, turpentine, distilled water, and seawater.
    • Each PCE-TDS series meter is assembled by PCE Instruments in Germany and factory-calibrated (without any documentation). The reference display of the in-house test stand used by PCE for calibration has a valid DAkkS calibration certificate. This ensures traceability to the Physikalisch-Technische Bundesanstalt (PTB) German national standard. Please note that the meter’s measured values depend on the pipe geometry, material and coating; the medium type, temperature and speed; and the sensor type and measuring method.
    • 0.5% linearity
    • 0.2% repeatability
    • Bi-directional flow measurement
    • Quick and adjustable response time
    • Eliminates interfering frequencies
    • Includes data logger functionality
    • Stores up to 2000 measurement values
    • Auto power-off battery-saving function (can be disabled)
    • Saves time- and date-stamped measurement data to internal memory
    • Rechargeable, battery-operated flow measuring device
    Measuring range-32 … 32 m/s, -105 … 105 ft/s
    Resolution0.0001 m/s, 0.00033 ft/s
    Accuracy for DN ≥ 50 mm:± 1.5% of measured value
    for DN < 50 mm:± 3.5% of measured value
    Reproducibility± 1.0% of measured value
    UnitsMeters, feet, cubic meters, liters, cubic feet, gallon, oil barrel, liquid barrel, million gallon
    Response time0 … 999 seconds, freely configurable
    Pipe diameterDN 15 … 700, 20 … 720 mm / approx. 3/4″ … 28″
    Measuring mediaAll liquids with an impurity <5% and a flow >0.03 m³/h
    HeadsType M1 and S1
    Cable lengthApprox. 5 m / 16.4 ft each (x 4)
    Display4 x 16 LCD, 7 digits for net flow, positive and negative flow
    Power supply3 x  AAA Ni-H rechargeable batteries
    Battery lifeApprox. 10 hours continuous use at full charge
    Battery charger100 .. 240V / AC
    MemoryStores up to 2,000 values
    Housing materialABS plastic
    100 x 66 x 20 mm / 3.93 x 2.60 x 0.79 in
    2 x M1 each 60 x 45 x 45 mm / 2.36 x 1.77 x 1.77 in
    2 x S1 each 90 x 85 x 24 mm / 3.54 x 3.35 x 0.95 in
    Operating temp.0 … 70ºC / 32 … 158ºF
    Weight514 g / 1.14 lb (with batteries)
    • 1 x PCE-TDS 100H Ultrasonic flow meter
    • 2 x Sensors TDS-M1
    • 2 x Sensors TDS-S1
    • 2 x 5 m / 16.4 ft transducer connection cables
    • 4 x Velcro-strap clamps
    • 3 x AAA Ni-H rechargeable batteries
    • 1 x Battery charger
    • 1 x Container of coupling gel
    • 1 x Measuring tape
    • 1 x Carrying case
    • 1 x User manual
