PCE Instruments TDS 100HS Ultrasonic Flow Meter 32 m/s, 105 ft/s

Model # TDS 100HS

This product has been discontinued by the manufacturer.
Alternate products: TDS 200 M, TDS 200 S, TDS 200 SM.

Ideal for retrofitting, Installation without process interruption
Accurate and reliable
No pressure loss
Maintenance-free, no moving parts
Portable devices for control measurements

BrandPCE Instruments
Model NumberTDS 100HS

ADD TO MY RFQ LIST Add to your requistion list to get a quote.

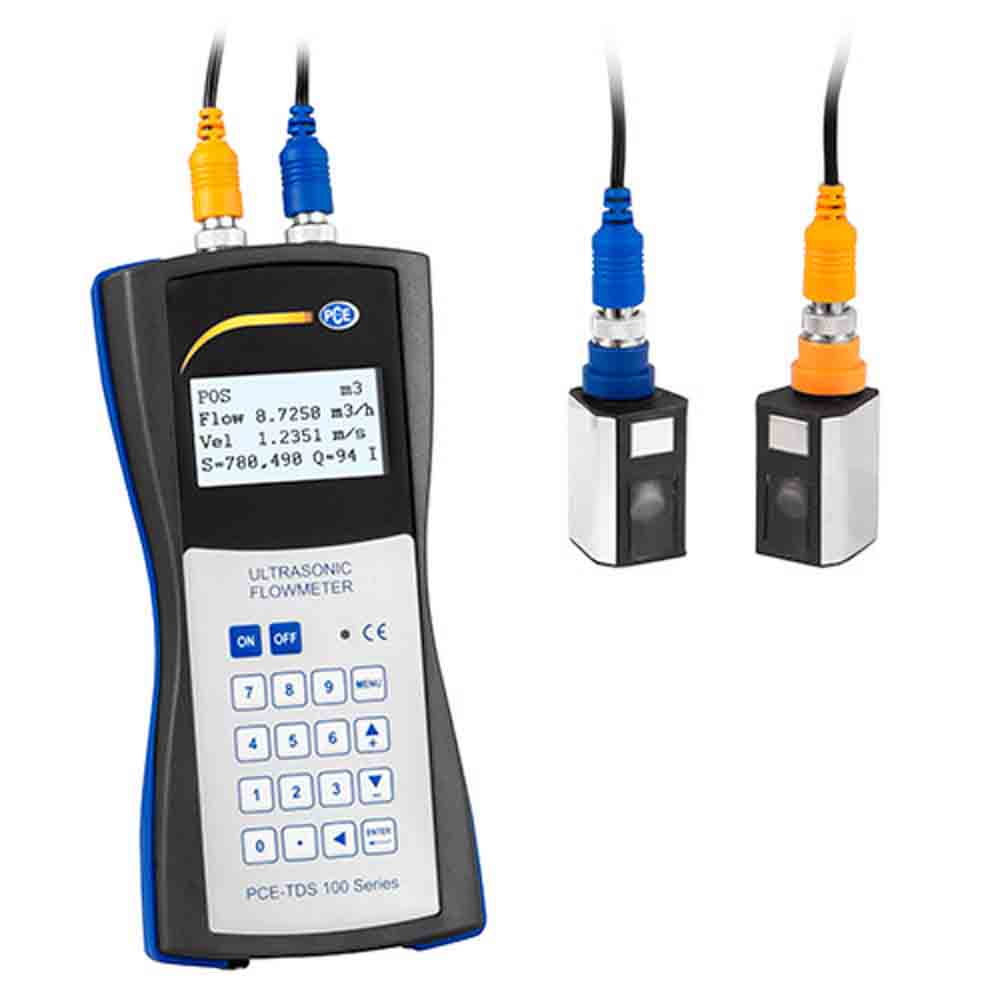

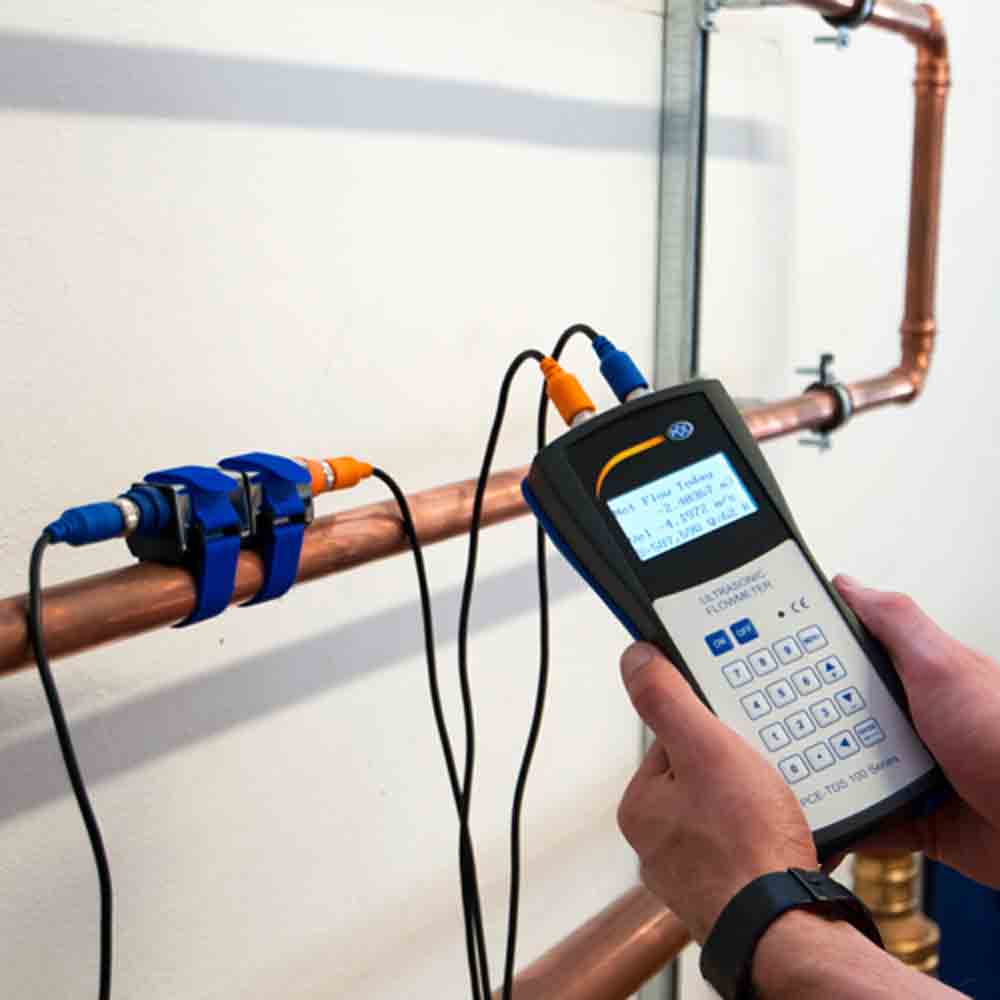

This is a portable handheld clamp-on ultrasonic flow meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 108 mm / approx. 3/4 … 4 in. Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning and refrigeration (HVACR) industries, this ultrasonic flow meter features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.
Measurable liquids include acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichloroethylene, 1, 1, 1 – trichloroethane, turpentine, distilled water, and seawater.
Each PCE-TDS series meter is assembled by PCE Instruments in Germany and factory-calibrated (without any documentation). The reference display of the in-house test stand used by PCE for calibration has a valid DAkkS calibration certificate. This ensures traceability to the Physikalisch-Technische Bundesanstalt (PTB) German national standard. Please note that the meter’s measured values depend on the pipe geometry, material and coating; the medium type, temperature and speed; and the sensor type and measuring method.
Ideal for retrofitting
Installation without process interruption
Easy assembly
Accurate and reliable
No pressure loss
Maintenance-free, no moving parts
Wear-free
Portable devices for control measurements

Handheld measuring range	-32 … 32 m/s, -105 … 105 ft/s
Resolution	0.0001 m/s, 0.00033 ft/s
Accuracy for DN ≥ 50 mm: for DN < 50 mm:	± 1.5% of measured value ± 3.5% of measured value
Reproducibility	± 1.0% of measured value
Media	All liquids with an impurity <5% and a flow >0.03 m³/h
Flow units	Cubic meter [m³] Liter [l] Gallon (USA) [gal] Imperial gallon (UK) [igl] Million USA gallon [mgl] Cubic foot [cf] Barrel (USA) [bal] Imperial barrel (UK) [ib] Oil barrel [ob]
Time settings	Per day [/d] Per hour [/h] Per minute [/m] And per second [/s]
Data logger	1800 measurements
Interface	USB (for online measurement and reading of the internal memory)
Protection	IP 52
Power supply	3 x AA NiMH rechargeable battery / 2100-mAh (at full charge 12h running time) 100 … 240V AC 50/60 Hz
Dimensions	214 x 104 x 40 mm / 8.4 x 4.1 x 1.5 in
Weight	450 g / 15 oz
Sensor (only PCE-TDS 100 HS)	Nominal width DN 15 … 100, 20 … 108 mm / approx. 3/4 … 4″
Temperature of liquid	-30 … 160°C / -22 … 320°F
Dimensions	45 x 30 x 30 mm / 1.7 x 1.1 x 1.1 in
Weight	75 g / < 1 lb
