  • PCE Instruments TDS 100H Handheld Clamp-on Ultrasonic Flow Meter 32 m/s, 105 ft/s

    # TDS 100H

    This product has been discontinued by the manufacturer.
    Alternate products: TDS 200 M, TDS 200 S, TDS 200 SM.

    • Ideal for retrofitting, Installation without process interruption
    • Accurate and reliable
    • No pressure loss
    • Maintenance-free, no moving parts
    • Portable devices for control measurements
    PCE Instruments
    • PCE Instruments
    • TDS 100H

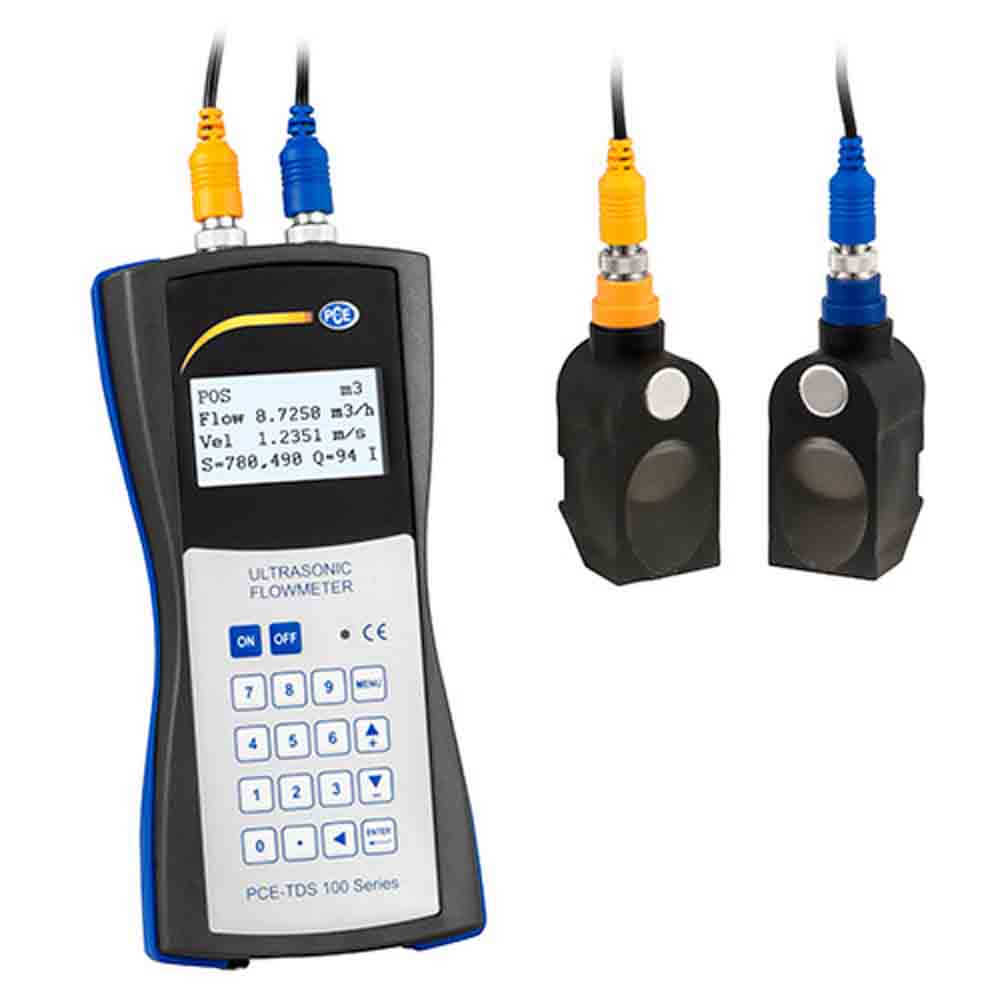

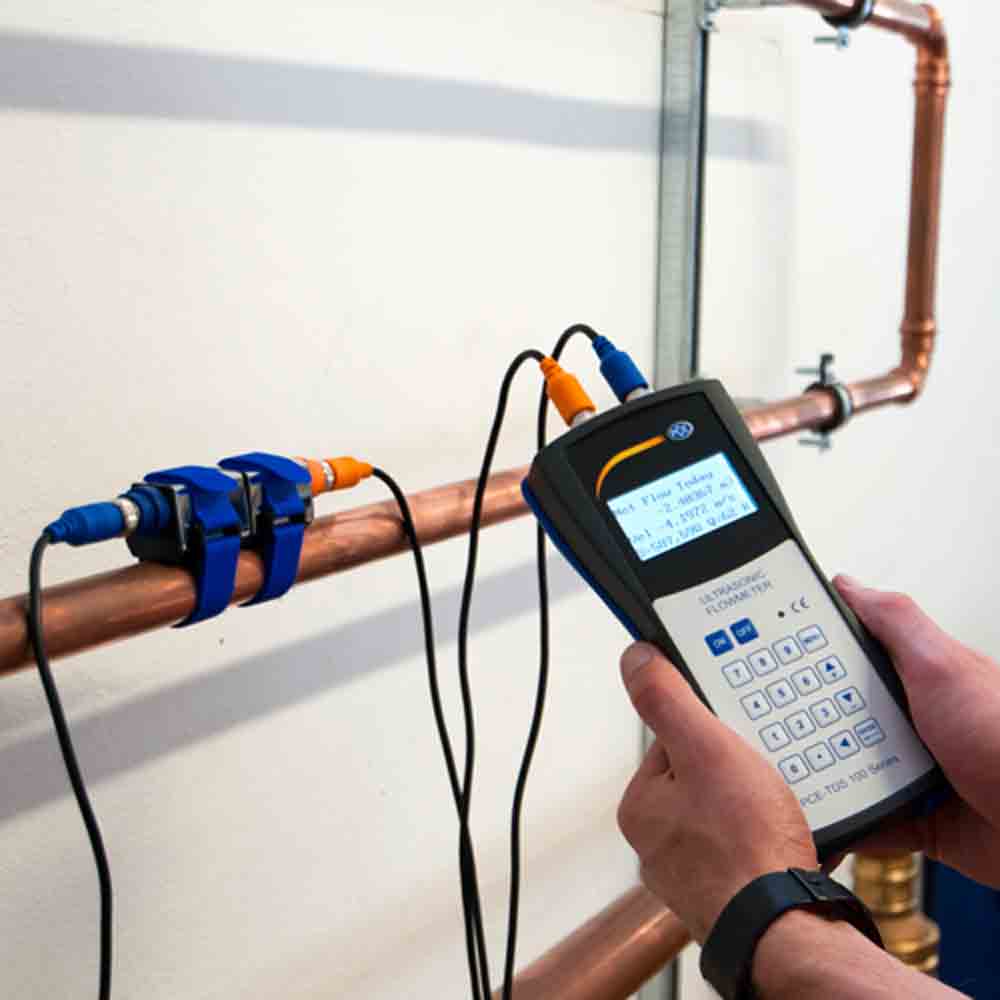

    • This is a portable handheld clamp-on ultrasonic flow meter or HVAC meter used for non-invasive, unobstructed, and highly accurate measurements of the flow velocity of liquids in metal, plastic, and rubber pipes and tubes with a diameter of 57 … 720 mm / approx. 2 … 28 in. Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning, and refrigeration (HVACR) industries, this ultrasonic flow meter features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.
    • Measurable liquids include acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichloroethylene, 1, 1, 1 – trichloroethane, turpentine, distilled water, and seawater.
    • Each PCE-TDS series meter is assembled by PCE Instruments in Germany and factory-calibrated (without any documentation). The reference display of the in-house test stand used by PCE for calibration has a valid DAkkS calibration certificate. This ensures traceability to the Physikalisch-Technische Bundesanstalt (PTB) German national standard. Please note that the meter’s measured values depend on the pipe geometry, material and coating; the medium type, temperature and speed; and the sensor type and measuring method.
    • Ideal for retrofitting
    • Installation without process interruption
    • Easy assembly
    • Accurate and reliable
    • No pressure loss
    • Maintenance-free, no moving parts
    • Wear-free
    • Portable devices for control measurements
    Handheld measuring range-32 … 32 m/s, -105 … 105 ft/s
    Resolution0.0001 m/s, 0.00033 ft/s
    Accuracy for DN ≥ 50 mm:
    for DN < 50 mm:
    ± 1.5% of measured value
    ± 3.5% of measured value
    Reproducibility± 1.0% of measured value
    MediaAll liquids with an impurity <5% and a flow >0.03 m³/h



    Flow unitsCubic meter [m³]
    Liter [l]
    Gallon (USA) [gal]
    Imperial gallon (UK) [igl]
    Million USA gallon [mgl]
    Cubic foot [cf]
    Barrel (USA) [bal]
    Imperial barrel (UK) [ib]
    Oil barrel [ob]
    Time settingsPer day [/d]
    Per hour [/h]
    Per minute [/m]
    And per second [/s]
    Data logger1800 measurements
    InterfaceUSB (for online measurement and reading of the internal memory)
    ProtectionIP 52
    Power supply3 x AA NiMH rechargeable battery / 2100 mAh (at full charge 12h running time)
    100 … 240 V AC 50/60 Hz
    Dimensions214 x 104 x 40 mm / 8.4 x 4.1 x 1.5 in
    Weight450 g / < 1 lb
    Sensor (only PCE-TDS 100 H)Nominal width  DN 50 … 700, 57 … 720 mm / approx. 2 … 28″
    Temperature of liquid-30 … 160°C / -22 … 320°F
    Dimensions50 x 45 x 45 mm / 1.9 x 1.7 x 1.7 in
    Weight260 g / < 1 lb
    • 1 x HVAC Meter PCE-TDS 100H
    • 2 x Sensor TDS-M1 (PCE-TDS 100H)
    • 2 x 5 m / 16.4 ft transducer connection cables
    • 2 x Velcro cable ties
    • 1 x Power adapter
    • 1 x Ultrasound contact gel
    • 1 x PCE tape measure
    • 1 x Plastic case
    • 1 x User manual
