PCE Instruments EMF 823 Single-axis Electromagnetic Field (EMF) Detector 30 Hz to 300 Hz
# EMF 823

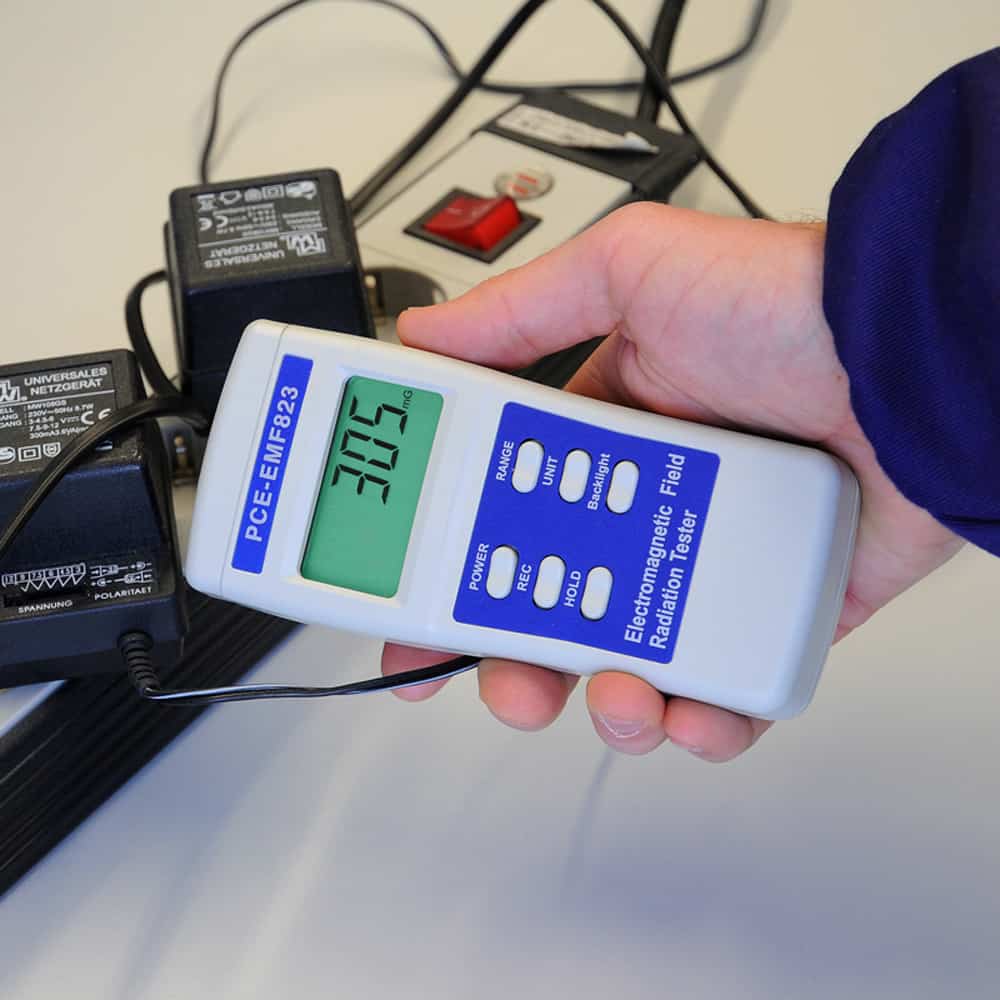

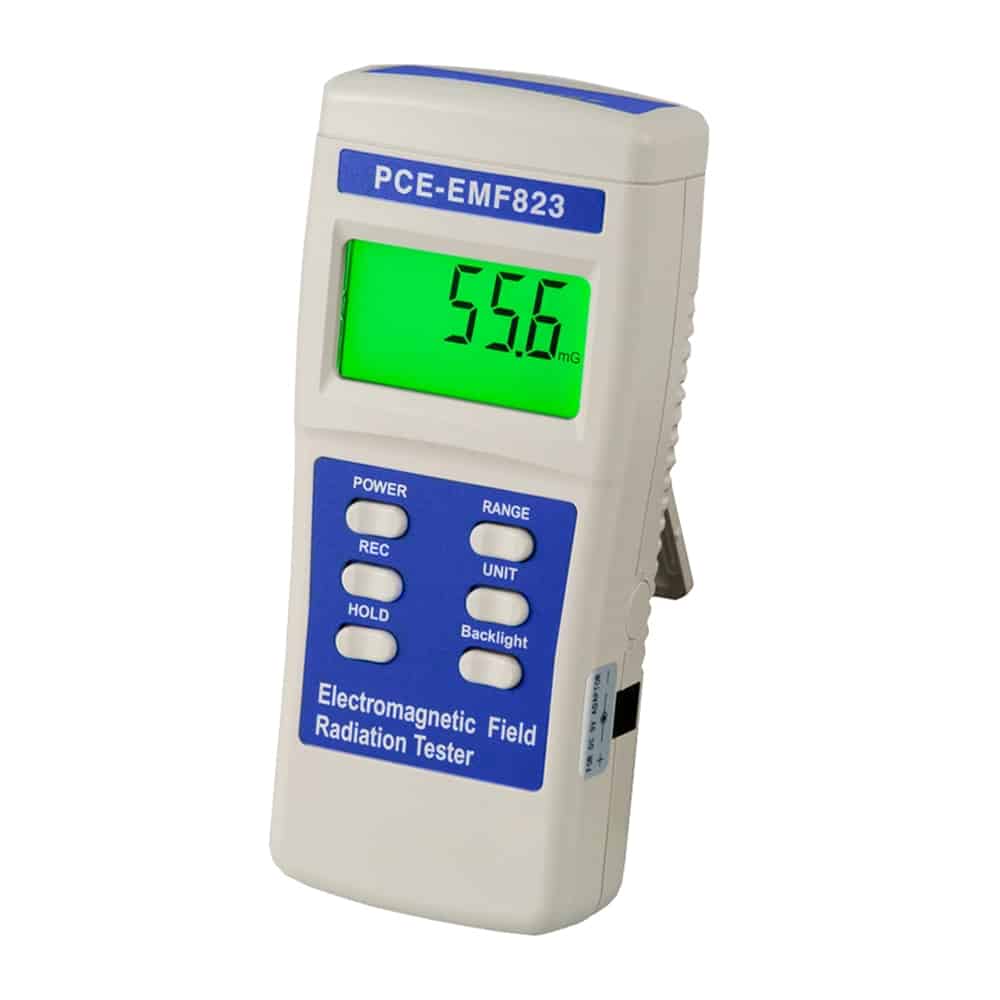

- PCE-EMF 823 is a portable handheld single-axis Gauss meter or electromagnetic radiation detector for measuring electromagnetic fields (EMFs).

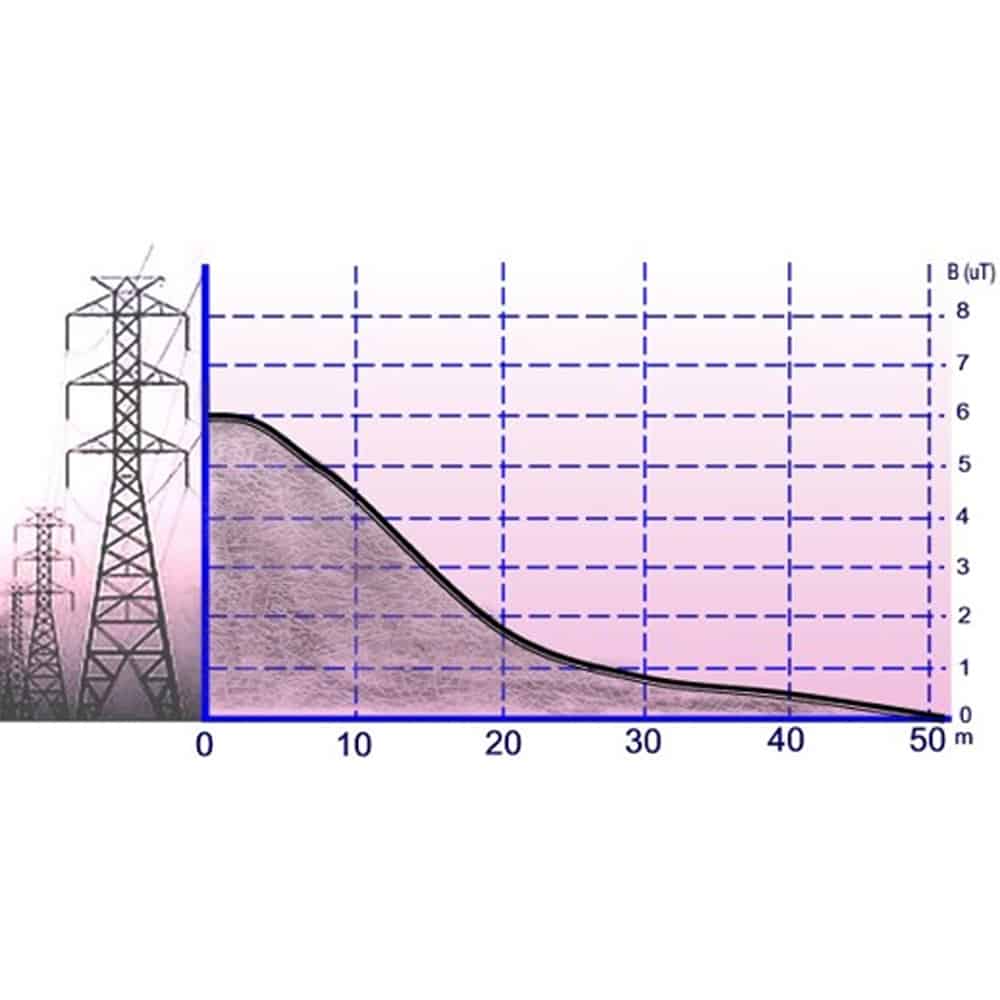

- This user-friendly EMF meter is ideal for assessing risks associated with exposure to electromagnetic radiation emitted from electric power lines, home appliances, and industrial devices.
- Designed and calibrated to measure EMF radiation at different bandwidths, the meter provides a quick, easy and reliable way to measure electromagnetic field radiation levels.
- PCE-EMF 823 is a portable handheld single-axis Gauss meter or electromagnetic radiation detector for measuring electromagnetic fields (EMFs).
- This user-friendly EMF meter is ideal for assessing risks associated with exposure to electromagnetic radiation emitted from electric power lines, home appliances, and industrial devices.
- Designed and calibrated to measure EMF radiation at different bandwidths, the meter provides a quick, easy and reliable way to measure electromagnetic field radiation levels.
- Single-axis
- High accuracy
- LCD with backlight
- Data hold functionality
- Auto or manual power off
- Max. / min. readings with recall
- 2-year warranty against manufacturer defects
- Battery powered (optional electric power adapter sold separately)
- EMF range / resolution: 20 micro Tesla (µT) x 0.01 µT / 200 µT x 0.1 µT / 2000 µT x 1 µT / 200 milli-Gauss (mG) x 0.1 mG / 2000 mG x 1 mG / 20000 mG x 10 mG
- Number of axes: Single-axis
- EMF bandwidth: 30 Hz to 300 Hz
- Sampling time: Approx. 1 second
- Accuracy: ±4 % + 3 digits (up to 20 µT) / ±5 % + 3 digits (up to 200 µT) / ±10 % + 5 digits (up to 2000 µT)
- Display: 48.8 x 25.3 mm / 1.92 x 0.1 in LCD with back-light
- Over-range indication: Display shows “- – – -“
- Operating temperature: 0 … +50°C / +32 … 122°F
- Operating humidity: Max. 80% RH
- Power supply: 1 x 9V DC battery (006P, 6F22)
- Dimensions: 152 x 69 x 36 mm / 5.98 x 2.72 x 1.42 in
- Weight: 215 g / 0.47 lb (including battery)
- 1 x PCE-EMF 823 Magnetometer
- 1 x 9V DC battery
- 1 x User manual
