Milwaukee M18HKP-201C M18 FORCE LOGIC 18V Hydraulic Knockout Punch Kit, 1 x 2.0 Ah Battery Pack + M12-18 C Charger + Kitbox

Features

• FORCE LOGIC hydraulic ram delivers 9,072 kg (20,000 lbs) of force for clean, precise knockout holes in mild steel, aluminium, and stainless steel panels
• AUTO-STOP function automatically stops the ram on completion of a punch cycle, preventing over-travel and protecting the draw stud
• One-touch trigger activation allows single-hand operation
• FORCE LOGIC system enables punching holes up to 2" trade size conduit in mild steel up to 3.3 mm thick
• Self-contained hydraulic design requires no external hose connections for fully portable use
• Kit includes 1 x 2.0 Ah M18 battery, M12-18 C charger, and draw stud in a kitbox

Technical Information

• Voltage 18V
• Hydraulic Force 9,072 kg (20,000 lbs)
• Max Punch Capacity 2" Trade Size (60.3 mm OD) in mild steel ≤3.3 mm
• Battery Included 1 x 2.0 Ah M18 REDLITHIUM
• Draw Stud 1/2"

Items Included

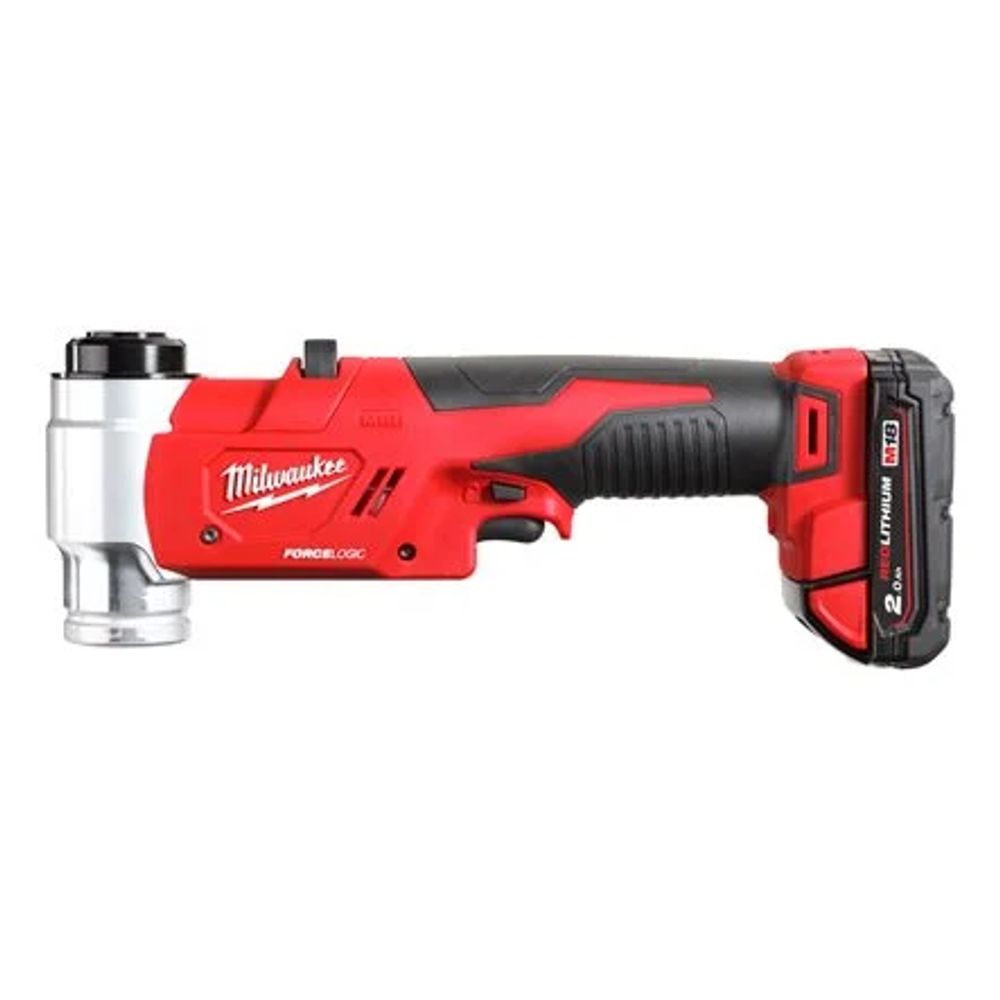

• M18HKP Hydraulic Knockout Punch Unit
• Draw Stud
• 1 x M18B2 2.0 Ah Battery Pack
• M12-18 C Charger
• Kitbox
