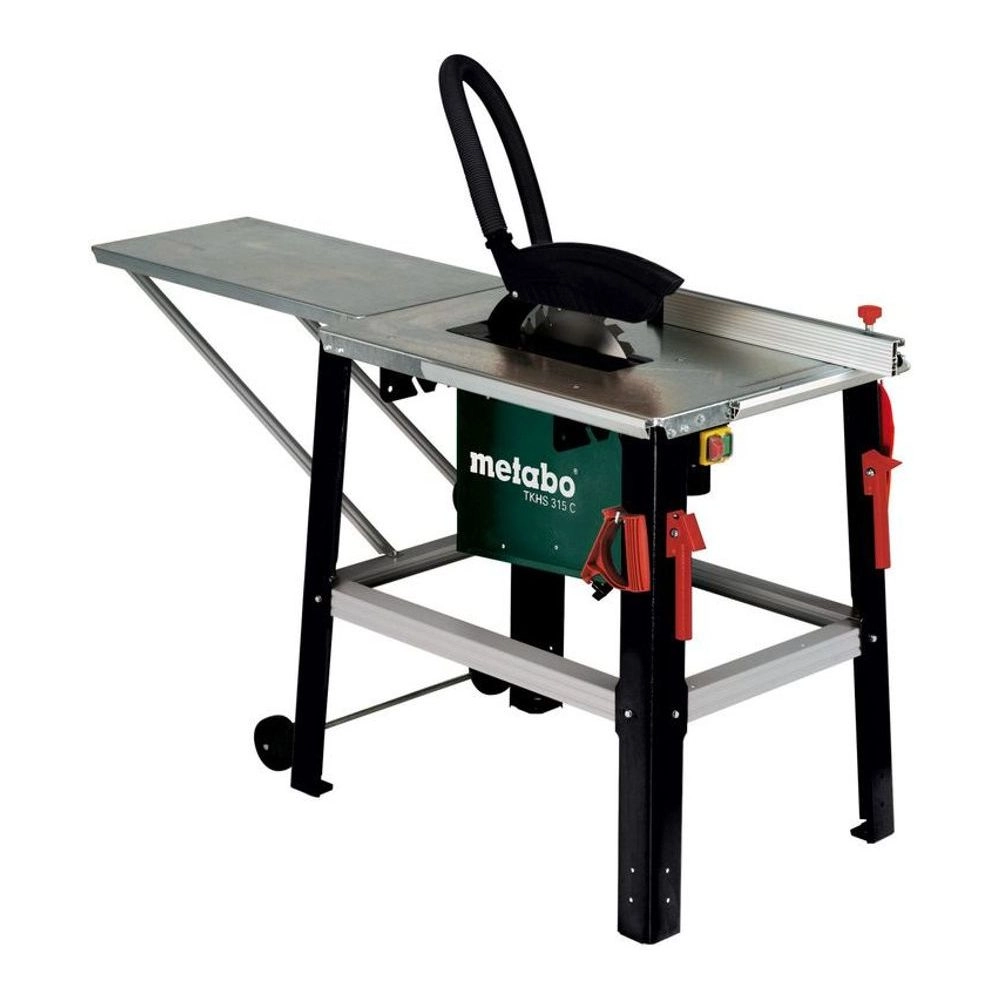

Metabo TKHS 315 C 220V 12" Table Saw - 315mm, 3100W

Features

• Restart protection: prevents unintentional start-up after power supply interruption
• Universal table saw with basic equipment

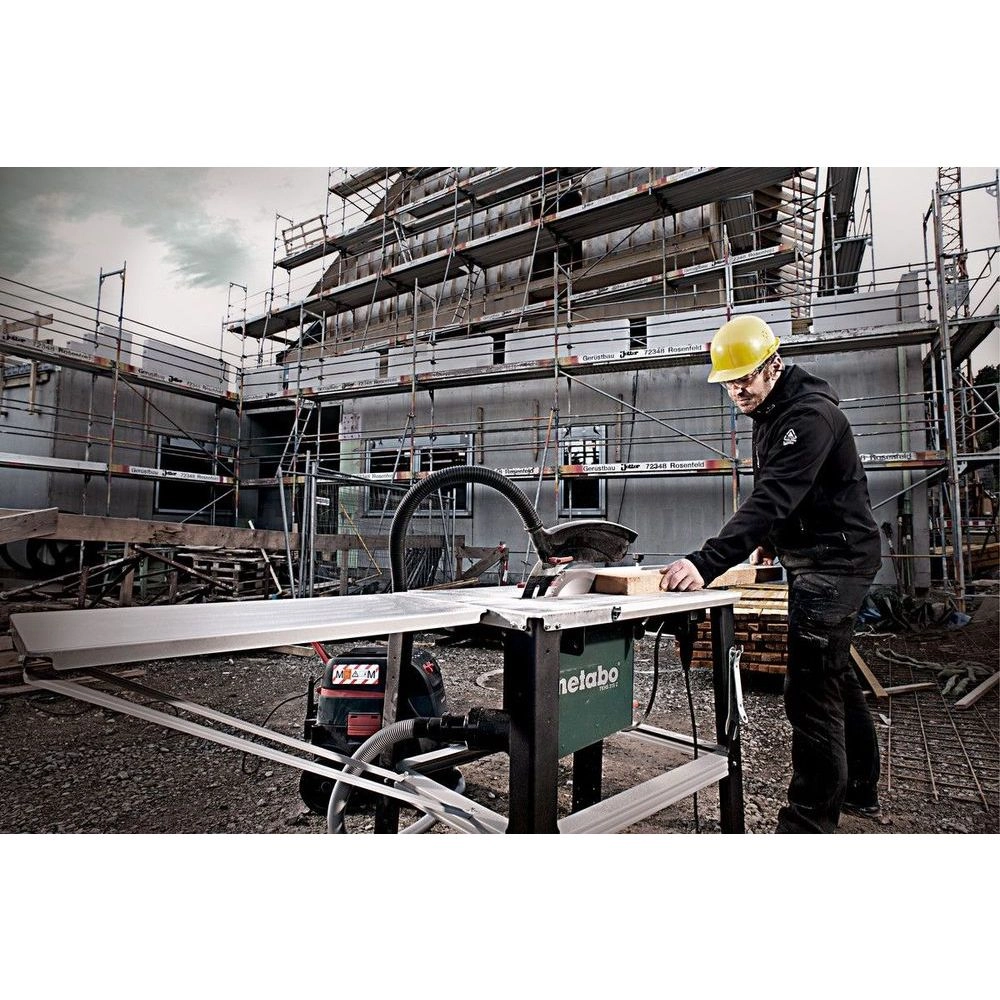

• Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites

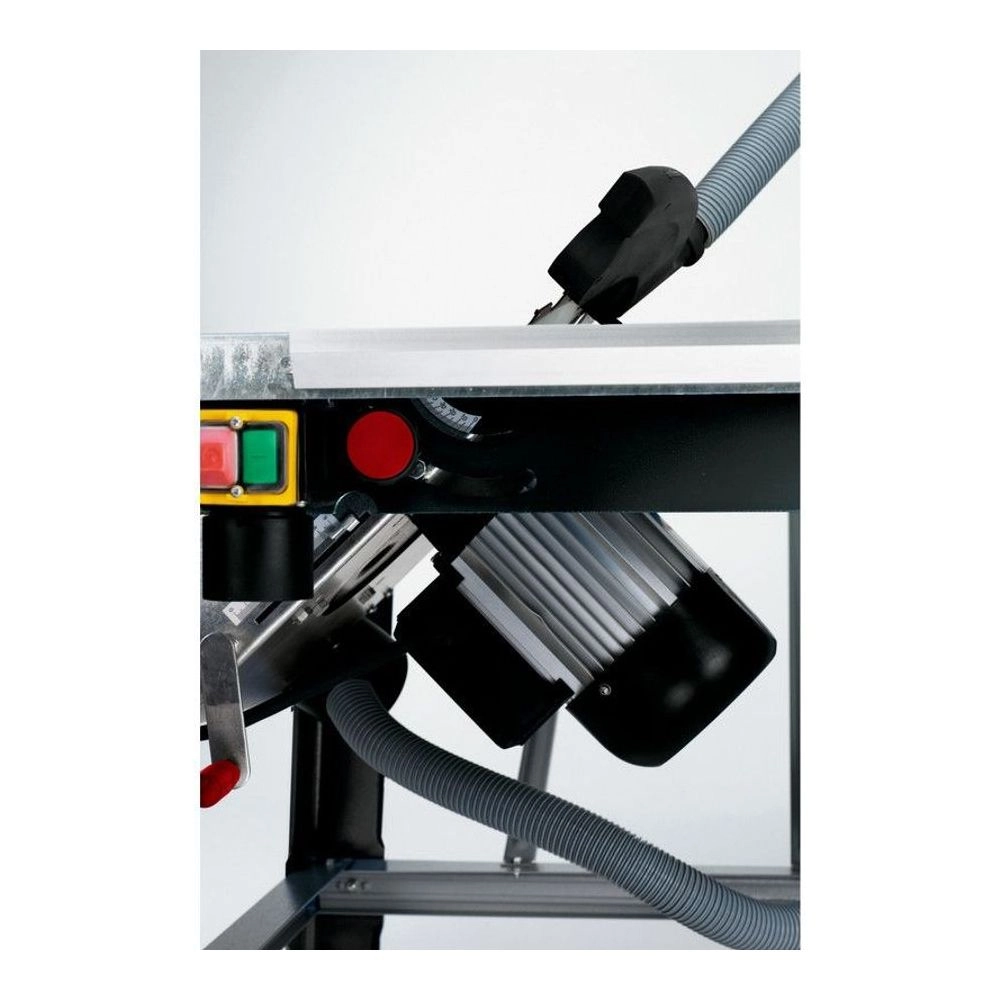

• Quiet induction motor with motor brake and overload protection - maintenance-free and robust.

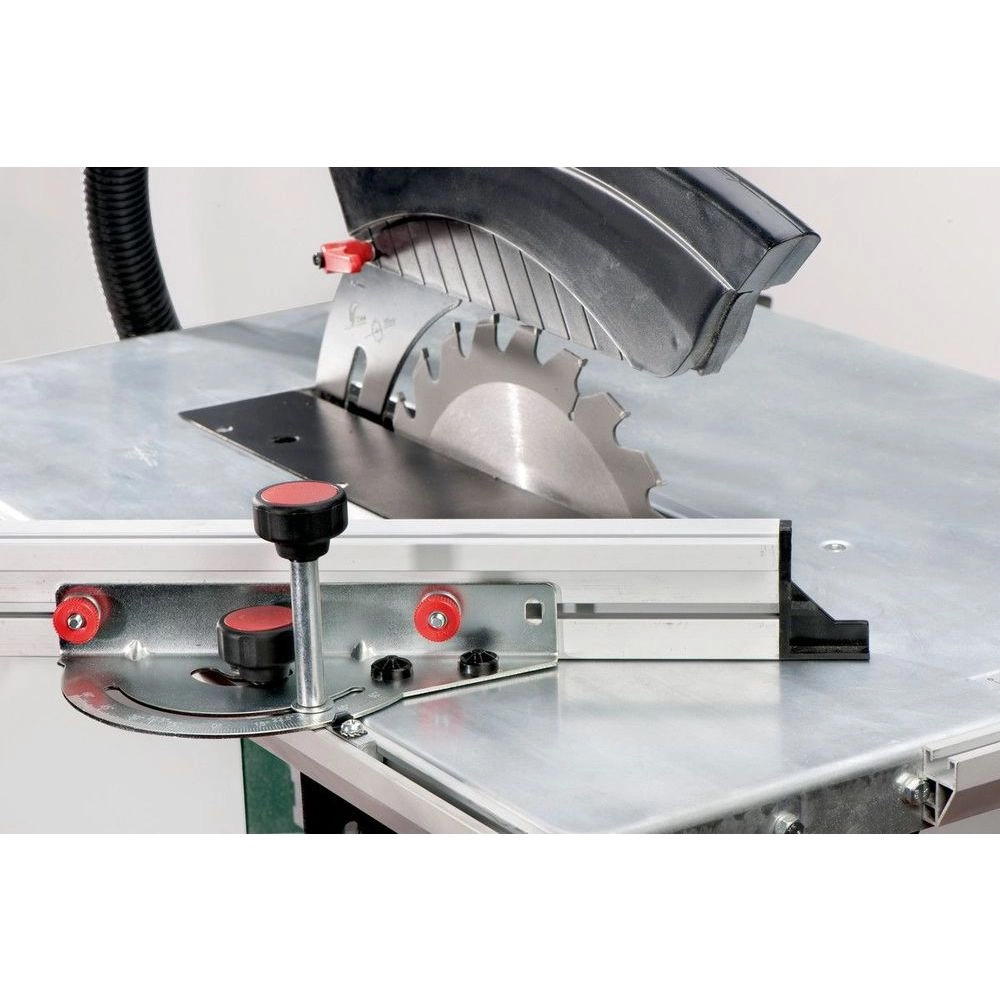

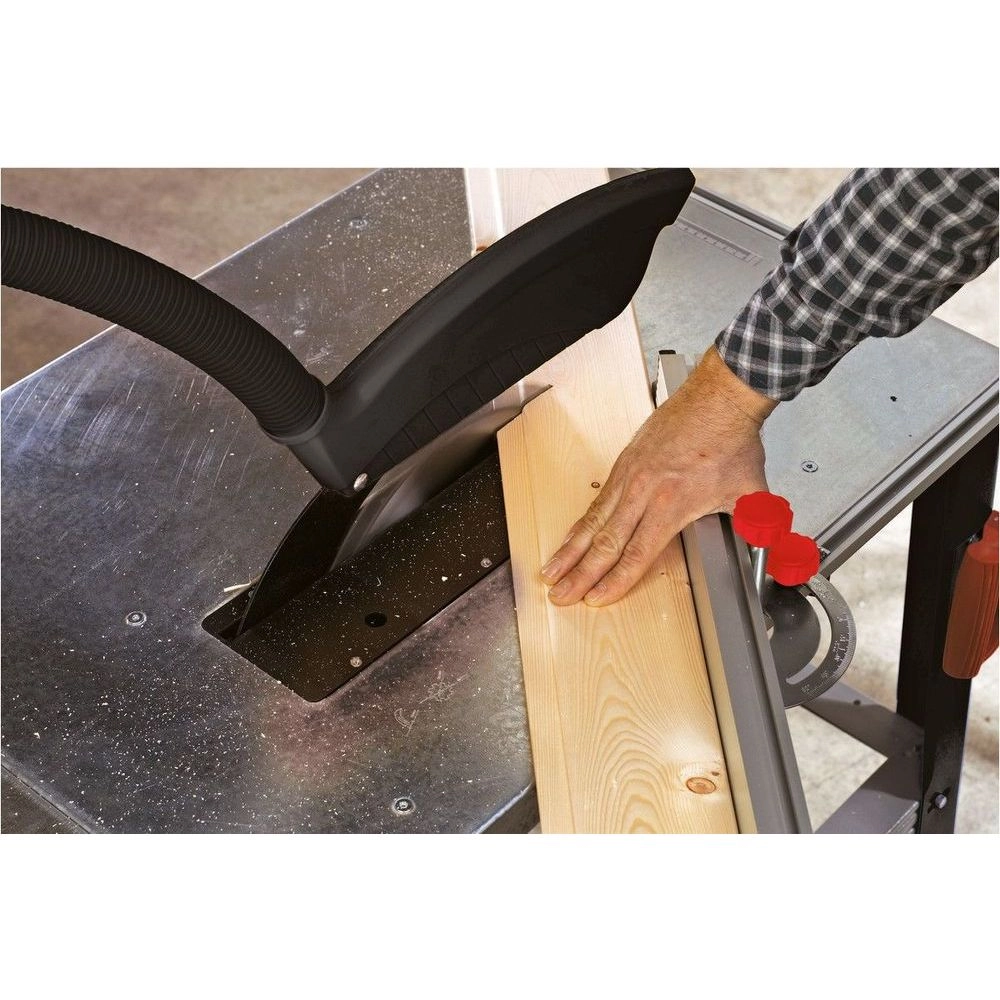

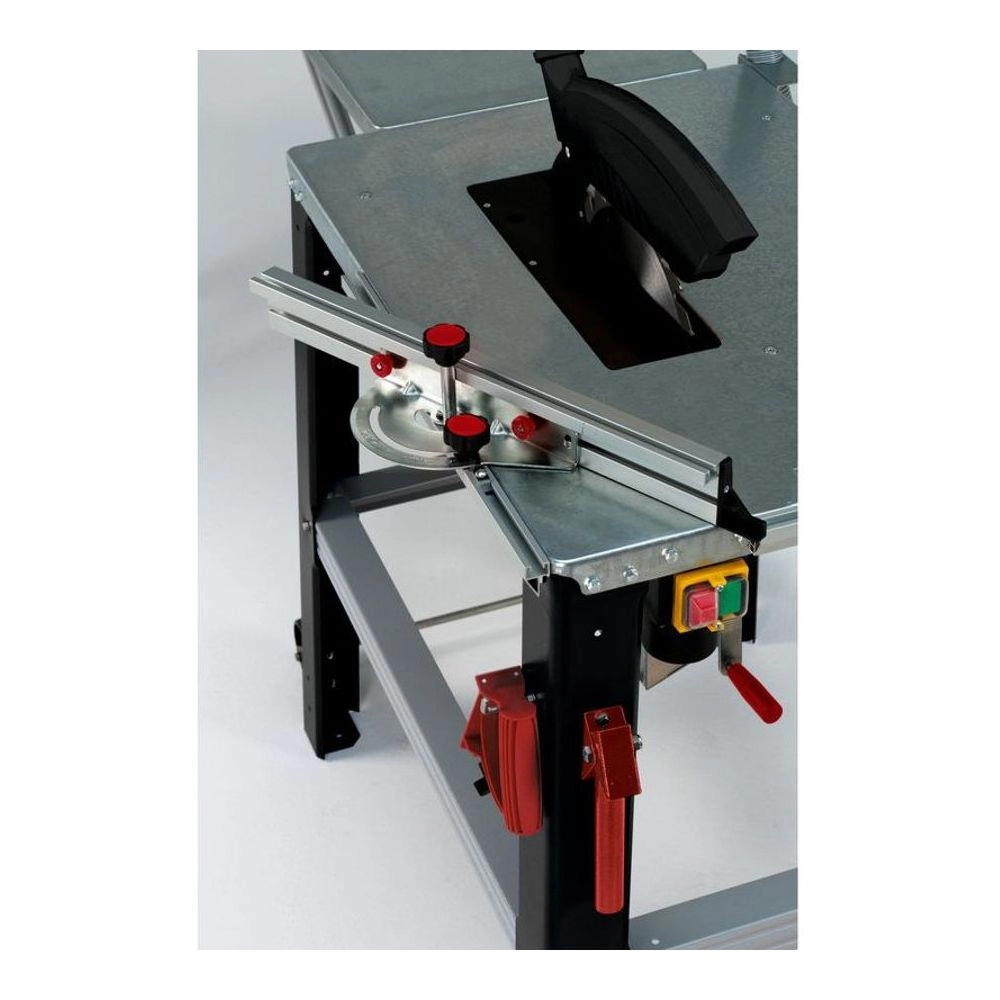

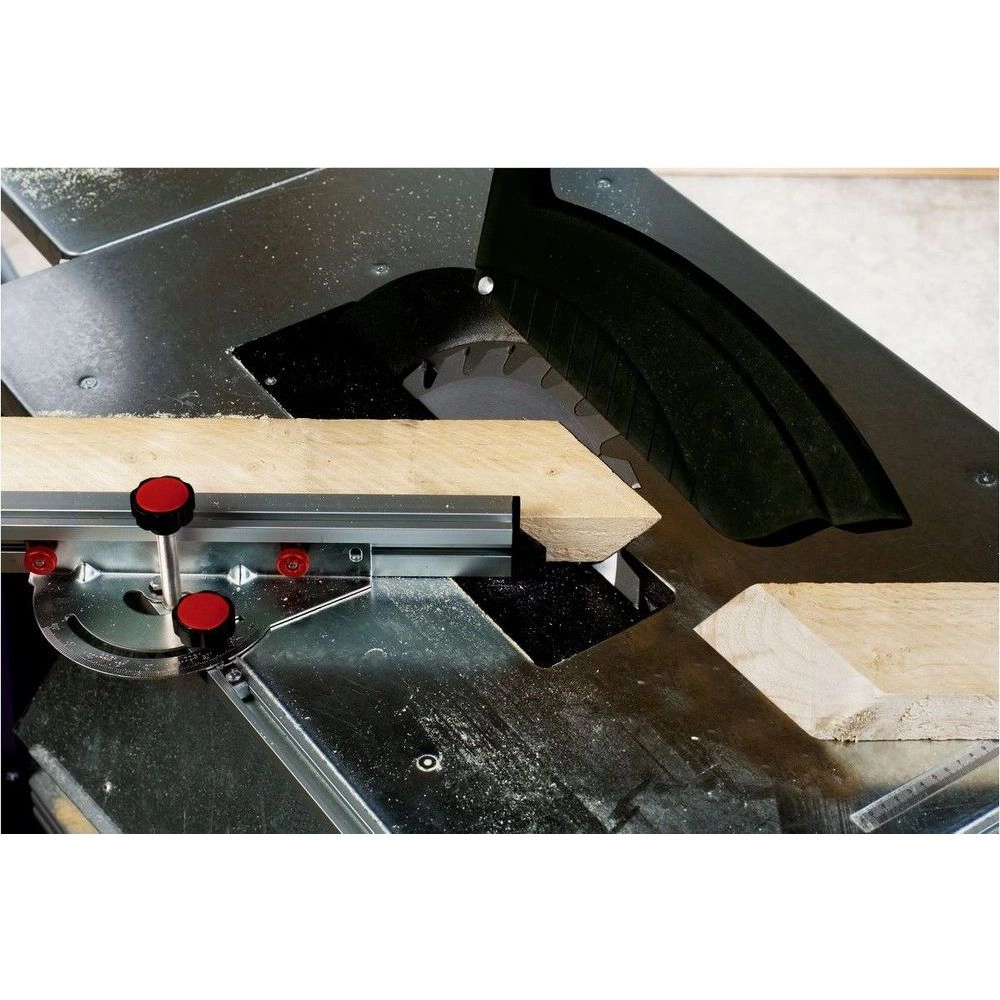

• Universal guide with magnetic guide for precise straight cuts and mitre cuts
• Freely height-adjustable saw blade

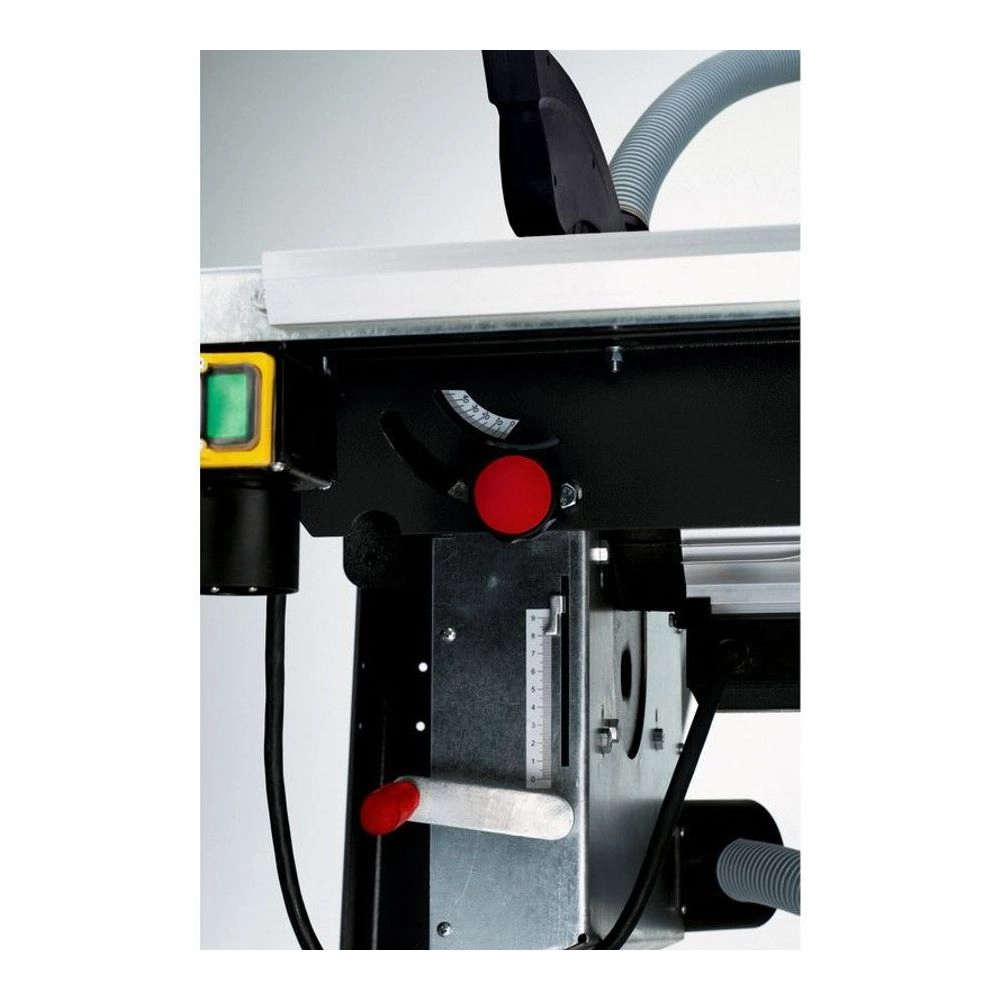

• Comfortable setting of the saw blade inclination from the front
• Sturdy, powder-coated sheet steel design and galvanised table-top
• Foldable table length extension
• Frame and motor pre-mounted

Technical Information

• Saw blade315 x 30 mm (12 3/8 x 1.181")
• Saw blade swivel range0 - 45 °
• Max. support surface800 x 550 mm (31 1/2 x 21 5/8")
• Working height850 mm (33 1/2")
• Cutting height0 - 85 mm (0 - 3 5/16")
• Maximum cutting height 90/45°85 / 60 mm (3 5/16 / 2 3/8")
• Maximum cutting width at rip fence290 mm (11 3/8")
• Maximum material width at mitre fence220 mm (8 5/8")
• No-load speed2950 rpm
• Dimensions1650 x 650 x 1000 mm (5.5 x 2.2 x 3.3 ft)
• Mains voltage220 - 240 V
• Rated input power3100 W
• Weight57 kg / 137 lbs
• Sound pressure level98 dB(A)
• Sound power level (LWA)112 dB(A)
• Uncertainty of measurement K4 dB(A)

Items Included

• Carbide saw blade with alternately bevel-ground tips (24 teeth)
• Table extension (550 x 800 mm)

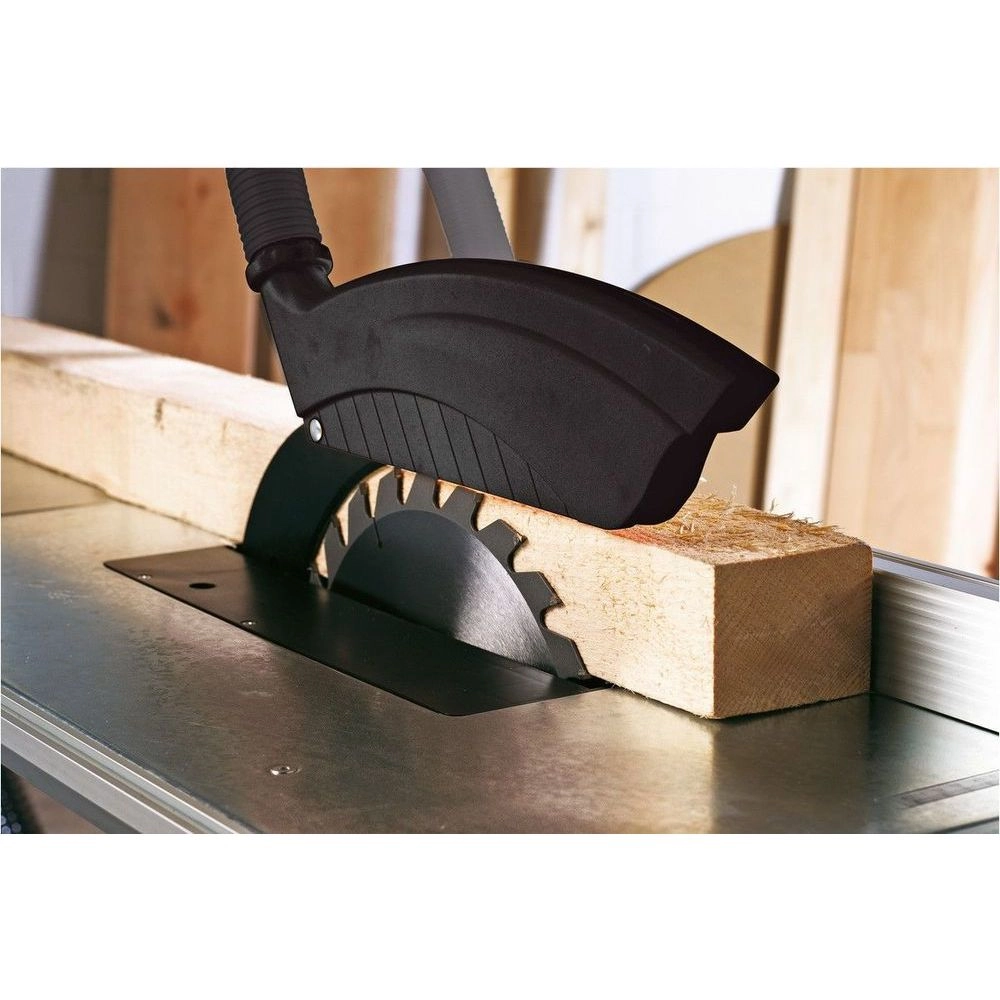

• Chip and Dust Extraction Unit
• Push stick
• Wheel set incl. handles
• Universal guide
