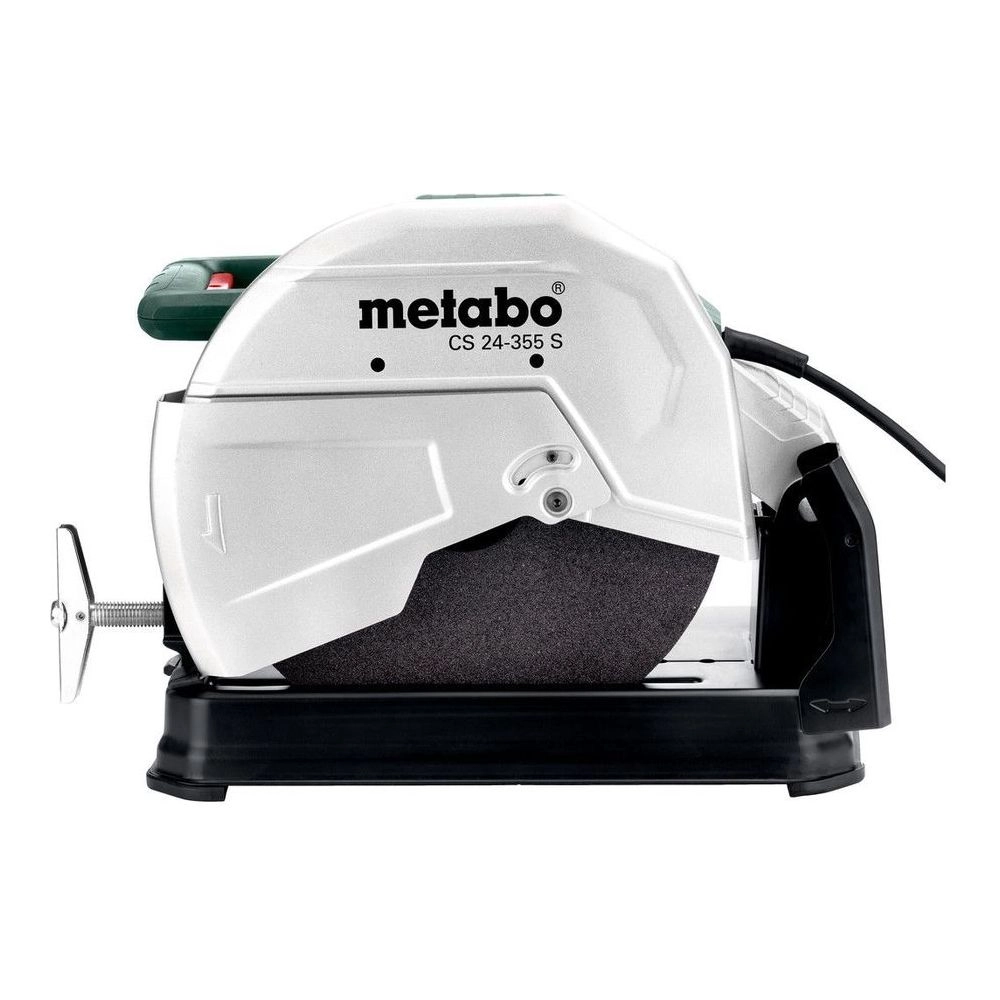

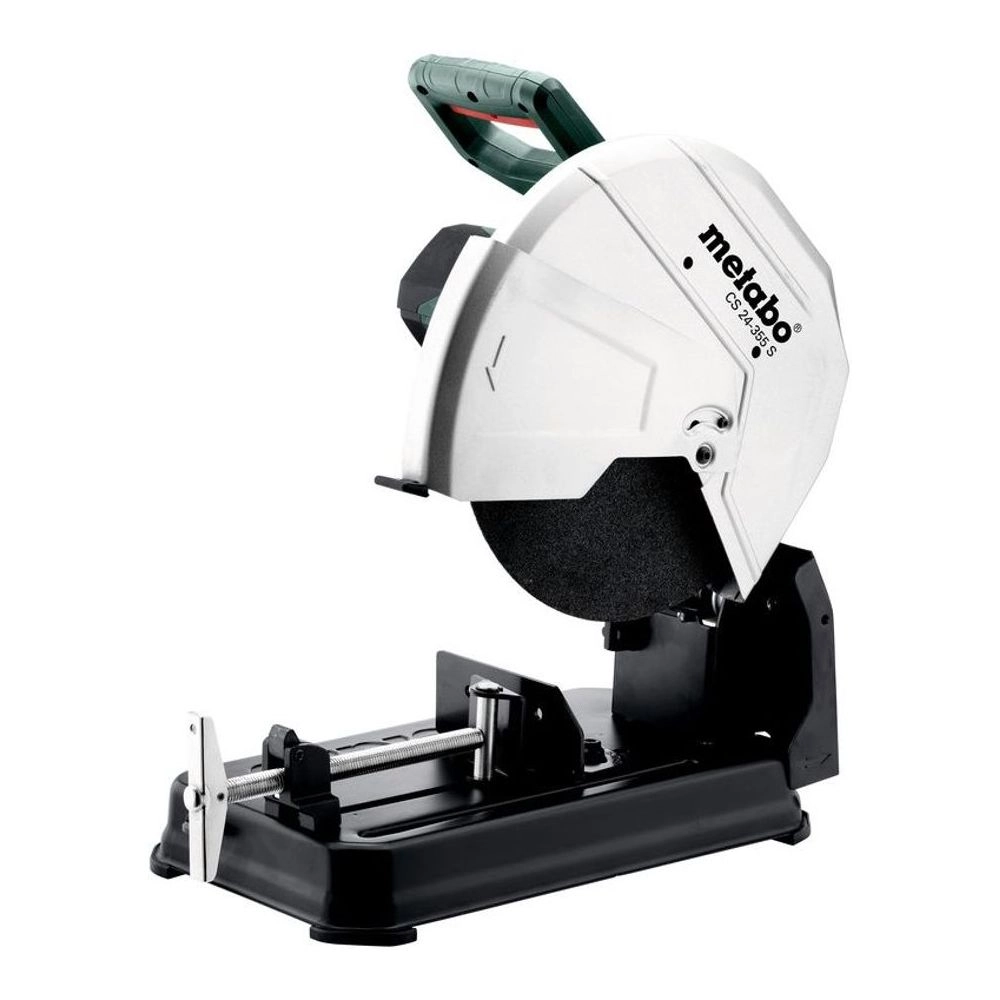

Metabo 601787000 CS 24-355 S 220V 13 In. Metal Chop Saw (355mm), 2400W

Model #   601787000

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Powerful metal chop saw for powerful, fast cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles
  • Quick clamping device with variable mitre setting for angled cuts from -15° to 45°
  • Large handle transversal to the cutting axis for optimum power transmission while cutting
  • Adjustable cutting depth limiter for optimum use of the cutting disc
  • Electronic soft start for smooth start-up and reduced start-up current
  • Easy, fast disc change with spindle lock
  • Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting
  • Safety switch for protection against accidental start up
  • Robust, large machine table with practical storage for hexagonal wrenches
  • Easy to transport due to built-in handle and locking device

Technical Information

  • Power SourceCorded
  • Voltage220V
  • Power Input2400W
  • No-load speed3700 rpm
  • Max. cutting capacity round tube132 mm
  • Transport height394 mm
  • Weight16.8 kg
  • Cable length4 m
  • Max. cutting capacity square tube120 x 120 mm
  • Max. cutting capacity rectangular tube100 x 208 mm
  • Max. cutting capacity L-profile150 x 150 mm
  • Grinding wheels (Ø x bore)355 x 25.4 mm (13 31/32 x 1")
  • Dimensions of the base plate456 x 256 mm

Items Included

  • Hexagonal wrench
  • Cutting disc 355 mm
  • Inner support flange
  • Flange nut
