Metabo 601615840 1.6mm Cordless Metal Shear (Bare Unit)

Model #   601615840

?

Question about this product?

Speak to an expert

Learn how to use

Features

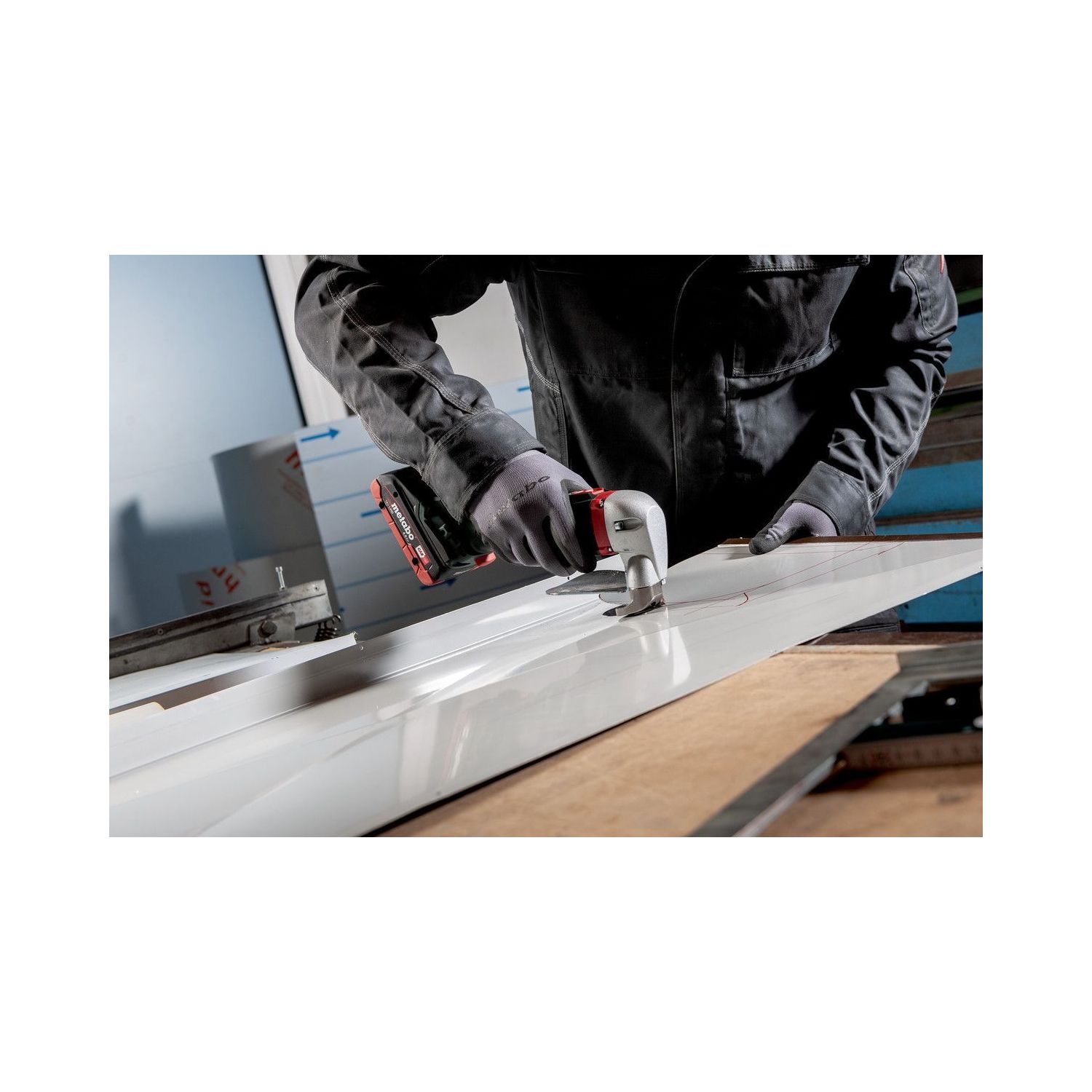

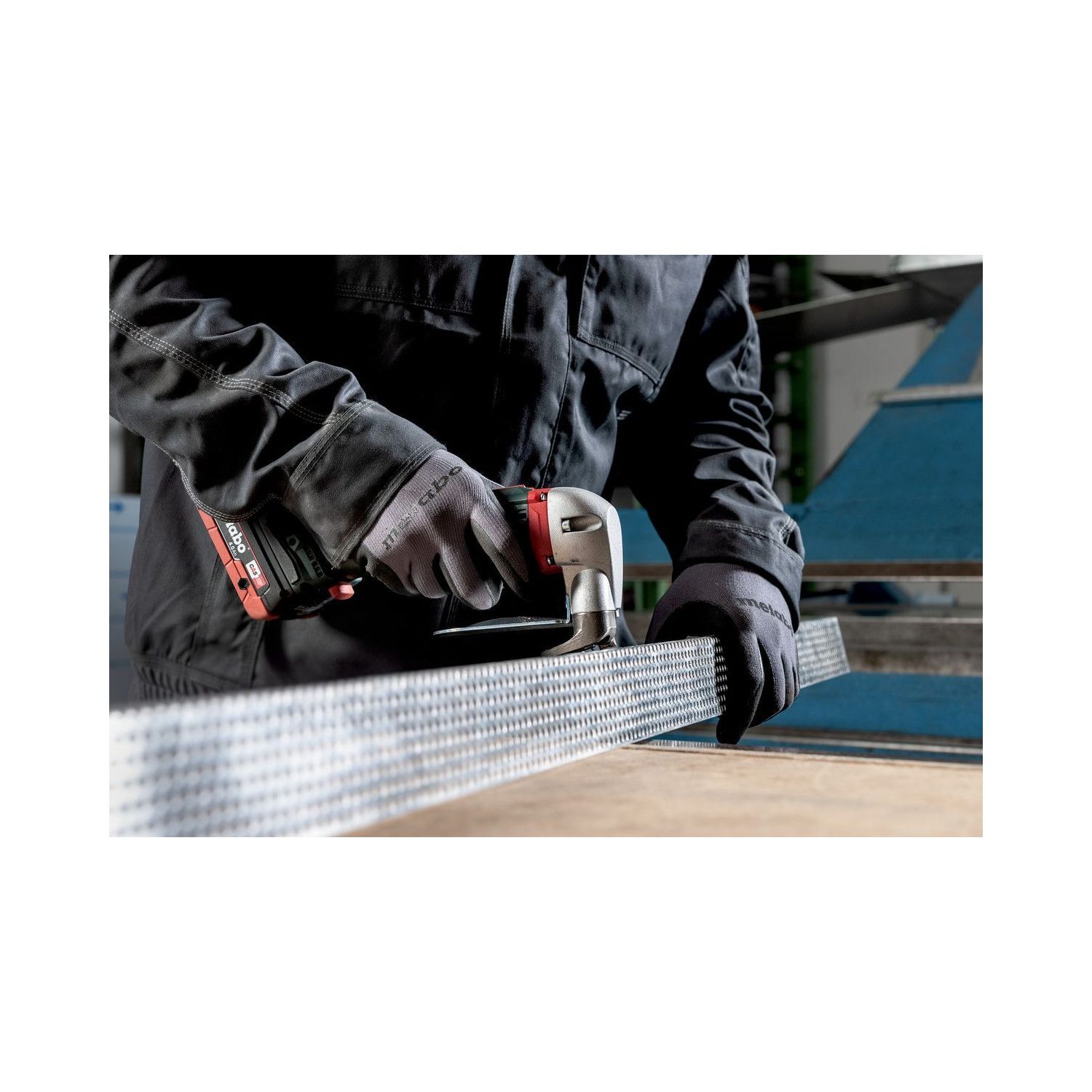

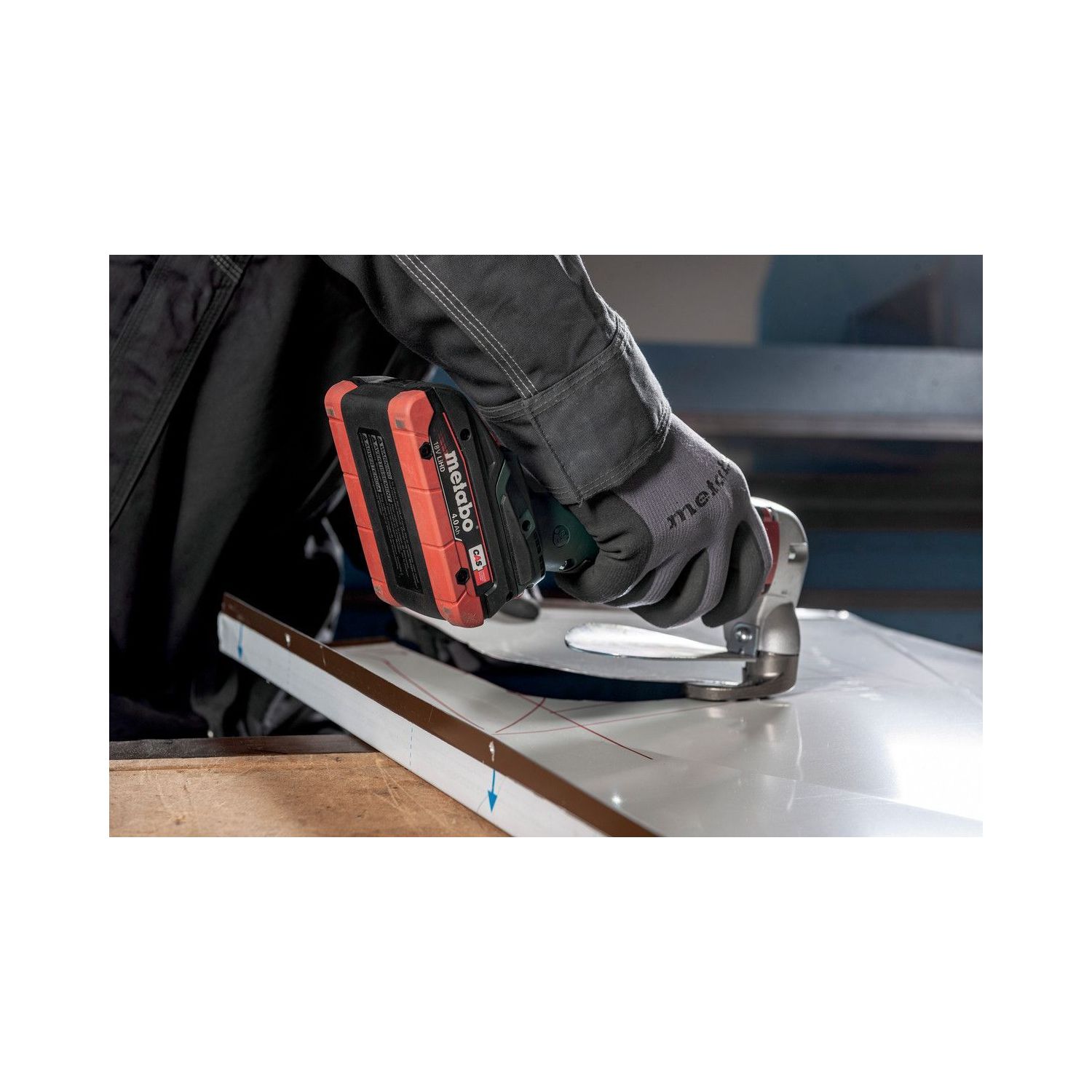

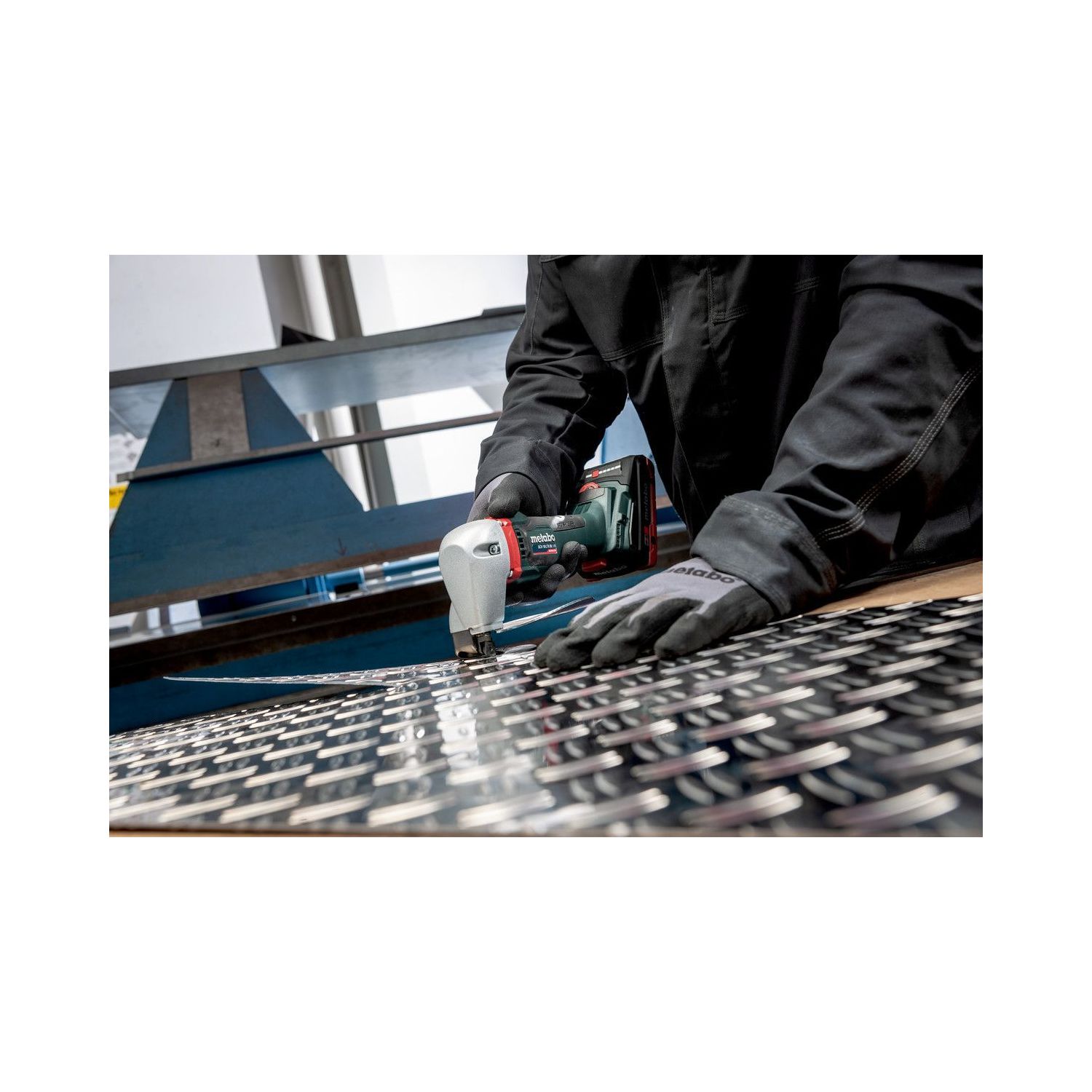

  • Very handy and manoeuvrable cordless sheet-metal shears for burr-free cutting of sheet metal on site
  • Maximum cornering ability, for comfortable cutting of narrow radii from 15 mm
  • Faster working, thanks to the efficient brushless motor
  • Infinitely adjustable cutting speed for individual customisation to the given material and task at hand
  • Comfortable handling thanks to low weight, slim grip area and switch located on the top
  • Blade spacing can be flexibly adjusted to different sheet thicknesses
  • Economical four-way reversible blade, with the highest cut quality
  • Maximum safety in every cutting direction, thanks to large hand guard
  • Electronic overload protection for long service life
  • With metaBOX, the intelligent solution for transport and storage
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Technical Information

  • Battery voltage 18 V
  • Max. sheet thickness for steel (400 N/mm²) 1.6 mm / 0.0629 "
  • Max. sheet thickness for steel (600 N/mm2) 1.2 mm / 0.0472 "
  • Max. sheet thickness for steel (800 N/mm2) 0.7 mm / 0.0275 "
  • Max. sheet thickness for aluminium (250 N/mm2) 2 mm / 0.0787 "
  • Strokes in idle 1350 - 4840 rpm
  • Cutting speed 7 m/min // 275 inch/min
  • Starting hole diameter 27 mm / 1.0629 "
  • Smallest curve radius15 mm / 0.5905 "
  • Weight without battery pack 1.4 kg / 3.1 lbs
  • Weight with battery pack 1.8 kg / 4 lbs

Items Included

  • 2 reversible blades
  • metaBOX 145
  • without battery pack, without charger
  • Feeler gauge
  • 2 Hexagonal wrenches
