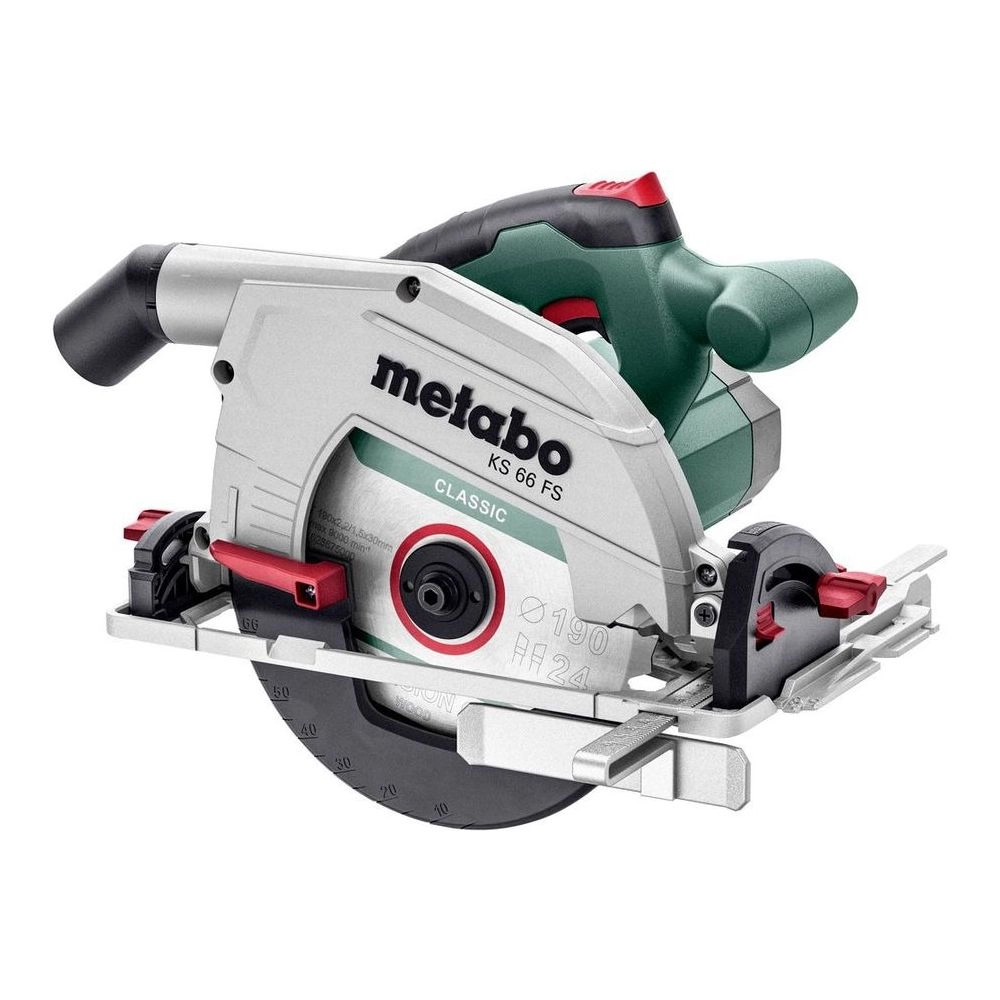

Metabo 601066000 KS 66 FS 220V 7.5 In. Circular Saw (190mm), 1500W

Model #   601066000

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Robust circular saw, can be used directly on guide rails from Metabo and also Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
  • Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
  • Light guide plate made from die cast aluminium
  • Grip area with non-slip soft-grip surface
  • Clearly visible cutting indicator for precise sawing after initial cut
  • 0° position re-adjustable for highest cutting precision
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Sawdust ejection nozzle for any working position can be rotated and locked individually
  • Precision guide rail available as accessory

Technical Information

  • Power SourceCorded
  • Voltage220V
  • Saw blade Ø x bore190 x 30 mm (7 1/2 x 1 3/16")
  • Rated input power1500W
  • Output power840W
  • Maximum cutting depth at 90°66 mm
  • Maximum cutting depth at 45°47 mm
  • Max. cutting depth with guide rail61 mm
  • Swivel range from / to‌ 0 / +47 °
  • No-load speed5000 rpm
  • Speed at rated load3800 rpm
  • Max. cutting speed50 m/s
  • Weight (without power cable)4.9 kg
  • Cable length4 m
  • Sound pressure level95 dB(A)
  • Sound power level (LwA)106 dB(A)
  • Uncertainty of measurement K3 dB(A)

Items Included

  • Carbide circular saw blade (24 teeth)
  • Parallel guide
  • Hexagonal wrench
