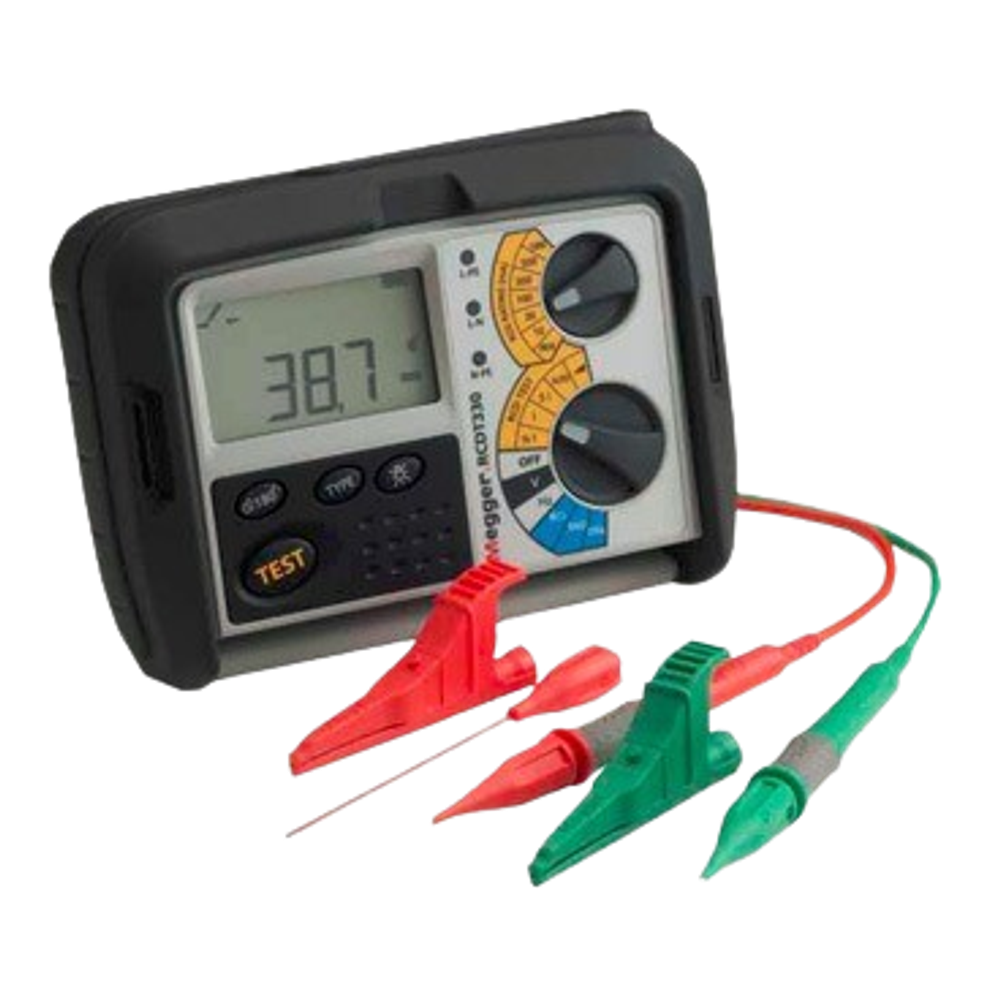

Megger RCDT330-EN-BS Residual Current Device Tester 50 - 280 V Single Phase with Backlight & Storage/Download

Features

• Tests standard, Type A, selective, and programmable RCDs
• Ramp testing
• Auto (Remote) testing
• 3 Phase safe Enables testing on 110 V centre tapped supplies
• Tough rubber armoured case with built-in cover
• Weatherproof to IP54
• USB interface for downloading test result
• The RCDT330 adds the ability to test Programmable RCDs to the test options available, covering the range from 10 mA to 1000 mA, with step increments starting at 1 mA
• The RCDT330 additionally offers the facility to save test results to internal memory
• Over 1000 result can be saved on site, and downloaded to a computer when convenient
• Data is stored in non-volatile memory, being retained when the instrument is switched off or batteries are exhausted

Technical Information

• No Trip Test (1/2I) –8% to –2%
• Trip Test (I, 5I) +2% to +8%
• Trip Time ±1% ±1ms
• Range ac 0 V - 300 V 25 Hz to 450 Hz
• Accuracy ±2% ±2 digits
• Range 25 Hz to 450 Hz
• Accuracy 25.0 Hz to 199.9 Hz ±0.1 Hz, 200 Hz to 450 Hz ±1 Hz
• Displayed range 0 V to 50 V
• Error +5%/+15% ±0.5 V
• Operating Range -5°C to +40°C
• Operating Humidity 93% R.H. at +40°C max
• Storage Range -25°C to +70°C
• Maximum altitude 2000m
• Environmental Protection IP54
• Communications USB interface
• Safety Meets the requirements of IEC61010-1 Cat III 300 V phase to earth

Items Included

• Mains plug test lead (BS1363)
• 2-wire test lead with prods and clips

Downloads

DatasheetUser Manual-en
