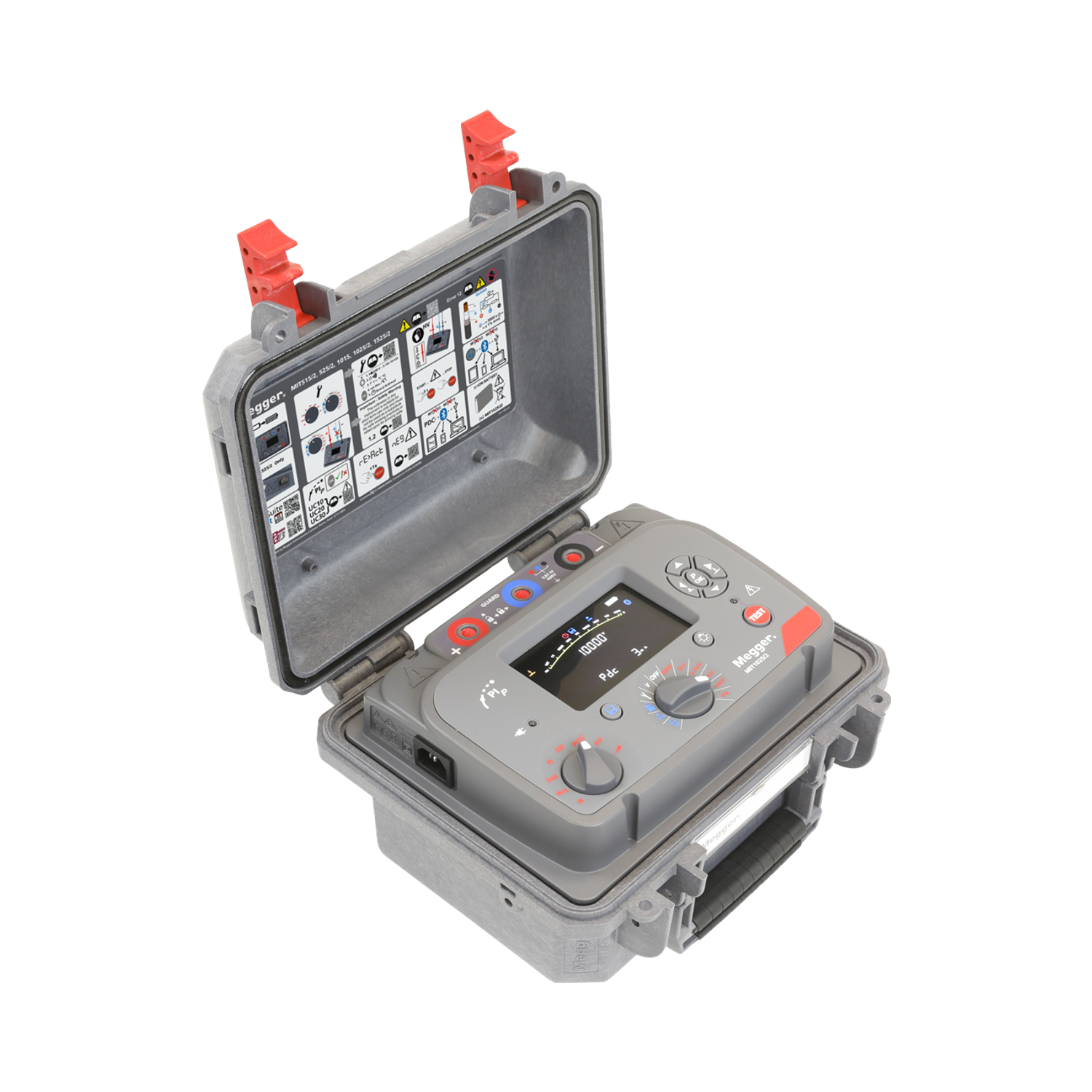

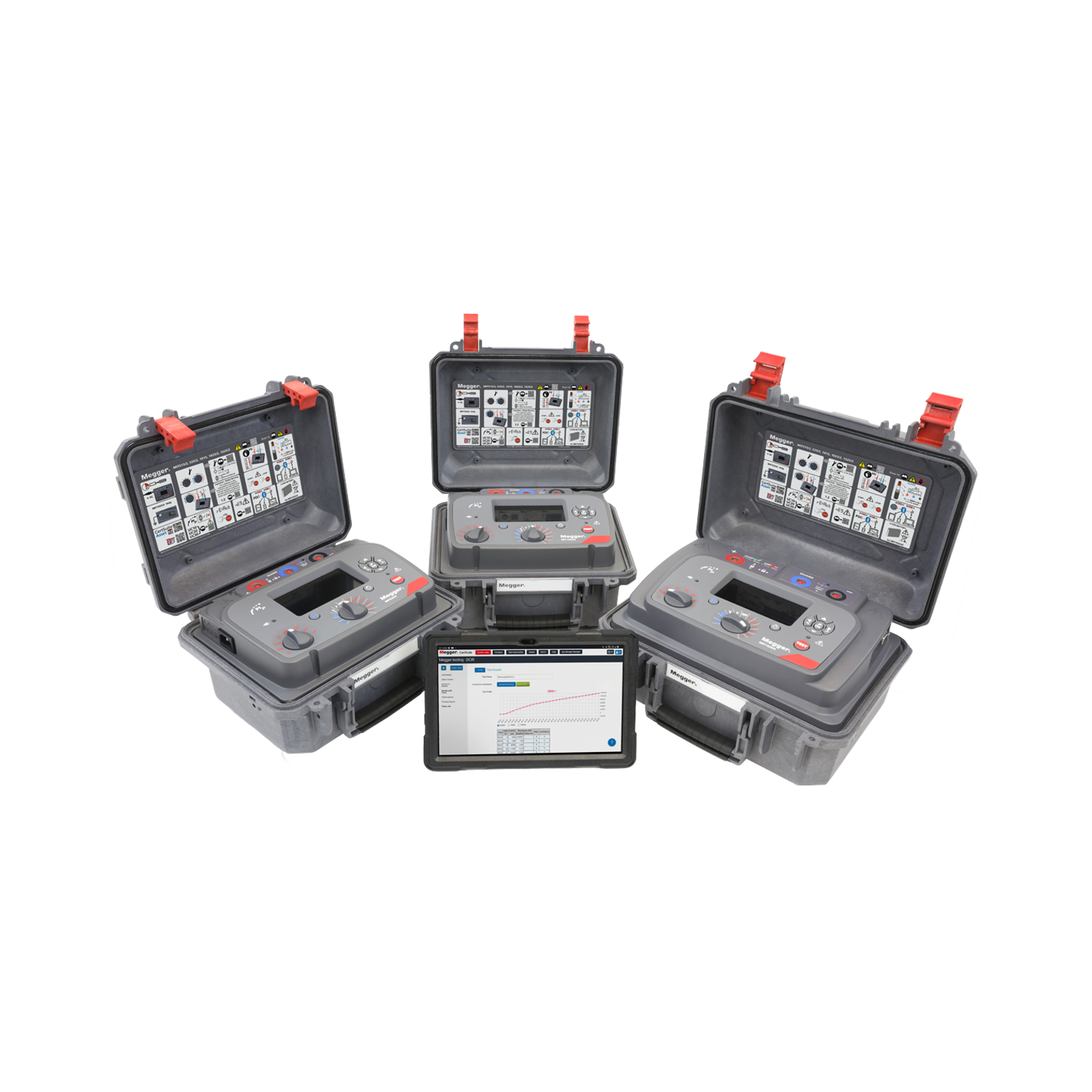

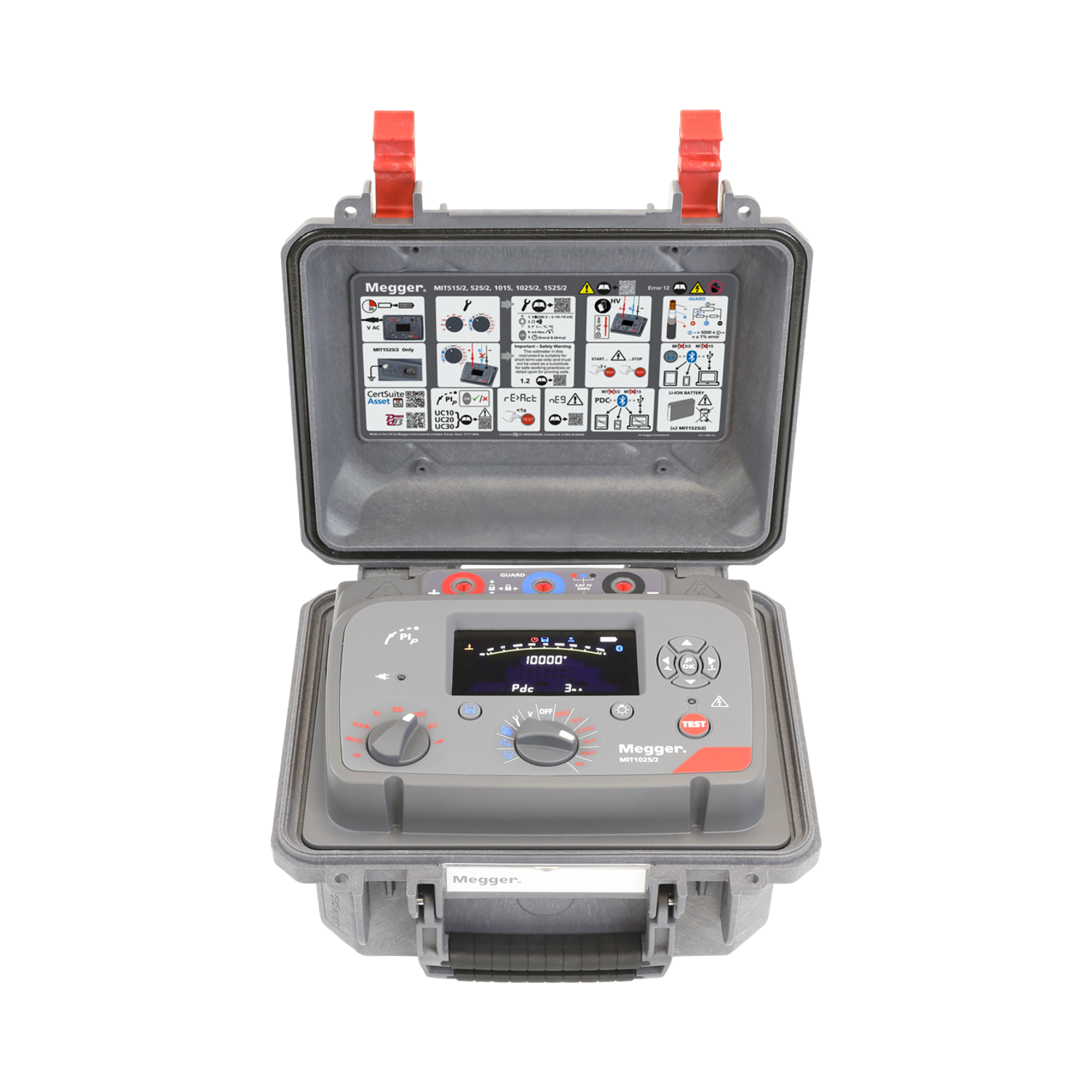

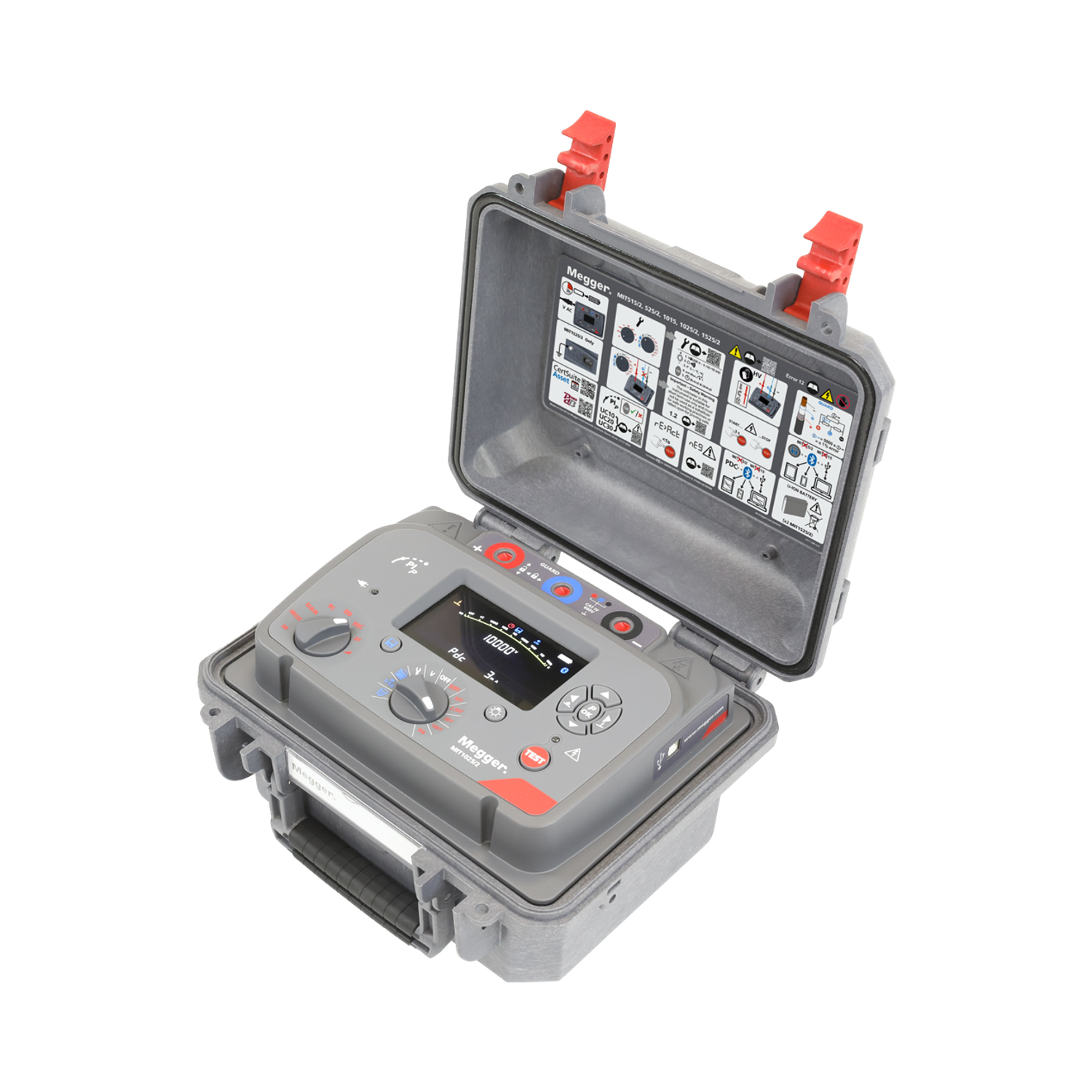

Megger MIT525/2-UK 5KV Advacned Insulation Resistance Testers, 2024 PIP (1016-084)

Features

• RE>Act mode for enhanced accuracy and safety
• PIp (PI predictor function) for faster polarization index estimation
• Built-in PDC testing capability
• Measures insulation resistance up to 30 TΩ
• Safety rated CAT IV up to 1000 V and 3000 m
• High noise rejection up to 6 mA for stable readings
• Dual-case design for improved user protection
• Flexible operation via battery or AC mains
• Rapid-charge Li-ion battery for minimal downtime
• Advanced memory with time and date stamping
• Compatible with CertSuite Asset management software

Technical Information

• AC voltage (auto-ranging) 90-264 V rms, 47- 63 Hz 100 VA
• Battery life 6 hours (typical) continuous testing at 5 kV with a 100 MΩ load
• Test voltage 250 V, 500 V, 1000 V, 2500 V, 5000 V, User defined test voltage
• User defined test voltage 40 V to 1 kV in 10 V steps
• Safety CAT IV 600 V to 3000 m altitude
• Max. voltages available 5 kV, 10 kV or 15 kV
• Default maximum current 3 mA
• User selectable max. current values 1 mA, 3 mA, 6 mA (6 mA only from mains supply)
• Max. noise current with measurement within accuracy spec 6 mA (HV <230 kV)
• CAT IV 1000 V 15 kV
• RE>Act mode Yes
• PI Predictor Yes
• PDC test Yes
• Negative current handling Yes
• Hazardous peak voltage detection during IR measurement Yes
• Test results transfer via wireless Bluetooth LE Yes
• Test result live streaming via wireless Bluetooth LE Yes
• New custom colour display Yes
• Carry all holdall Yes
• Deeper lid pouch Yes
• Part Numebr 1016-084

Items Included

• Quick Start label
• Power lead
• Screened USB cable with filters
• Lead set 3kV 3 x 3 m, with medium clips
