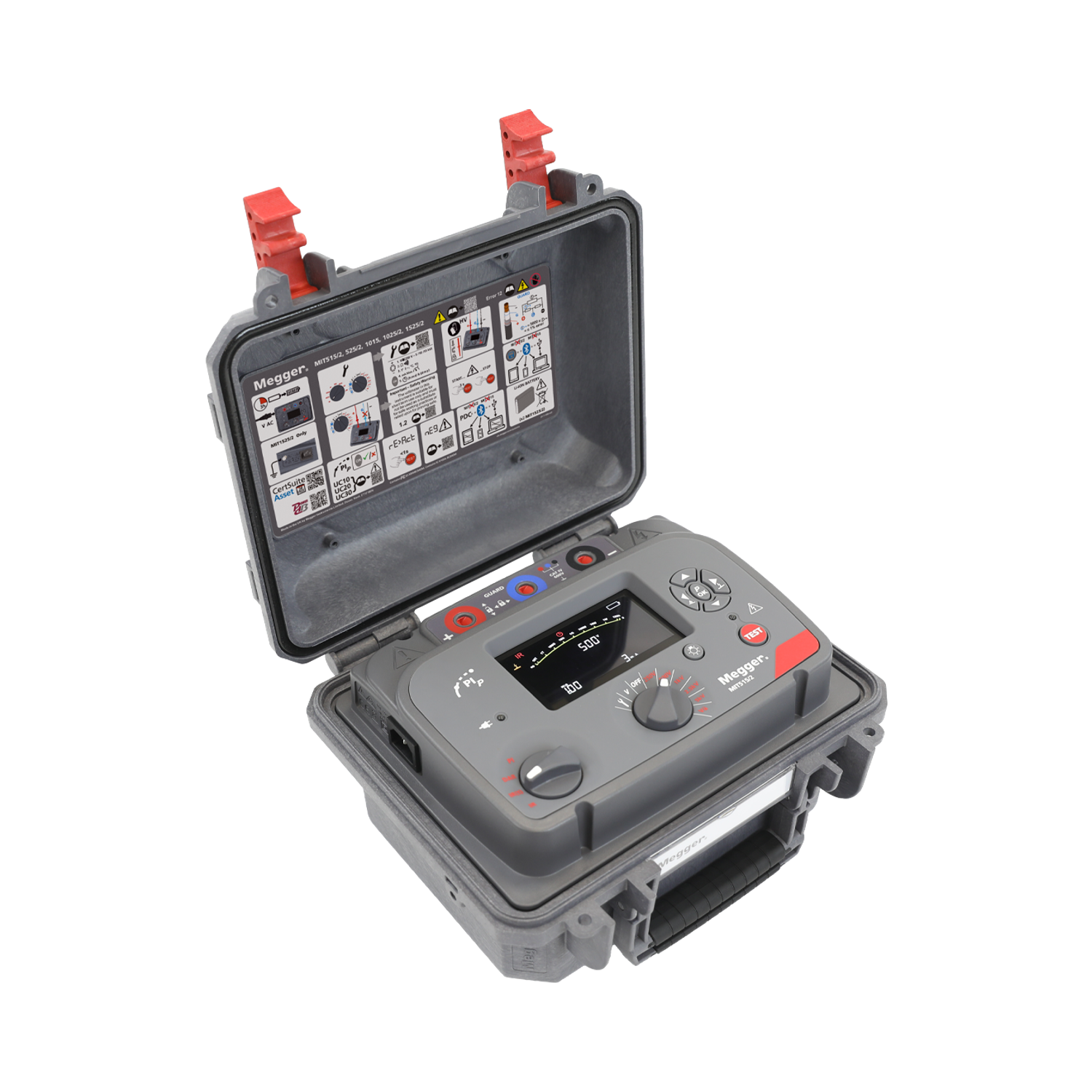

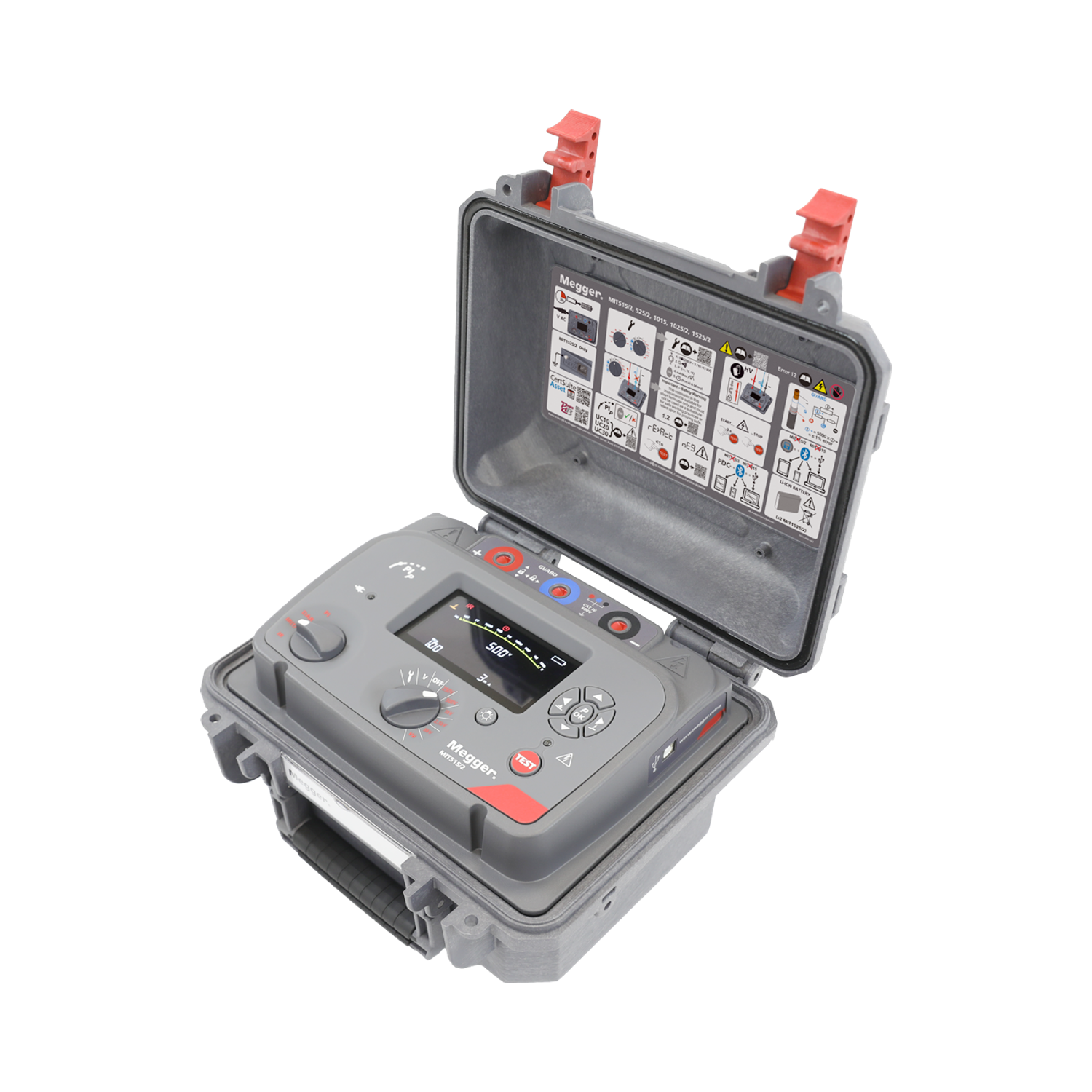

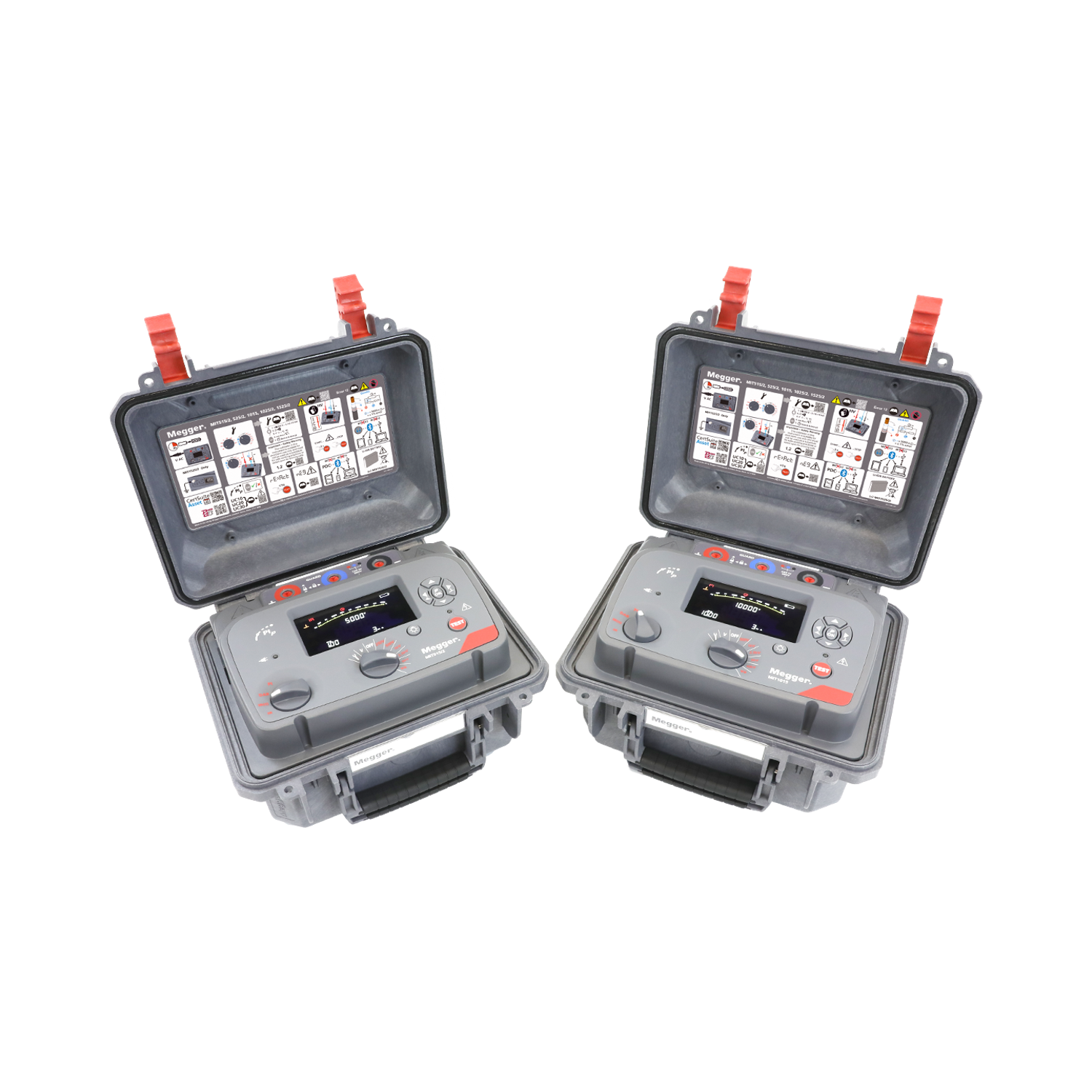

Megger MIT515/2-UK Essential 5 kV and 10 kV Insulation Resistance Testers, with DAR, PI and PI Predictor

Features

• RE>Act mode enhanced accuracy and safety
• PI predictor function (PIp)
• Measures up to 20 TΩ
• Up to 3 mA noise rejection
• Safety rated up to CAT IV 1000 V to 3000 m
• Unique dual-case design – additional user protection
• Operates from battery or AC mains supply
• Rapid charge Li-ion battery

Technical Information

• High Guard Terminal performance Yes
• PI Polarisation Index Yes
• Max. voltages available 5 kV or 10 kV
• Default maximum current 3 mA
• Max. noise current with measurement within accuracy spec 3 mA (LV and MV <45 kV)
• Negative current handling Yes
• User defined test voltage 40 V to 1 kV in 10 V steps
• Test voltage 250 V, 500 V, 1000 V, 2500 V, 5000 V, User defined test voltage
• Battery life 6 hours (typical) continuous testing at 5 kV with a 100 MΩ load

Items Included

• Power lead
• Calibration certificate
