Megger MIT1025-UK Insulation Resistance Testers, 10 kV
Key Features
?
Question about this product?
Features
- 10 kV IRT with all test modes including a ramp test plus advanced memory functions with recall to screen, RTC for time/date stamp of results and USB cable interface to PC / PowerDB
- PI predictor function (PIp)
- Measures up to 30 TΩ
- Safety rated up to CAT IV 1000 V to 3000 m
- Unique dual-case design - additional user protection
- Operates from battery or AC mains supply
- Rapid charge Li-ion battery
- Advanced memory with time / date stamp
- Compatible with CertSuite Asset
Technical Information
- Max. output voltage 10 kV
- Max. resistance 20 TΩ
- Accuracy from 1 MΩ to ±5% ≤ 2 TΩ, ±20% to 20 TΩ
- Short circuit output current 3 mA
- Max. noise rejection 3 mA
- Safety rating (to max. altitude) CAT IV 600 V
- Max. altitude 3000 m
- Battery charge 2.5 hrs
- Battery life single charge 4.5 hrs
- Compact / lightweight 4.5 kg
- USB interface Yes
- On-board memory Yes
- Temperature value stored Yes
- Time / date stamped results Yes
- Part No 1001-943
Items Included
- Lead set HV 3 x 3 m
- Medium and large clips
Downloads
BUY MEGGER MIT1025-UK INSULATION RESISTANCE TESTER

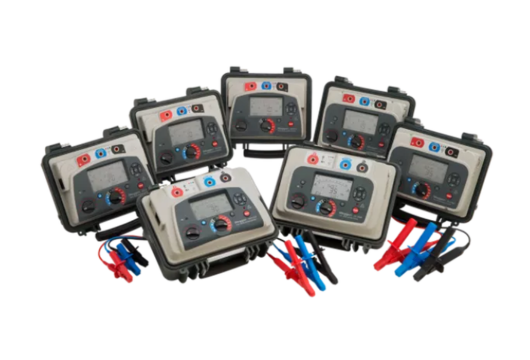

The Megger MIT1025-UK Insulation Resistance Tester is an advanced 10 kV diagnostic megohmmeter engineered for the condition assessment and preventive maintenance of high-voltage electrical assets. Capable of measuring insulation resistance up to 20 TΩ with a maximum test voltage of 10 kV, it is designed for rigorous testing of transformers, switchgear, motors, generators, HV cables, and bushings across utility, industrial, and OEM environments. Safety rated to CAT IV 600 V in compliance with IEC 61010-1, it is built to operate reliably up to 3,000 m altitude.
FULL DIAGNOSTIC TEST SUITE WITH PI PREDICTOR
The MIT1025-UK supports all key diagnostic test modes such as Insulation Resistance (IR), Polarisation Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), and Ramp Test, providing deep insight into insulation condition and ageing. The unique PI Predictor function significantly reduces PI test time by using the initial IR curve to forecast the full result from as early as 3 minutes into the test.
DUAL-CASE RUGGEDNESS FOR HIGH-VOLTAGE FIELD USE

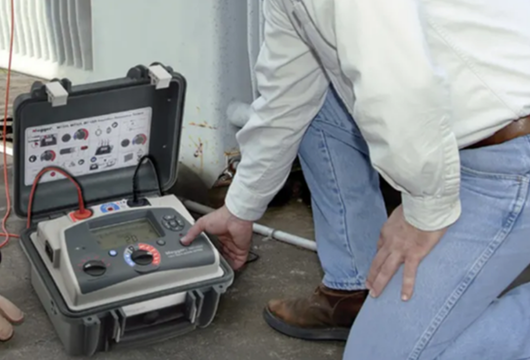

The MIT1025-UK features Megger's unique dual-case construction like a fire-retardant inner shell with a tough outer casing delivering IP65 ingress protection when closed against dust and moisture. A rapid-charge Li-ion battery provides up to 4.5 hours of continuous testing on a single charge, with full operation from AC mains even on a depleted battery.
