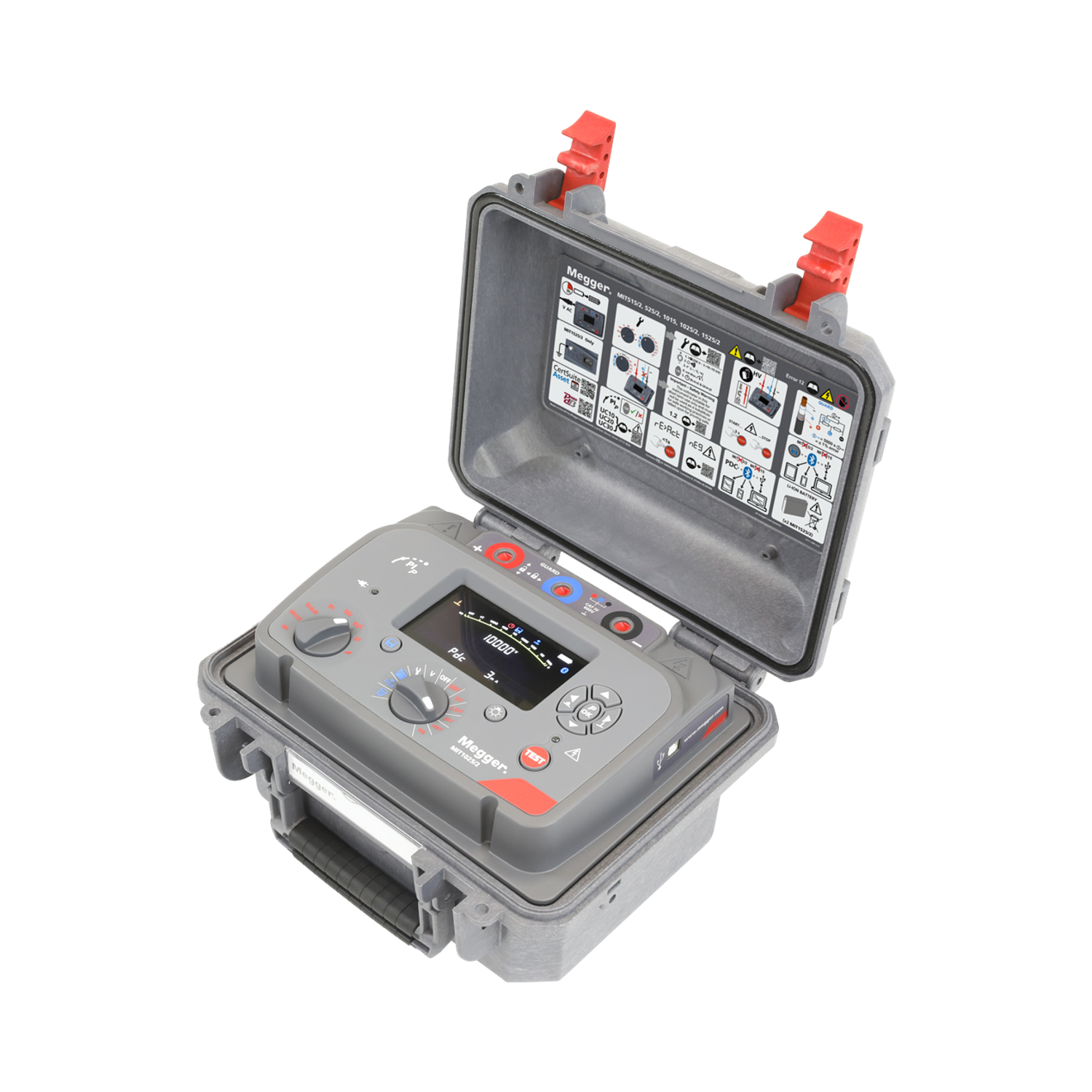

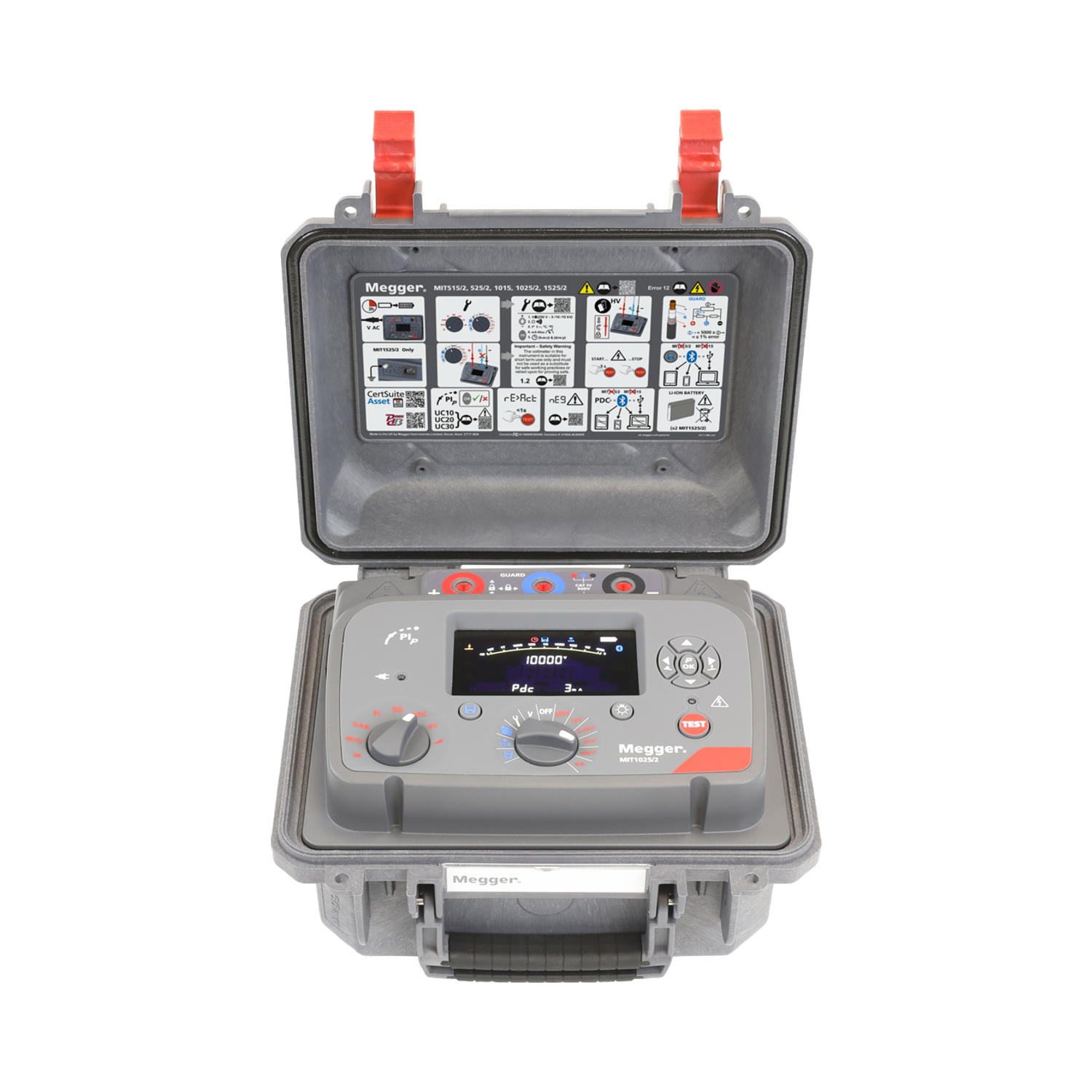

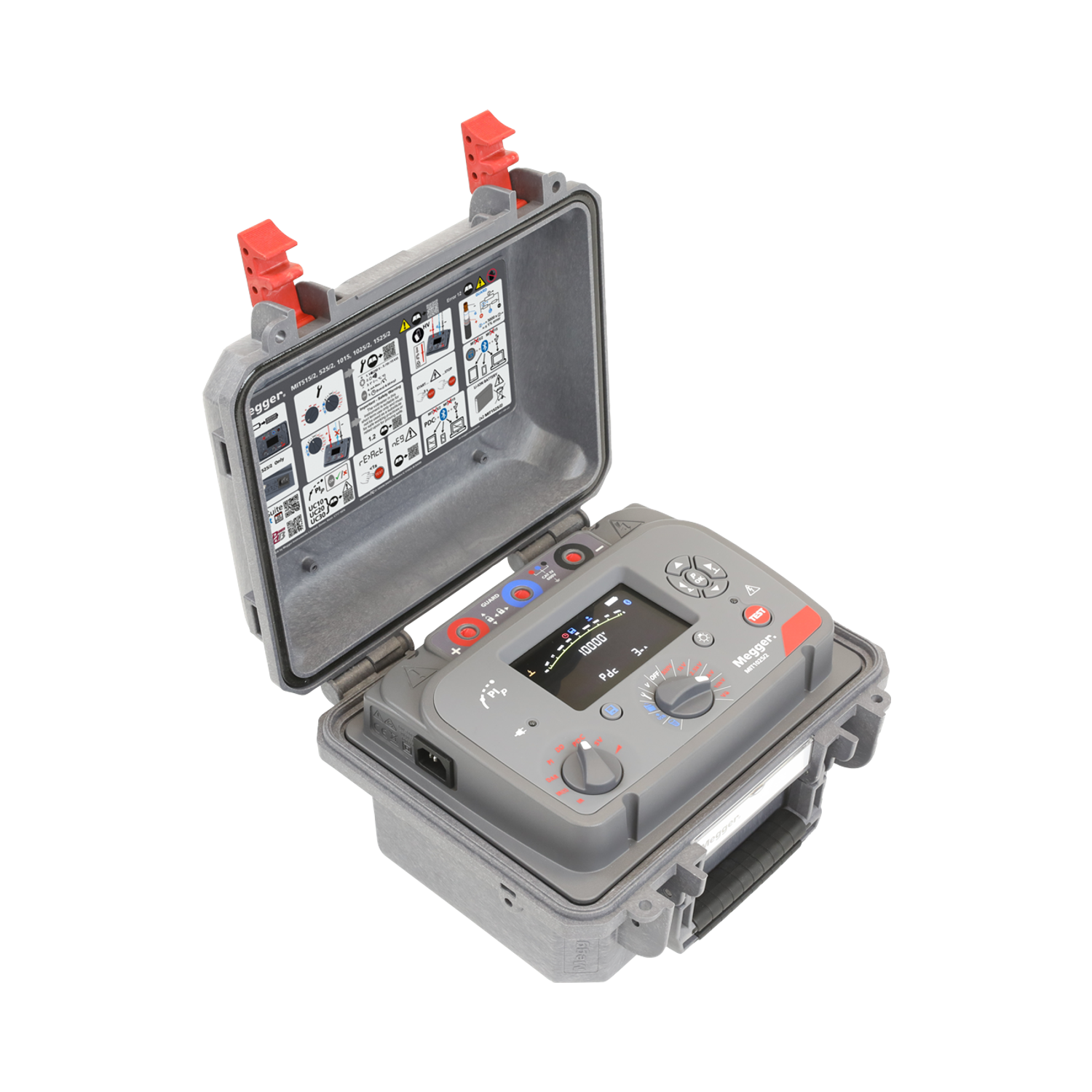

Megger MIT1025/2-UK Advacned Insulation Resistance Testers, 10 kV

Features

• RE>Act mode enhanced accuracy and safety
• PI predictor function (PIp)
• PDC test capability
• Measures up to 30 TΩ
• Safety rated up to CAT IV
• 1000 V to 3000 m
• Up to 6 mA noise rejection
• Unique dual-case design - additional user protection
• Operates from battery or AC mains supply
• Rapid charge Li-ion battery
• Advanced memory with time / date stamp
• Compatible with CertSuite Asset

Technical Information

• Max. voltages available 5 kV, 10 kV or 15 kV
• Default maximum current 3 mA
• User selectable max. current values 1 mA, 3 mA, 6 mA (6 mA only from mains supply)
• Max. noise current with measurement within accuracy spec 6 mA (HV <230 kV)
• CAT IV 1000 V 15 kV
• DD Dielectric Discharge Yes
• Ramp test Yes
• PDC test Yes
• On board - time stamped Yes
• Temperature value stored Yes
• Test result transfer via wired USB Yes
• Test results transfer via wireless Bluetooth LE Yes
• Test result live streaming via wired USB Yes
• Test result live streaming via wireless Bluetooth LE Yes
• CertSuite Asset Lite FREE Yes
• CertSuite Asset compatible Yes
• Power DB Lite FREE Yes
• Power DB Advance or Pro support Yes
• Part number 1016-094

Items Included

• Quick Start label
• Power lead
• Screened USB cable with filters
• Lead set 3kV 3 x 3 m, with medium clips
• Lead set HV 3 x 3 m, with medium and large clips

Downloads

DatasheetUser Manual-en
