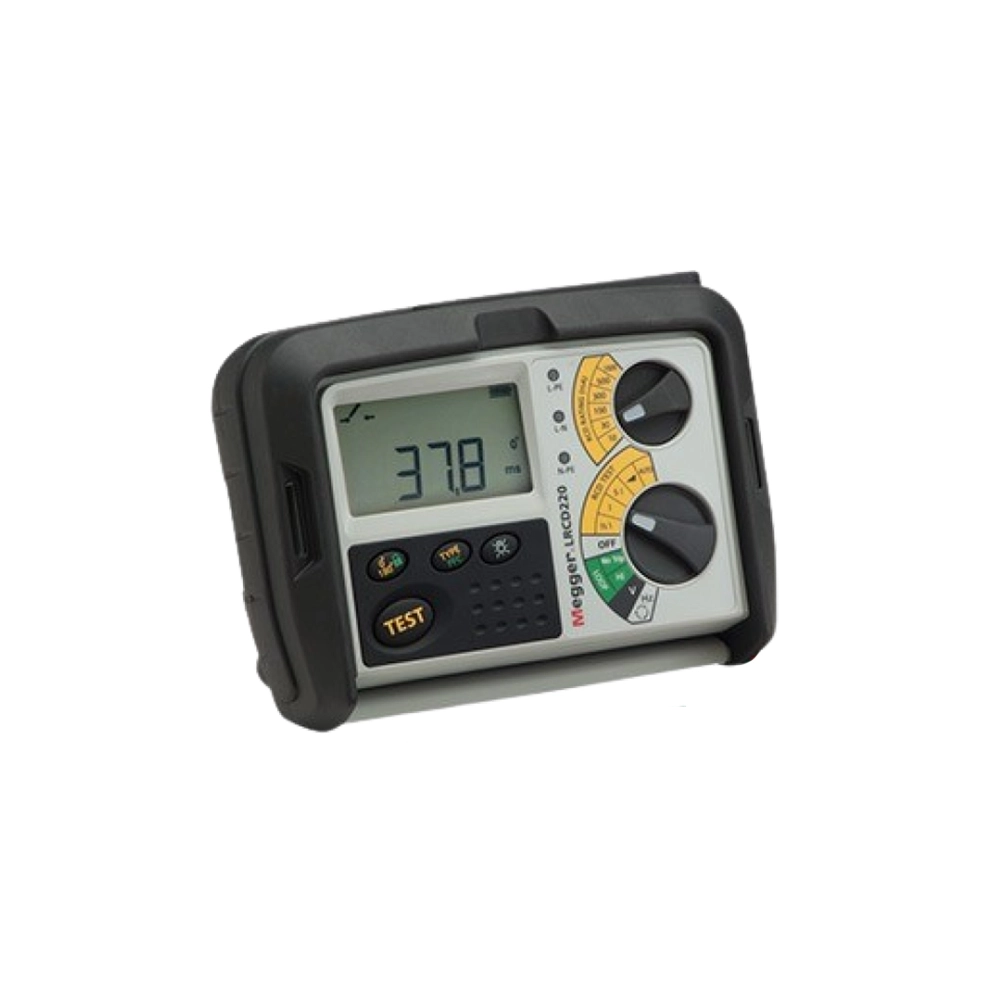

Megger LRCD220-EN-BS Professional Loop and RCD Tester with Auto Testing, 110V Operation, and Phase-to-Phase Measurement

Features

• 110V operation for loop testing
• 2-wire fast testing
• Phase-to-phase loop testing up to 415 V
• Automatic RCD testing with result recall
• Backlit LCD display
• Phase rotation display
• 1000 mA RCD testing range (in addition to 10, 30, 100, 300, 500 mA)
• Display backlight for ease of use in low-light conditions

Technical Information

• Voltage Measurement0V to 500V
• Frequency Measurement25 Hz to 450 Hz
• Phase Rotation IndicatorYes
• Loop TestingNon-trip Loop Test (3-wire)
• Supply Voltage100V to 280V
• Nominal Test Current15 mA
• Loop Accuracy0.01 Ω – 2.00 kΩ
• RCD Testing Ranges10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA
• Test Current AccuracyNo Trip Test
• Touch Voltage DisplayYes
• Environmental ProtectionIP54
• Battery Type8 x 1.5 V cells IEC LR6 type (AA alkaline)
• Weight980 g
• Dimensions203 mm x 148 mm x 78 mm

Items Included

• Red/Black/Green 3 wire lead set
• BS1363 Mains plug test lead
