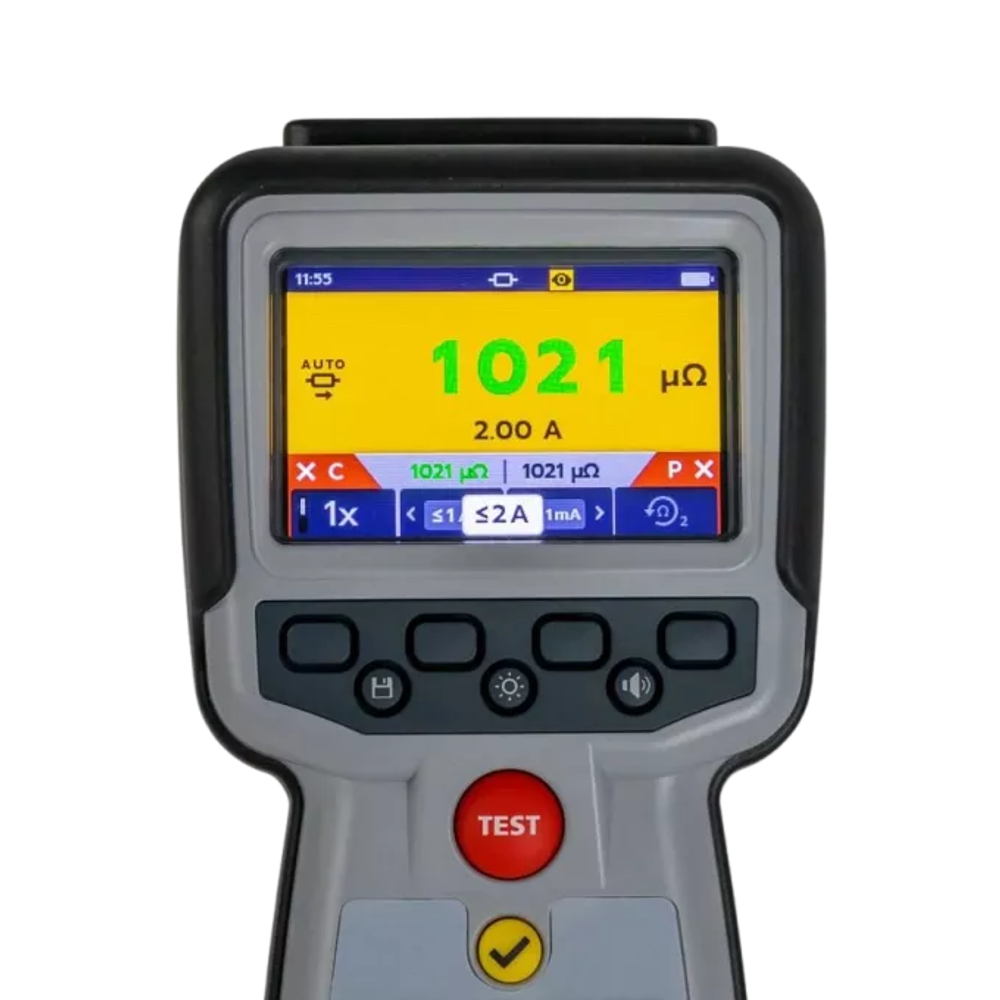

Megger DLRO2X Ducter 2A Low Resistance Ohmmeter with Noise Rejection & Data Storage (1013-795)

Features

• Handheld 2A Ducter low resistance ohmmeter delivers fast, accurate, repeatable measurements even in electrically noisy environments
• Noise Rejection Mode passes current continuously in one direction and uses the patented Confidence Meter to refine readings until a stable result is obtained
• Difference Meter allows repetitive measurements to be easily compared against an initial reference, with a needle/pointer display showing percentage change
• Five selectable test current ranges (2A, 1A, 100mA, 10mA, 1mA) cover a wide span of low-resistance applications
• Dedicated long-lead test mode provides up to 1A into 4 ohms, ideal for wind turbine lightning protection and avionic testing with optional cable reel leads
• Active live voltage protection up to 600V between any terminals without blowing a fuse ensures operator safety
• CAT III 600V / CAT IV 300V safety rating to IEC 61010
• IP54 ingress protection for reliable outdoor use in dust and moisture
• Onboard memory stores results to folders by asset ID with Auto Save function; data transfers via USB or Bluetooth
• Compatible with Megger CertSuite Asset software on iOS and Android for streamlined data management
• As many as 500 x 2A, 3-second tests from a single full charge
• Supplied with compact CAT III 600V / CAT IV 300V rated Kelvin clip test leads

Technical Information

• Test Current Ranges 2A, 1A, 100mA, 10mA, 1mA
• Max. Compliance Voltage 3.24V (1A mode), 2.2V (2A mode)
• Current Output Accuracy ±10% (Normal & Inductive mode)
• Safety Rating CAT III 600V / CAT IV 300V to IEC 61010
• Live Voltage Protection Active protection to 600V
• Display Full colour LCD with configurable backlight
• Battery Life Approx. 500 x 2A, 3-second tests
• Ingress Protection IP54
• Data Storage Onboard memory with USB and Bluetooth export
• Dimensions 228 x 105 x 75 mm
• Weight 905 g

Items Included

• DLRO2X Low Resistance Ohmmeter
• Kelvin Clip Test Leads (CAT III 600V / CAT IV 300V)
• Rechargeable Battery (internal)
• USB Cable
• Carrying Case

Downloads

Datasheet
