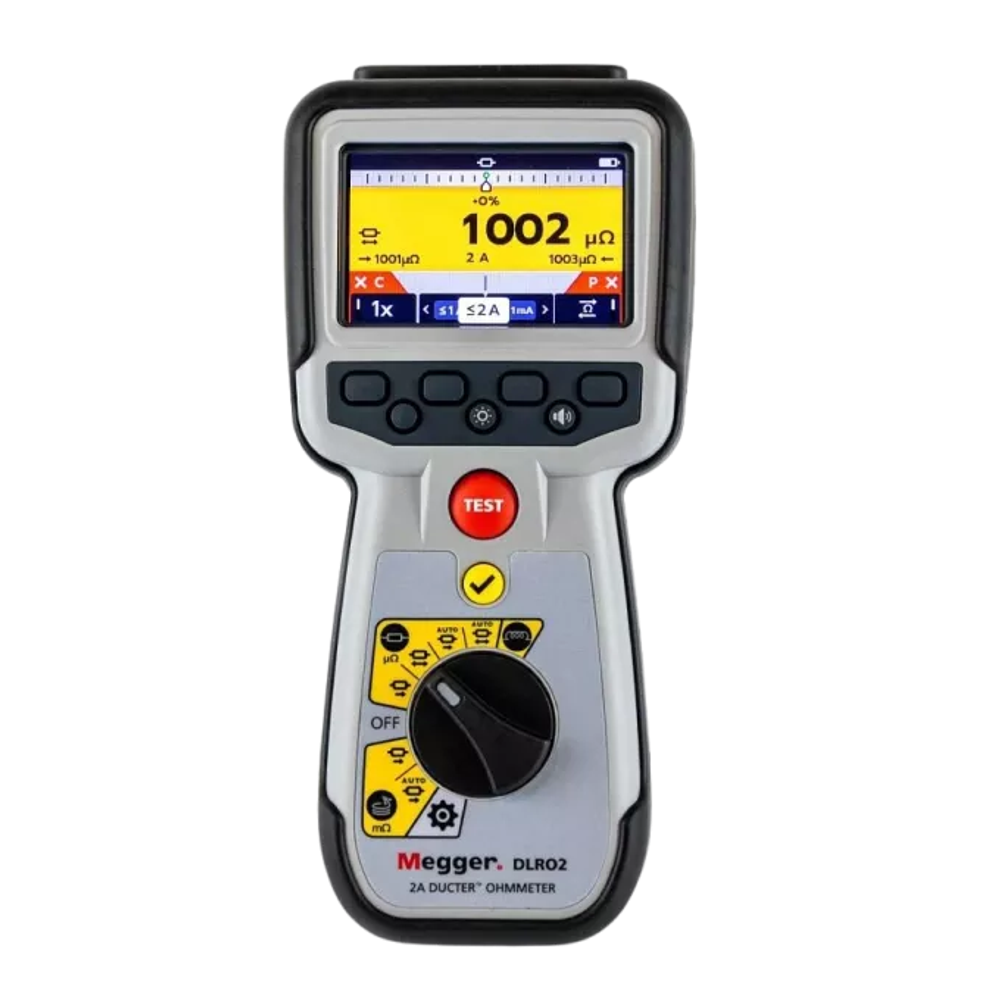

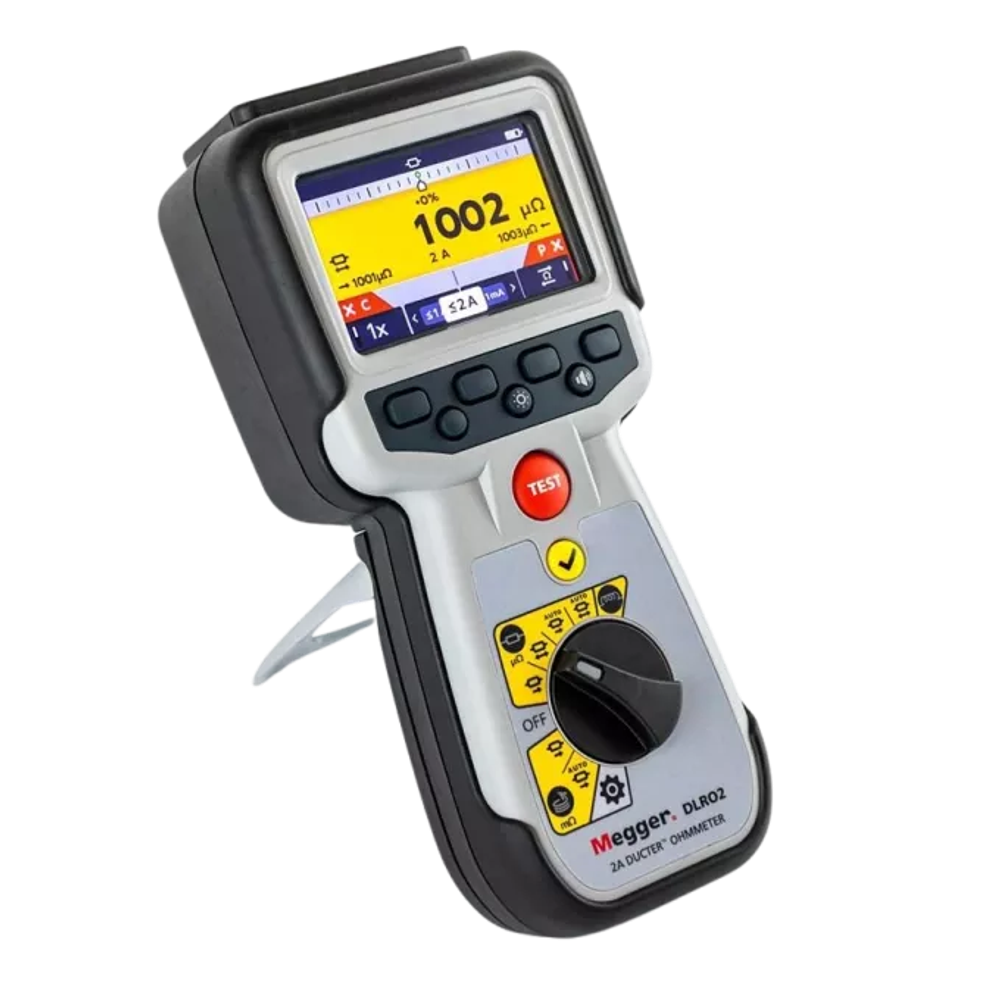

Megger DLRO2 Ducter 2A Handheld Low Resistance Ohmmeter, CAT III 600V / CAT IV 300V, Difference Meter, Long Lead Test Mode, IP54 (1012-280)

Features

• Handheld 2A Ducter low resistance ohmmeter delivers fast, accurate, repeatable measurements in electrically noisy locations

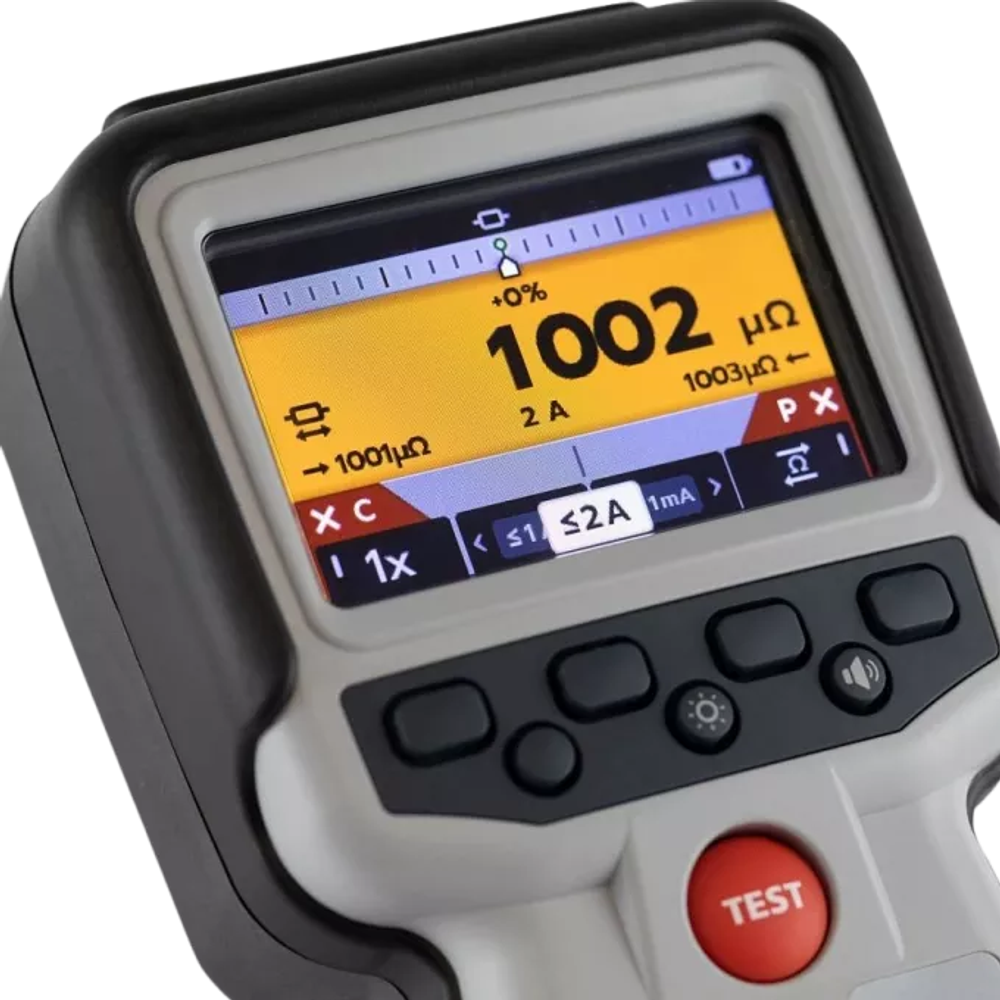

• Difference Meter allows repetitive measurements to be easily compared against an initial reference, translating percentage change to a clear needle/pointer display
• Five selectable test current ranges (2A, 1A, 100mA, 10mA, 1mA) suit a wide variety of low-resistance applications
• Dedicated long-lead test mode optimises output at up to 1A into 4 ohms for wind turbine and avionic lightning protection testing
• Active live voltage protection up to 600V between any terminals without blowing a fuse
• Safely tests inductive loads at 1A
• CAT III 600V / CAT IV 300V safety rating to IEC 61010
• IP54 rated for protection against dust and moisture in outdoor use
• As many as 500 x 2A, 3-second tests from a full charge
• Supplied with compact CAT III 600V / CAT IV 300V rated Kelvin clip test leads
• Noise warning indicator alerts the user when measurements may be affected by electrical noise

Technical Information

• Test Current Ranges 2A, 1A, 100mA, 10mA, 1mA
• Max. Compliance Voltage 3.24V (1A mode), 2.2V (2A mode)
• Current Output Accuracy ±10%
• Safety Rating CAT III 600V / CAT IV 300V to IEC 61010
• Live Voltage Protection Active protection to 600V
• Display Full colour LCD with configurable backlight
• Battery Life Approx. 500 x 2A, 3-second tests
• Ingress Protection IP54
• Dimensions 228 x 105 x 75 mm
• Weight 905 g

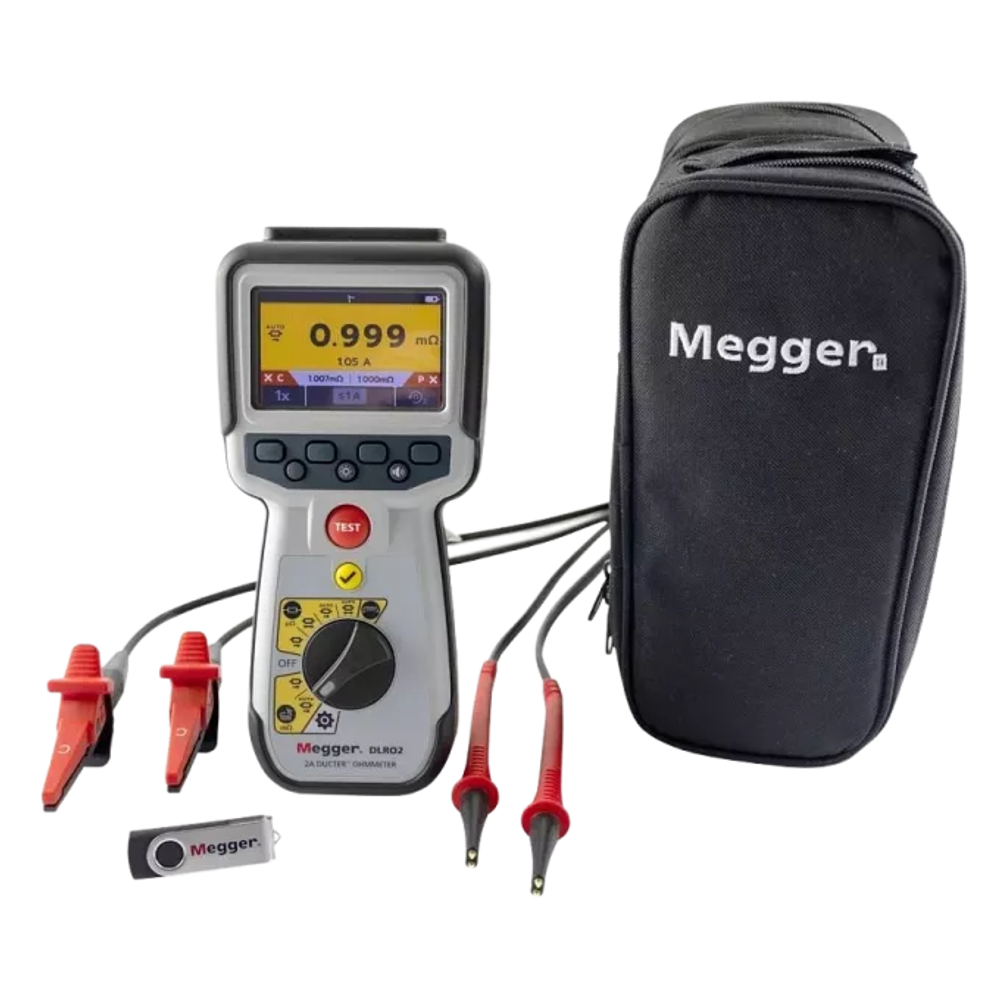

Items Included

• DLRO2 Low Resistance Ohmmeter
• Kelvin Clip Test Leads (CAT III 600V / CAT IV 300V)
• Rechargeable Battery (internal)
• Carrying Case

Downloads

Datasheet
