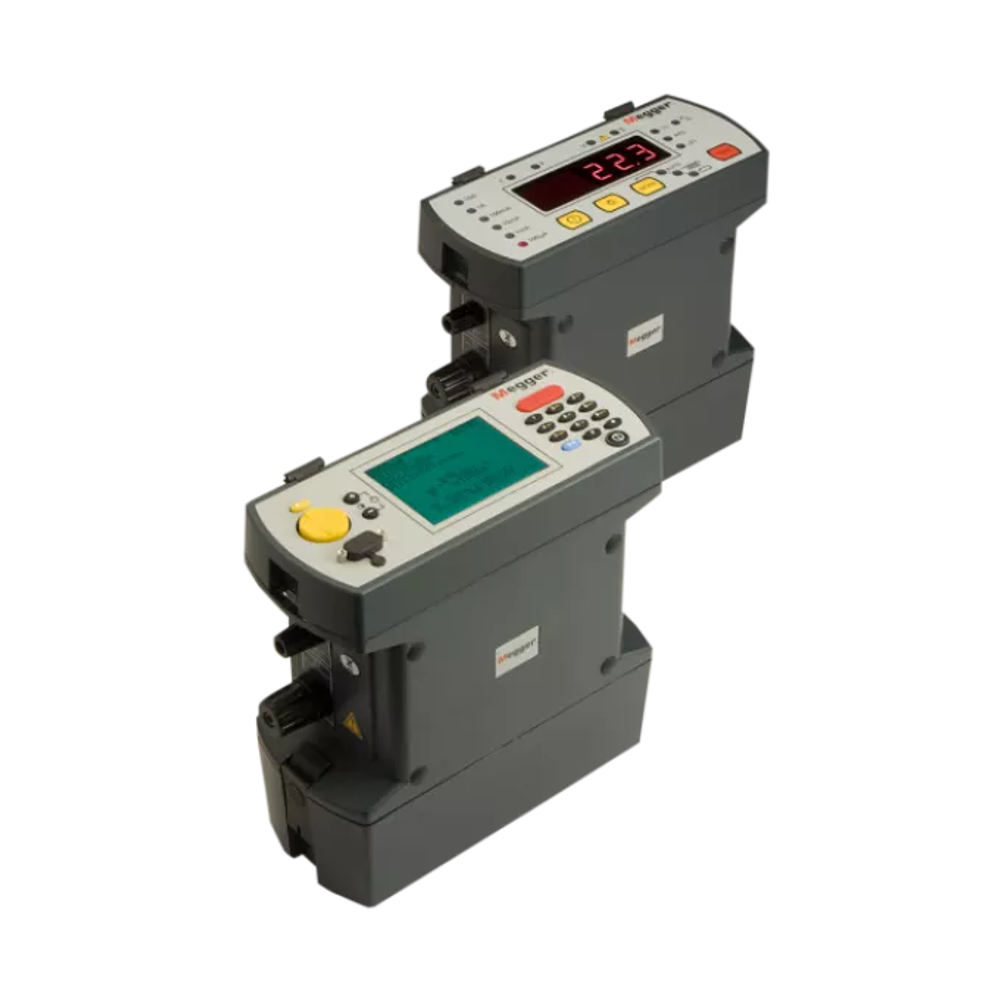

Megger DLRO10X Ducter 10A Digital Low Resistance Ohmmeter, 0.1µΩ to 2000Ω, 700-Test Memory, No Lead Set (1006-659)

Features

• Fully automatic 10A Ducter digital low resistance ohmmeter — instrument selects the most suitable test current up to 10A DC to measure resistance from 0.1 µΩ to 2000 Ω across seven ranges
• DLRO10X adds manual test current selection via a two-axis paddle menu system — gives the user full control over the test current when measurement conditions require it
• Forward and reverse current measurements cancel the effects of standing EMFs across the test sample — average of the two displayed within 3 seconds to 0.2% basic accuracy
• DLRO10X displays both the forward, reverse, and average values for complete measurement transparency
• High and low pass/fail limits settable by the user — enables simple go/no-go testing in production or maintenance environments
• Unidirectional measurement mode (DLRO10X only) passes current in one direction only for applications where bipolar operation is not suitable
• On-board memory stores up to 700 sets of results with notes of up to 200 characters via integral alphanumeric keypad — results retrieved via RS232 to a PC
• RS232 interface allows real-time result download at 1 reading/second or retrieval of stored results — does not interrupt the measurement process
• Fuse-protected to 600V — accidental connection to mains without blowing a fuse
• 250 mW power limit (with optional override) prevents heating of the test sample during measurement
• NiMH rechargeable battery: fast charge to 90% in 2.5 hours, full charge in 4 hours from 12V DC or 115/230V AC via included charger; battery packs are interchangeable
• Strong, lightweight case wearable around the neck for hands-free access in tight spaces
• Supplied without test leads — allows user to select the exact lead configuration for their application
• Compatible with Megger Duplex Connect test lead system (DH4-C, DH5, DH6, and others, all sold separately)

Technical Information

• Test Current Up to 10A DC (fully automatic + manual selection via paddle)
• Resistance Range 0.1 µΩ to 2000 Ω in 7 ranges
• Basic Accuracy ±0.2% of reading
• Measurement Time <3 seconds (forward + reverse + average)
• Measurement Modes Manual, Auto, Continuous, Inductive, Unidirectional
• Memory 700 result sets with up to 200-character notes each
• Data Interface RS232 (real-time and stored)
• Lead Resistance (max) 100 mΩ total for 10A operation
• Noise Rejection <1% ±20 digits at 100 mV peak 50/60 Hz on potential leads
• Battery 7 Ah NiMH, interchangeable
• Charger External, 115/230V 50/60 Hz or 12V DC
• Charge Time 2.5 h to 90% (fast), 4 h full
• Fuse Protection To 600V
• Power Limit 250 mW (optional override)
• Display Large backlit LCD
• Megger Part Number 1006-659

Items Included

• DLRO10X-NLS Digital Low Resistance Ohmmeter (no lead set)
• 7 Ah NiMH Battery Module (6121-492)
• External Battery Charger (6280-333)
• Cigar Lighter Adapter for Battery Charging (6280-332)
• User Guide
