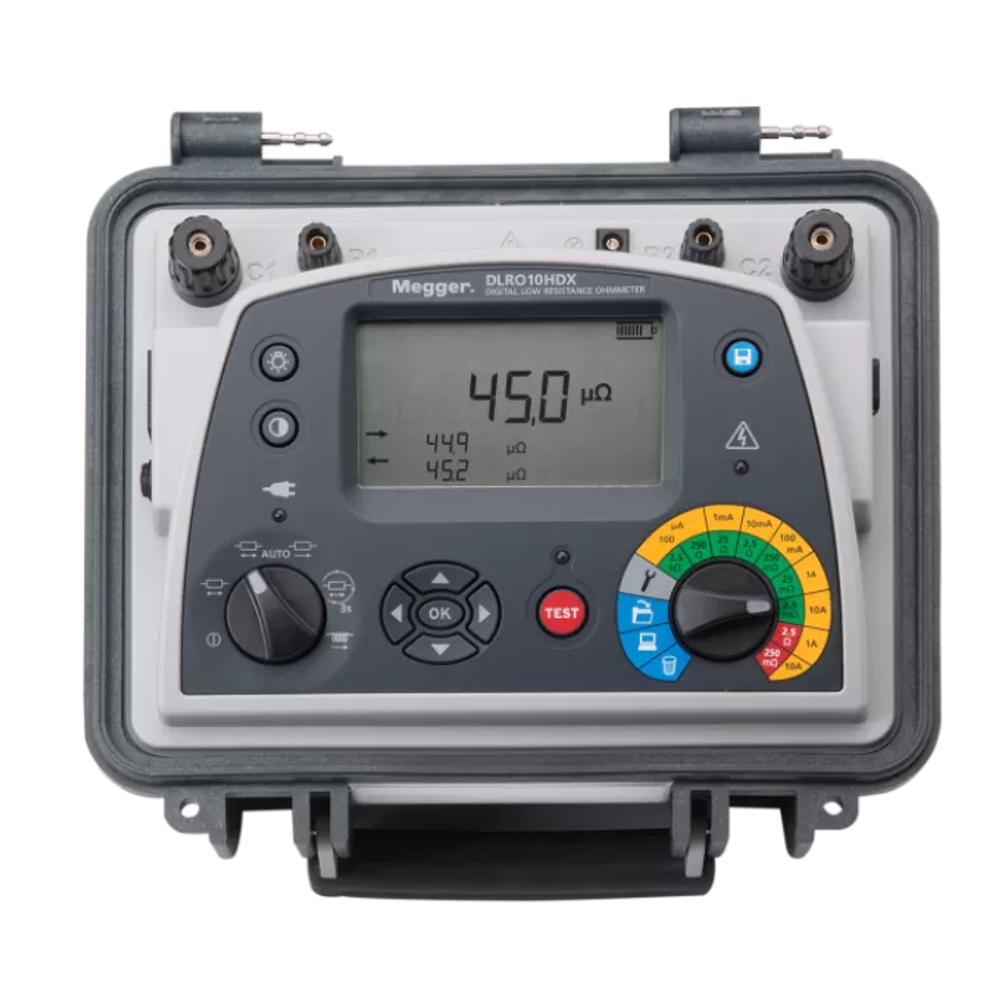

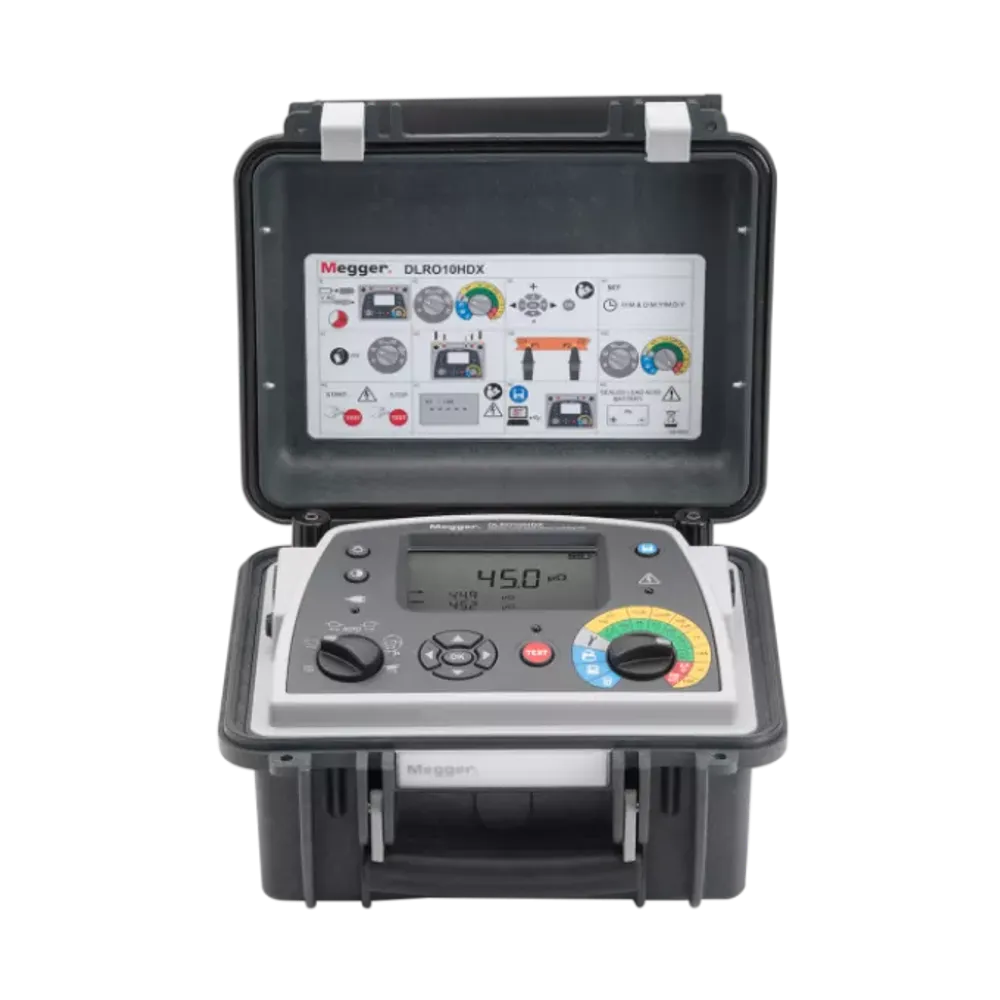

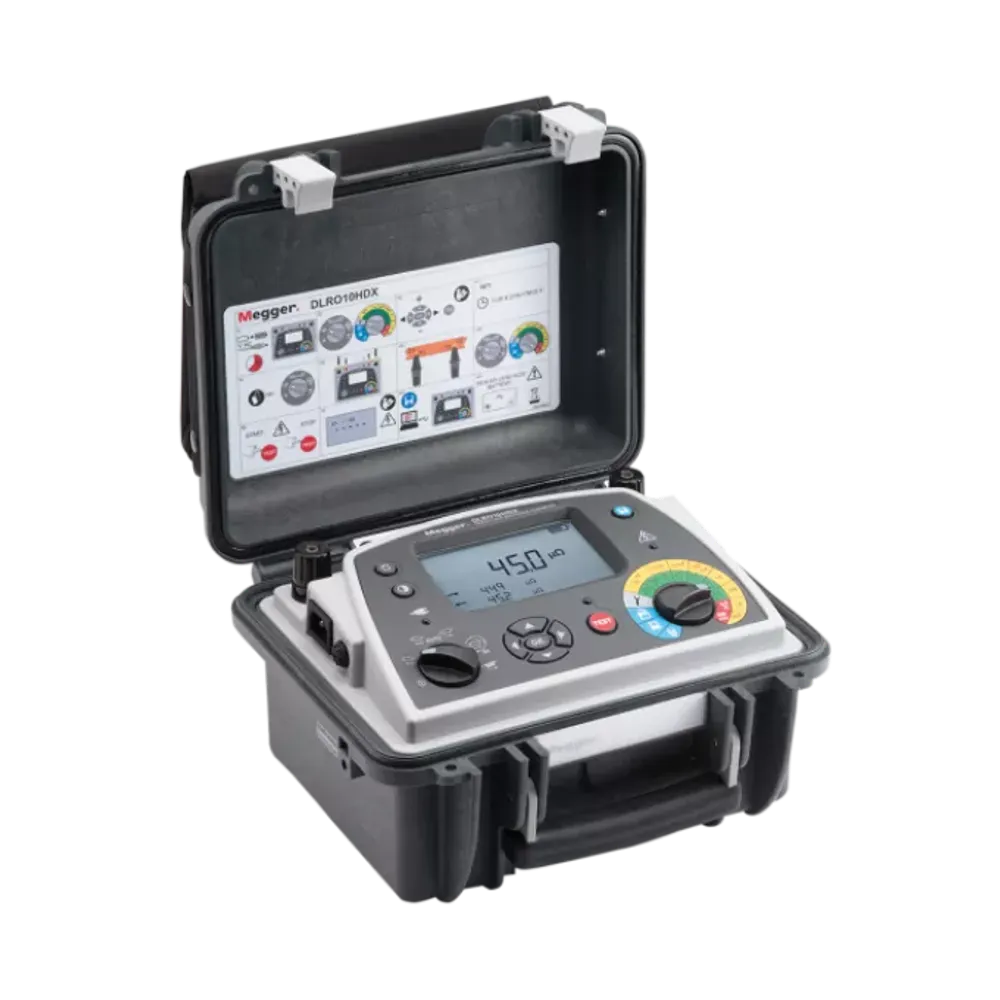

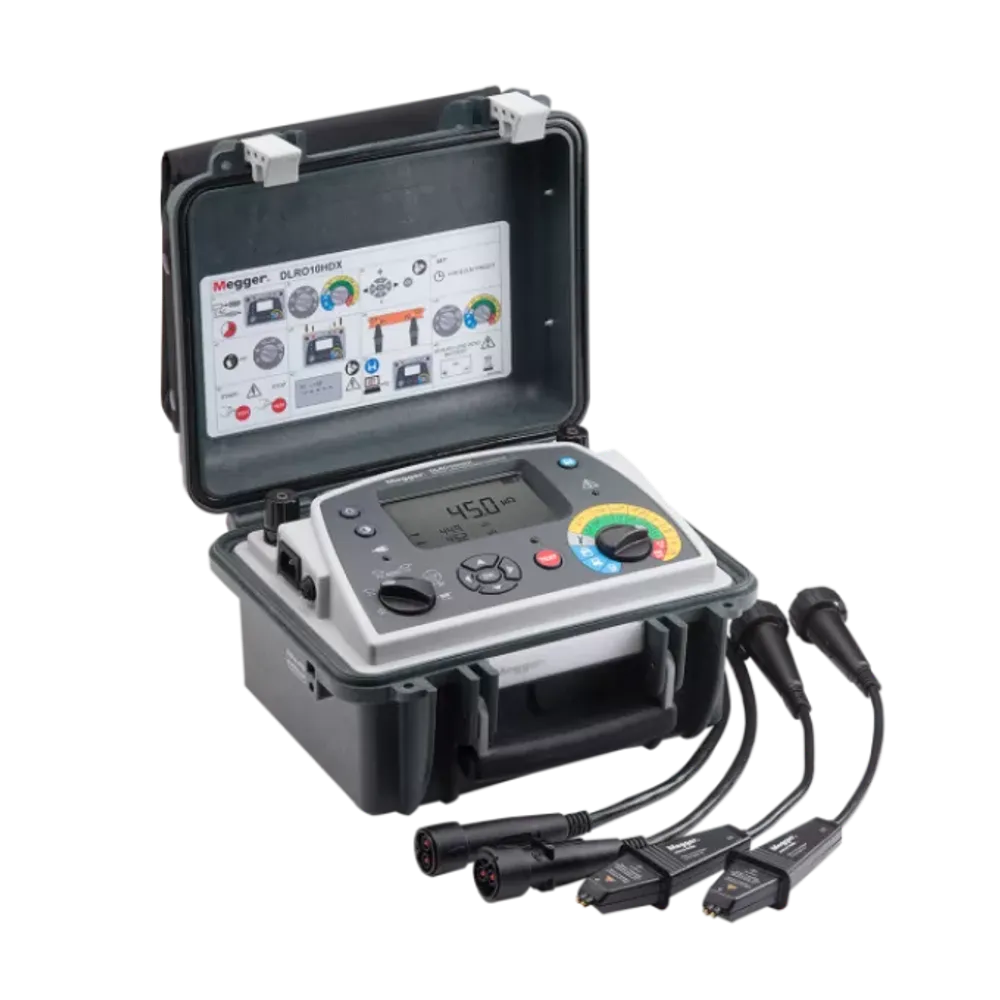

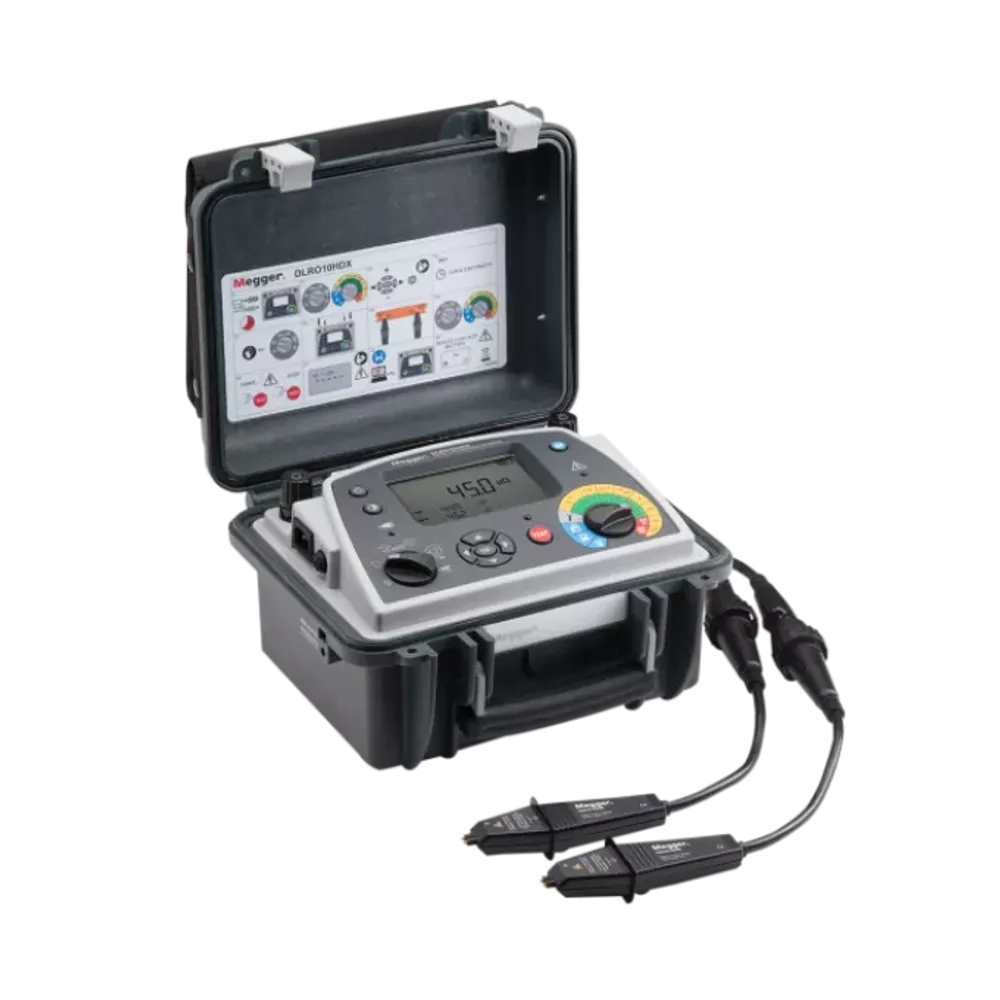

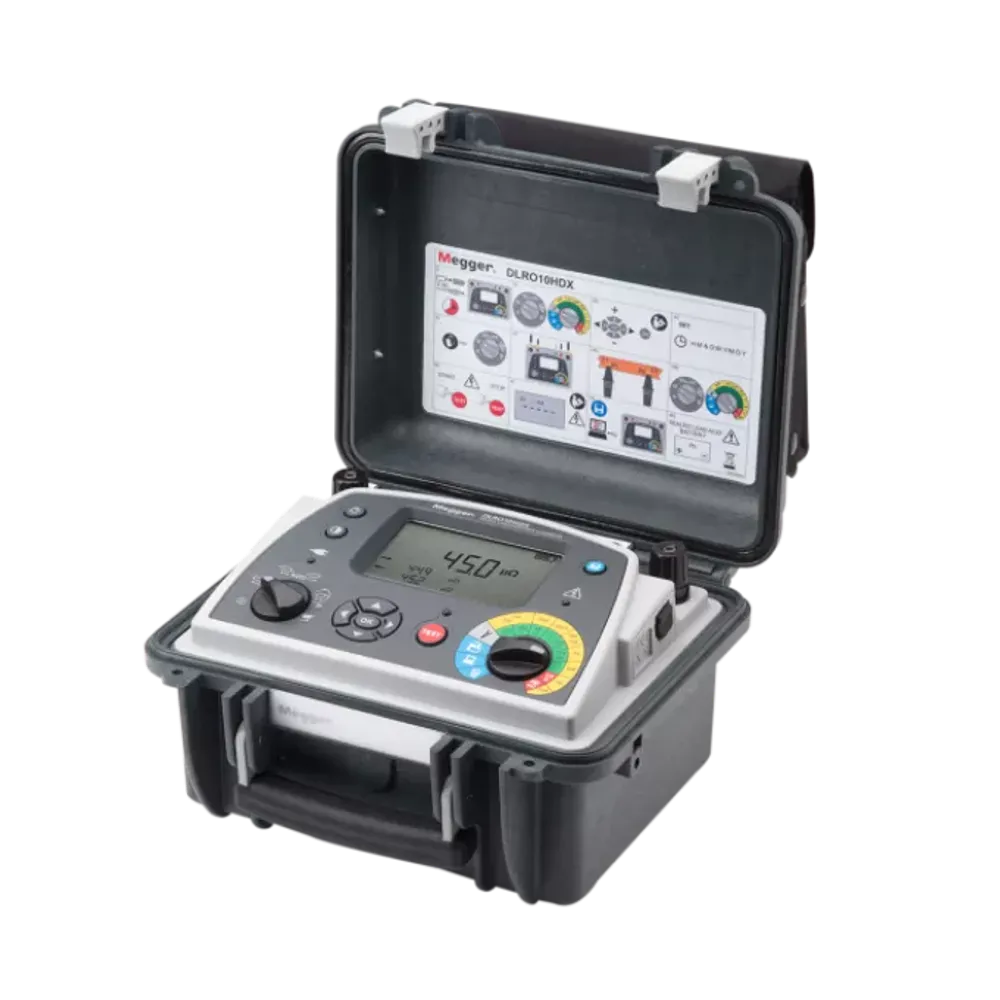

Megger DLRO10HD Ducter Heavy Duty 10A Digital Low Resistance Ohmmeter, 250 mOhm at 10A / 2.5 Ohm at 1A, Five Test Modes, IP65, Dual Power (1006-603)

Features

• Heavy-duty 10A digital low resistance ohmmeter delivers significantly enhanced compliance with 10A into measurements up to 250 mOhm and 1A into 2.5 Ohm
• High and low output power selection enables condition diagnosis — low power detects contamination and corrosion, high power reveals weaknesses due to heating
• Five selectable test modes via rotary switch: bidirectional (cancels thermal EMFs), unidirectional, automatic, continuous, and inductive
• Dual power operation from sealed rechargeable lead-acid battery or mains supply — operates even with a completely flat battery for continuous production-line testing
• Rugged IP65 case (lid closed) / IP54 (operational) designed for stable ground and bench operation in all weather conditions
• Rotary switch controls are easy to operate with gloved hands
• Large backlit 5-digit LCD display is readable from a distance
• Test duration up to 60 seconds per test, reducing cooling time between measurements
• Fuse protected to 600V without blowing a fuse, with live voltage warning light for inadvertent mains connection
• Removable lid and integrated lead pouch facilitate easy test lead connection and transport
• Shoulder strap included for field portability
• CAT III 300V rating when optional terminal cover is fitted

Technical Information

• Max. Test Current 10A
• Measurement Range Up to 250 mOhm (at 10A) / Up to 2.5 Ohm (at 1A)
• Output Power 25W continuous for 60 seconds
• Basic Accuracy ±0.2% of reading ±2 LSD
• Test Modes Bidirectional, Unidirectional, Automatic, Continuous, Inductive
• Display Backlit 5-digit LCD
• Safety Rating CAT III 300V (with optional terminal cover)
• Live Voltage Protection Fuse protected to 600V
• Battery 6V, 7Ah sealed lead-acid (rechargeable)
• Power Supply Battery or mains (90–264V, 47–63Hz)
• Ingress Protection IP54 (operational), IP65 (lid closed)
• Case Dimensions (LxWxH) 315 x 285 x 181 mm
• Weight 6.7 kg

Items Included

• DLRO10HD Digital Low Resistance Ohmmeter
• Mains/Line Power Cable
• Rechargeable Lead-Acid Battery (internal)
• Lead Pouch (lid mounted)
• Shoulder Strap
• User Manual
