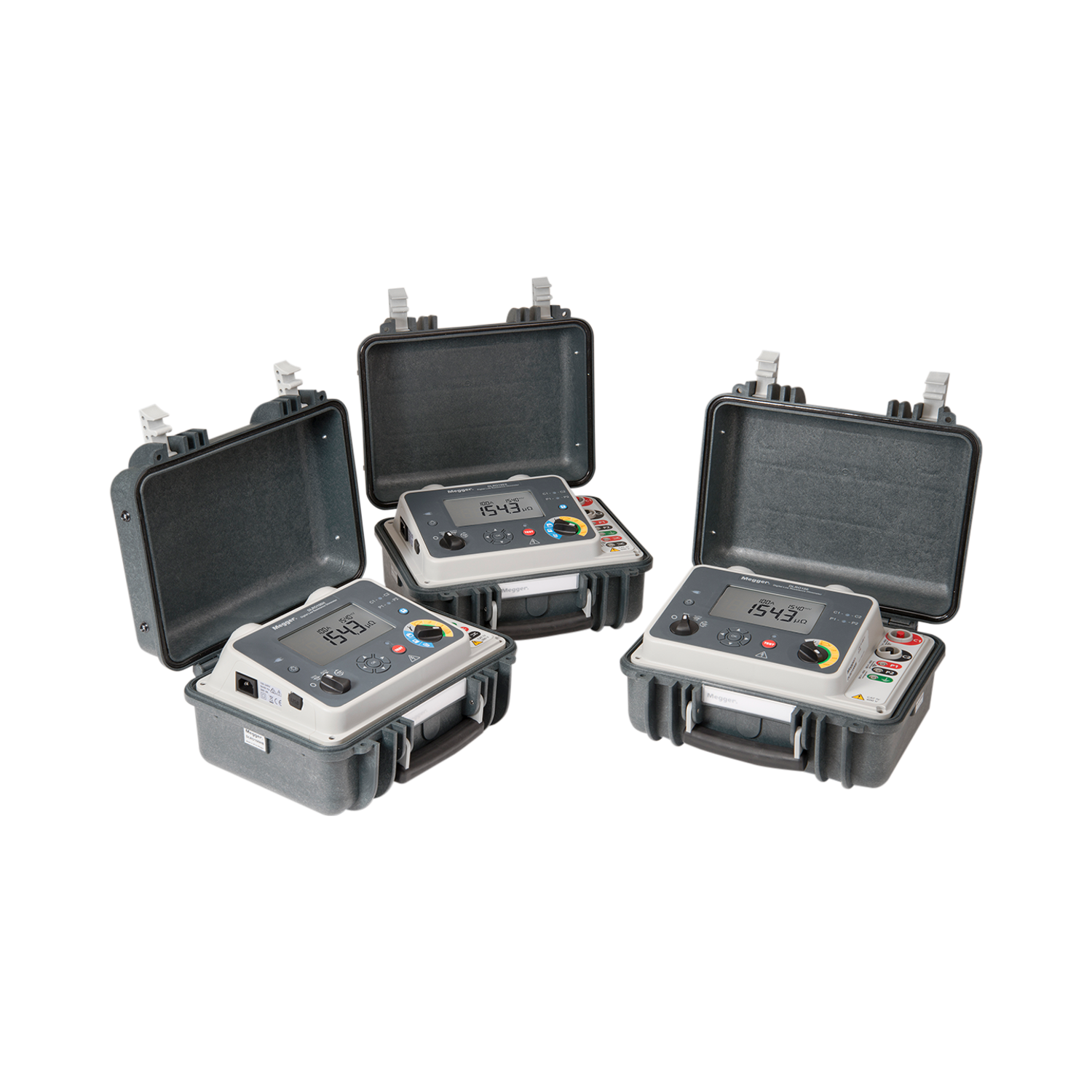

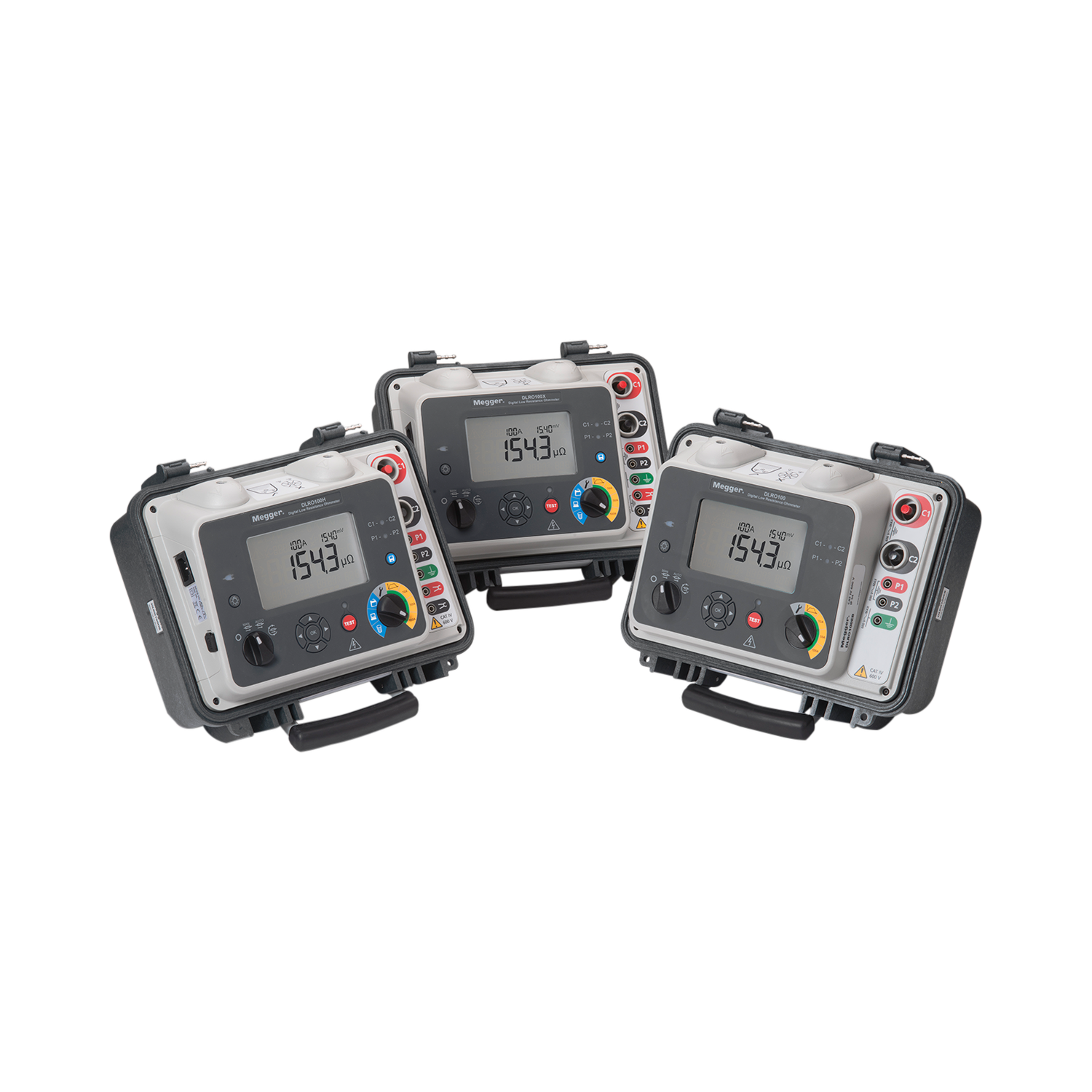

Megger DLRO100XB DLRO100XB Digital Low Resistance Ohmmeter, 0.1 μΩ to 1.999 Ω with a resolution of 0.1 µΩ

Model # DLRO100XB

Key Features

Qty:

Question about this product?

Safety: CAT IV 600 V AC / 500 V DC up to 2000 m, and CAT IV 300 V up to 4000 m on all test terminals for safe operation
Portability: Lightweight, battery-powered 100 A unit that is easily portable, weighing 7.9 kg (17 lbs) including battery
Stability: High noise immunity for stable readings in noisy environments
Accuracy: Smooth DC output for reliable circuit breaker testing
Protection: IP54 protection during operation (lid open) and IP65 protection during storage (lid closed)
Battery: Li-ion fast-charging battery with 2.5-hour full charge, supports AC operation when fully discharged, and delivers up to 200 single tests or 2 × 10-minute continuous 100 A outputs
Versatility: 100 A manual, auto, and continuous test modes with quick selection and 4-terminal measurement for flexible applications
Visibility: Large, clear backlit LCD for excellent visibility in all light conditions
