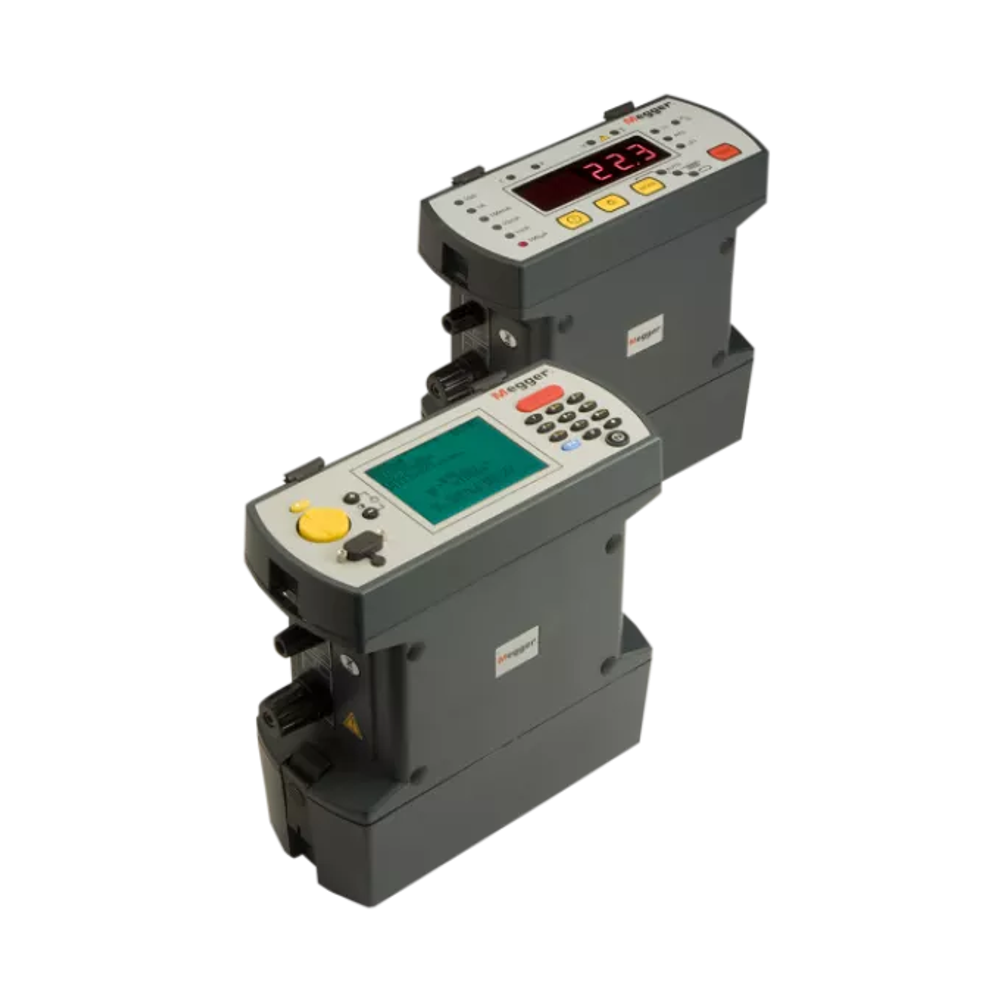

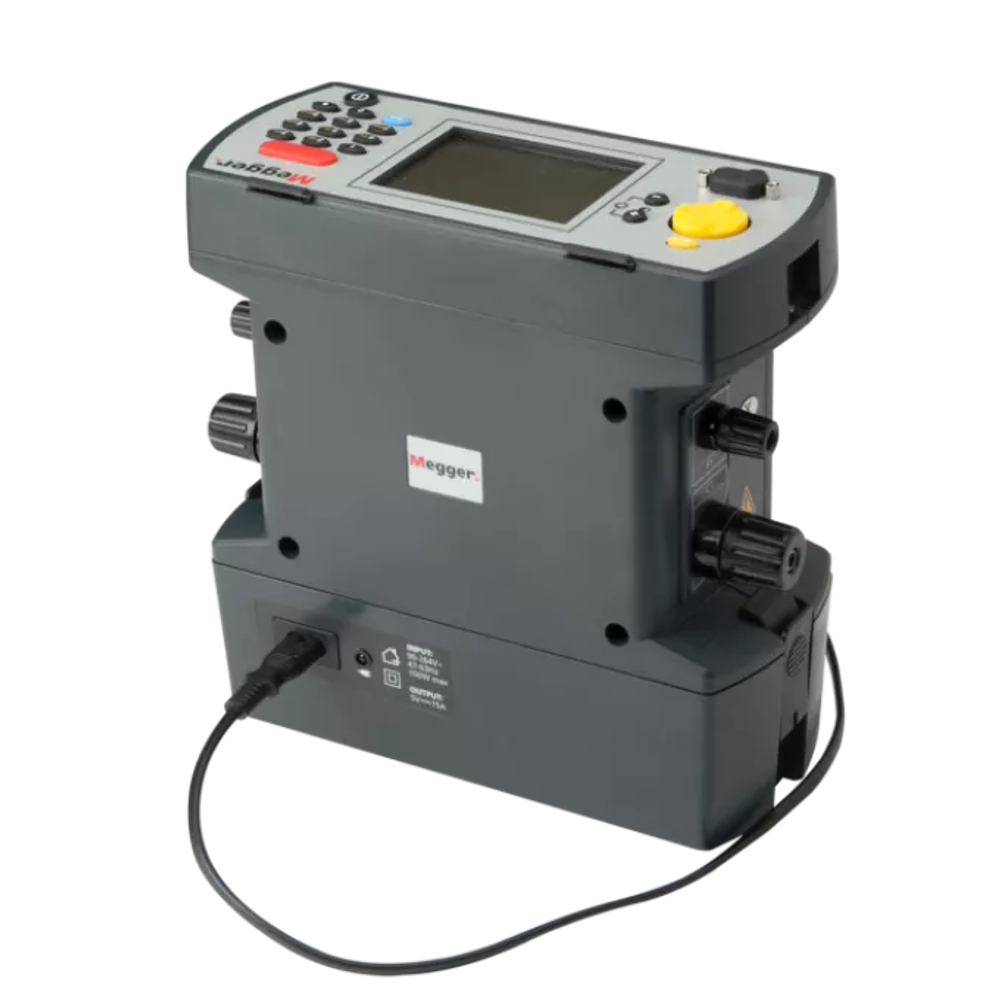

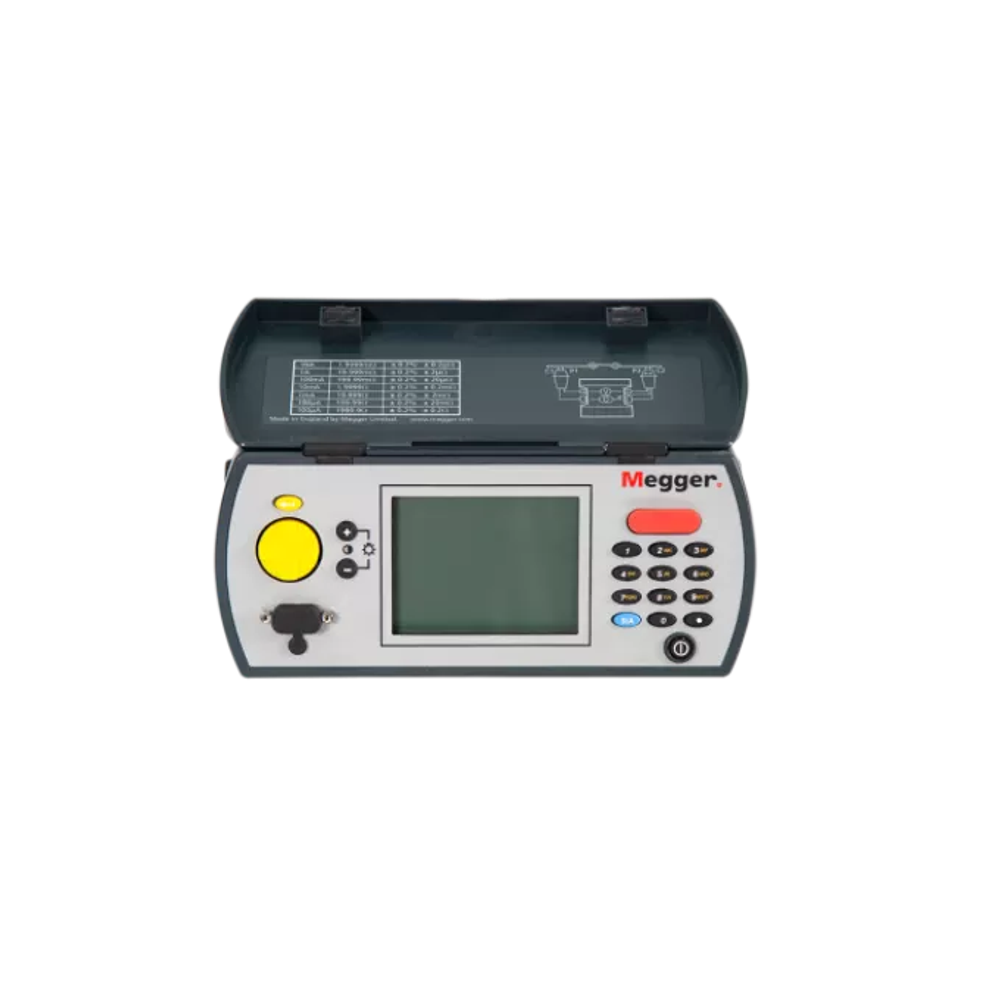

Megger DLRO10 Digital Low Resistance Ohmmeter (Ducter), 10A, 0.1 µΩ to 2000 Ω, 4-Terminal Kelvin, with DH4-C Duplex Handspike Lead Set (1006-598)

Features

• Fully automatic Ducter™ low-resistance measurement — instrument selects the most suitable test current up to 10 A DC to measure resistance from 0.1 µΩ to 2000 Ω across seven ranges
• Accurate, repeatable results in under three seconds with basic accuracy of 0.2%
• Automatic current reversal cancels the effects of standing EMFs across the test sample for trusted readings
• Fuse protected to 600 V for added operator safety on live substation and maintenance work
• 250 mW power limit (with optional override) avoids heating the test sample during measurement
• Automatically detects continuity in both potential and current connections before starting a test
• Visible on-screen warnings for high voltages at the terminals and for current flowing in the test sample
• Large, bright 4½-digit LED display is visible under all lighting conditions
• Strong, lightweight case is equally suited to field or laboratory use — light enough to be worn around the neck for hands-free access in tight spaces
• NiMH rechargeable battery pack delivers approximately 1000 × 10 A tests per charge, with interchangeable packs and external charger for continuous testing
• Fast-charge mode reaches 90% capacity in 2.5 hours; full charge in 4 hours from 115/230 V AC or 12 V DC supply

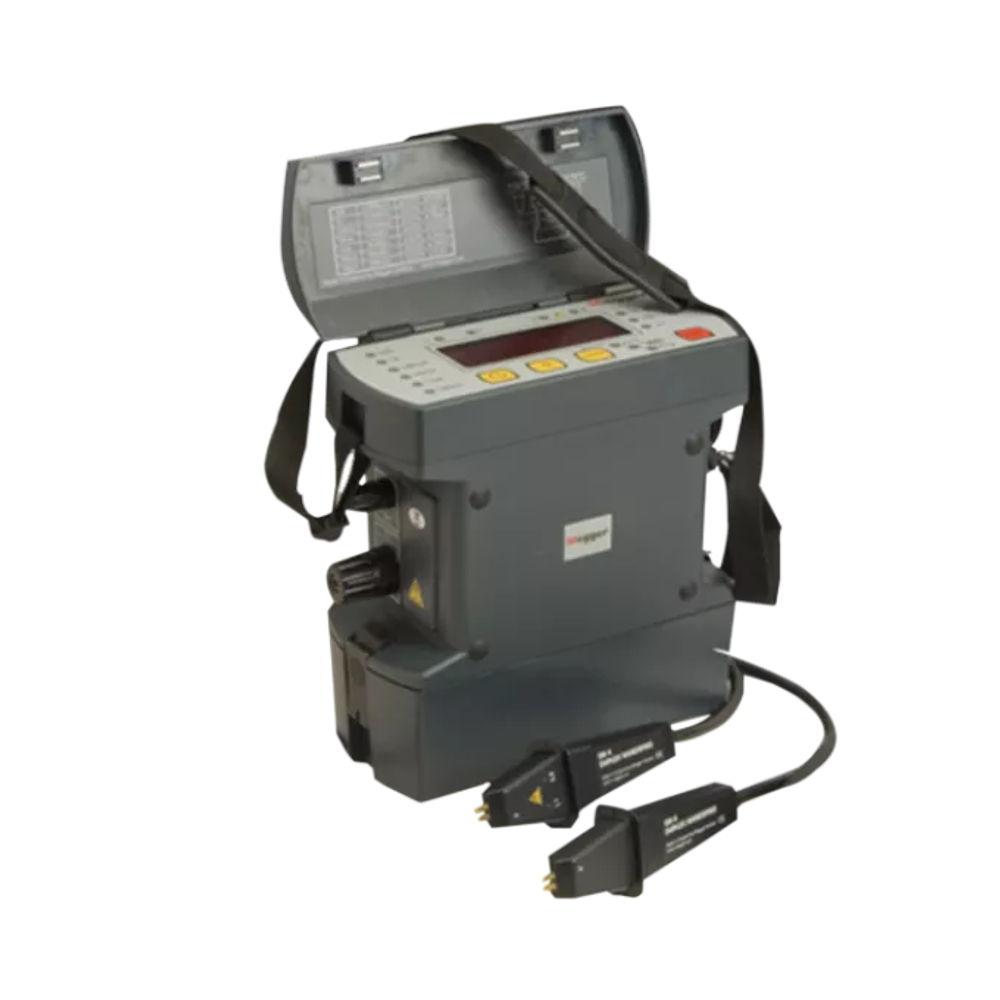

• Supplied with DH4-C 1.5 m Duplex Connect Handspike Lead Set with quick push-and-twist interchangeable terminations

Technical Information

• Measurement Range 0.1 µΩ to 2000 Ω (seven ranges)
• Maximum Test Current 10 A DC
• Basic Accuracy ±0.2%
• Measurement Time Under 3 seconds
• Display 4½-digit LED
• Maximum Lead Resistance 100 mΩ total for 10 A operation
• Voltmeter Input Impedance > 200 kΩ
• Hum Rejection <1% ± 20 digits additional error with 100 mV peak 50/60 Hz on potential leads
• Battery 7 Ah NiMH rechargeable, interchangeable pack
• Battery Life Approx. 1000 × 10 A tests per charge
• Charging External 90–260 V 50/60 Hz charger or 12–15 V DC supply
• Charging Time 2.5 h to 90% (fast charge), 4 h to full
• Operating Temperature +5 °C to +45 °C (full spec), -10 °C to +50 °C (reduced accuracy)
• Storage Temperature -30 °C to +70 °C
• Humidity 90% RH @ 40 °C non-condensing
• Altitude 2000 m to full safety specifications
• Safety IEC 61010-1, 600 V Category III (with DH6 leads)
• EMC IEC 61326-1
• Dimensions (HxWxD) 245 x 237 x 100 mm (with battery)
• Weight 2.46 kg (including battery module)
• Part number 1006-598

Items Included

• DLRO10 Digital Low Resistance Ohmmeter
• DH4-C Duplex Connect Handspike Lead Set, 1.5 m
• NiMH Rechargeable Battery Pack
• External Battery Charger (90–260 V, 50/60 Hz)
• Carrying Case
• User Manual
• Calibration Certificate
