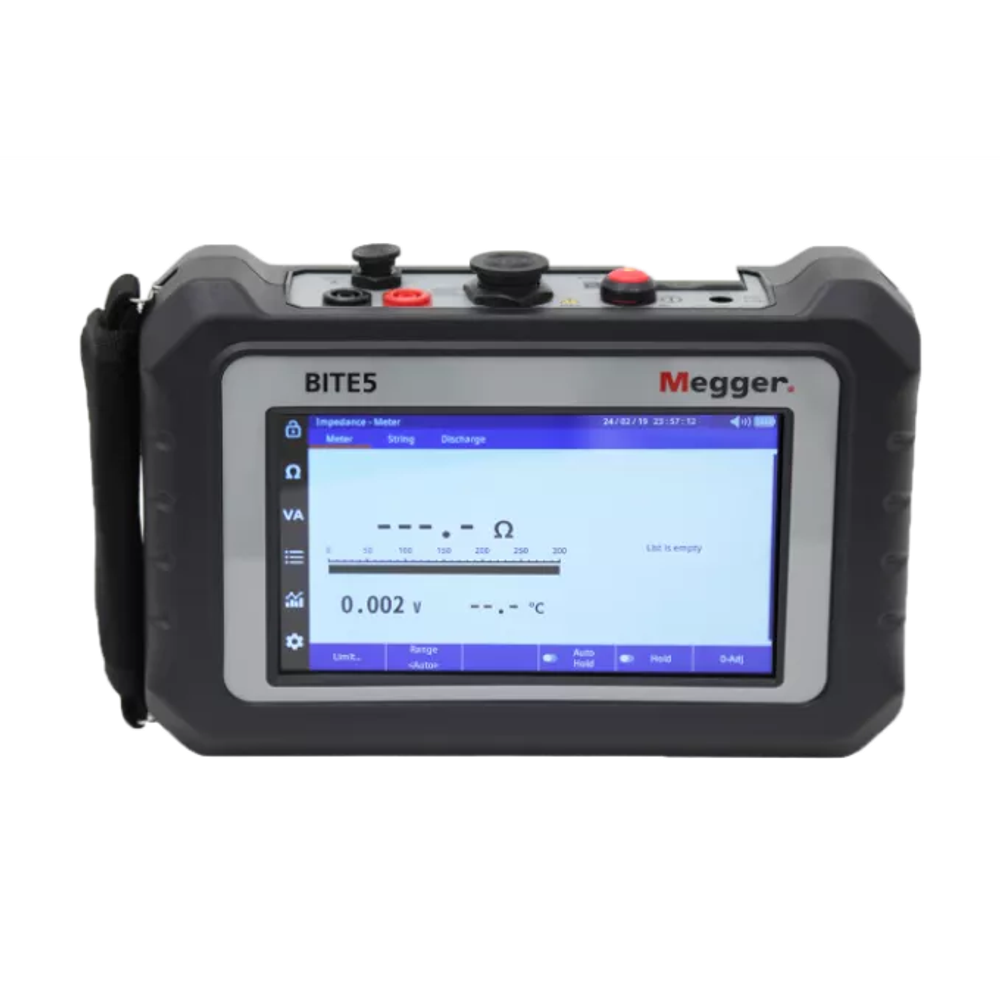

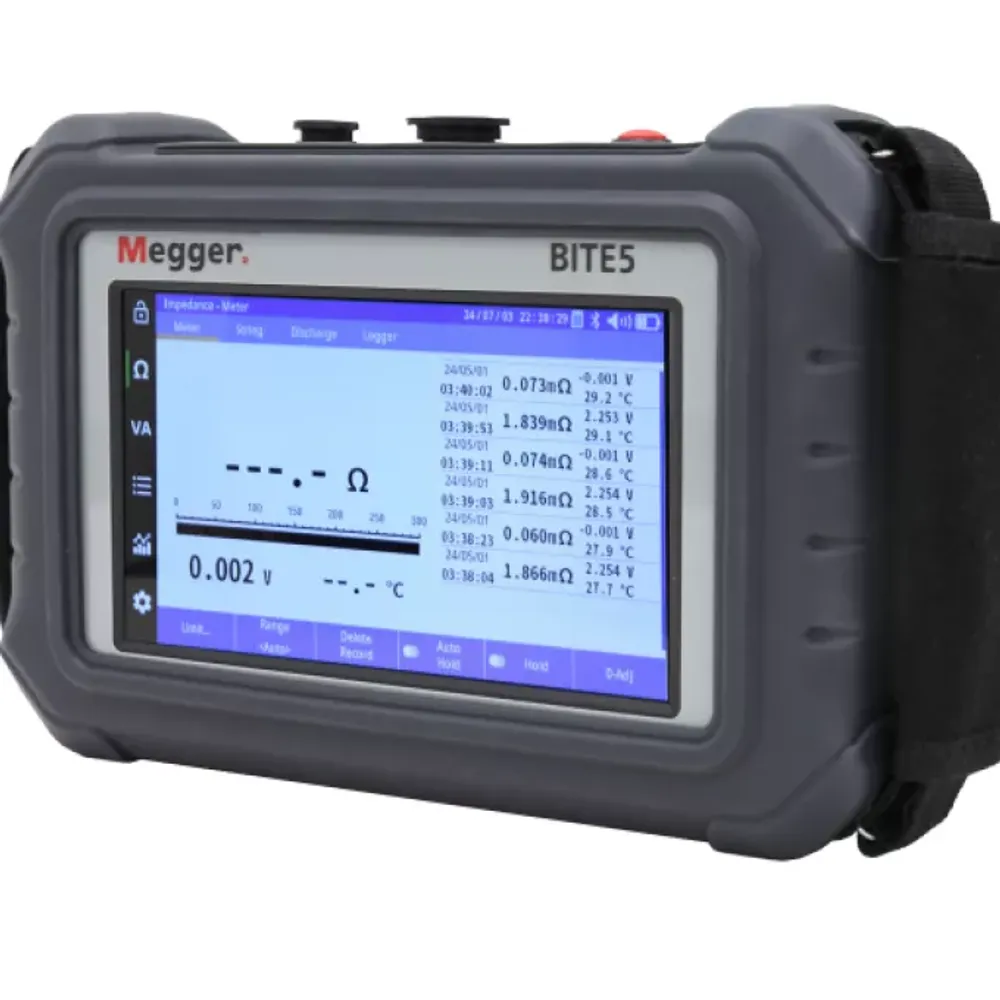

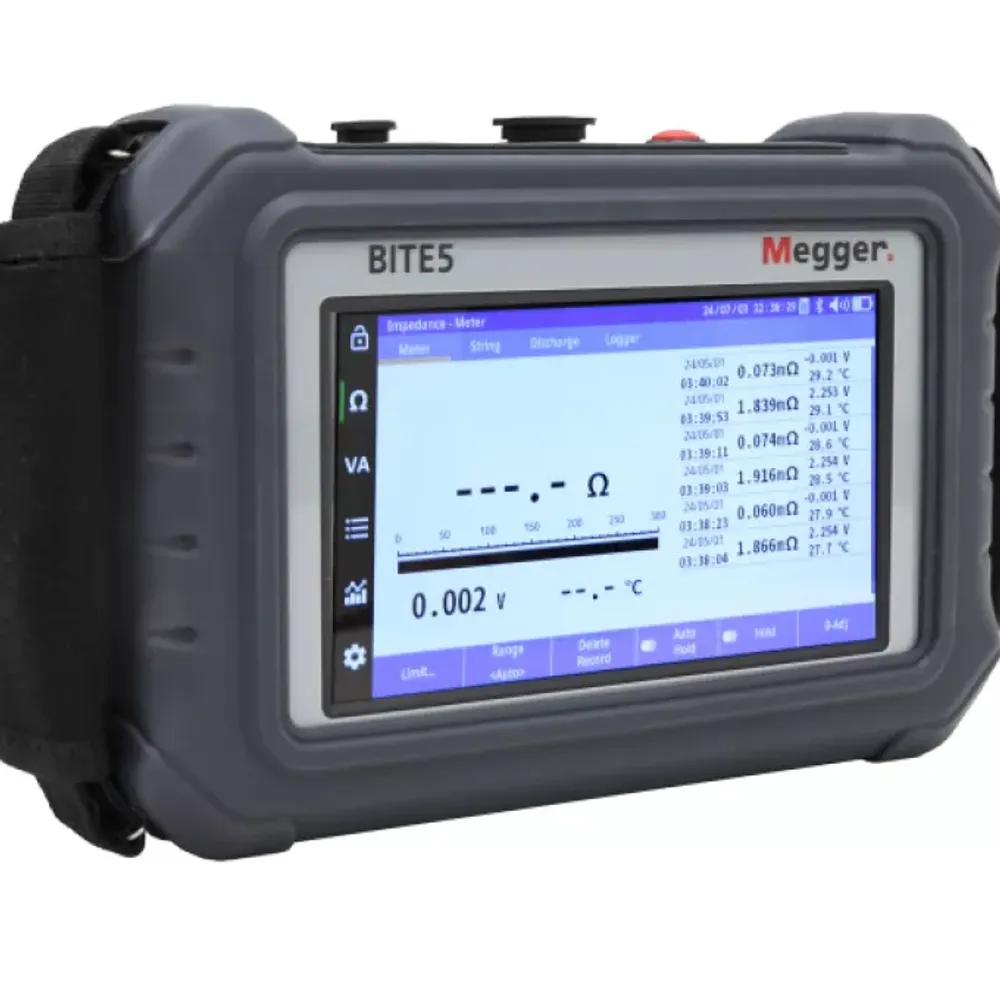

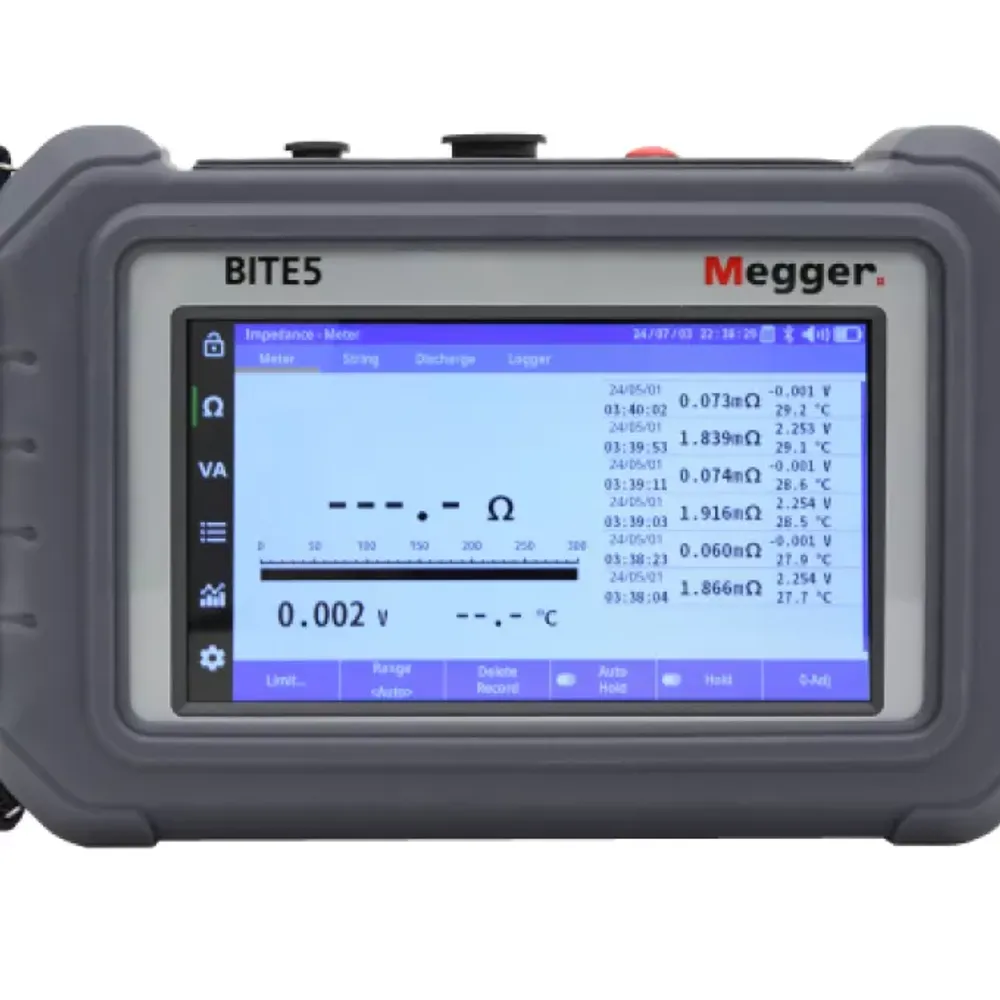

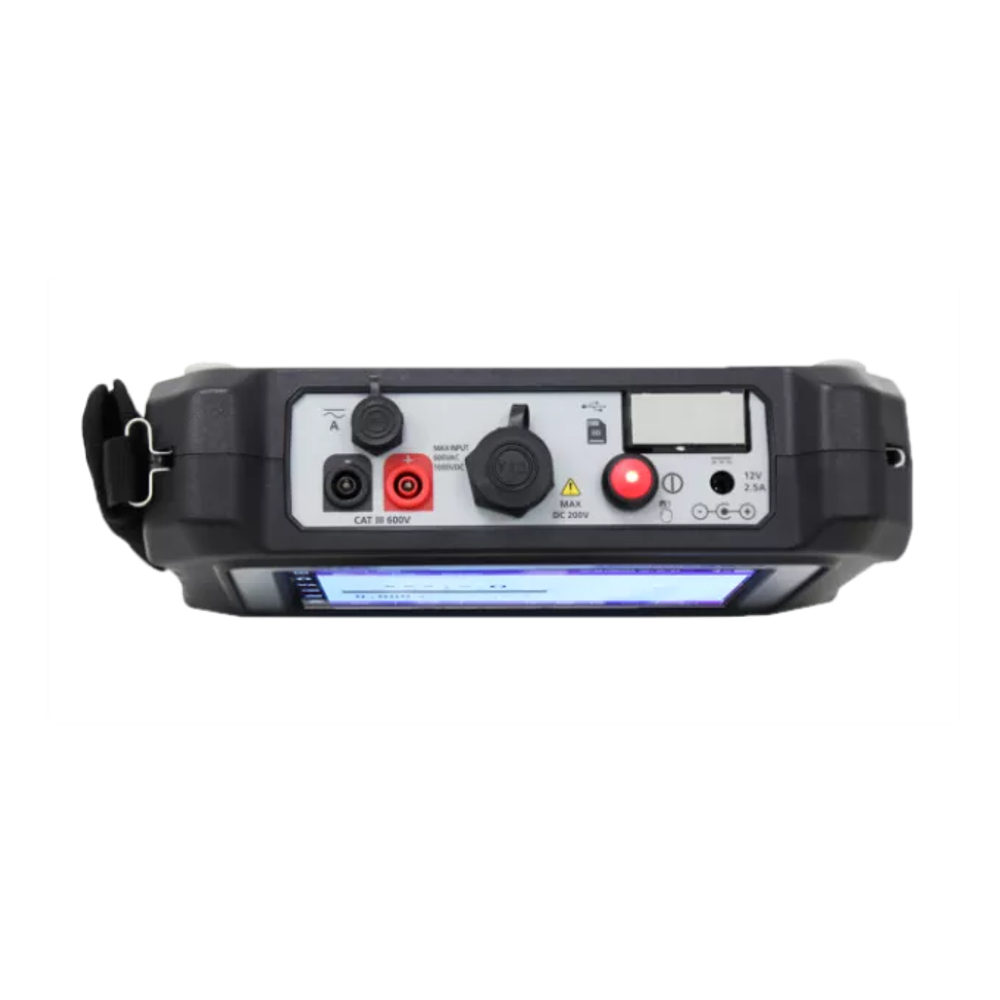

Megger BITE5 Battery Impedance Tester, 200V DC Module, Lead-Acid / NiCd / Li-Ion, Touch Screen, Impedance, Voltage, Temperature, Discharge Testing, USB/SD/Bluetooth
Key Features
?
Question about this product?
Features
- Tests lead-acid (VLA and VRLA), NiCd, and lithium-ion batteries with a single instrument to evaluate state of health
- Measures cell impedance, cell voltage, ripple voltage, AC ripple current, DC float current, and temperature with a single connection
- Touch-screen interface with on-screen trending allows immediate on-site review and decision-making without transferring data
- Supports discharge testing in conjunction with a Megger TORKEL load bank, recording voltage, current, impedance, and temperature throughout the cycle
- Set pass, warning, and fail limits for impedance and voltage to quickly flag cells requiring attention
- Tests battery modules up to 200V DC
- Built-in voltmeter for basic troubleshooting up to 1000V DC and 600V AC, suitable for solar combiner boxes and inverter testing
- Data export via USB cable, SD card, or Bluetooth to Megger PowerDB software for custom reports and automated analysis
- IP54 ingress protection for reliable field use
- CAT III 600V safety rating to IEC 61010
Technical Information
- Battery Types Supported Lead-Acid (VLA, VRLA), NiCd, Lithium-Ion
- Max. Module Voltage 200V DC
- Voltmeter Range Up to 1000V DC / 600V AC
- Measurements Impedance, Cell Voltage, Ripple Voltage, AC Ripple Current, DC Float Current, Temperature
- Impedance Record Capacity Max 1000 records
- VA Record Capacity Max 512 records
- Display 160 x 90 mm touch screen
- Safety Rating CAT III 600V, Pollution Degree 2
- Ingress Protection IP54
- Operating Temperature 0 to 50 °C
- Storage Temperature -20 to 50 °C
- Humidity 10 to 85% RH non-condensing
- Altitude 0 to 2000 m
- Dimensions 240 x 160 x 65 mm
- Weight 0.9 kg

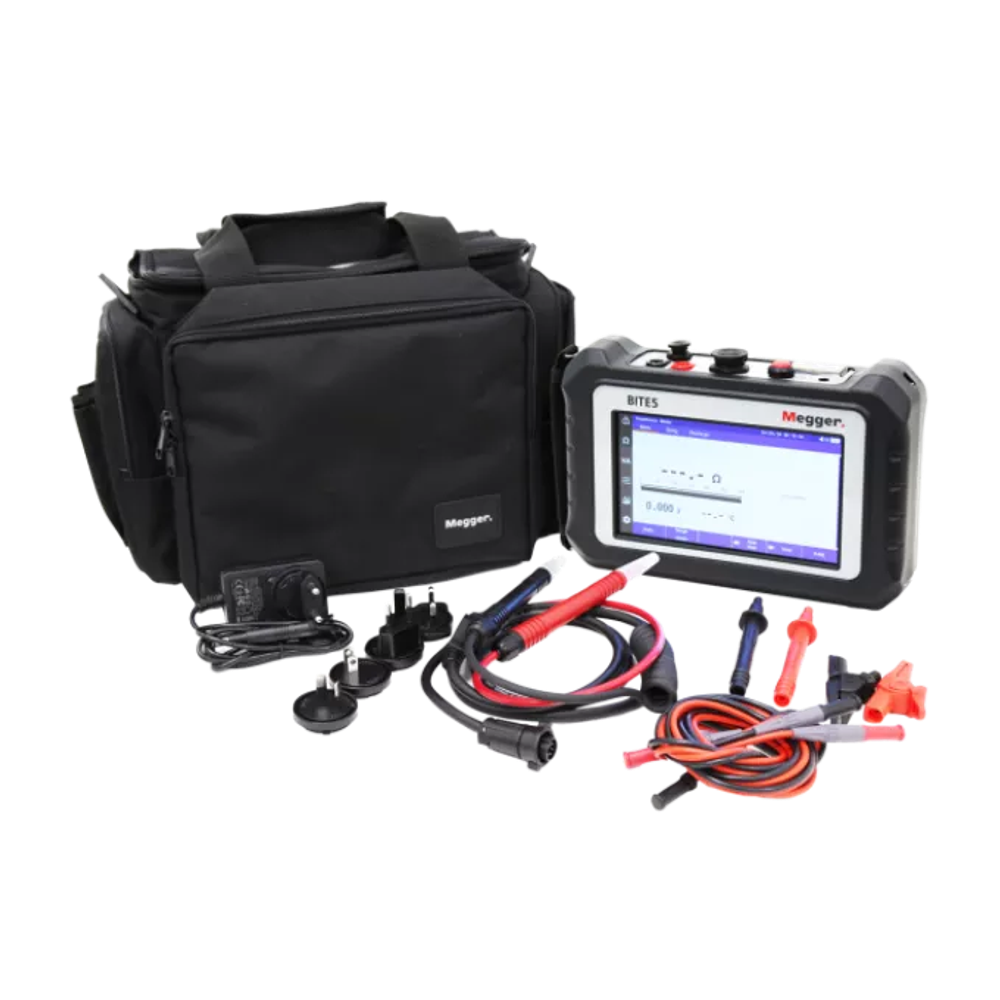

Items Included
- BITE5 Battery Impedance Tester
- Concentric Probe Tips
- Test Leads
- Rechargeable Battery
- USB Cable
- SD Card
- User Manual
