Megger 1012-223 Multifunction Electrical Single and 3 Phase Installation Tester
Key Features
?
Question about this product?
Features
- Designed for the electrical testing of single and 3-phase installations
- Brand new features including full colour screen, RCD configurator and EV charge point testing
- TrueLoop measurement using patented confidence meter
- Fully compatible with CertSuite for easy certificate generation and reporting
- Never be without power with our quick-remove battery pack and rechargeable battery option
Technical Information
- Voltage Range0.001 V to 2 V (mV range) 2 V to 600 V (V range)
- Voltage TypeTrms, AC, DC
- Measurement range Digital display0.001 MΩ to 999 MΩ
Items Included

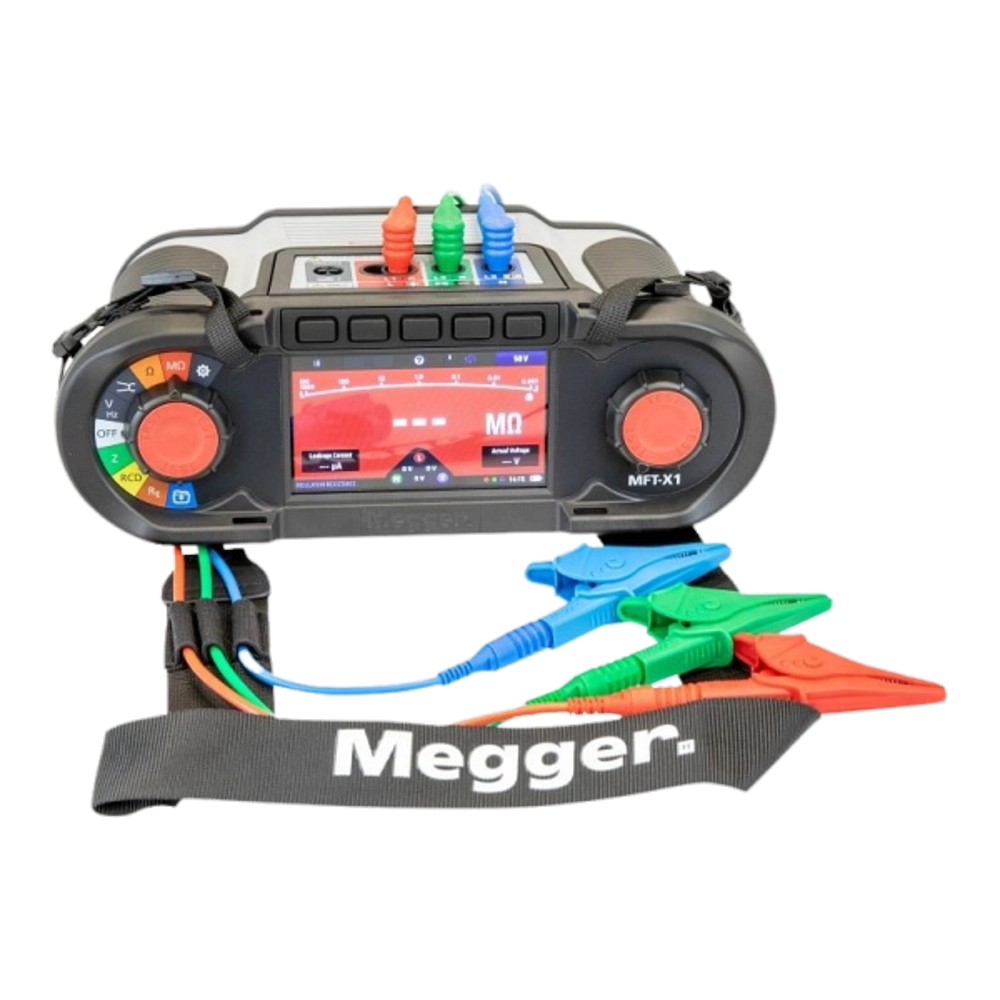

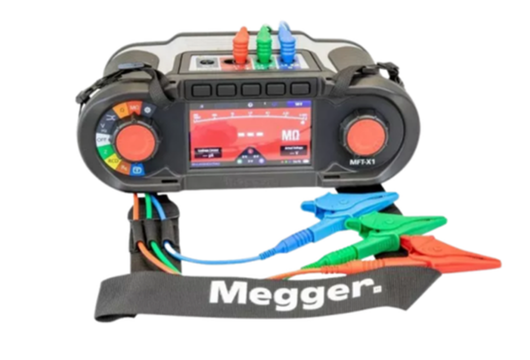

- Megger MFT-X1 Multifunction Tester
- Switched test probe SP5
- Red test lead, probes, clips and grabbers
- Blue test lead, probe, clips and grabbers
- 600mV to 750VGreen test lead, probe, clips and grabbers
- 600mV to 1000VMegger Earth Spike Test Kit 1001-810
- 60MΩLi-ION battery 4400 mAh
- 40nF to 4000µFLi-ION battery charger
- 600µA to 10ASIA10 MAINS socket interface adaptor UK
- 600µA to 10ANeck strap

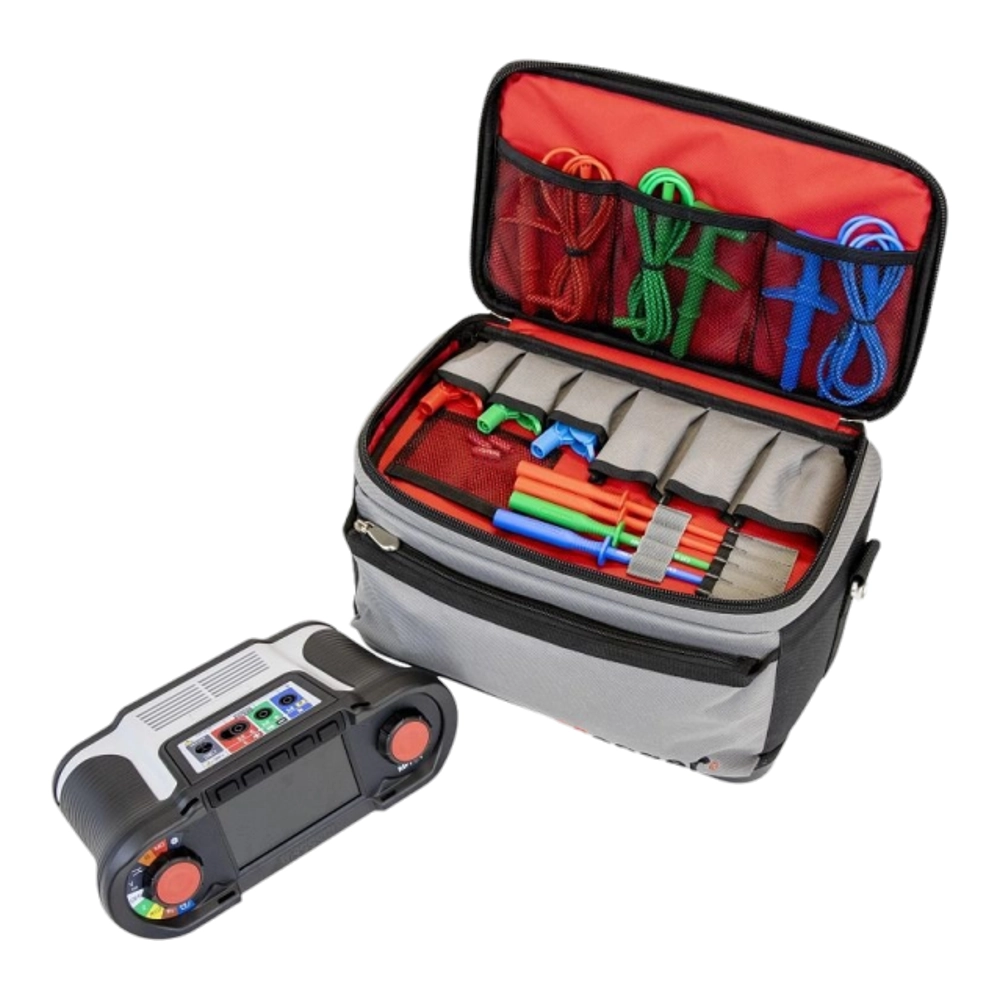

- 10Hz to 10kHzMultipurpose hard base carry case
- CAT III 600VQuick start guide
- Calibration certificate
BUY MEGGER MFT-X1 MULTIFUNCTION ELECTRICAL INSTALLATION TESTER
The Megger MFT-X1 Multifunction Installation Tester is Megger's first platform-based electrical installation tester, designed and built for single and 3-phase domestic, commercial, and industrial low-voltage installations. Rated CAT IV 300 V, it consolidates commissioning, fault diagnostics, routine maintenance, and certification into one capable instrument, including EV charge point and solar PV system testing.
TRUE LOOP™ TESTING & SMART MEASUREMENT

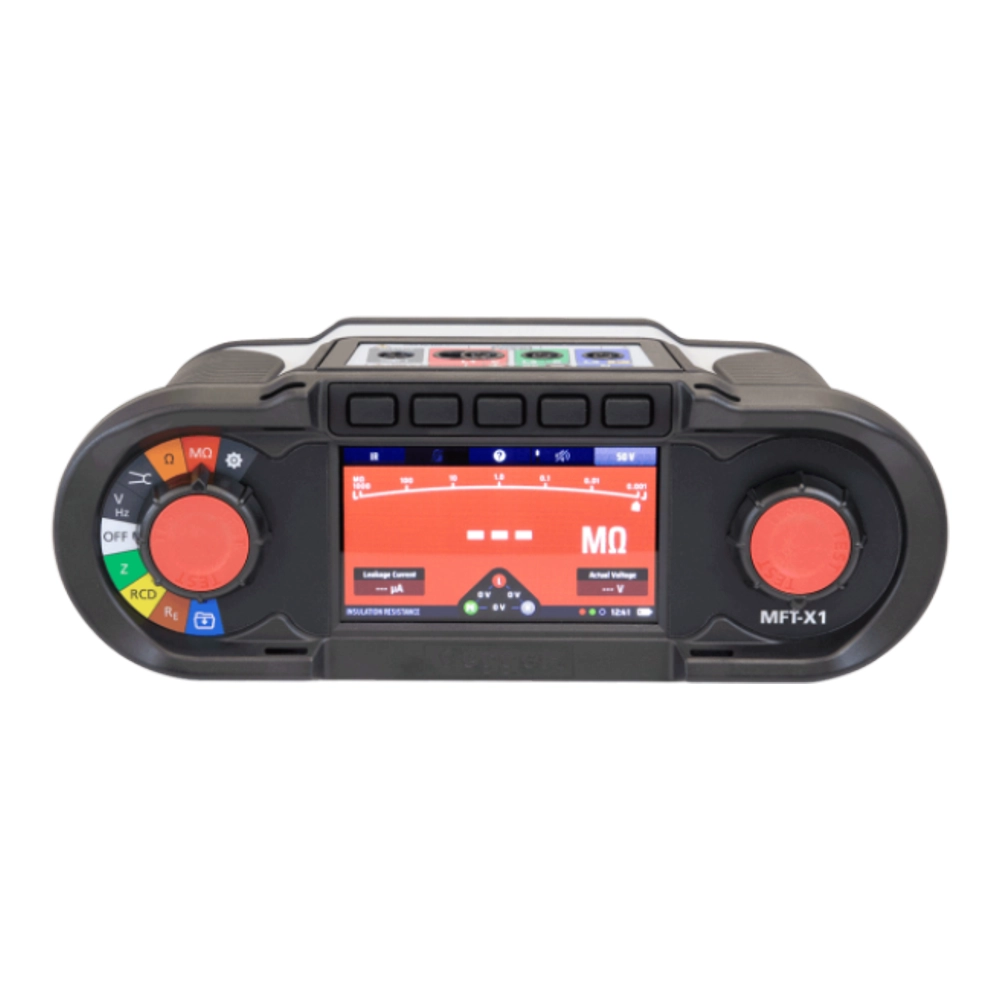

The MFT-X1 features Megger's advanced True Loop™ earth loop impedance system with a patented Confidence Meter™, delivering stable, repeatable results even under high-noise supply conditions. Non-trip loop tests complete in as little as 7 seconds, with 0.001 Ω high-resolution measurement across all ranges. A stabilised insulation test voltage accurate to within +2%, configurable RCD auto-sequence testing, automatic volt-drop calculation, and a full-colour TFT display are all standard. Bluetooth connectivity with the CertSuite™ platform enables wireless result transfer and on-site certificate generation via iOS or Android.
IP54-RATED DURABILITY & FUTURE-PROOF OPERATION

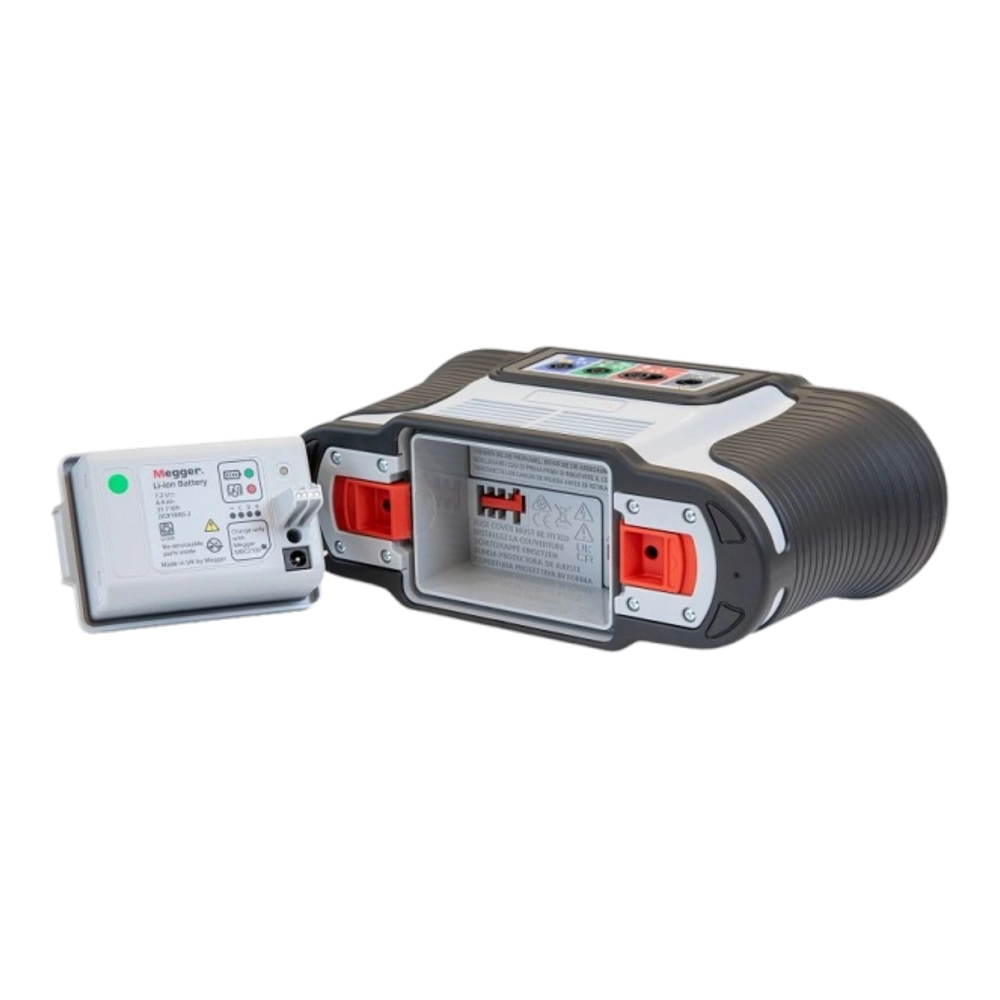

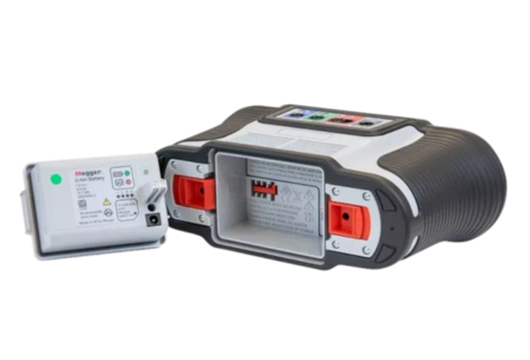

Housed in an IP54-rated enclosure and supplied with a rugged weatherproof carry case, the MFT-X1 is built for demanding site conditions. Its modular quick-swap battery system supports both a rechargeable 4.4 Ah Li-ION pack and standard AA batteries for uninterrupted fieldwork. A microSD-upgradeable operating system ensures long-term compliance with evolving installation standards.
