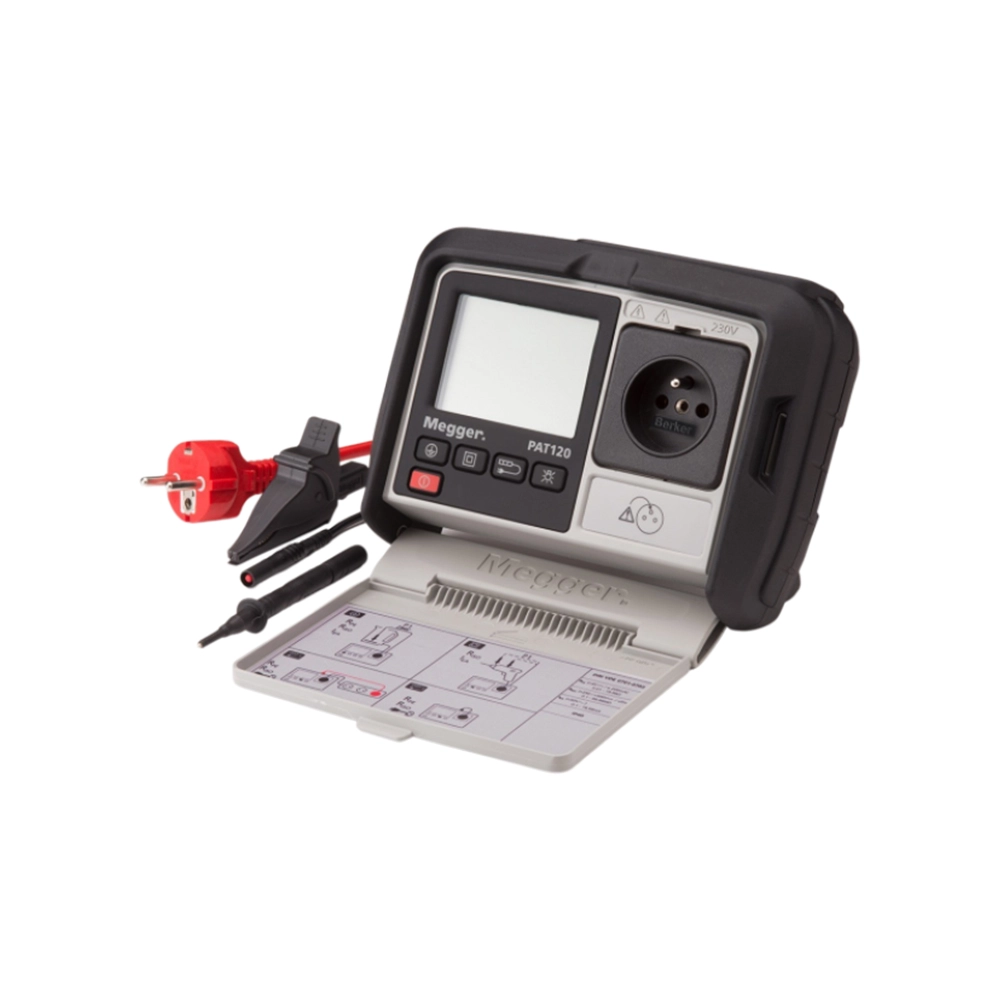

Megger 1003-062 PAT120-UK Battery Powered Portable Appliance Tester

Features

• Test groups available for Class I, Class II and Extension/Power leads
• Fixed PASS limits
• Insulation testing at 500 V (default) or 250 V can be selected at the start of the test
• Leakage testing uses a “Substitute Leakage” also known as the “Alternative” method to remove the need for a mains supply during test
• Tough, rubber armour with built-in front cover and hardened scratch-proof display

Technical Information

• Continuity Test Voltage+4 V DC (open circuit)
• Continuity Test Current200 mA (bi-directional)
• Continuity Test Accuracy±5% ± 3 digits (0 to 19.99 Ω)
• Continuity Test Resolution10 mΩ
• Continuity Test Display Range0.01 to 19.99 Ω
• Insulation Test Voltage250 V DC / 500 V DC
• Insulation Test Accuracy±3% ± 10 digits (0 to 19.99 MΩ)
• Insulation Test Display Range0.10 MΩ to 99.99 MΩ
• Substitute Leakage Test Voltage< 50 V AC
• Substitute Leakage Test Display Range0.10 to 19.99 mA
• Battery Type8 x AA Alkaline/NiMH cells
• Weight1150 g
• Dimensions203 mm x 148 mm x 78 mm

Items Included

• Extension Lead Adaptor
• Continuity/Earth Bond Lead (Part No: 1001-233)
• Carry Case (Part No: 1005-075)
