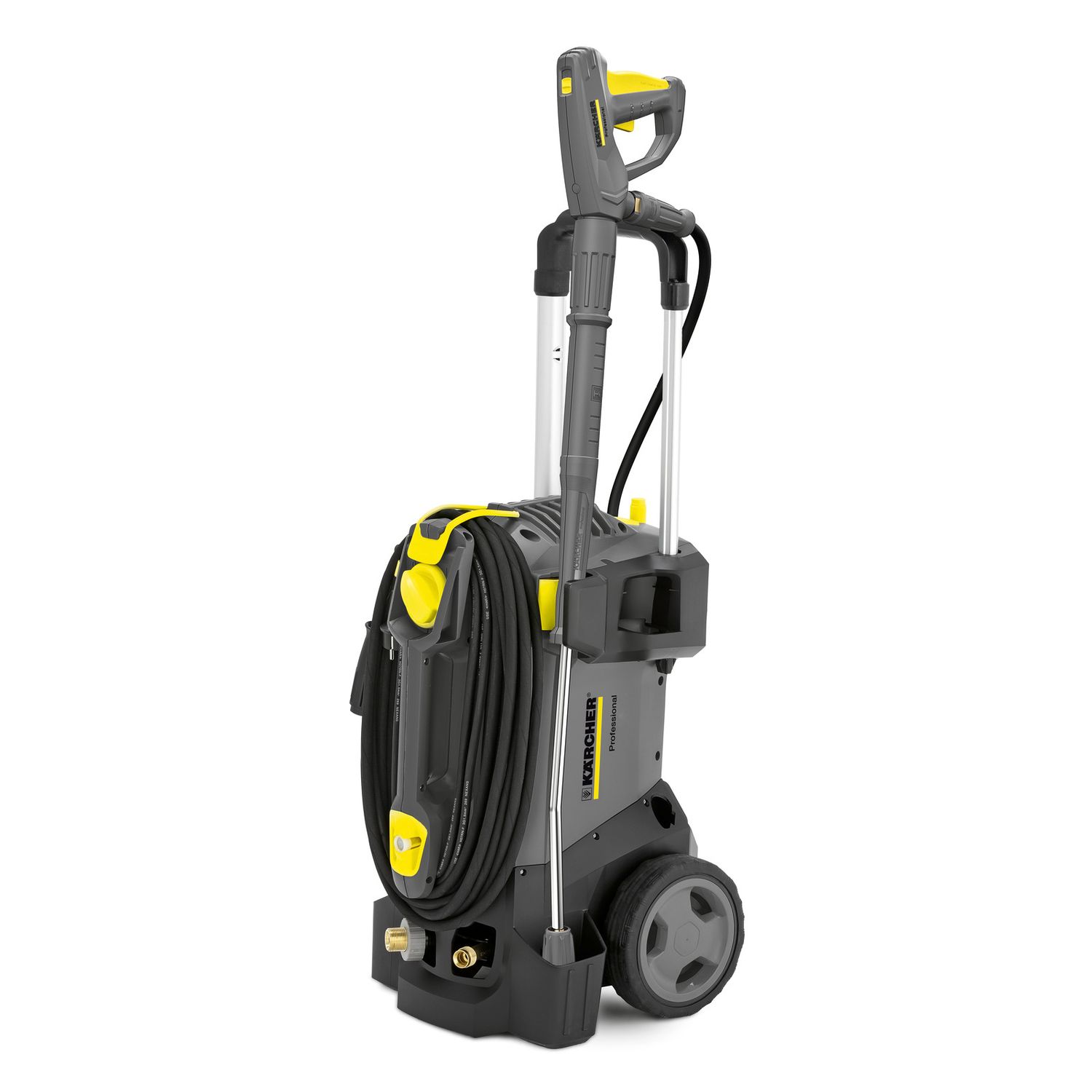

Karcher 1.520-930.0 High-Pressure Cleaners 150 bar, 500(l/h)

Features

• The compact, lightweight and versatile HD 5/15 C cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation
• The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life
• At the same time, it impresses with innovative new developments that increase working convenience for the operator in the long term by ensuring effortless operation and time-saving set-up and dismantling
• The EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity
• Integrated carrying handle on the front of the machine enables easy loading and convenient transport
• Push handle can be retracted at the push of a button
• Compact construction style
• Vertical and horizontal operation possible, the wheels are not on during horizontal operation
• High-quality brass cylinder head
• Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water
• Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine
• Practical nozzle compartments for triple nozzle and rotary nozzle
• Rubber strap for fixing the pressure hose

Technical Information

• Power supply 1 / 230 / 50(Ph/V/Hz)
• Flow rate 500(l/h)
• Inlet temperature 60(°C)
• Working pressure 150 / 15(bar/MPa)
• Max. pressure 200 / 20(bar/MPa)
• Connected load 2.8(kW)
• Power cable 5(m)
• Nozzle size 32(mm)
• Water inlet 3/4″
• Colour Anthracite
• Weight (with accessories) 25.7(kg)
• Weight incl. packaging 27.9(kg)
• Dimensions (L × W × H) 380 x 360 x 930(mm)

Items Included

• Spray gun: EASY!Force
• High-pressure hose length: 10 m
• High-pressure hose specification: DN 6, 200 bar
• Spray lance: 840 mm

Downloads

Datasheet
