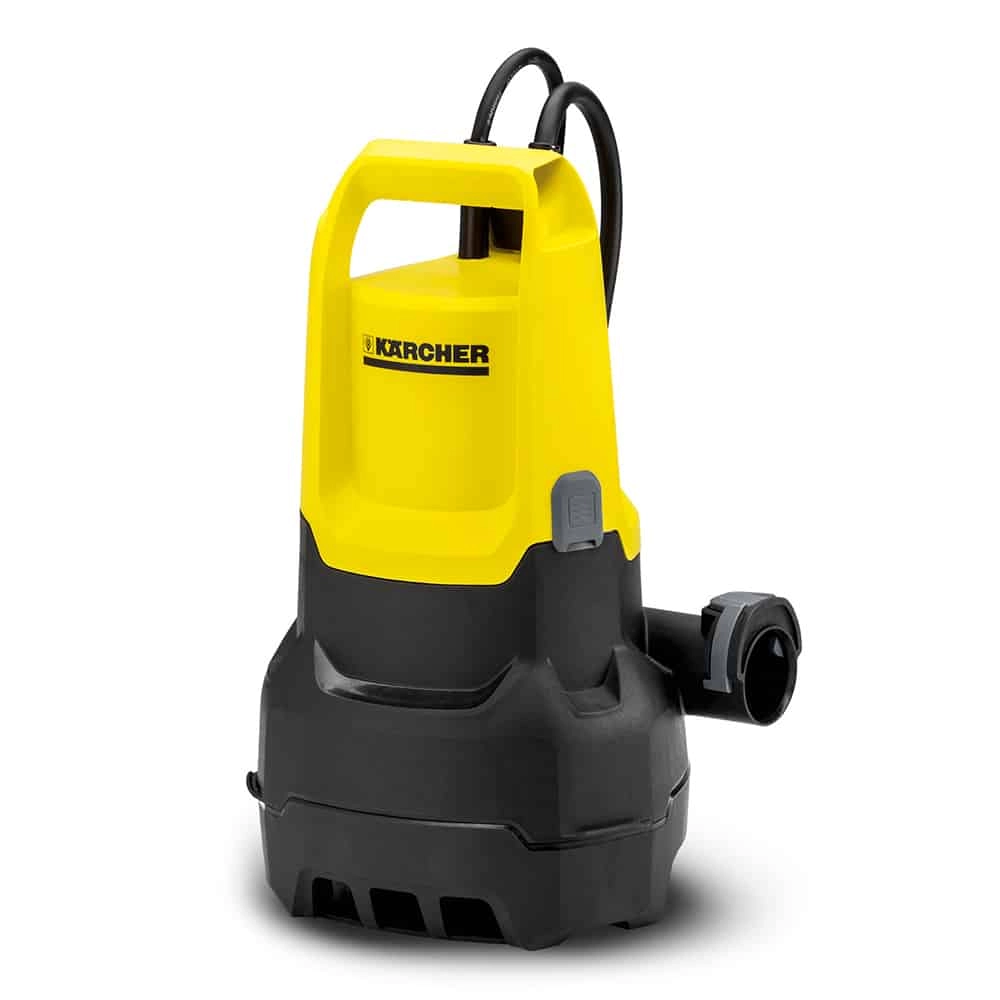

    KARCHER 1.645-513.0 SP5 Submersible Dirty Pump

    # 1.645-513.0

    • Ceramic face seal. For an extra long lifetime.
    • Increases the flexibility when setting the switch-on and switch-off point of the pumps and prevents dry running.
    • Connection thread for quick and uncomplicated connection of 1 1/4″ hoses to the pump.
    KARCHER
    • KARCHER
    • 1.645-513.0

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • Ceramic face seal. For an extra long lifetime.
    • Increases the flexibility when setting the switch-on and switch-off point of the pumps and prevents dry running.
    • Connection thread for quick and uncomplicated connection of 1 1/4″ hoses to the pump.
    • Reliable pumping of water with dirt particles up to 20 mm in size.
    • For switching to continuous operation.
    • Comfortable to hold and can also be used as a rope holder.
    • Protects the pump against excessively heavy soiling and thus prevents the pump impeller from becoming blocked.
    Max. motor rating (W) 500
    Max. flow rate (l/h) 9500
    Delivery temperature, max. (°C) 35
    Delivery height / Max. pressure (m/bar) 7 / 0.7
    Max. grain size (mm) 20
    Max. immersion depth (m) 7
    Min. residual water, manual (mm) 25
    Residual water height (mm) 25
    Power cable (/m) H05RN-F / 10
    Voltage (V) 230 – 240
    Frequency (Hz) 50
    Dimensions (L × W × H) (mm) 229 x 238 x 303
    Weight without accessories (kg) 4.7
    • Comfortable carrying handle

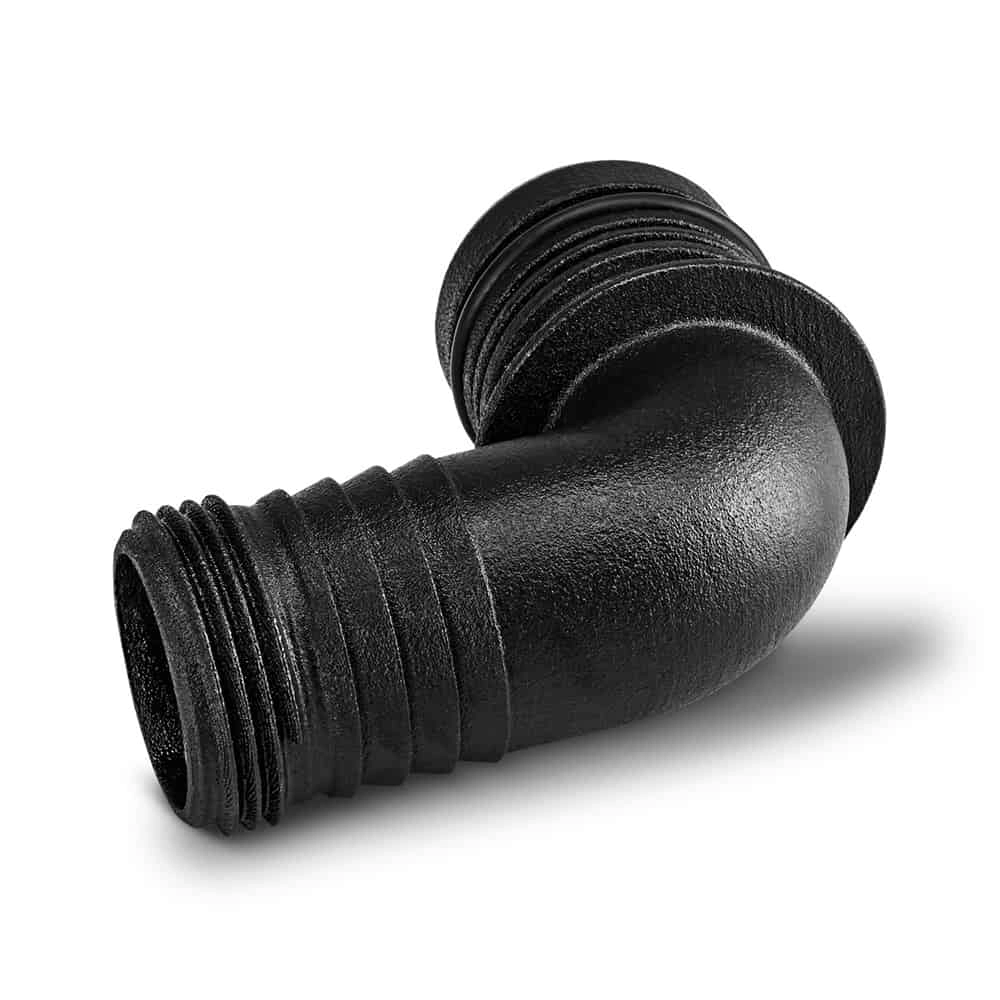

    • Hose connection piece, 1 1/4”
    • Easy hose connection thanks to Quick Connect
    • Switching between manual/automatic operation, Possibility of fixing the float switch

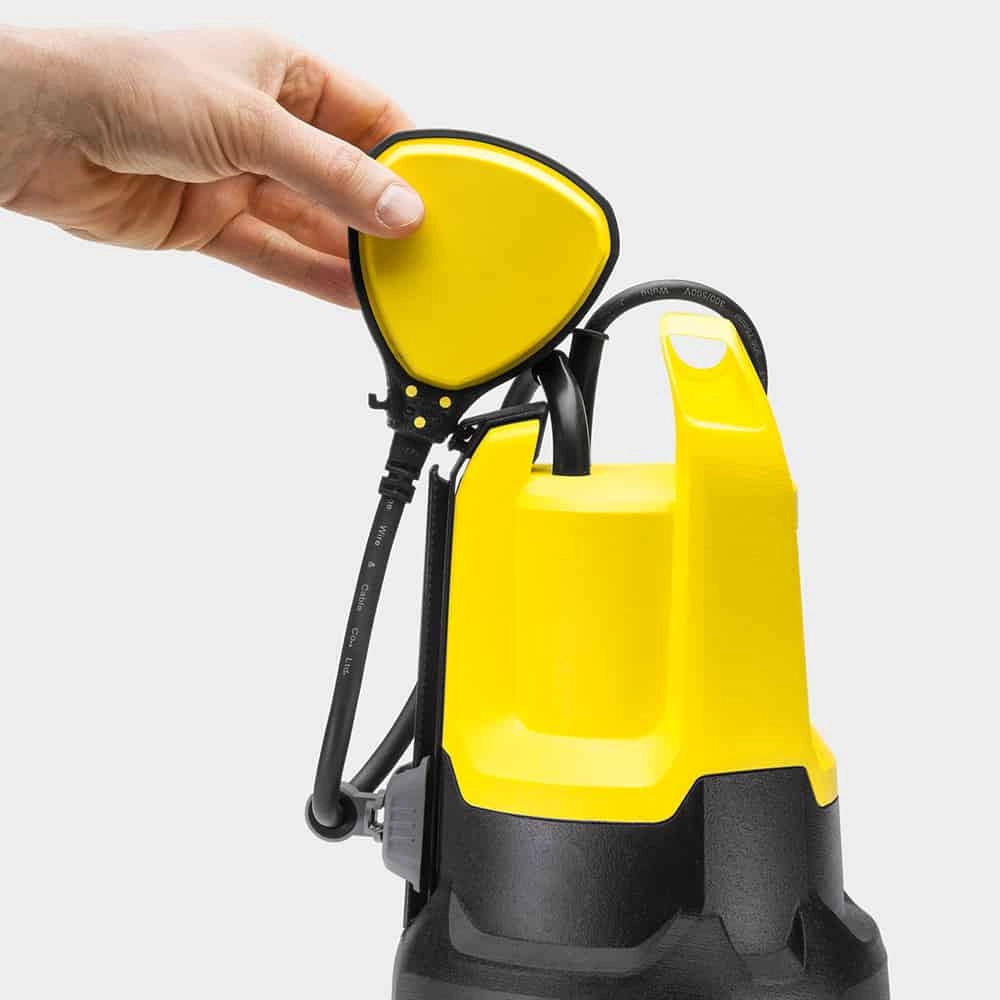

    • Flexible, height-adjustable float switch
    • In automatic operation (auto), the pump automatically switches with the water level
    • In manual operation, the pump runs continuously until the minimum quantity of residual water is reached
