Gazelle GW7050 220V D-Handle Jigsaw, 3+1 Mode, 650W

Features

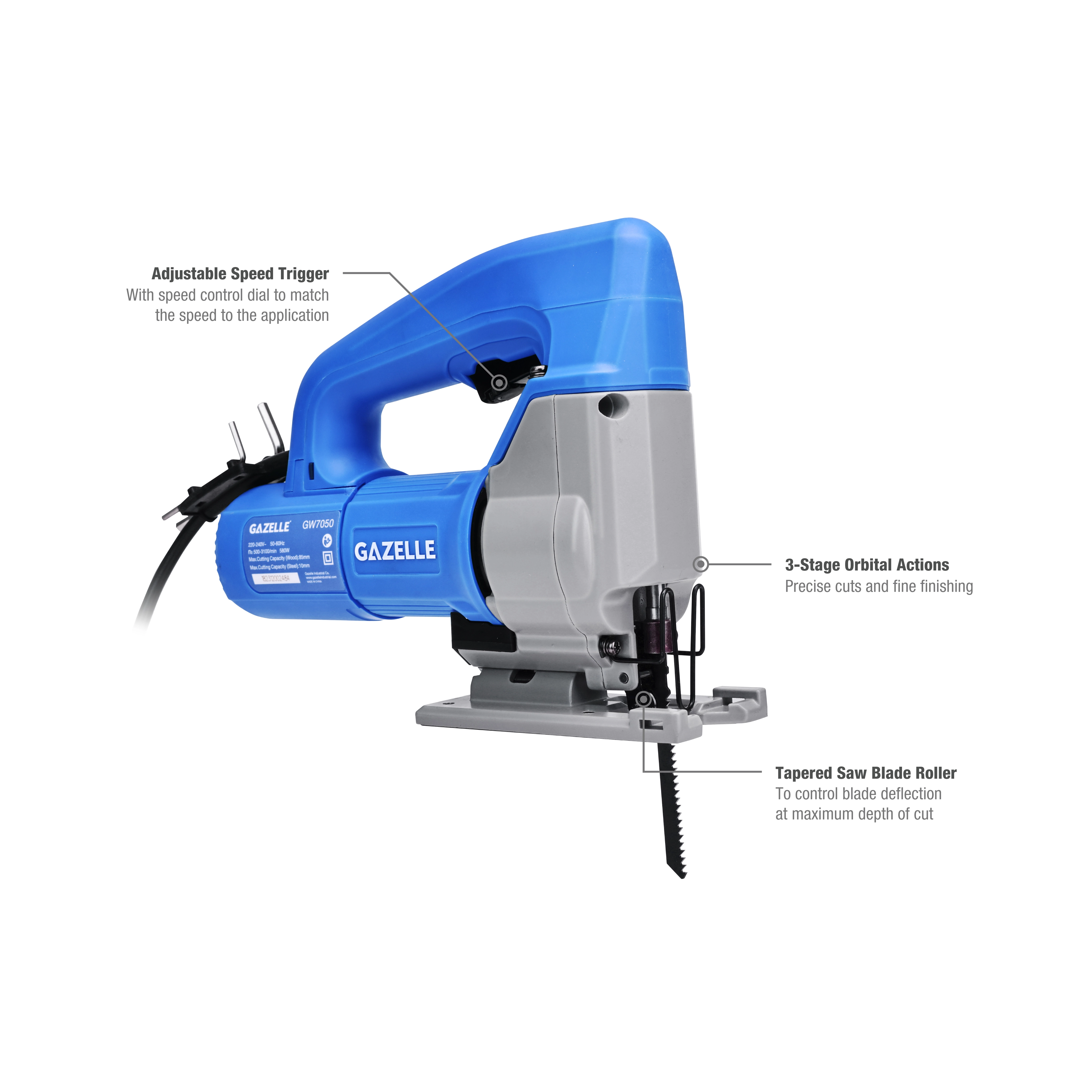

• Adjustable Speed Control: The pre-selection speed wheel allows you to easily adjust the cutting speed to match the material you're working with, providing versatility for different applications.
• 3-Stage Orbital Action: Achieve precise cuts with fine finishing or opt for faster, more aggressive cutting through the 3-stage orbital action, making the GW7050 ideal for a wide range of materials and projects.
• Powerful 580W Motor: The 580W motor offers high cutting power and efficiency, providing fast cutting speeds up to 3100 strokes per minute (SPM), ensuring you can tackle a variety of materials with ease.
• Dust Blower for Clear Visibility: The large diameter dust blower keeps the cutting lines clear of chips and debris, ensuring improved visibility and accuracy during operation.
• Tapered Saw Blade Roller: The tapered saw blade roller helps to control blade deflection at maximum cutting depth, ensuring more stable and precise cuts.
• Bevel Capacity (45° Left/Right): Easily adjust the saw for angled cuts with a bevel capacity of up to 45°, allowing for precise corner or bevel cuts on a variety of materials.

Technical Information

• Power SourceCorded
• Voltage220V
• Power Input580W
• No Load Stroke Rate0 - 500 SPM / 0 - 3100 SPM
• Bevel Capacity45° (Left/Right)
• Max. Cutting Capacity [Wood]85mm
• Max. Cutting Capacity [Steel]10mm
• Variable SpeedYes
• Weight2.7 kg

Items Included

• Saw Blade (3pcs) (T144D
• T111C
• T118A)
• Screwdriver
• Hex Wrench
• Blade Gauge
• Plastic Base
• Carbon Brush

Downloads

Arabic User ManualDatasheetUser Manual
