Gazelle GM4570 220V 7 In. Angle Grinder (180mm), Deadman/Paddle Switch, 2200W

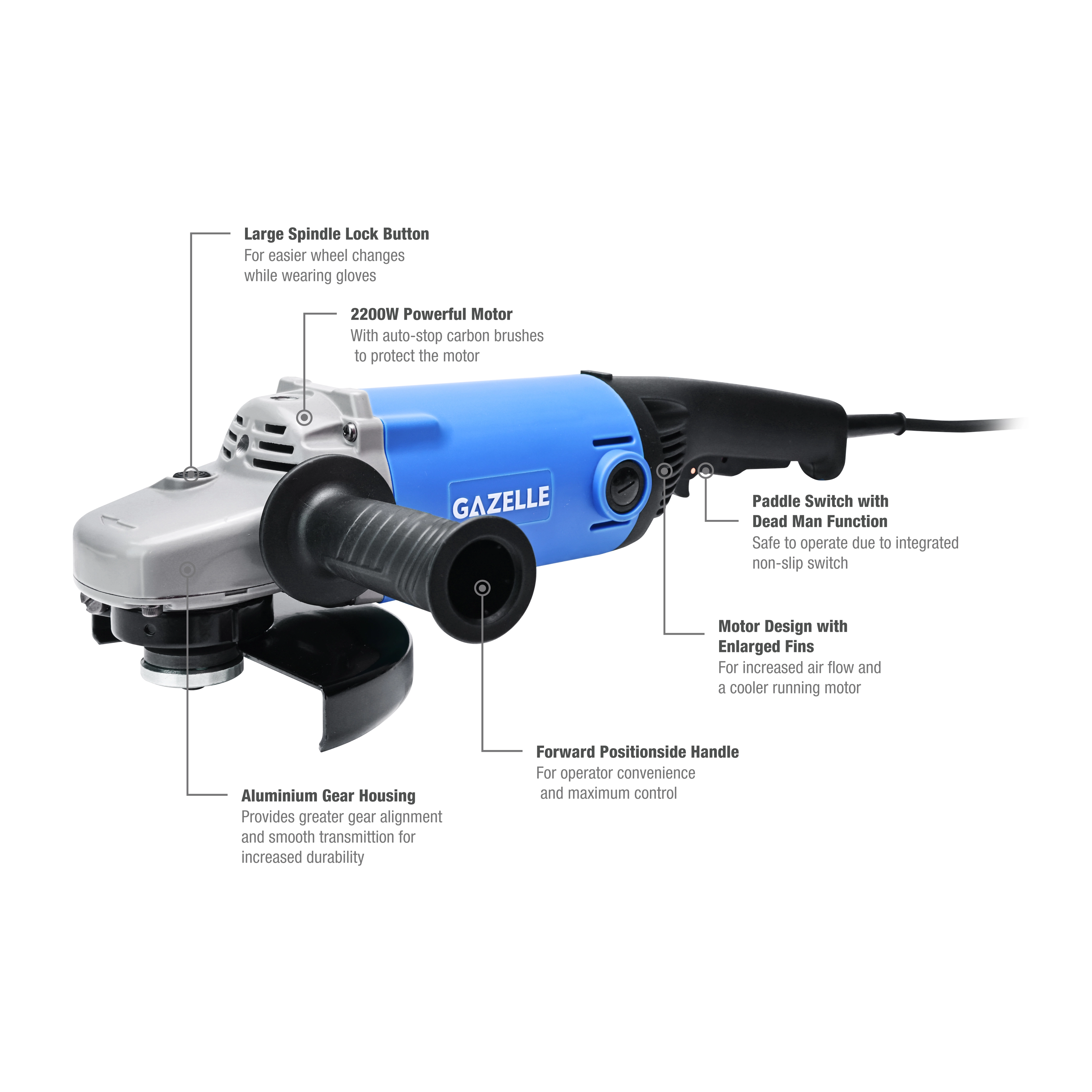

Features

• Powerful 2,200W Motor: Delivers a no-load speed of 8,300 RPM, perfect for the most challenging cutting, grinding, and polishing tasks.
• Ergonomic Paddle Switch with Dead-Man Function: Provides safe and comfortable operation, with a non-slip design for greater control.
• Labyrinth Construction: Protects the motor and bearings from dust and debris, enhancing durability and longevity.
• Soft Start Function: Reduces startup shock, protecting gears and ensuring smooth operation from the start.
• Aluminium Gear Housing: Ensures superior gear alignment, smooth transmission, and increased durability for long-term performance.
• Forward-Positioned Side Handle: Enhances comfort and control, reducing operator fatigue during extended use.
• Auto-Stop Carbon Brushes: Protects the motor from excessive wear, improving tool longevity.
• Large Spindle Lock Button: Enables quick and easy wheel changes, even when wearing gloves.

Technical Information

• Power SourceCorded
• Voltage220V
• Rated Input Power2200W
• Blade Size180mm
• Bore Size22mm
• Switch TypePaddle Switch
• No Load Speed8300 RPM
• Spindle ThreadM14
• Weight5.0 kg

Items Included

• Auxiliary Handle
• Wrench
• Carbon Brush

Downloads

User ManualDatasheetArabic User Manual
