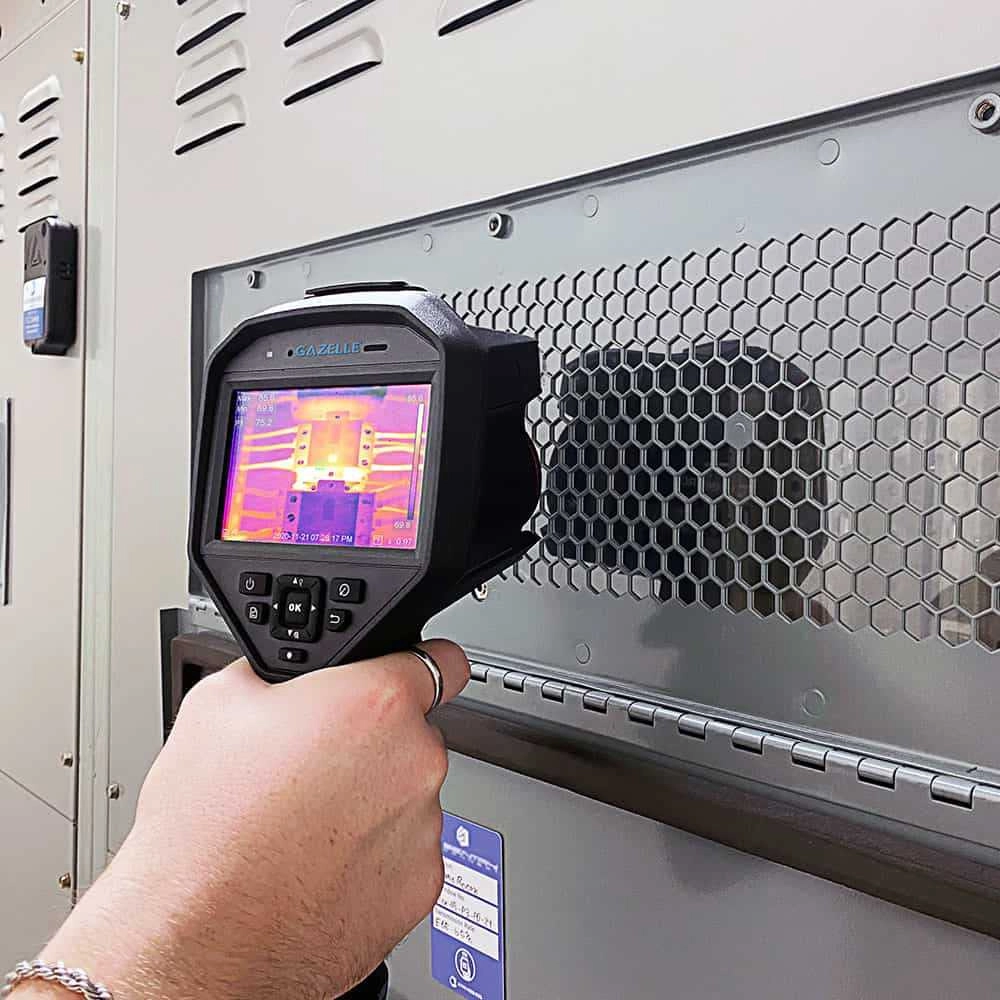

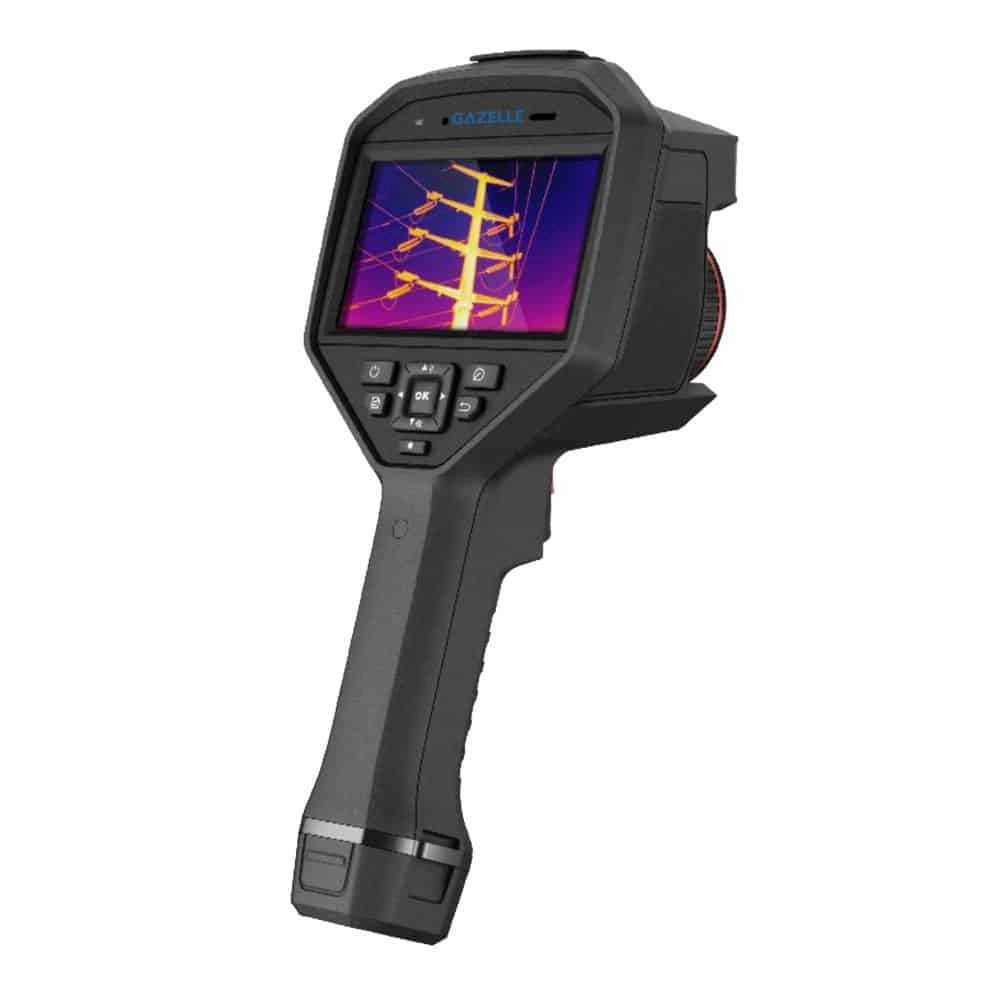

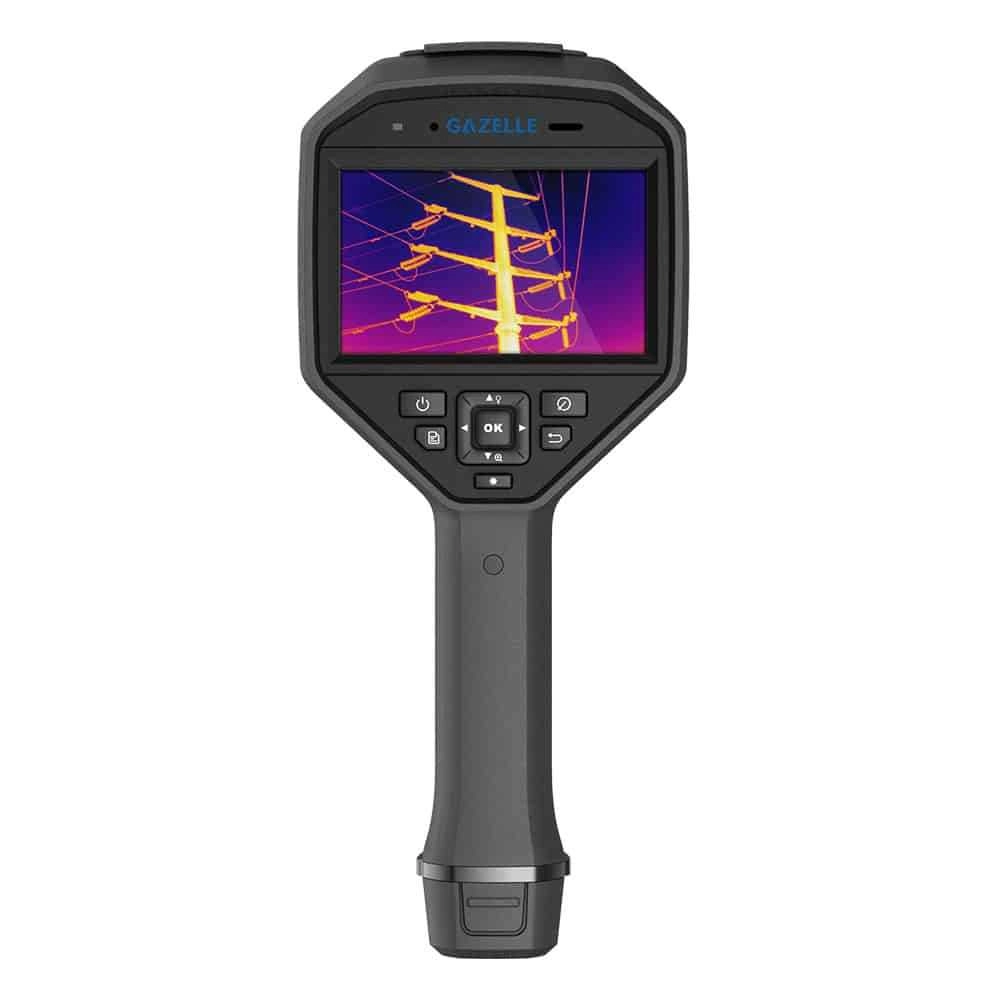

Gazelle G9706 Pro Advanced Thermal Imager, 640x480P

Model #   G9706 Pro

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • High Thermal Resolution: 640x480 pixels (307,200 pixels) for detailed and accurate thermal imaging.
  • Wide Temperature Range: Measures temperatures from -20°C to 650°C (-4°F to 1202°F), suitable for diverse applications.
  • Advanced Image Sensor: Equipped with Vanadium Oxide Uncooled Focal Plane Arrays for superior performance.
  • Precise Spatial Resolution: 0.68mrad IFOV for pinpoint accuracy in temperature measurement.
  • Fast Image Frequency: 50Hz for smooth and real-time thermal imaging.
  • Customizable Measurement Presets: Includes center spot, hot spot, cold spot, and user-defined points, lines, and areas.
  • Manual and Auto Focus: Allows precise targeting of areas as close as 6 inches or from greater distances.
  • Large Field of View: 25°x19° with a 25mm focal length for comprehensive coverage.
  • Durable and Ergonomic Design: Features a 4.3” LCD touch screen display and an 8MP optical camera for enhanced usability.
  • Extended Battery Life: Up to 4 hours of continuous operation with two included batteries.

Technical Information

  • Temperature Range-20 to 650°C
  • IR Resolution640x480 pixels
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Pitch17µm
  • Field of View25°x19°
  • Focal Length25mm
  • Spatial Resolution (IFOV)0.68mrad
  • ApertureF1.1
  • Image Frequency50Hz

Items Included

  • Quick Start Guide (x1)
  • Type-C Cable (x1)
  • Hand Strap (x1)
  • CVBS Cable (x1)
  • Charging Base (x1)
  • Battery (x2)
  • Micro SD Card (x1)
  • Box (x1)
  • Tools Package (x1)
  • Charger (x1)
  • Lens Cover (x1)
