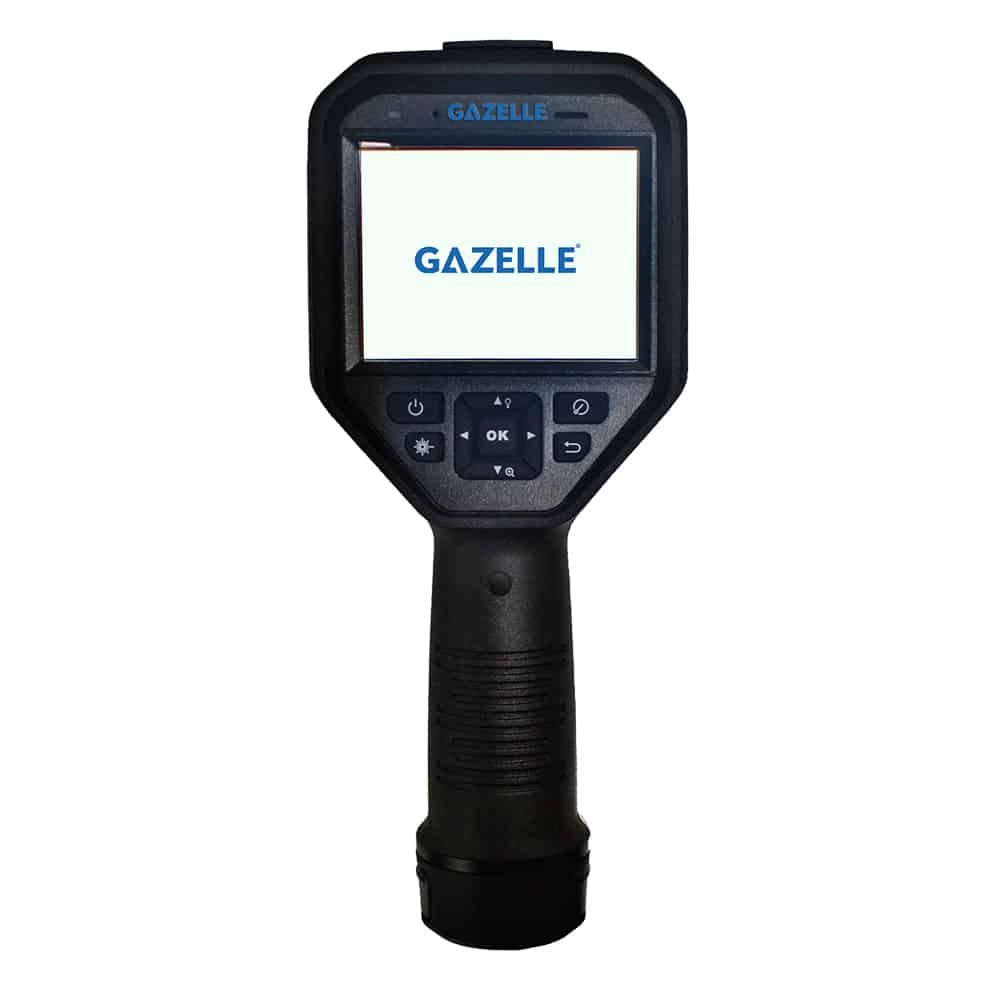

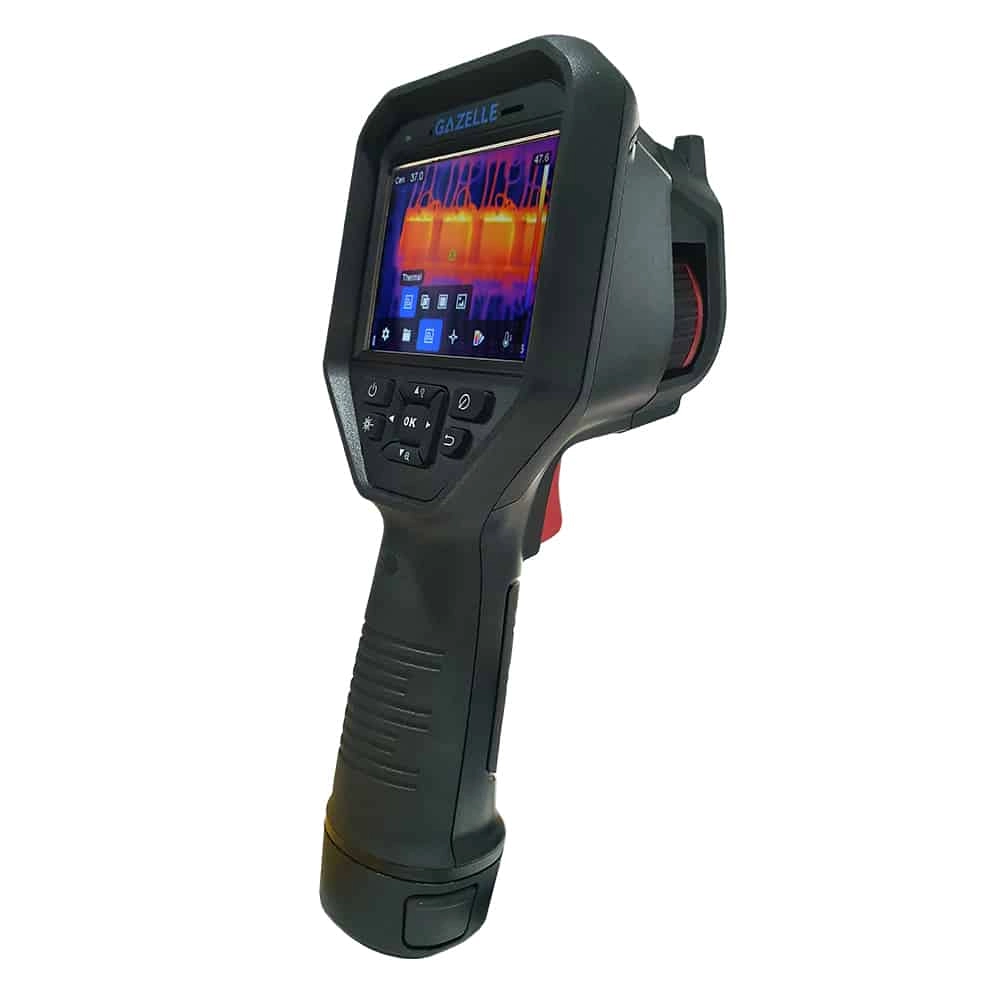

Gazelle G9701 Pro Handheld Thermal Imaging Camera, 190x144 Pixels, -20°C to 550°C, Touch Screen Display

Features

• High Temperature Range: Measures temperatures from -20°C to 550°C, suitable for diverse applications.
• Thermal Resolution: 190x144 pixels for clear and detailed thermal imaging.
• Advanced Image Sensor: Equipped with Uncooled Focal Plane Arrays for reliable performance.
• Precise Spatial Resolution: 2.74mrad IFOV for accurate temperature measurements.
• Fusion Imaging: Displays a combination of thermal and optical views for enhanced diagnostics.
• Multiple Palettes: Offers customizable palette modes to suit different applications and alarm functions.
• Laser Targeting: Long-distance laser light for precise thermography targeting.
• Built-In Memory: Stores recorded videos, snapshots, and important data for easy access.
• Durable and Portable: Compact design with a professional carry case for fieldwork.
• Fast Image Frequency: 25Hz frame rate for smooth and real-time thermal imaging.

Technical Information

• Temperature Range-20 to 550°C
• IR Resolution190x144 pixels
• Image SensorUncooled Focal Plane Arrays
• Pixel Pitch17µm
• Super Resolution384 × 288 (110,592 pixels)
• Field of View25°x18.7°
• Focal Length6.2mm
• Spatial Resolution (IFOV)2.74mrad
• ApertureF1.1
• Image Frequency25Hz

Items Included

• User Manual(x1)
• Power Adapter Kit
• USB Cable(x1)
• Professional Carry Case
• Wrist Strap
• Battery
• Charging Dock

Downloads

DatasheetUser ManualUser Manual
