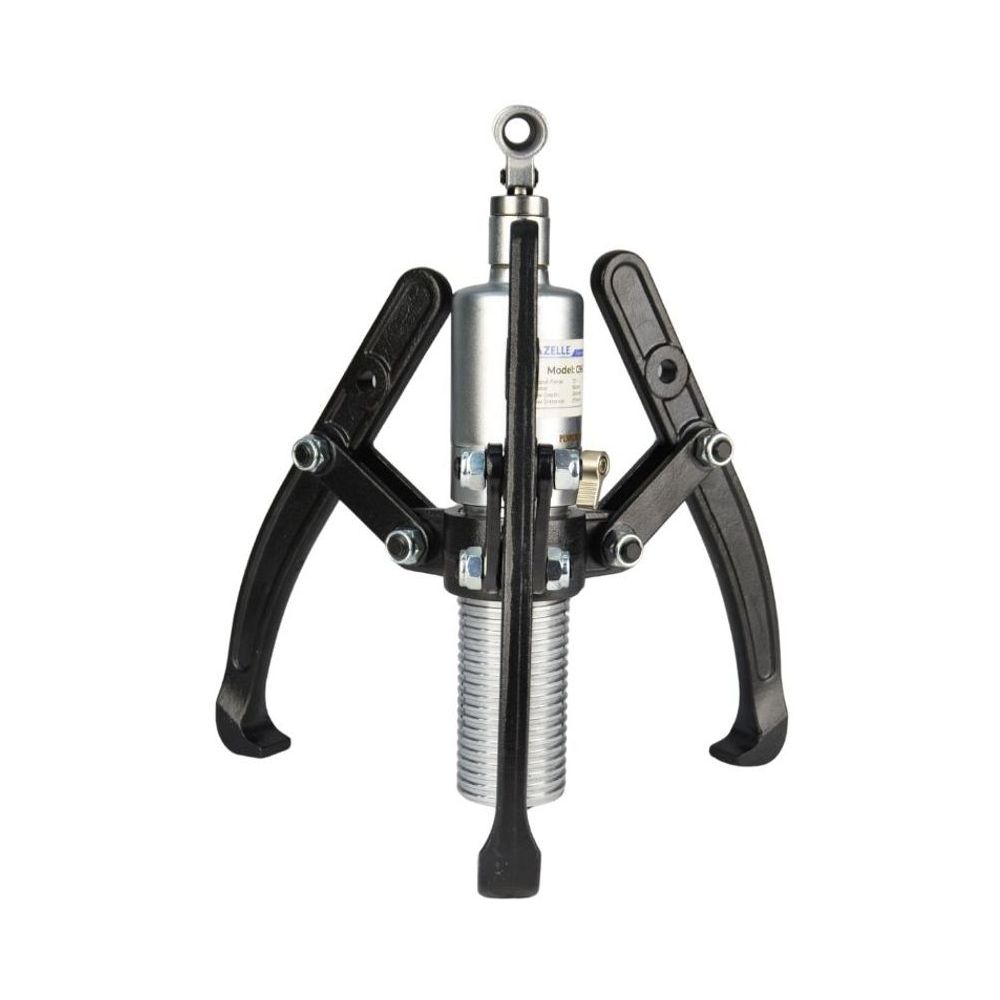

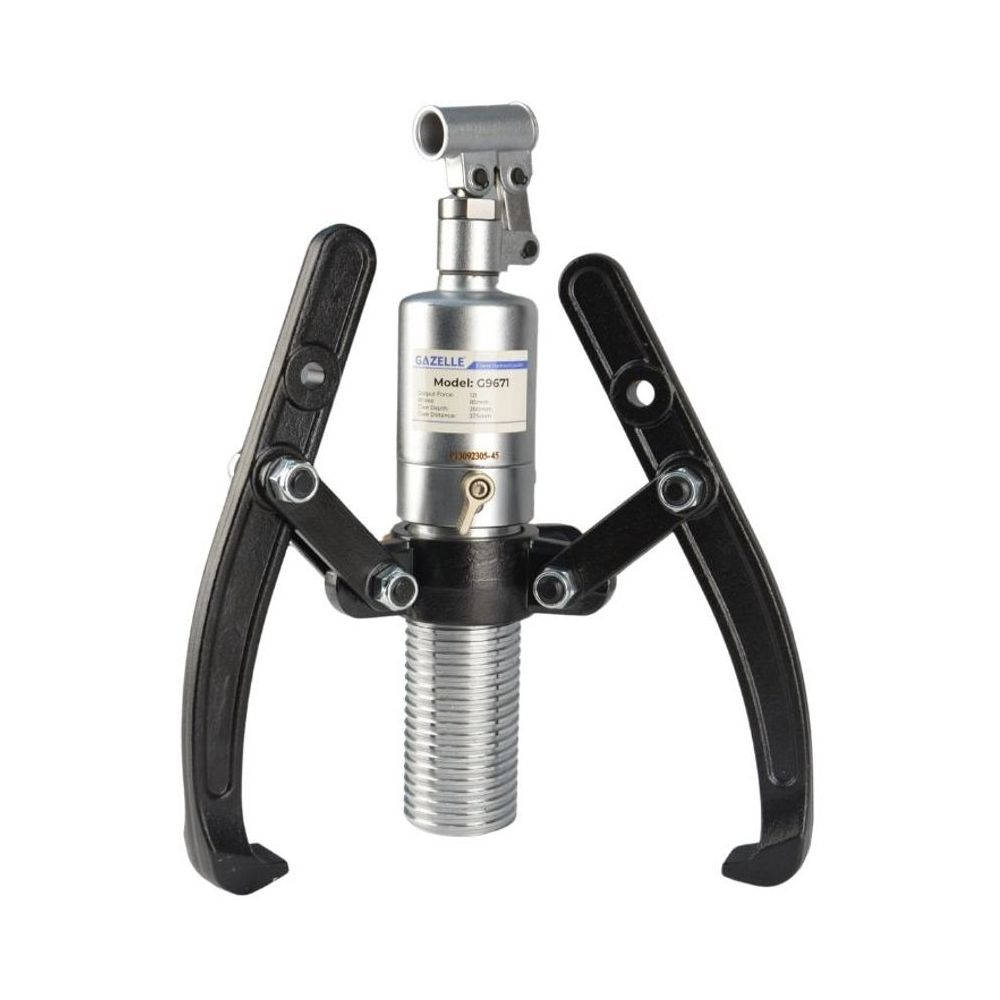

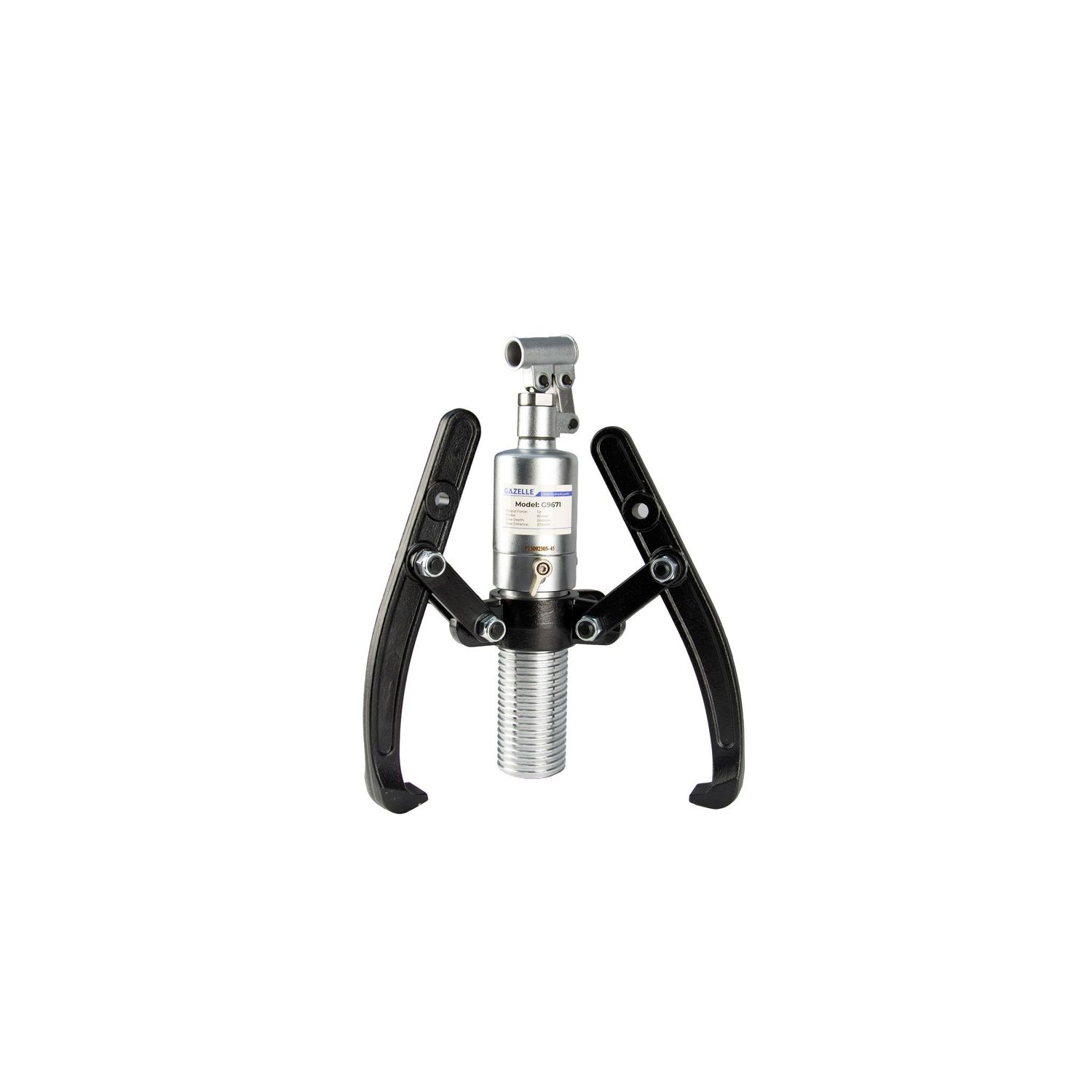

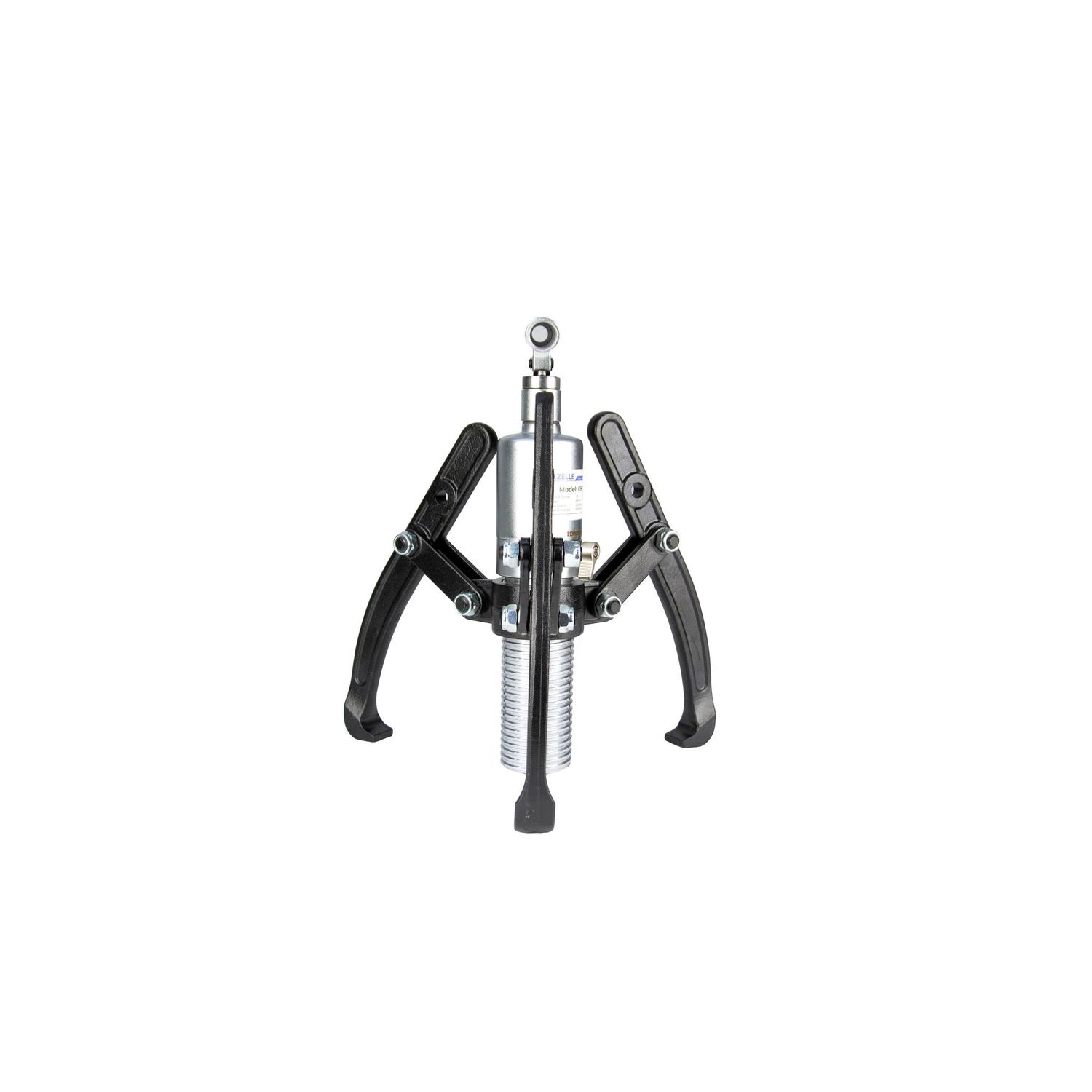

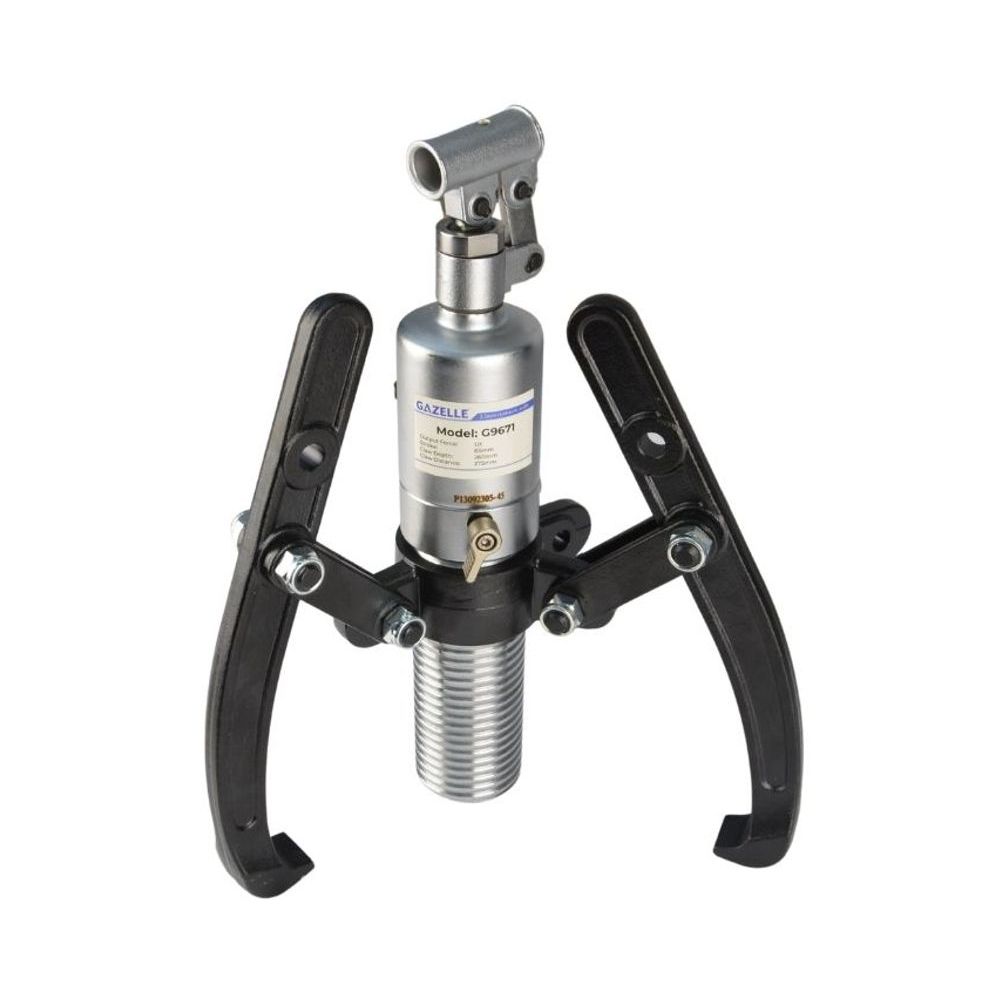

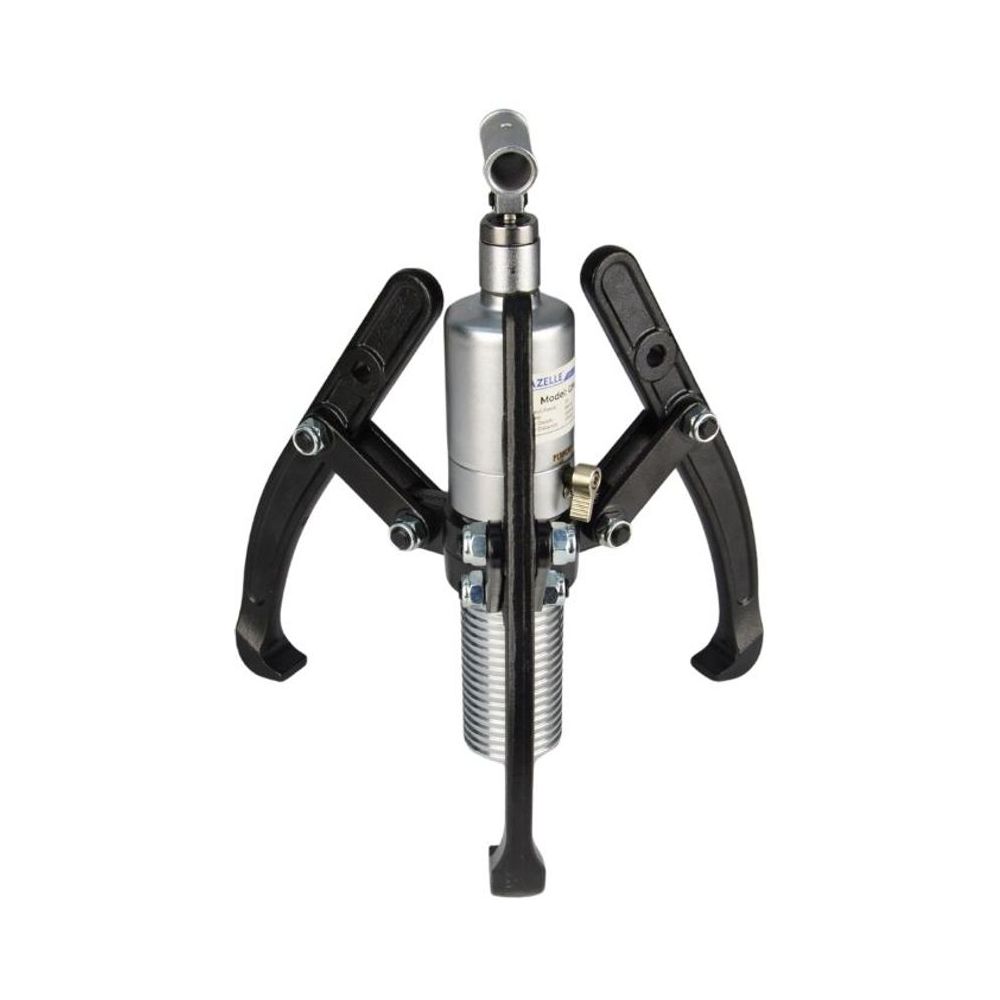

Gazelle G9671 12 Ton, 3 Jaws Hydraulic Bearing Puller with Integrated Pump

Model #   G9671

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • High Pulling Force: Delivers 12 tons of pulling force, ensuring efficient removal of bearings and other press-fitted components.
  • Integrated Hydraulic Pump: Built-in hydraulic pump eliminates the need for external power sources, enhancing portability and ease of use.
  • Durable Construction: Made from high-strength alloy steel with a hard chrome-treated hydraulic cylinder for enhanced durability and resistance to wear.
  • Safety Features: Equipped with a safety valve to prevent overloading and ensure safe operation.
  • Adjustable Design: Features a 360° swivel seat and adjustable claw depth (260mm) and distance (375mm) for versatile applications.
  • User-Friendly Operation: Includes a four-section foldable and removable handle for easy maneuverability and operation in tight spaces.
  • Enhanced Load Capacity: Claw load exceeds 120% of the rated load, ensuring reliable performance under heavy-duty conditions.
  • Compact and Lightweight: Weighs only 9.5kg, making it portable and easy to handle in various industrial settings.

Technical Information

  • Force12T
  • Stroke85mm
  • Pressure Area14.45cm²
  • Claw Depth260mm
  • Claw Distance375mm
  • Weight9.5kg
