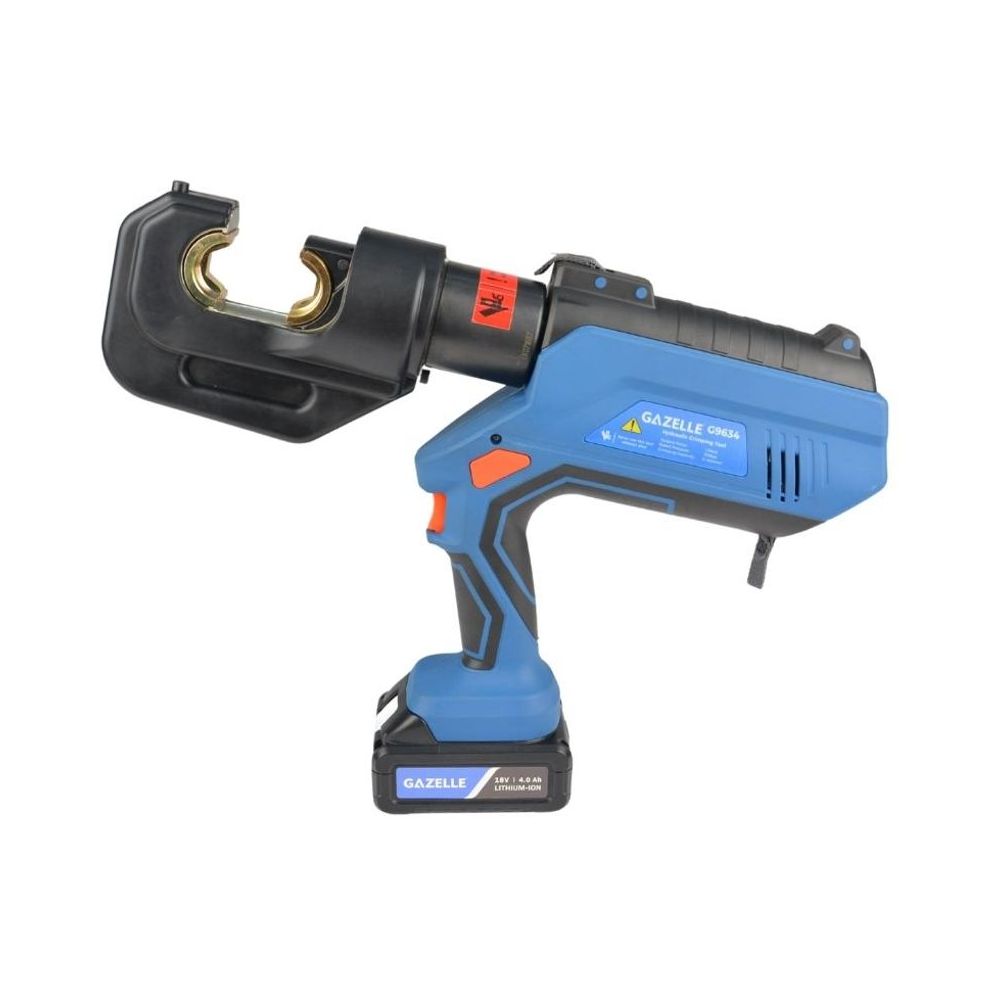

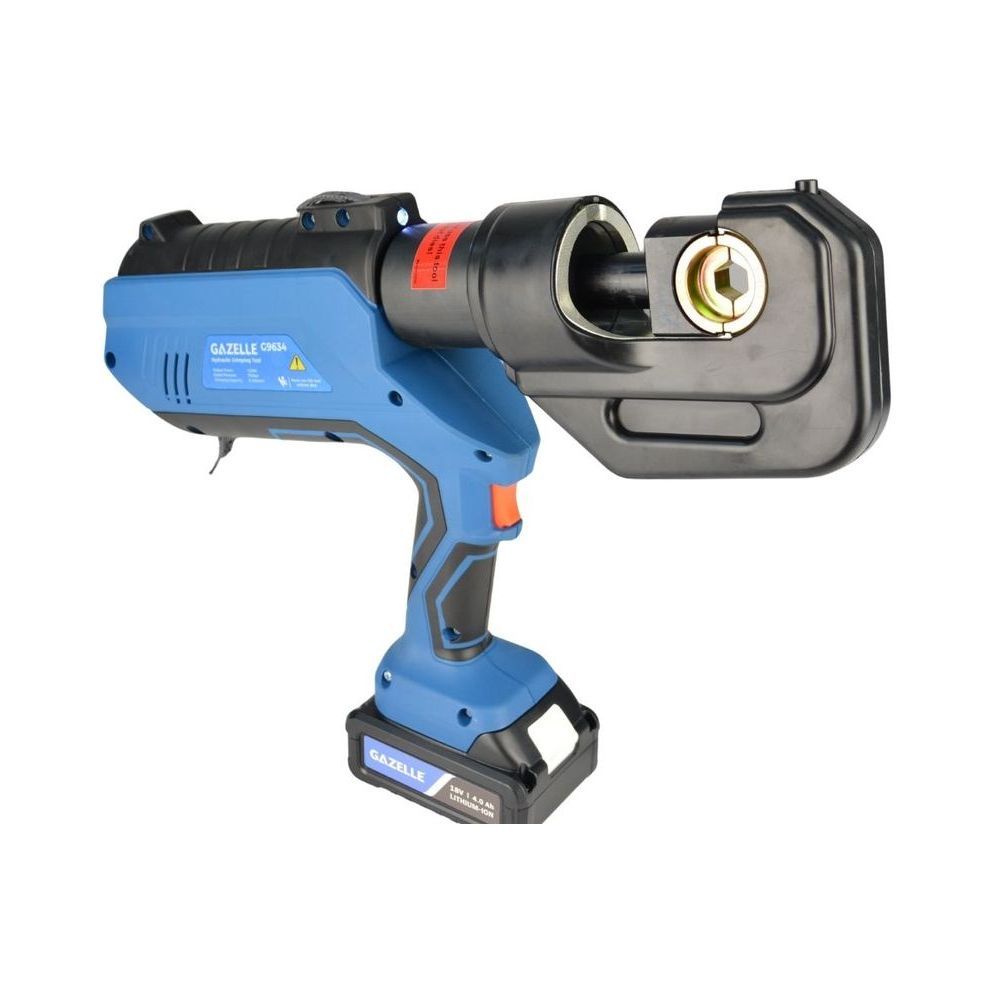

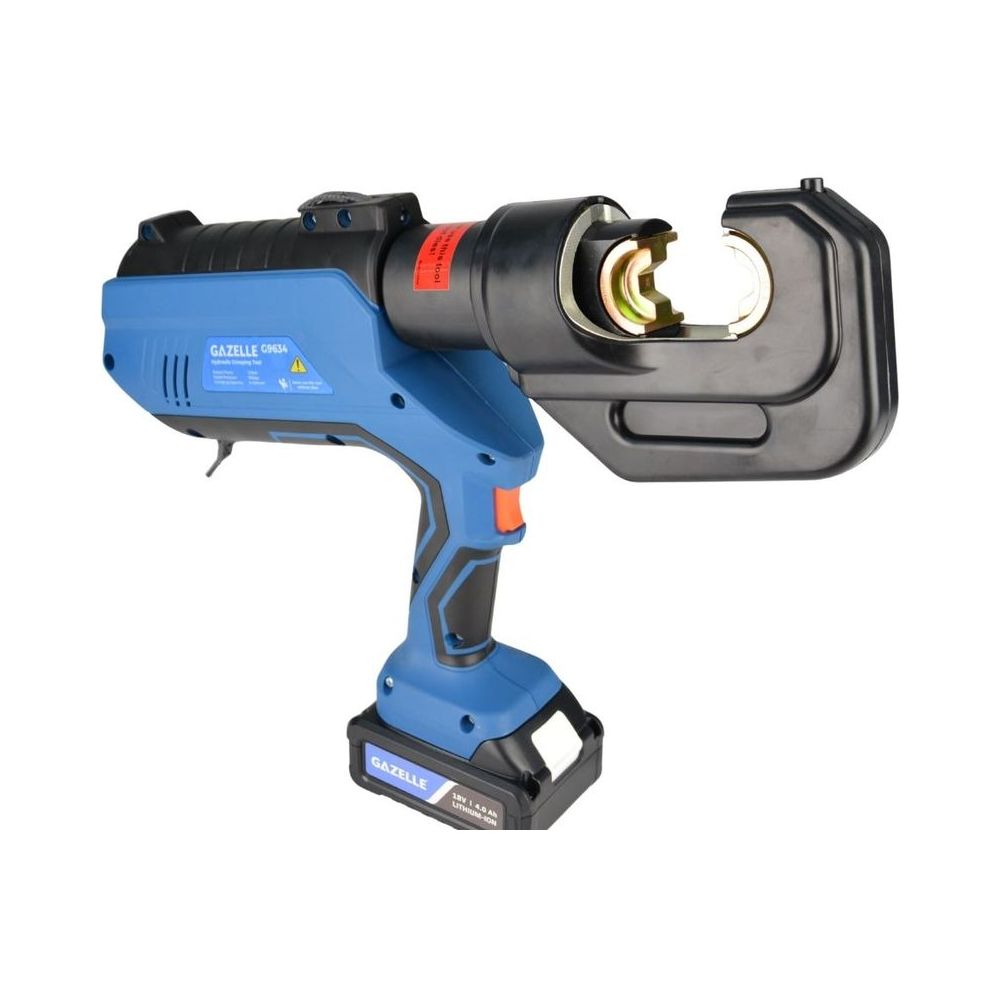

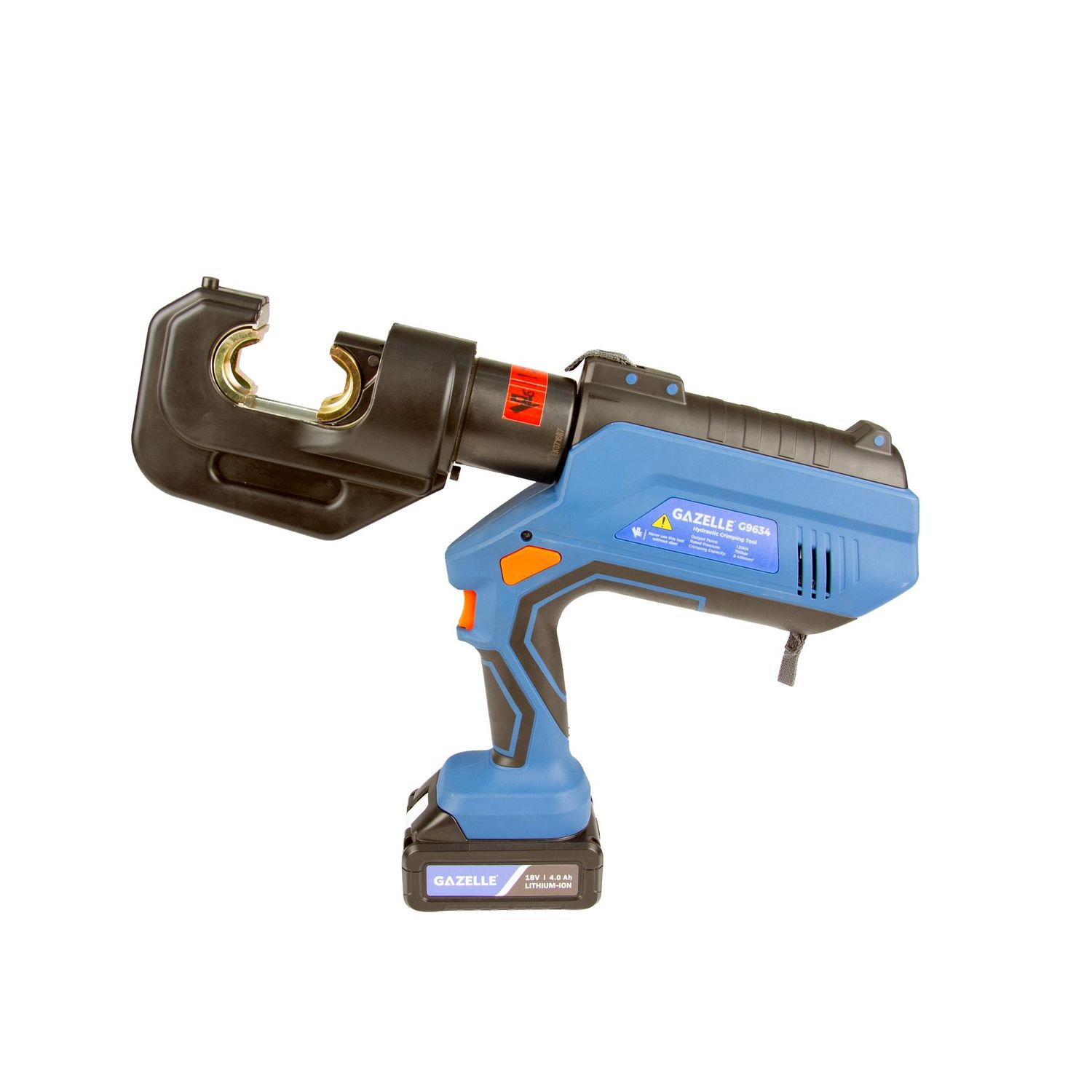

Gazelle G9634 18V Cordless Crimping Tool, 6-400mm² with Dies

Features

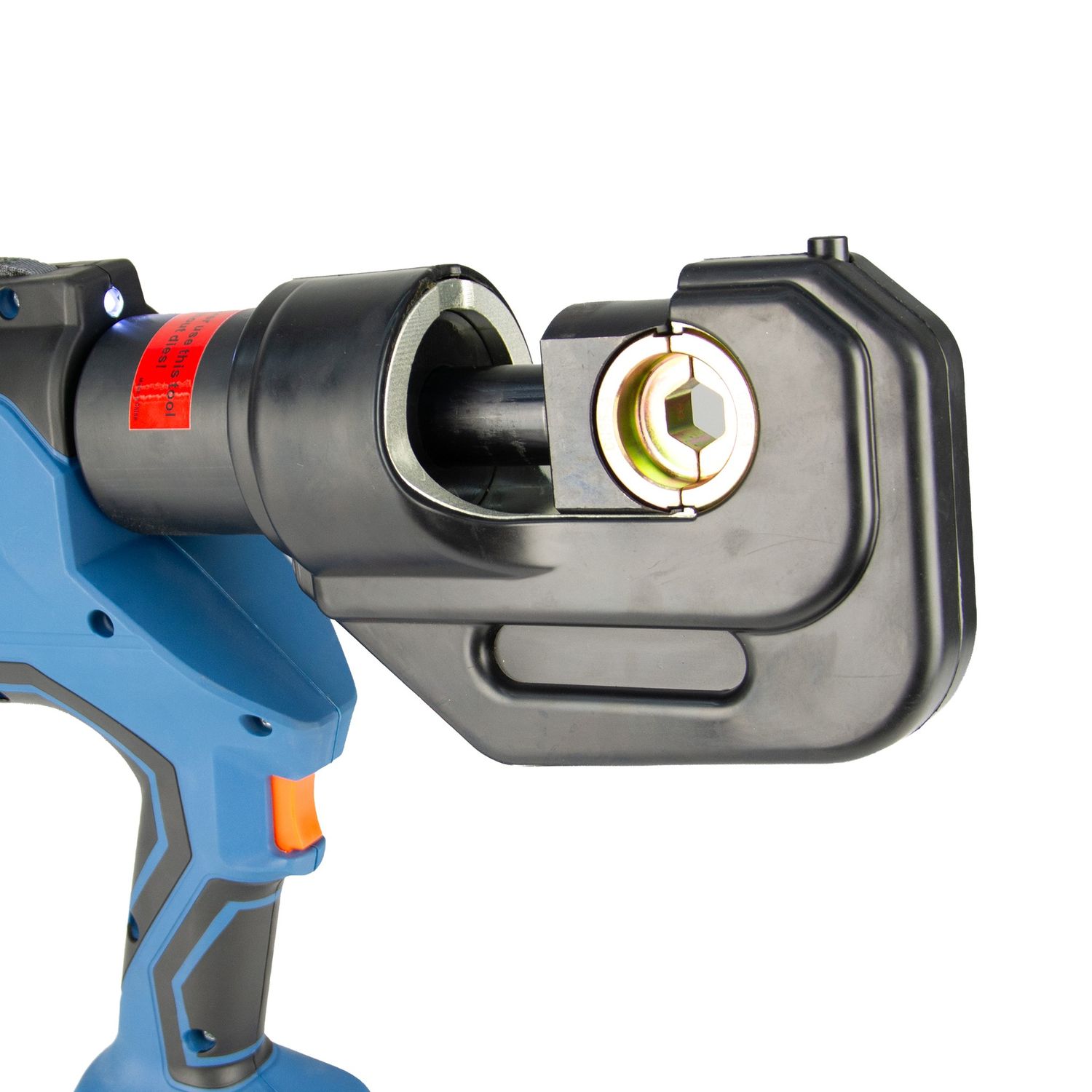

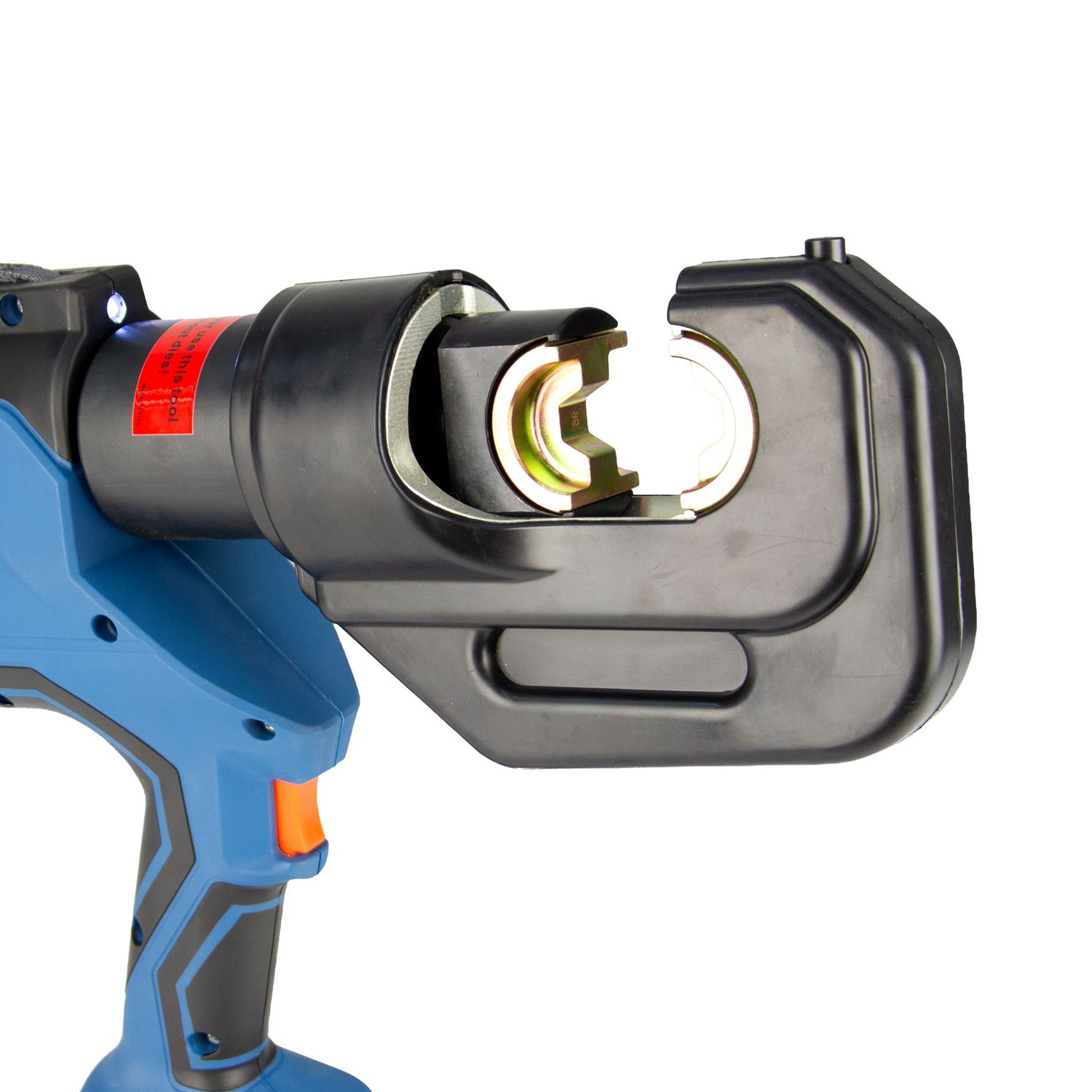

• 360° Rotating Crimping Head: Provides flexibility for crimping in confined or hard-to-reach areas.
• Flip-Top Style: Simplifies access to fittings for quick and efficient operation.
• Two-Stage Hydraulic System: Ensures efficient crimping with automatic pressure release for safety.

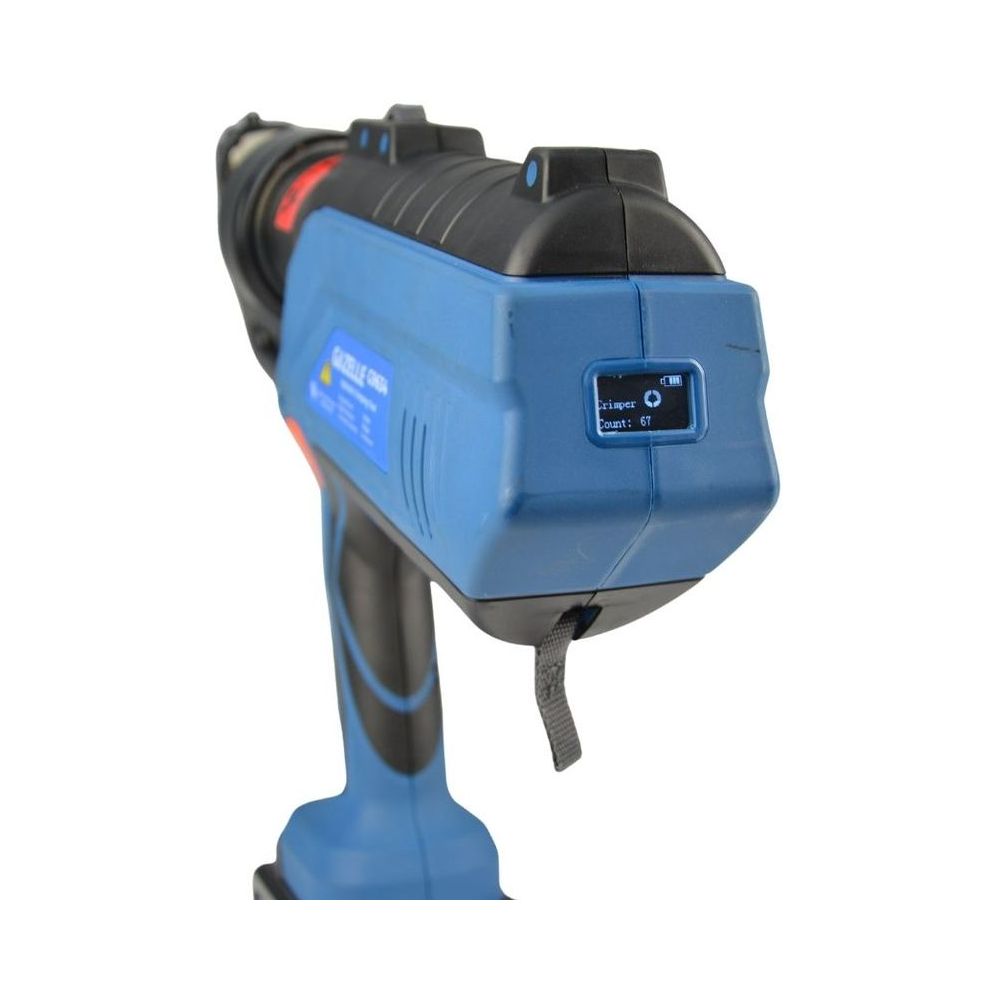

• Integrated LCD Screen: Displays crimping times for enhanced monitoring and precision.

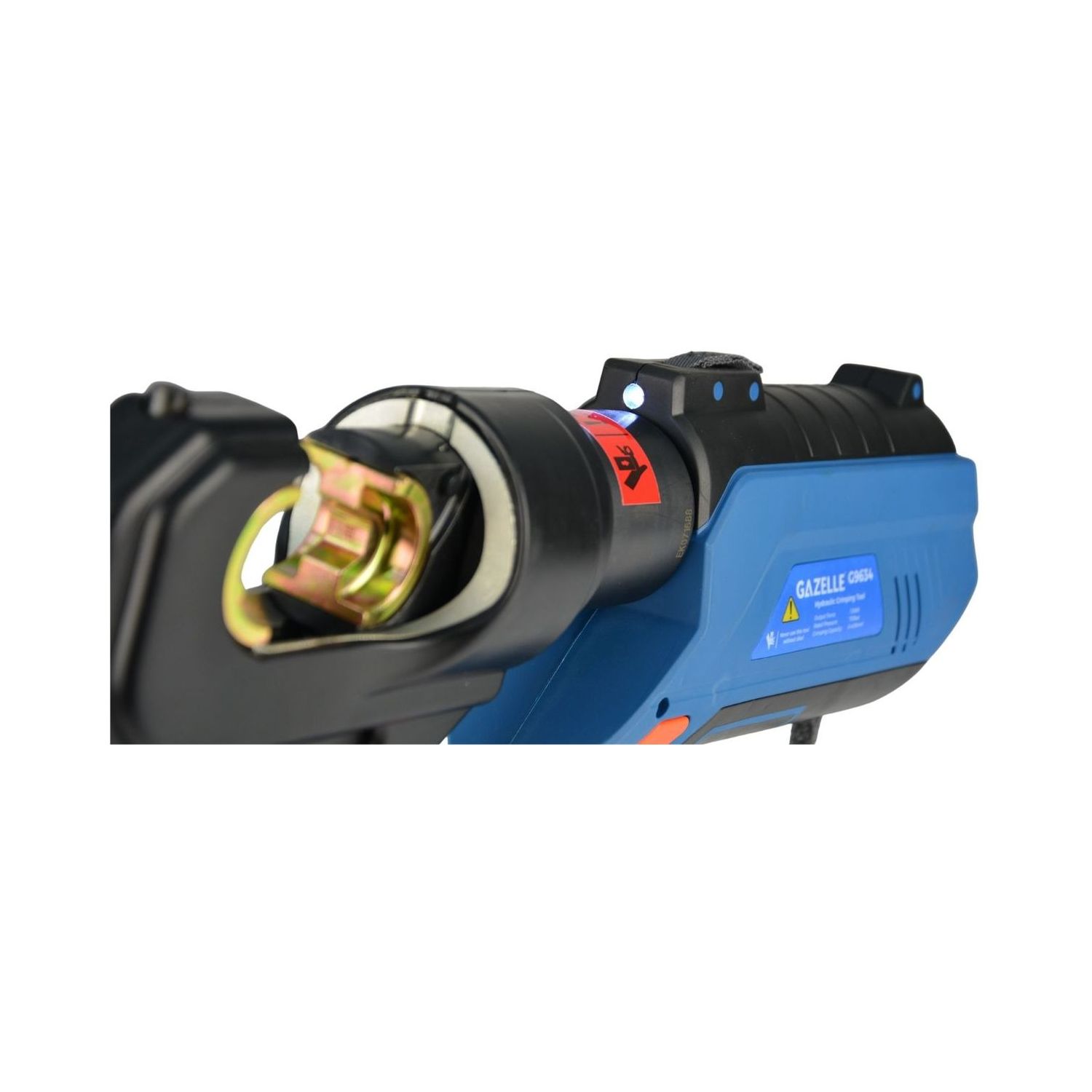

• LED Work Lights: Illuminates the workspace, ensuring accuracy in low-light conditions.
• High-Capacity 18V Lithium Battery: Includes a power-on display and fast charger for extended and reliable operation.
• Durable Construction: Made with PP plastic for impact resistance and long-lasting performance.
• High Crimping Force: Delivers 12 tons of power for heavy-duty applications.
• Wide Crimping Capacity: Supports cables up to 400 mm², suitable for diverse industrial needs.

Technical Information

• Crimping Force12T
• Stroke42 mm
• Rated Pressure700 bar
• Crimping Capacity400 mm²
• Net Weight6.8 kg
• Standard DiesCu 50-400 mm²
• Dimensions44 x 7 x 28 cm
• Package Size59 x 51 x 14 cm

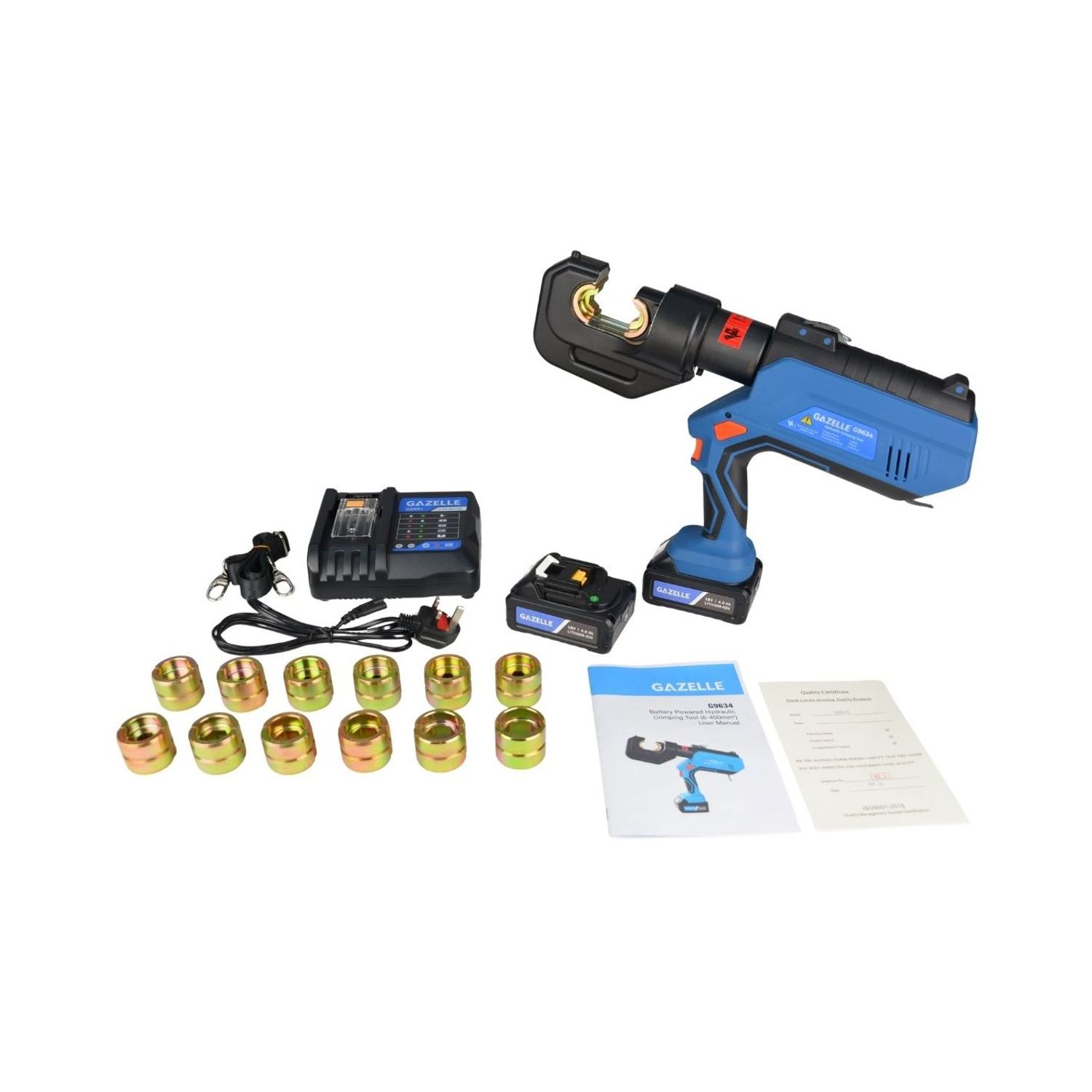

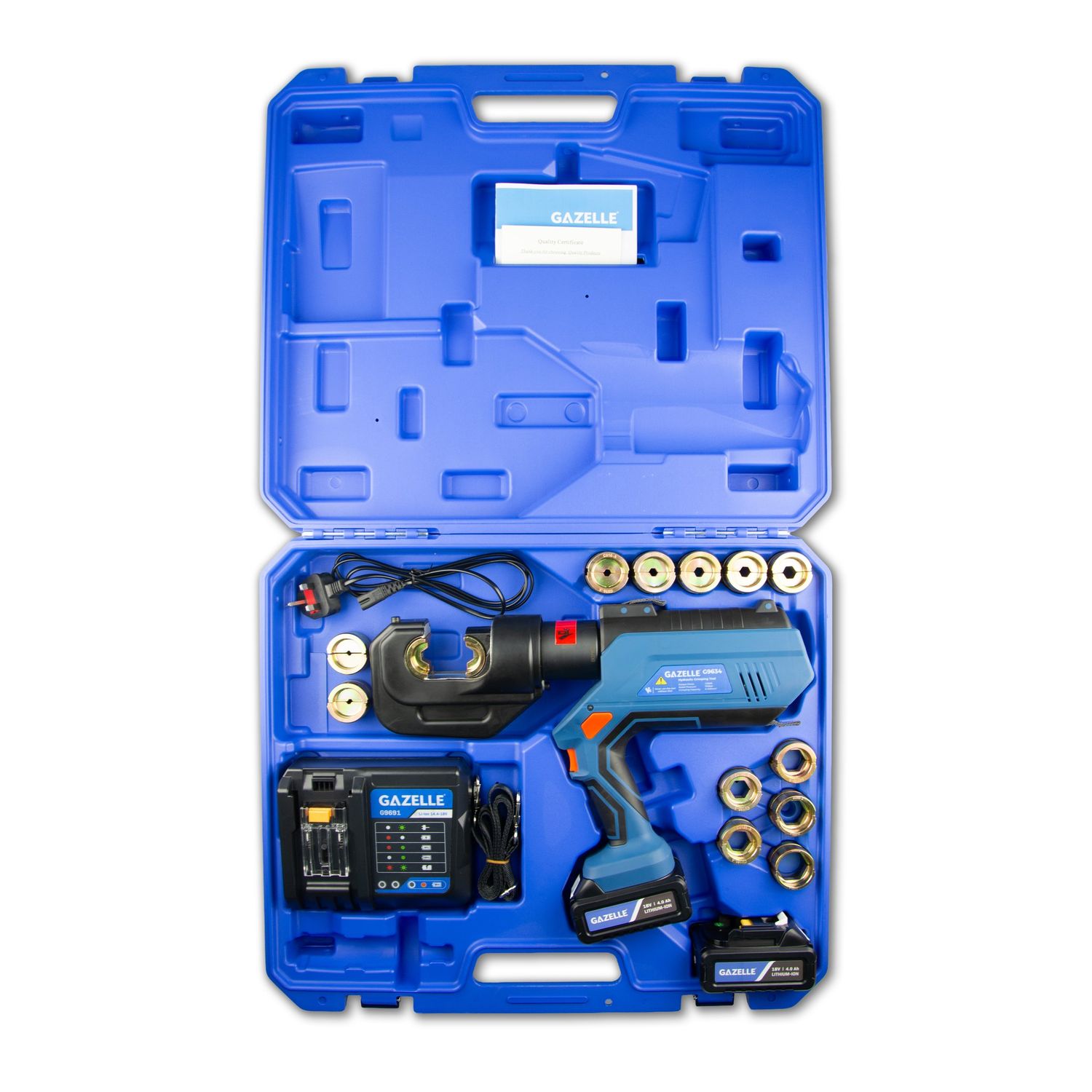

Items Included

• Crimping tools
• Crimping dies 6-400mm2 (6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300,400)
• Battery x 2pcs 18V, 4.0Ah)
• Charger x 1pc (UK plug)

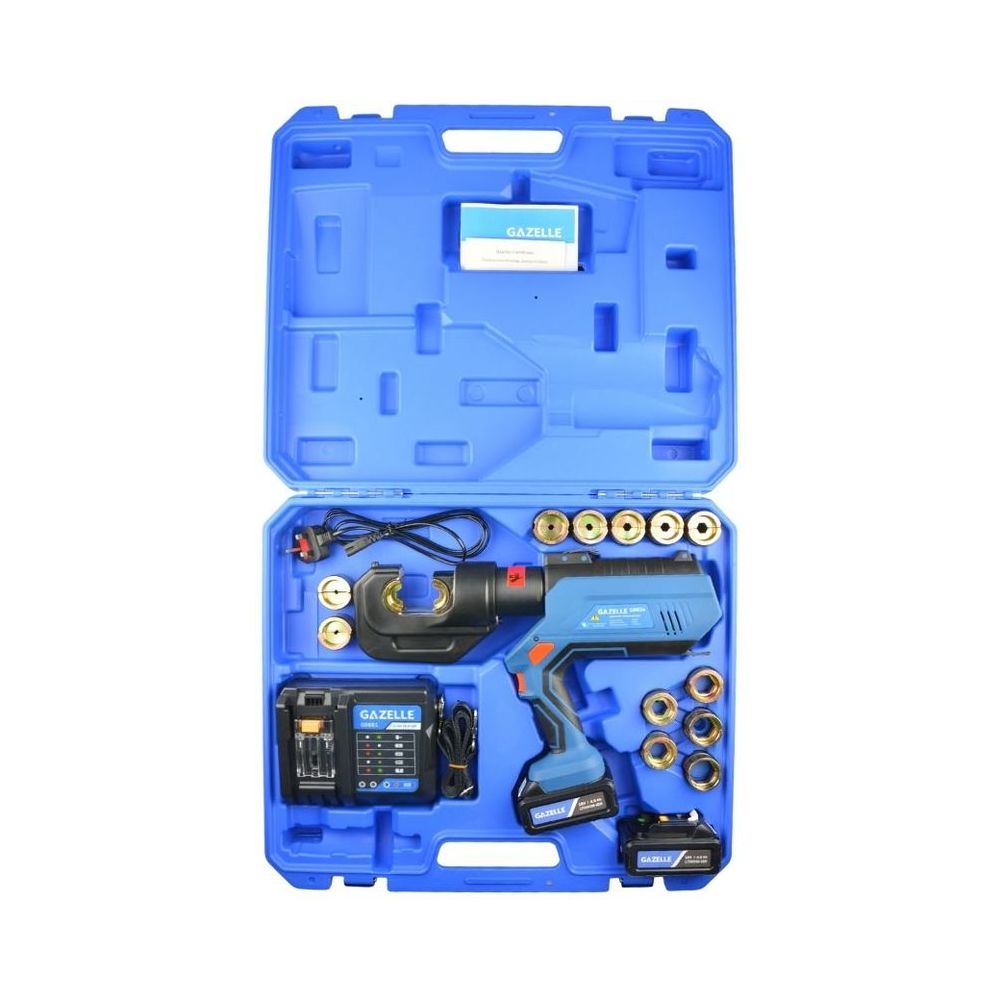

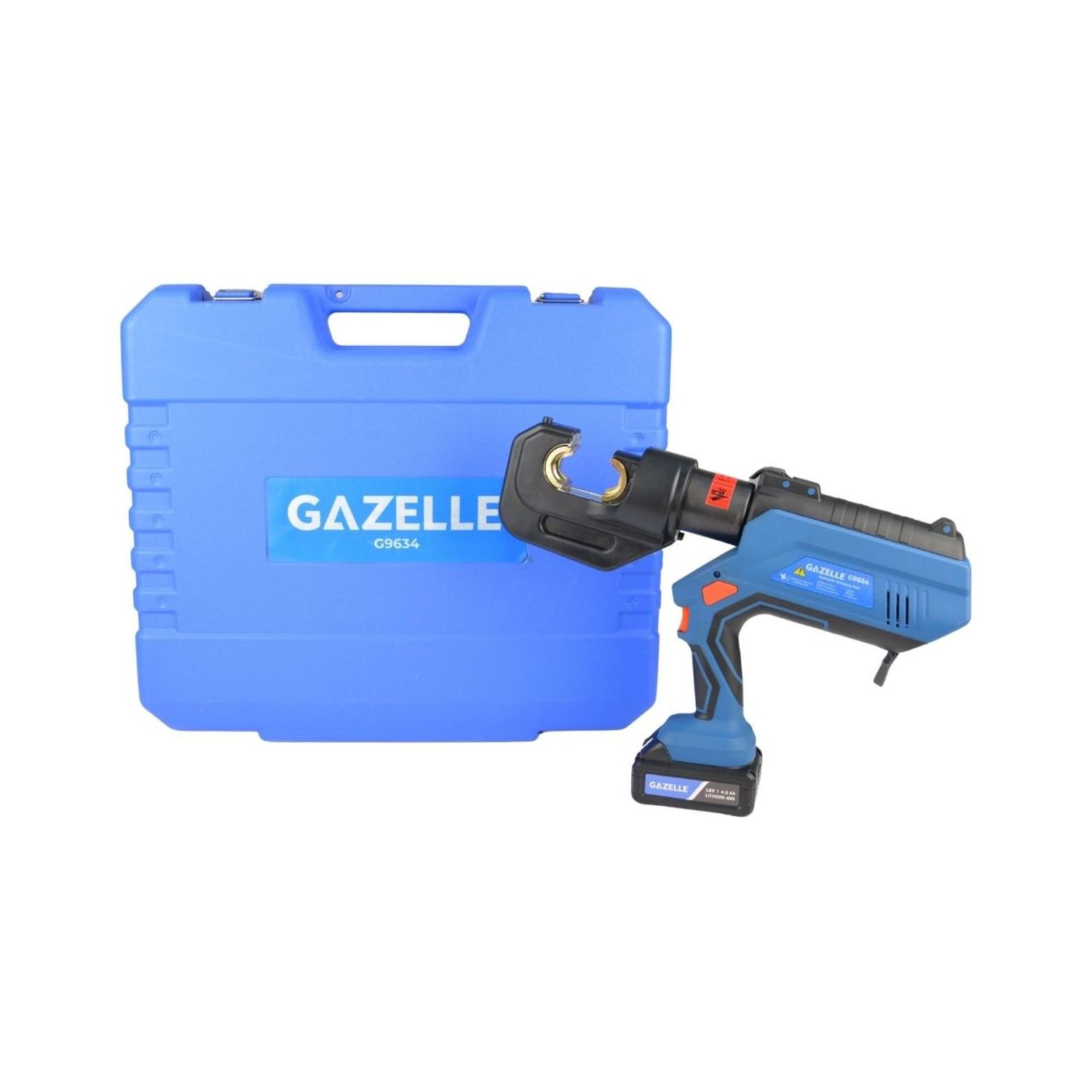

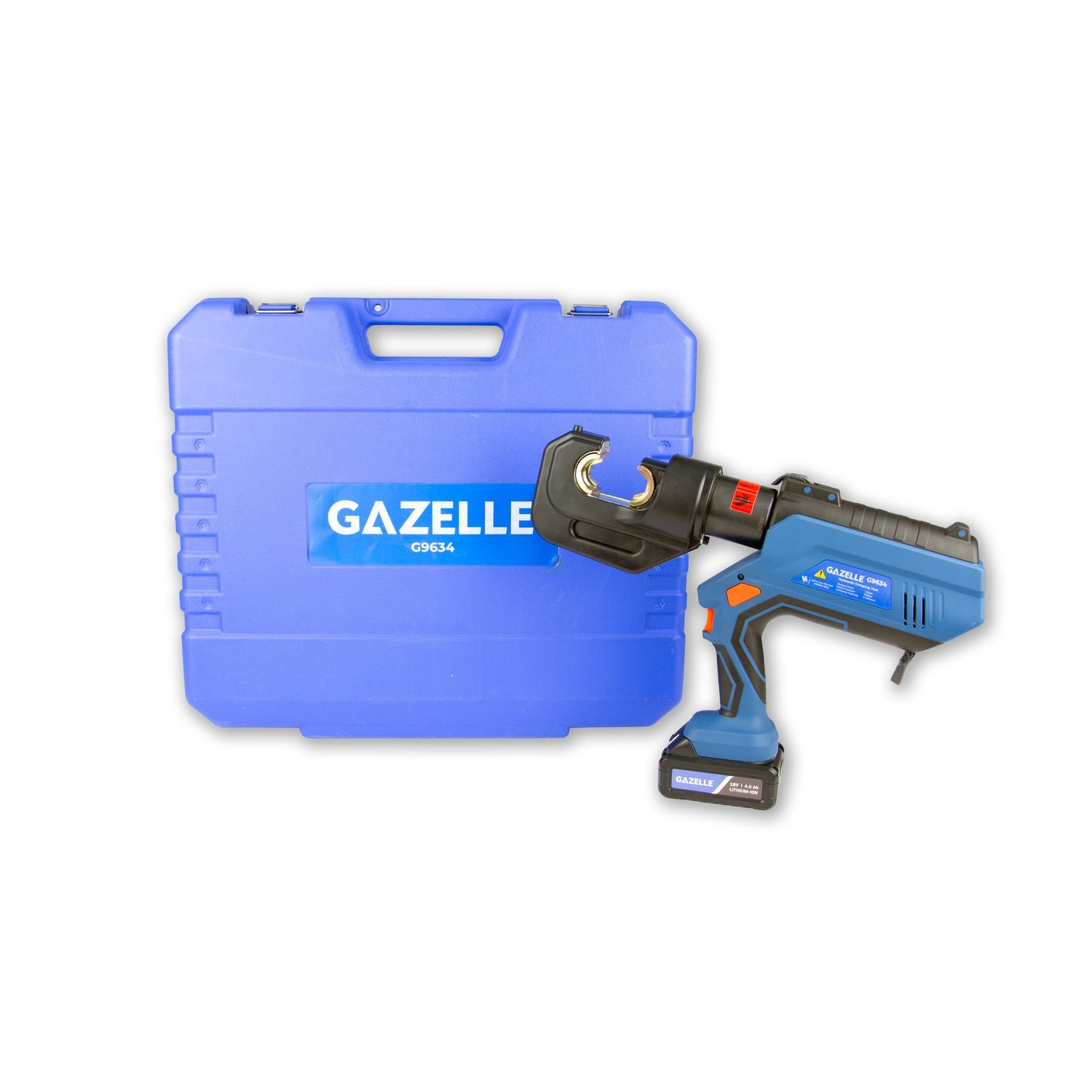

• Carry case
• User manual
