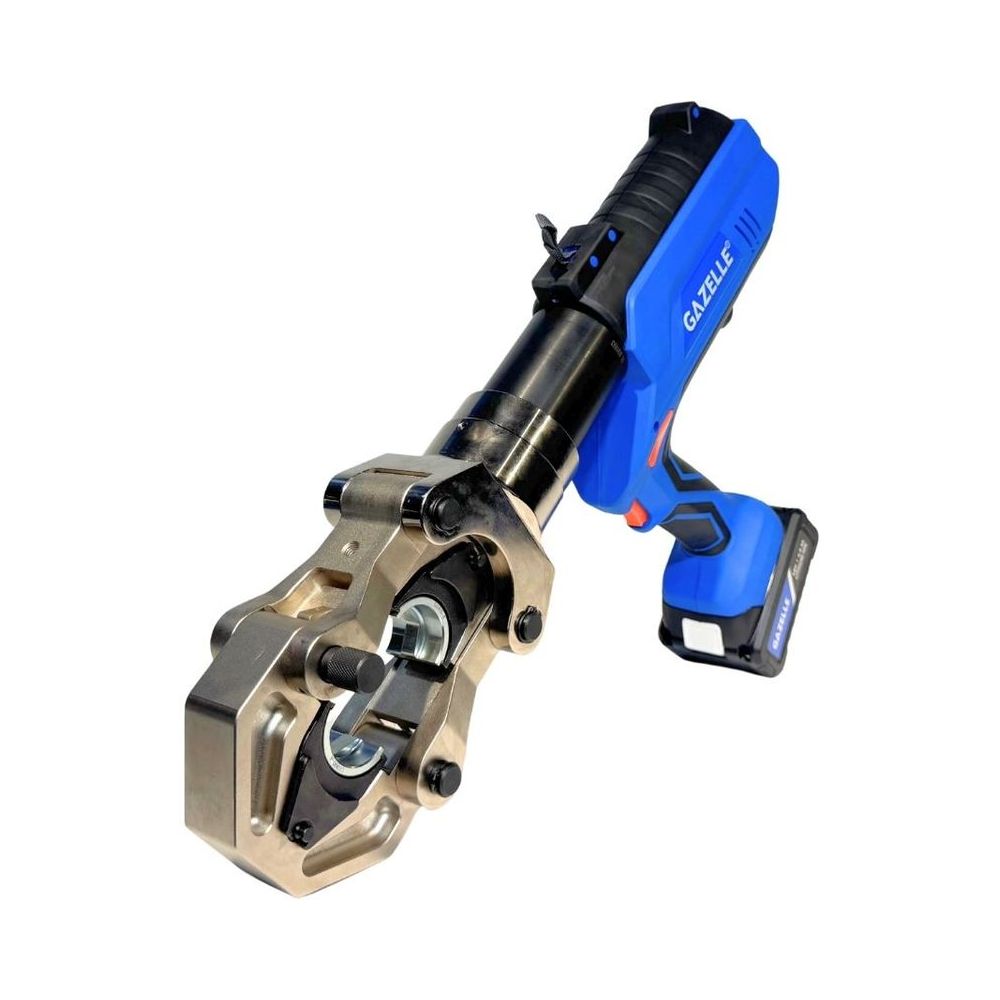

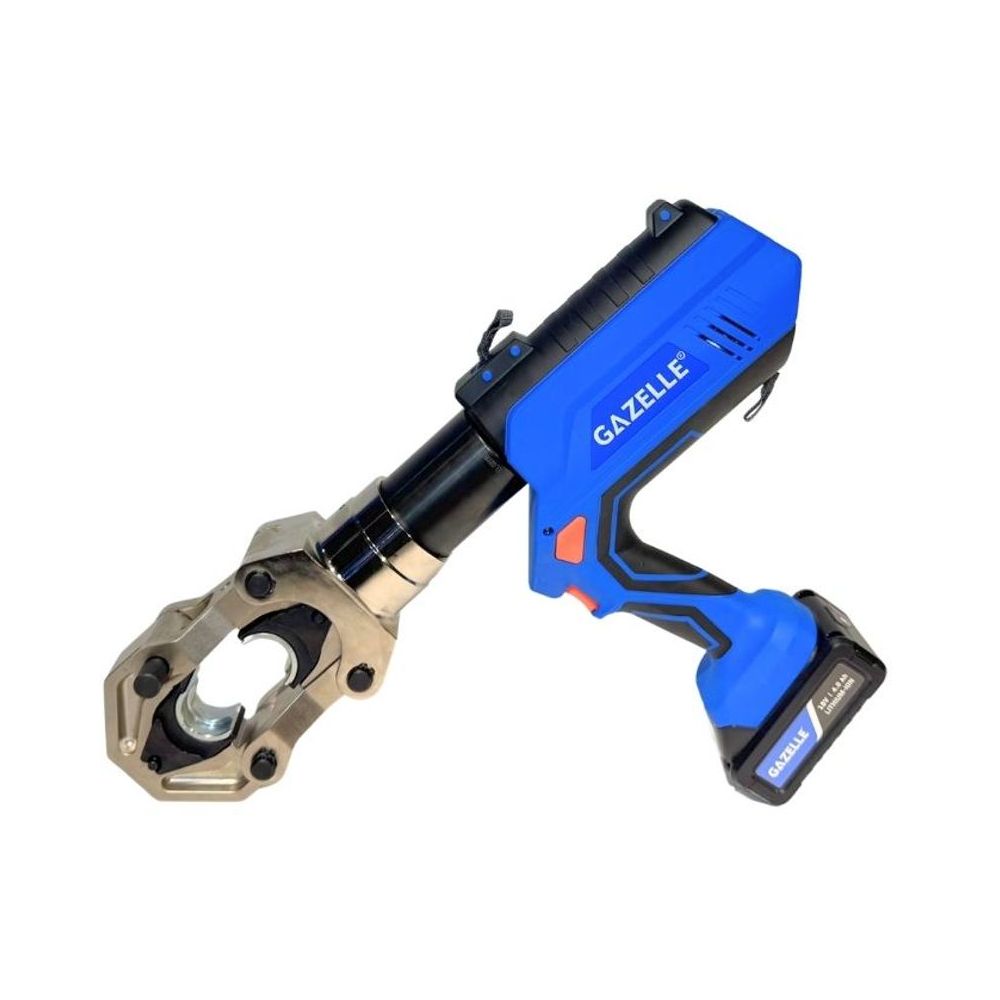

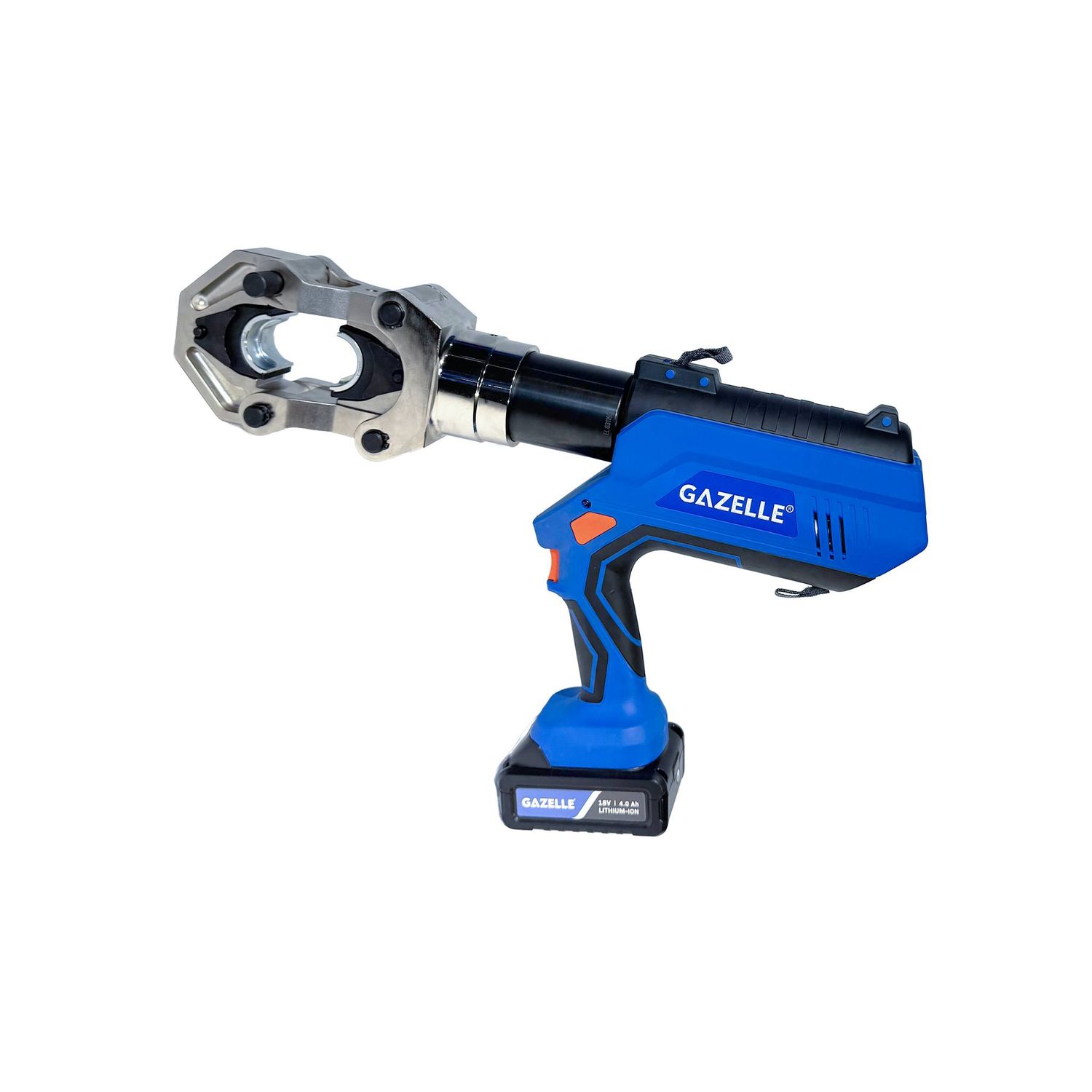

Gazelle G9634-6 18V Hydraulic Crimping Tool, 16-630mm² with Dies

Features

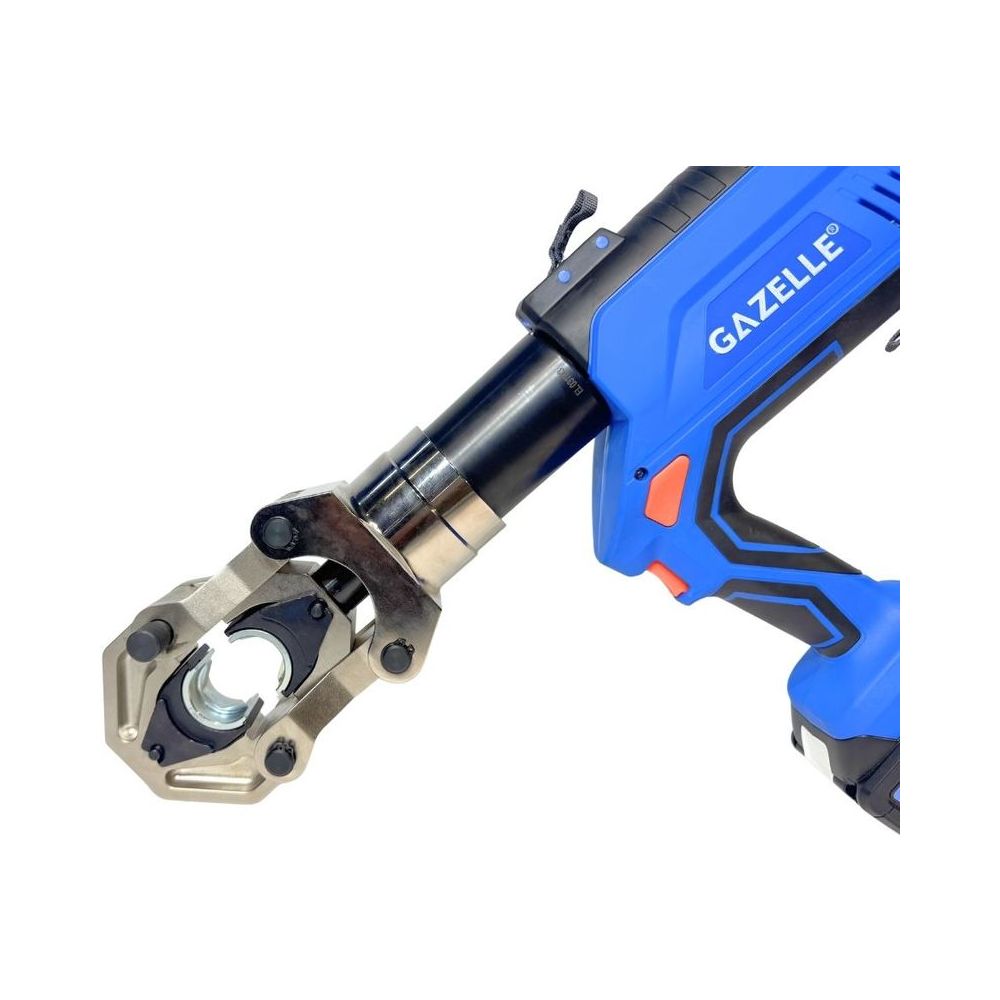

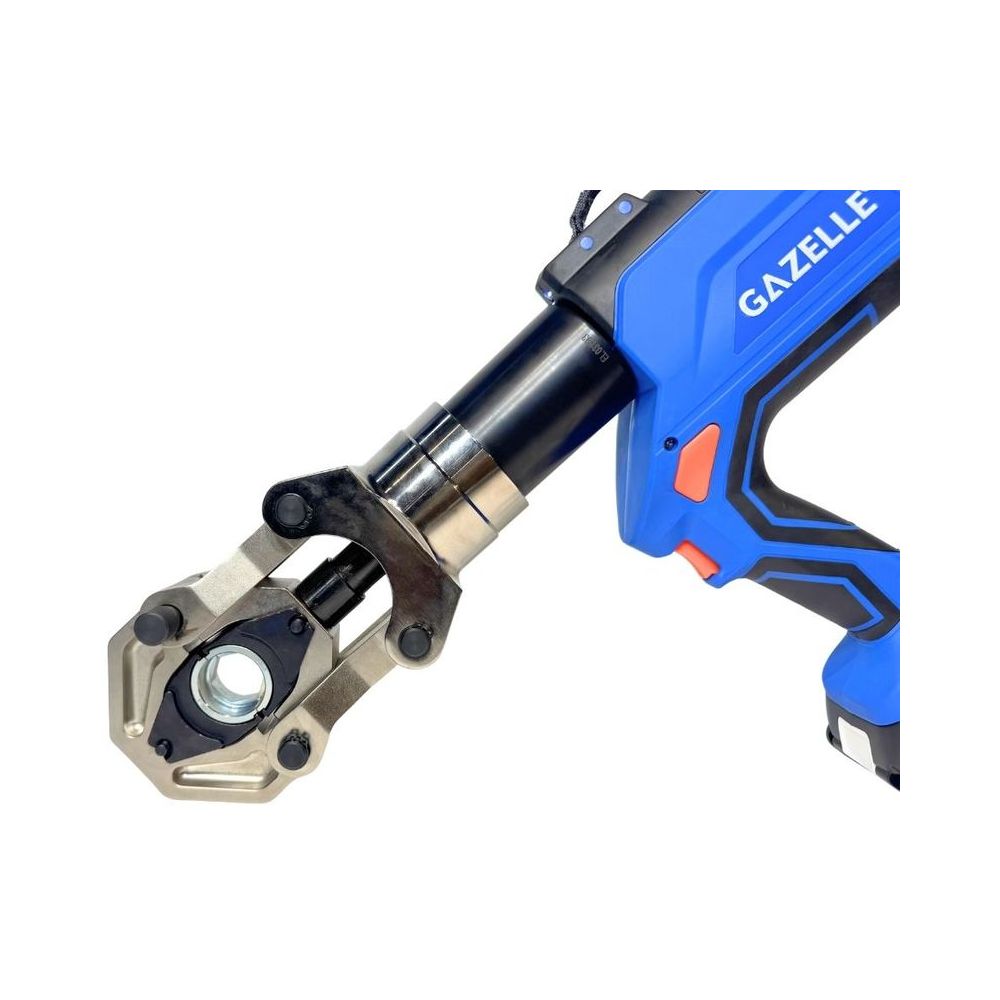

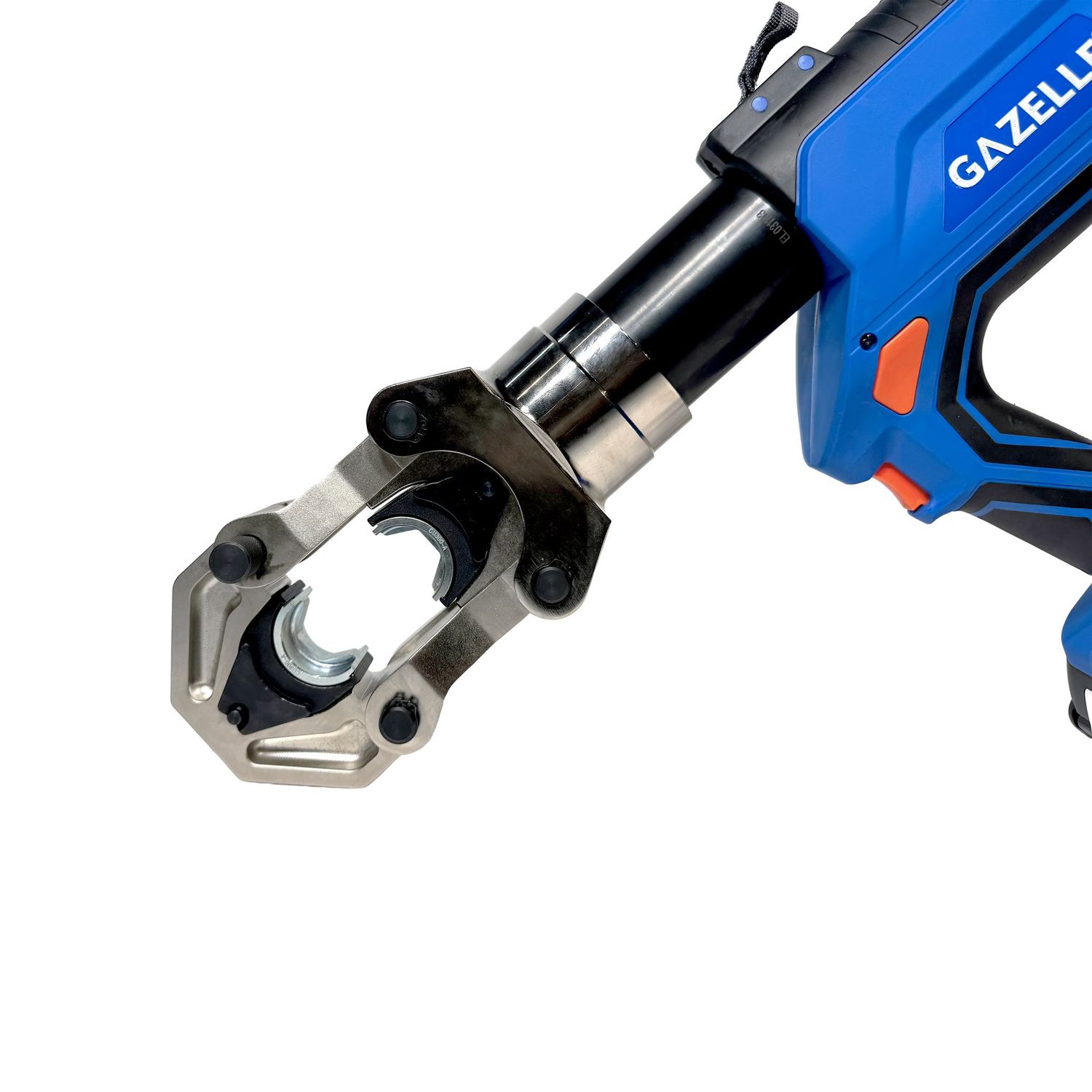

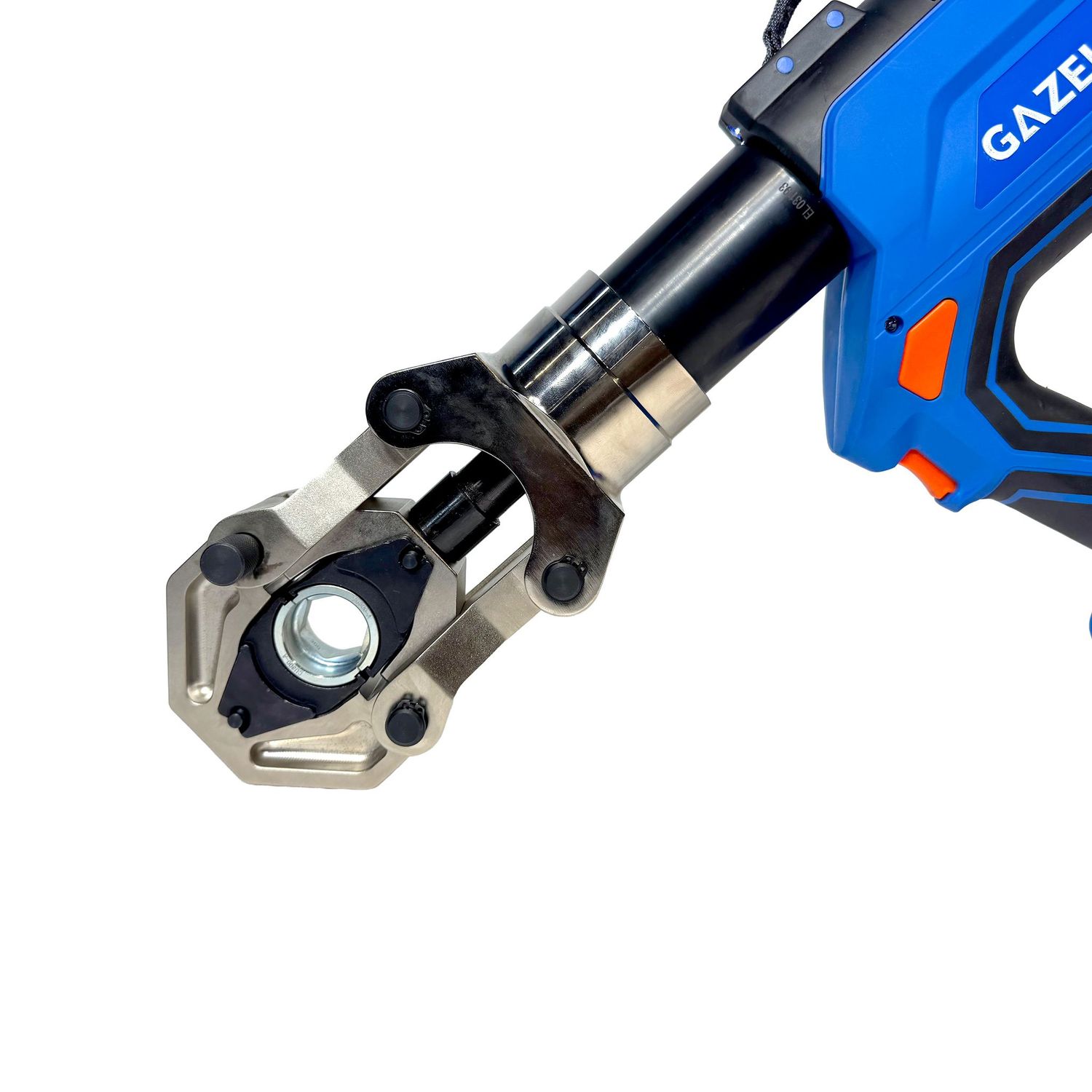

• 360° Rotating Crimping Head: Provides flexibility for crimping in confined or hard-to-reach areas.

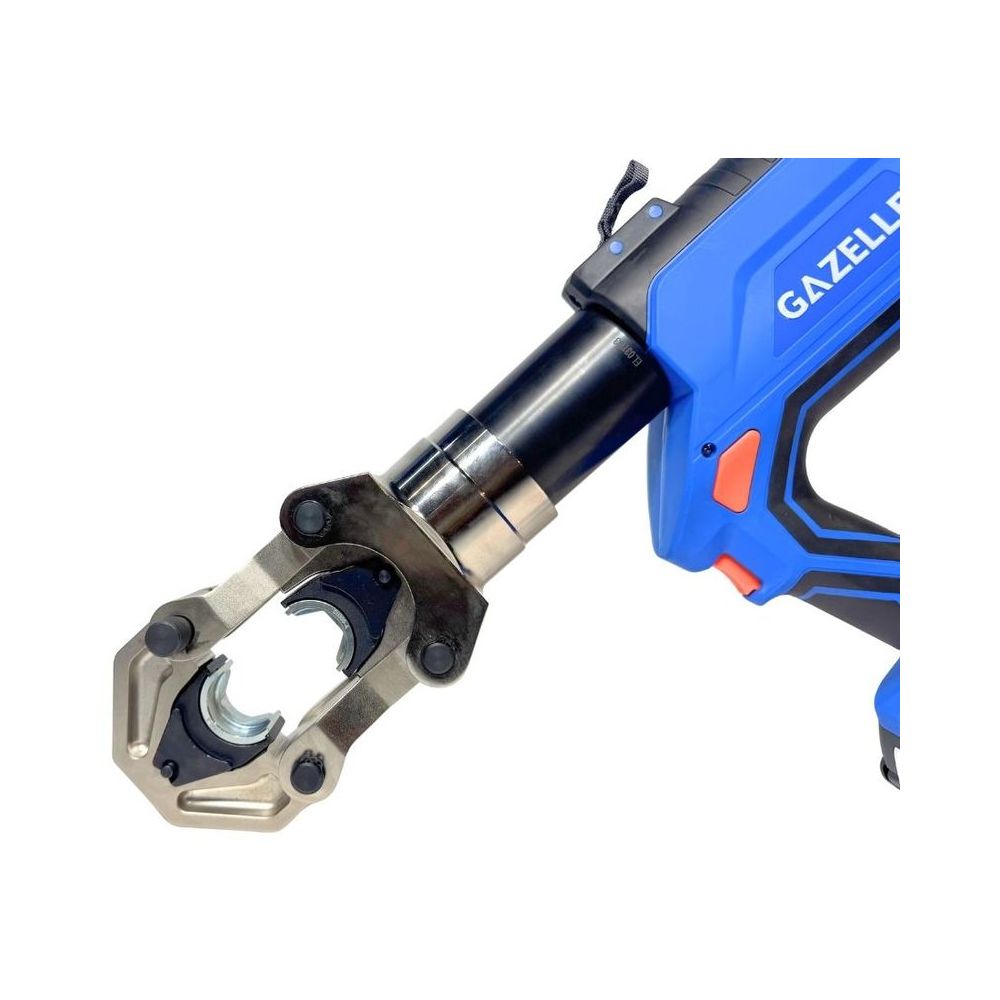

• Flip-Top Style: Simplifies access to fittings for quick and efficient operation.
• Two-Stage Hydraulic System: Ensures efficient crimping with automatic pressure release for safety.

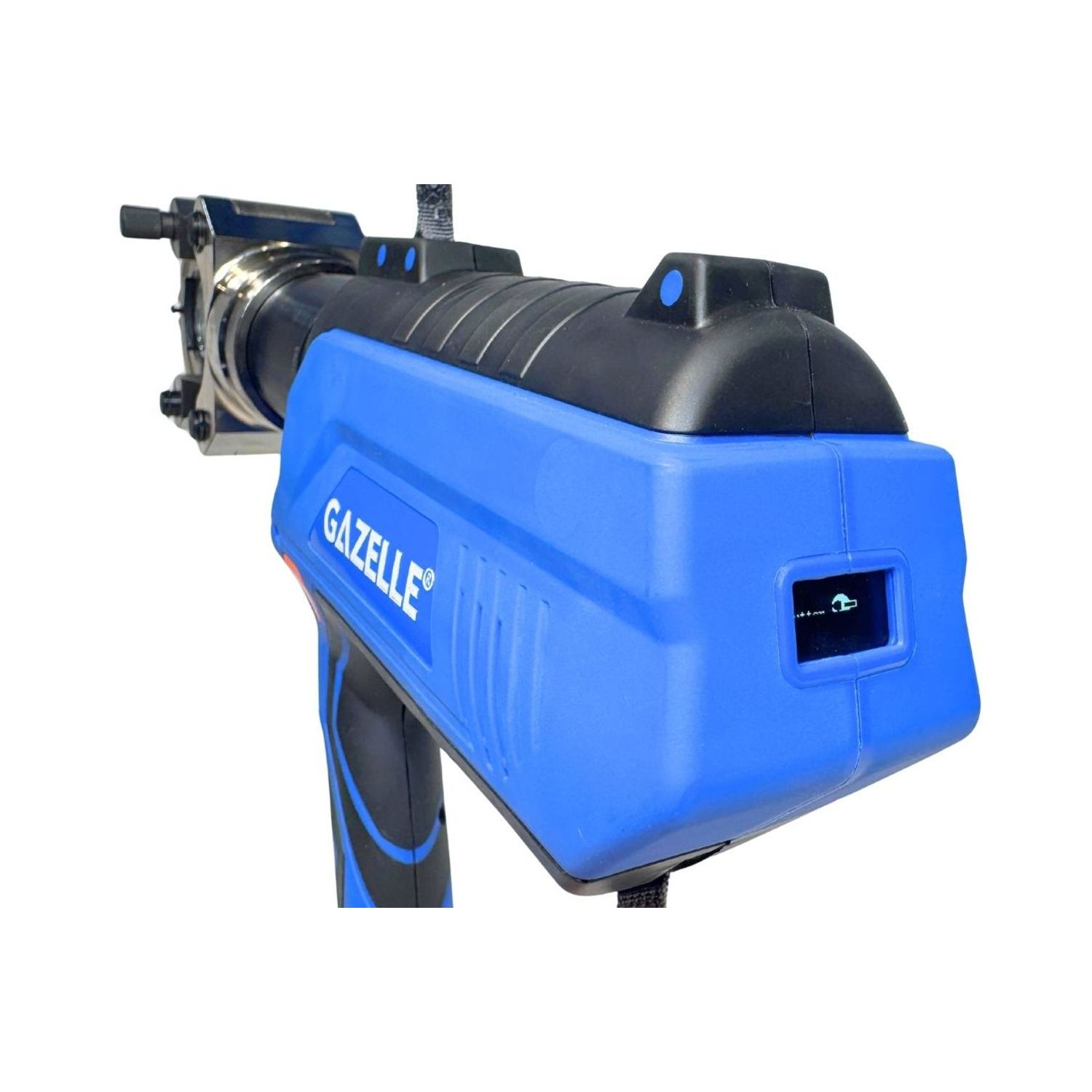

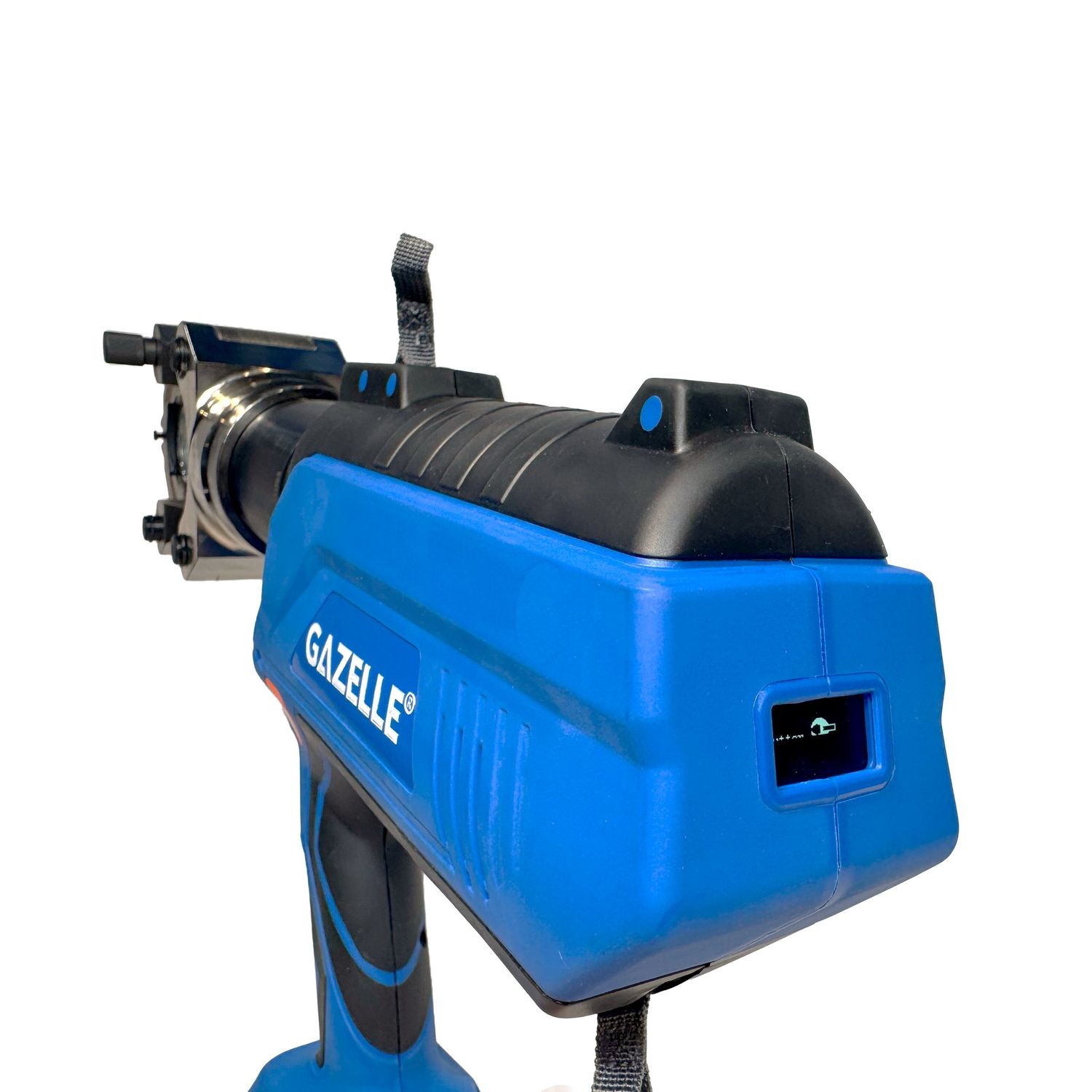

• Integrated LCD Screen: Displays crimping times for enhanced monitoring and precision.
• LED Work Lights: Illuminates the workspace, ensuring accuracy in low-light conditions.
• High-Capacity 18V Lithium Battery: Includes a power-on display and fast charger for extended and reliable operation.
• Durable Construction: Made with PP plastic for impact resistance and long-lasting performance.
• High Crimping Force: Delivers 15 tons of power for heavy-duty applications.
• Wide Crimping Capacity: Supports cables up to 630 mm², catering to diverse industrial needs.

Technical Information

• Crimping Force15t
• Rated Pressure700bar
• Stroke50mm
• Crimping CapacityMax 630mm²
• Standard DiesCu50-630mm²
• Net Weight9.5kg
• Dimensions51x8x28 cm

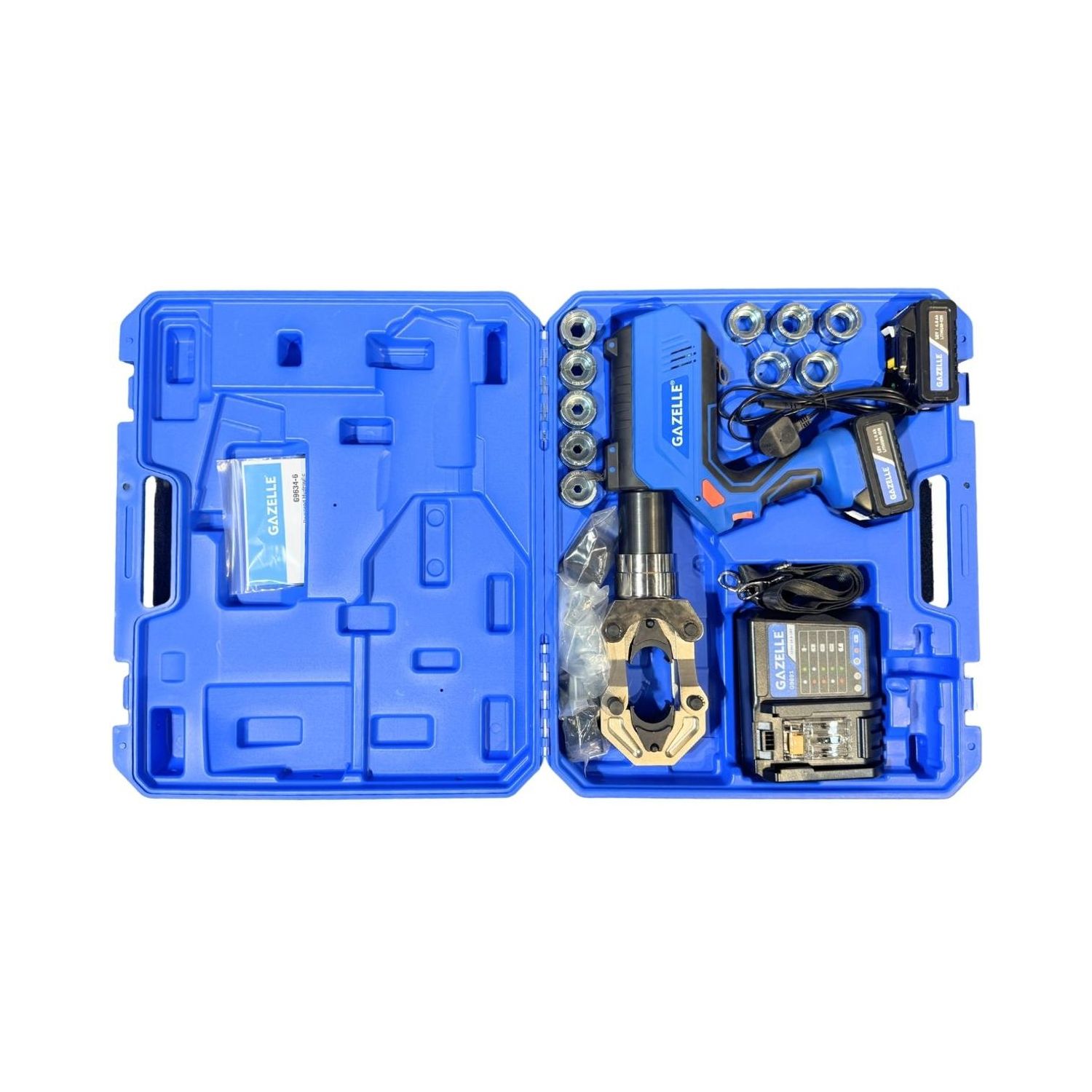

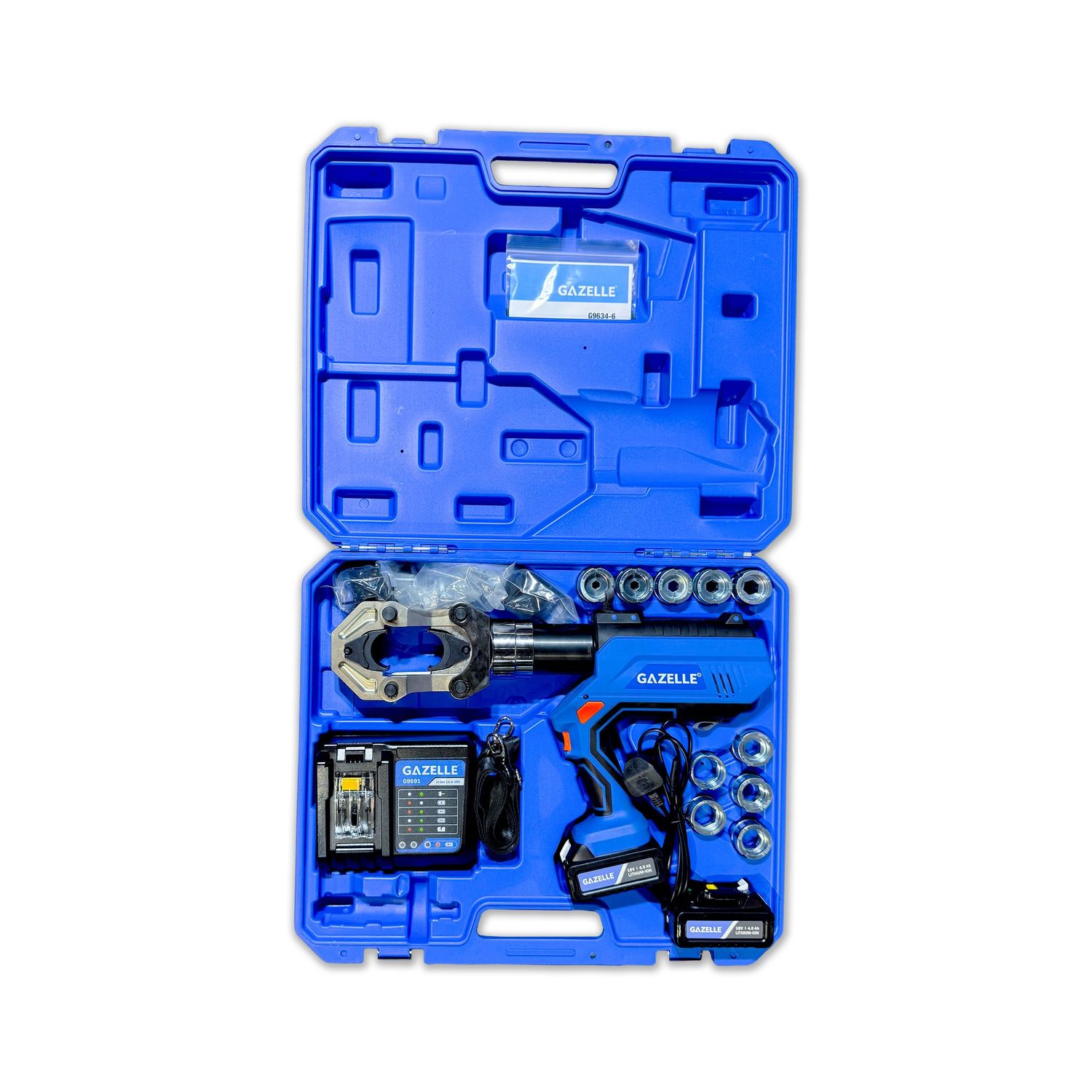

Items Included

• Hydraulic Crimping Tool
• Crimping Dies 16-630mm²
• Battery x 2 pcs (18V, 4.0Ah)
• Charger x 1 pc (UK Plug)

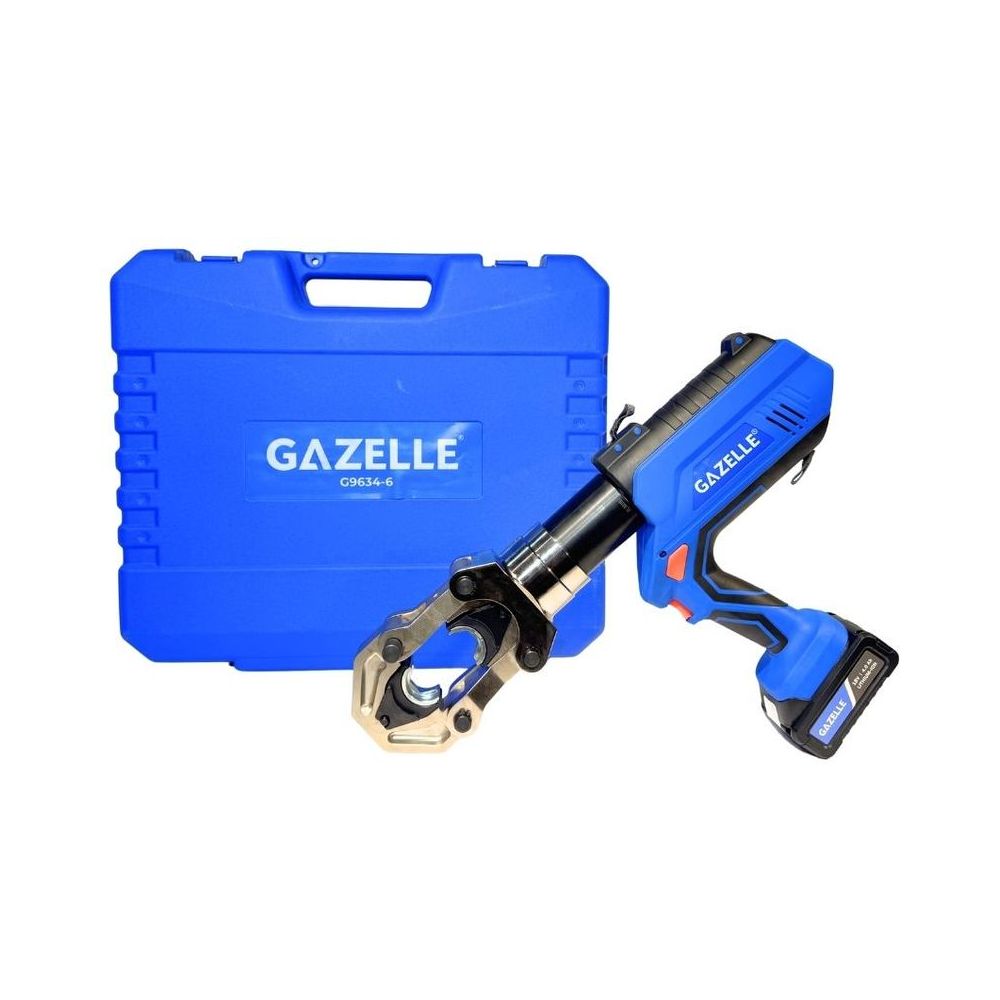

• Carry Case
• User Manual

Downloads

Datasheet
