Gazelle G9633UNV 3-in-1, 18V Cordless Hydraulic Crimping Tool, Max Crimping Capacity 6-300mm²

Features

• 3-in-1 Functionality: Combines crimping, cutting, and punching capabilities in a single tool for versatile applications.
• High Crimping Force: Delivers 6 tons of crimping force with a maximum capacity of 300mm², suitable for a wide range of industrial tasks.
• Efficient Cutting: Cuts materials up to 40mm in diameter, including Cu/Al/ACSR cables, with precision.

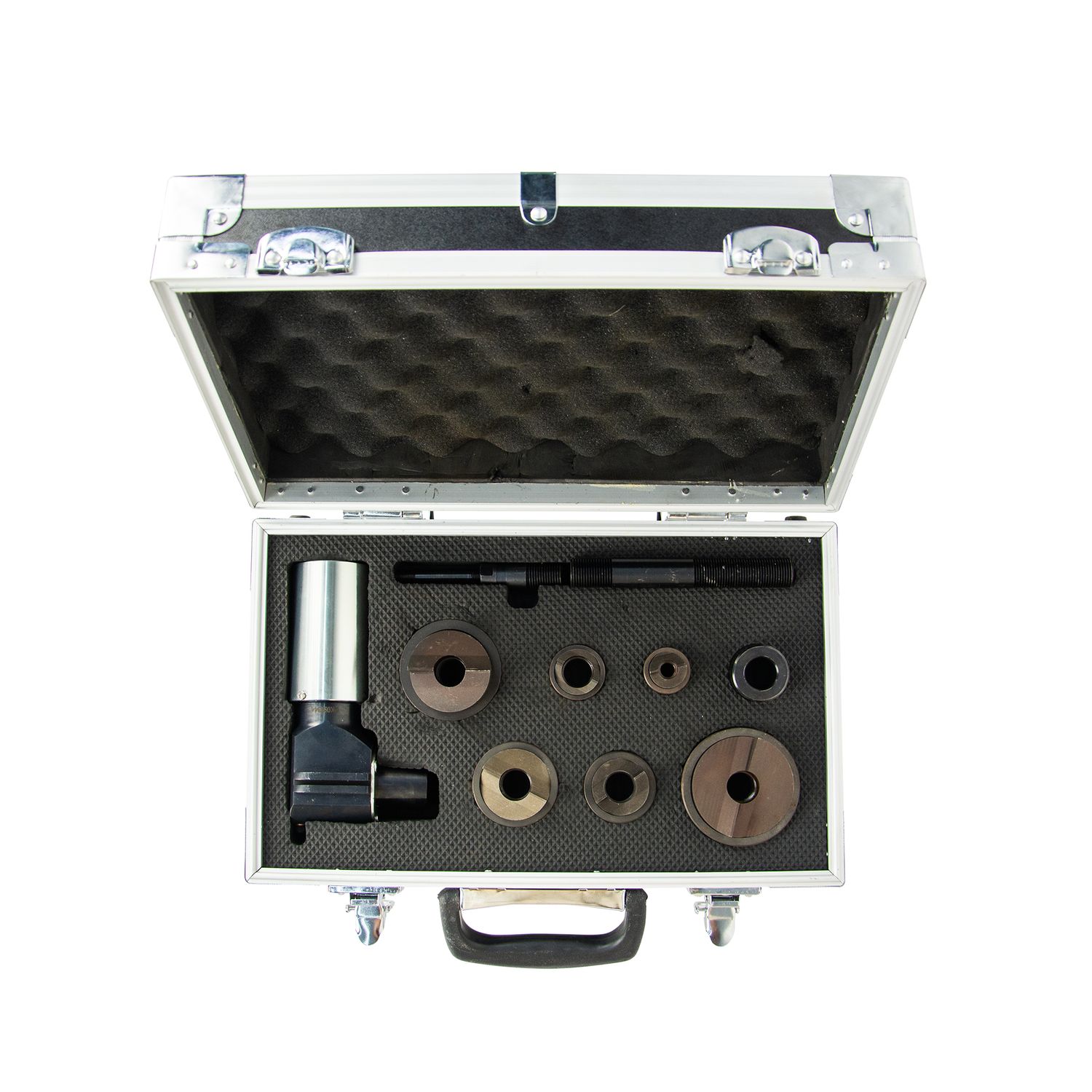

• Punching Capability: Handles plain steel (3.5mm thick, Φ64mm) and stainless steel (2.5mm thick, Φ64mm) for clean and accurate results.

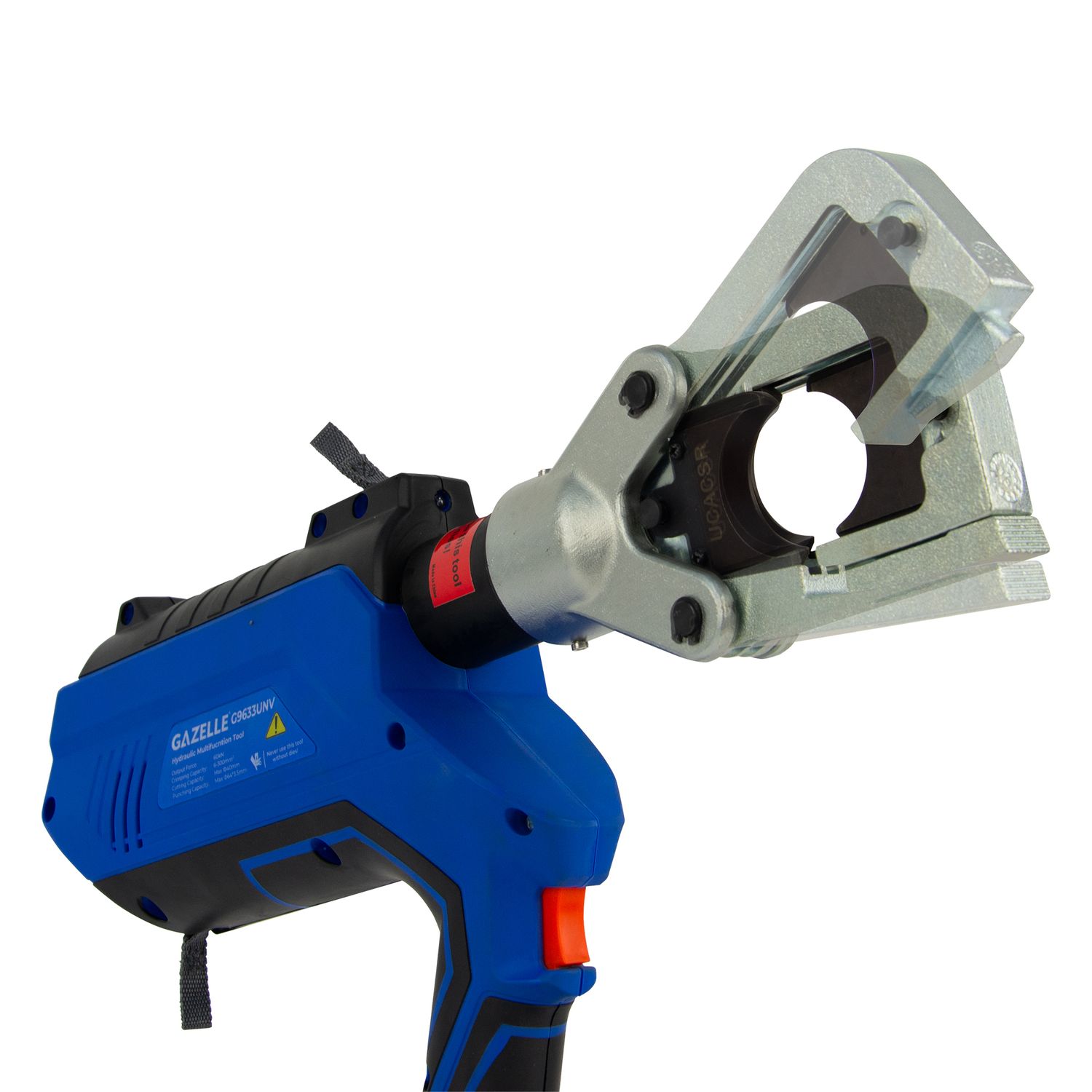

• Advanced Design: Features a 360-degree rotating crimping head with a flip-top design for easy access in tight spaces.

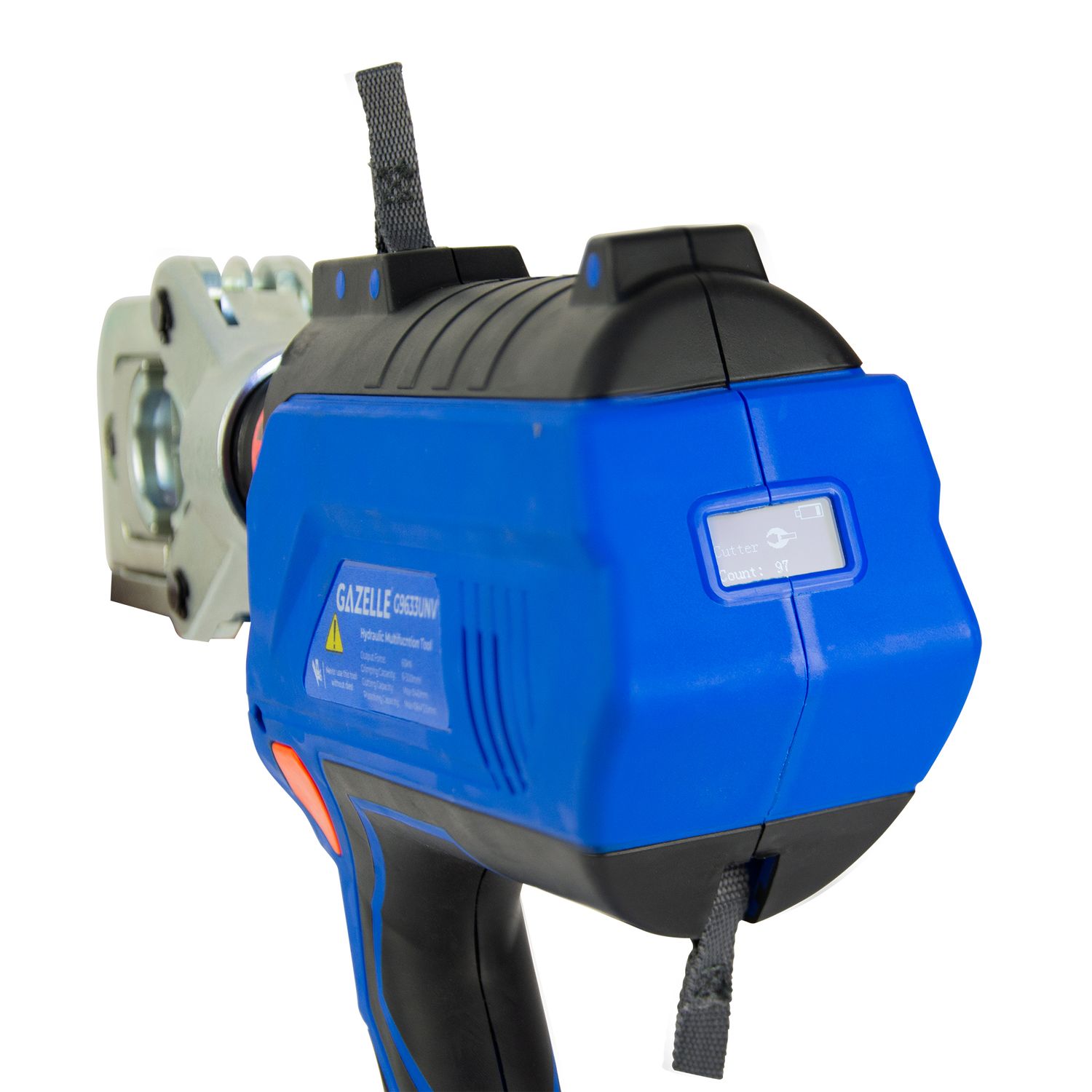

• Smart Technology: Built-in computer chip with an OLED display provides real-time operational data for precise control.
• Enhanced Safety: Automatic pressure release ensures safe and efficient operation.
• Integrated LED Work Light: Illuminates work areas for improved visibility in low-light conditions.
• Durable Construction: Made from impact-resistant PP plastic for long-lasting performance in demanding environments.
• Portable and Lightweight: Weighs only 4.5kg with compact dimensions (43x8x28cm), making it easy to transport and store.
• Comprehensive Accessories: Includes crimping dies (6-300mm²), cutting blades, and a die adapter for various applications.
• Reliable Power: Equipped with two 18V, 4.0Ah lithium batteries and a fast charger for uninterrupted use.

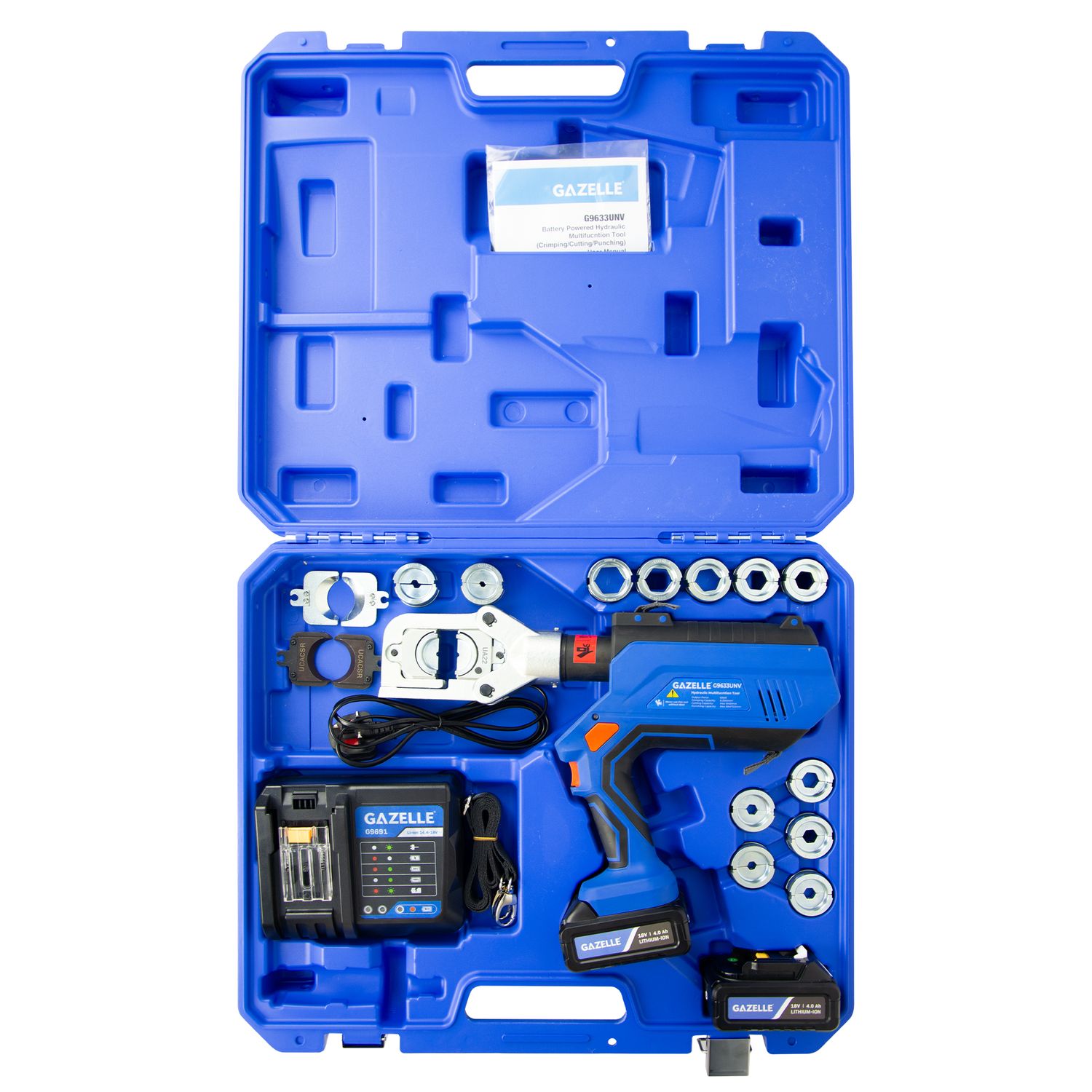

• Protective Packaging: Supplied in a robust plastic case (59x51x14cm) for secure storage and transport.

Technical Information

• Crimping Force 6t
• Rated Pressure 700bar
• Crimping Capacity Max 300mm2
• Punching Capacity Plain Steel - 3.5mm thick, Φ64mm, Stainless Steel - 2.5mm thick, Φ64mm
• Cutting Capacity Max 40mm Cu/AI/ACSR
• Die Adapter Cu50-300mm²
• Cutting Blade UCACSR/UC40
• Dimension 43x8x28cm
• Net Weight 4.5kg
• Packing Plastic Case
• Packing Size 59x51x14cm

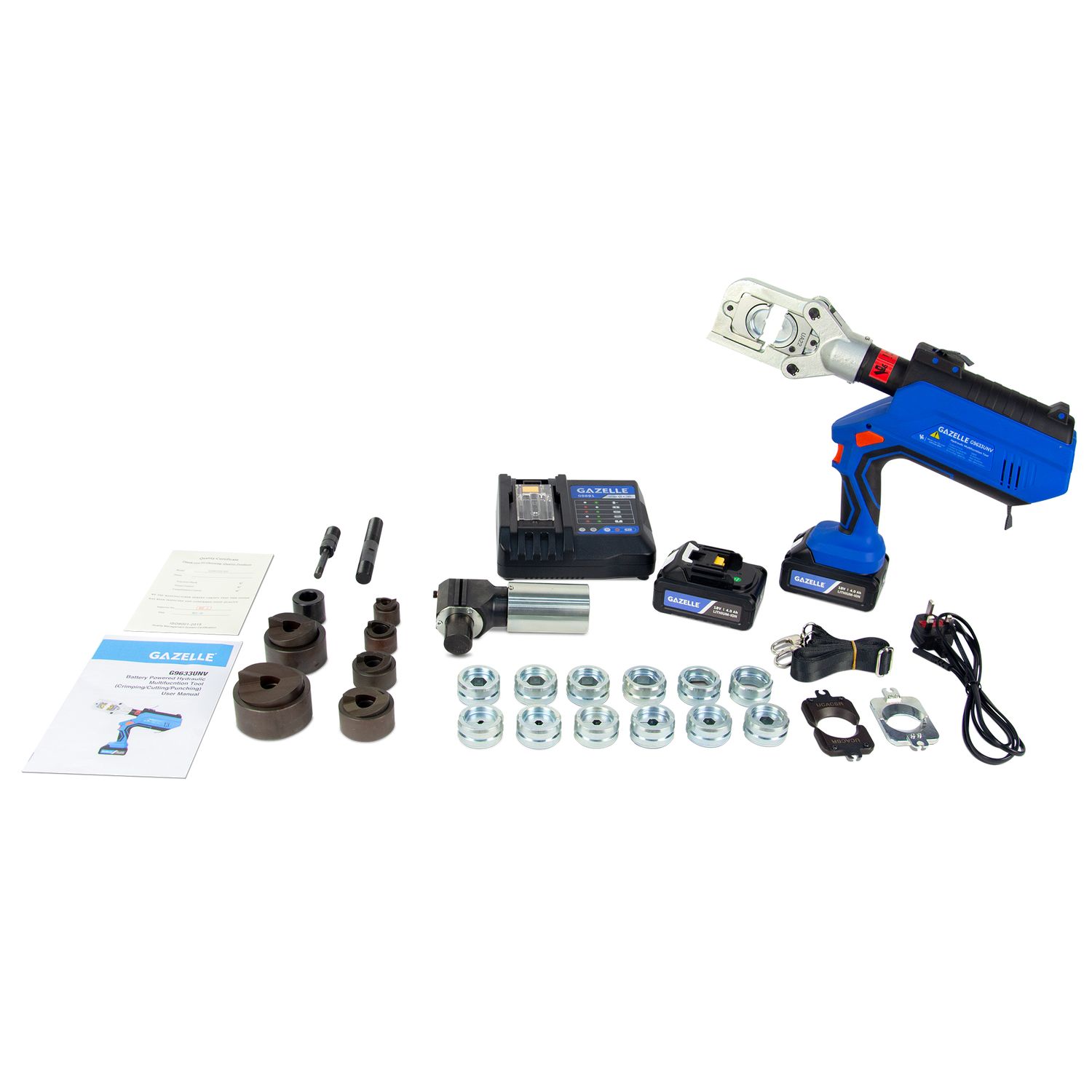

Items Included

• Crimping Dies 6-300mm2 (6,10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300)
• Battery x 2 pcs (18V, 4.0Ah)
• Charger x 1 pc (UK Plug)
• Carry Case
• User Manual

Downloads

Datasheet
