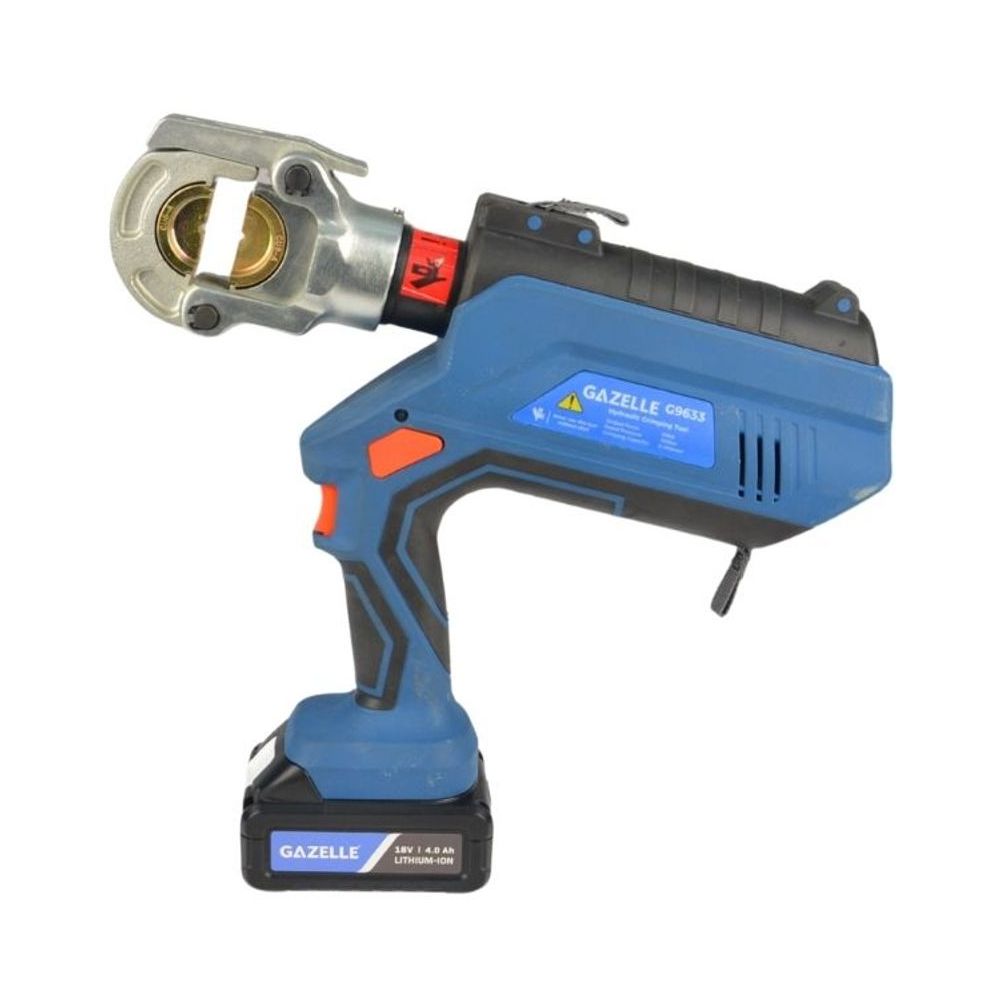

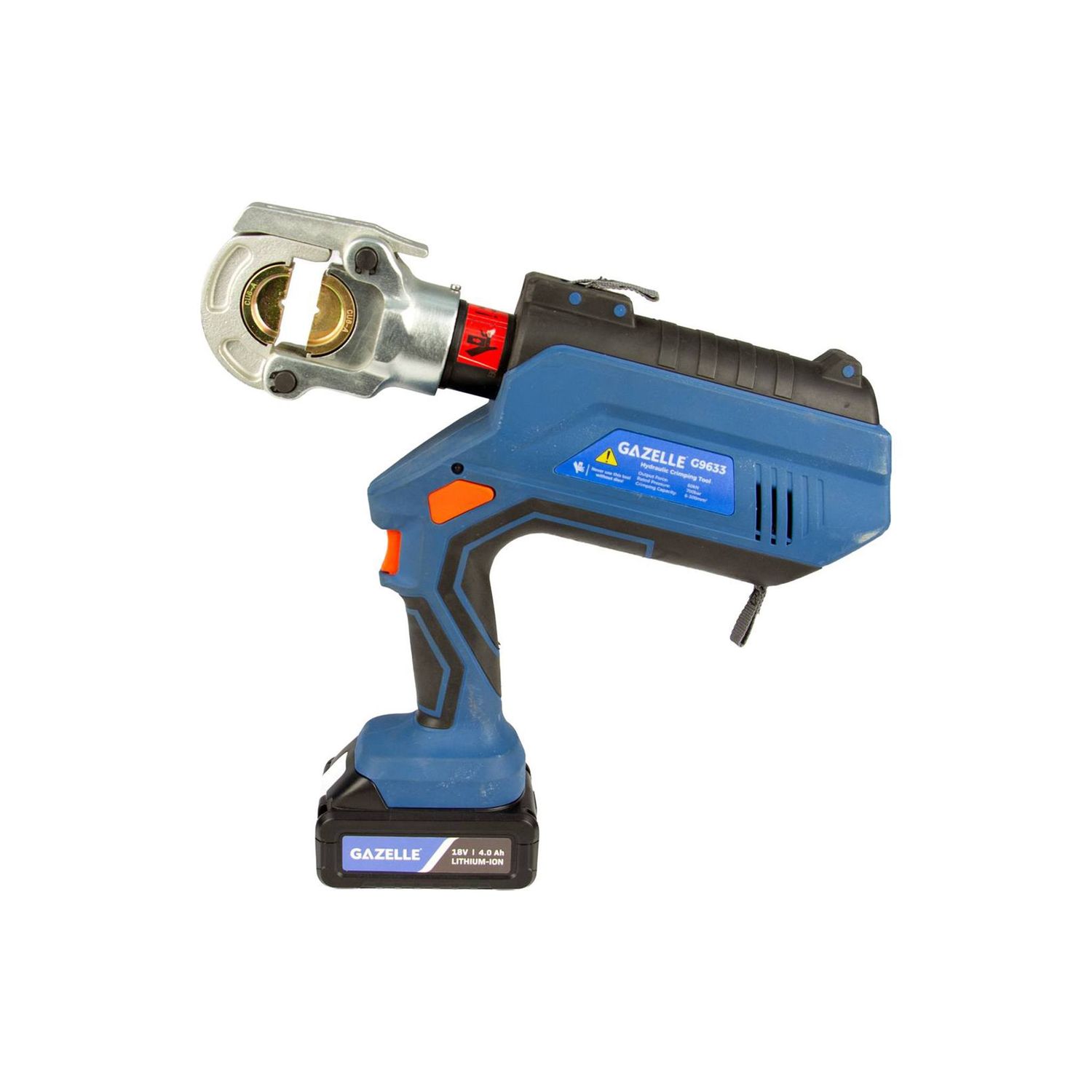

Gazelle G9633 18V Cordless Crimping Tool, 6-300mm² with Dies

Features

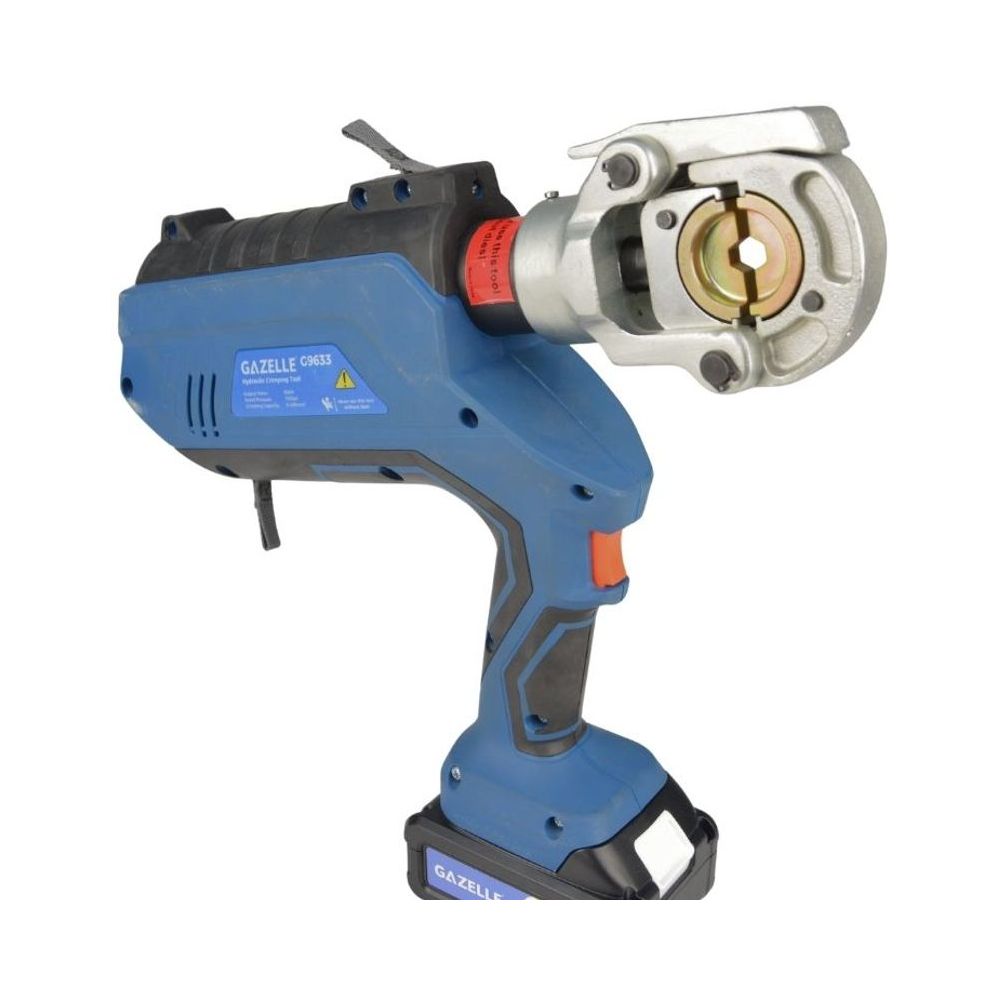

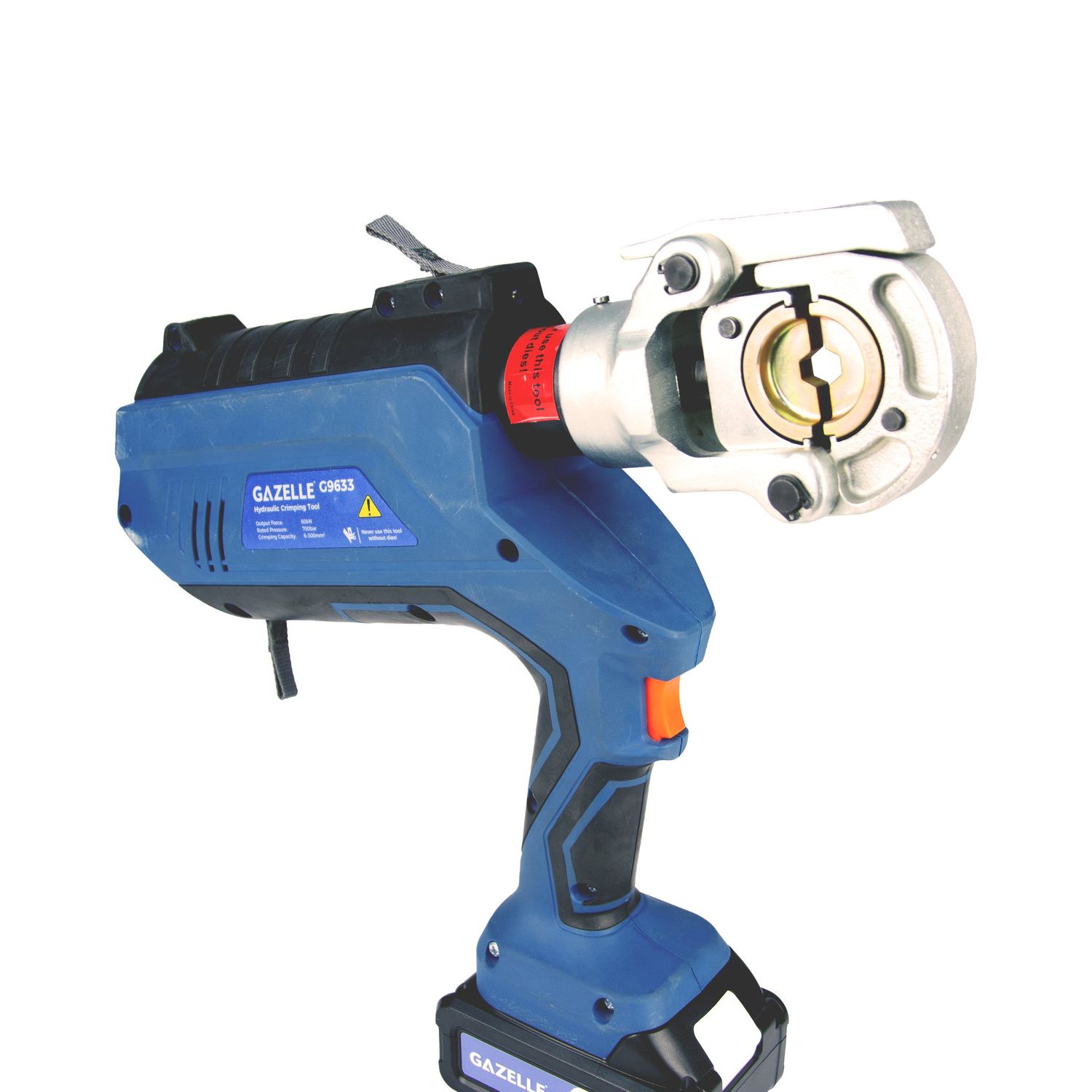

• 360° Rotating Crimping Head: Provides flexibility for crimping in confined or hard-to-reach areas.

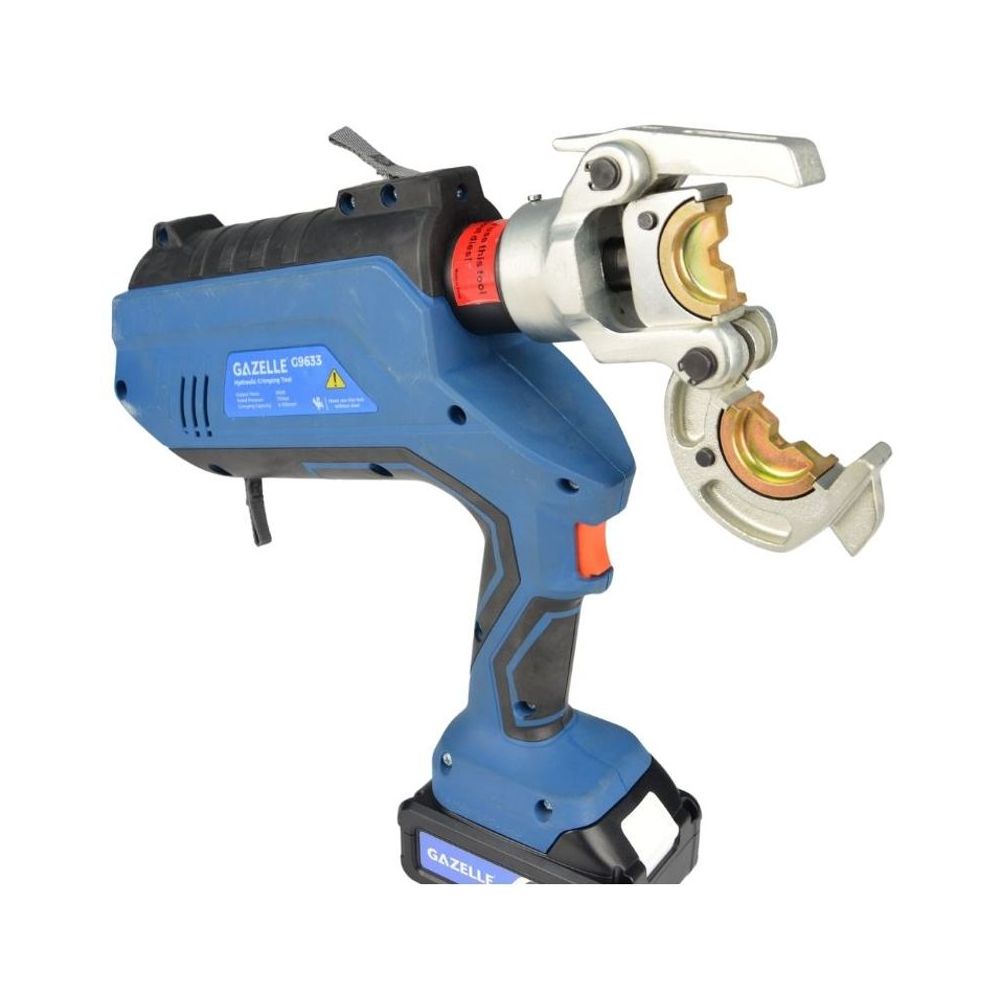

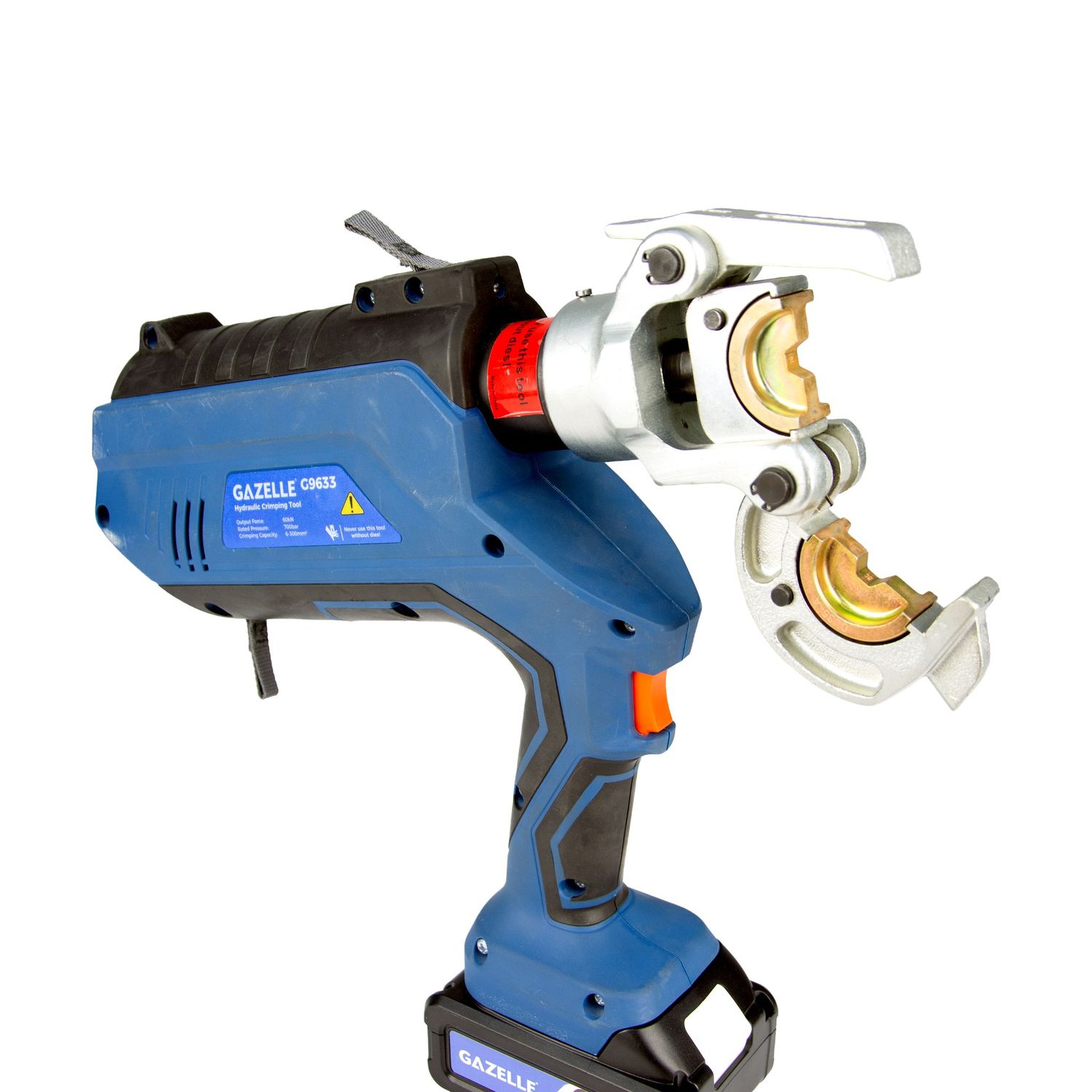

• Flip-Top Style: Simplifies access to fittings for quick and efficient operation.
• Two-Stage Hydraulic System: Ensures efficient crimping with automatic pressure release for safety.

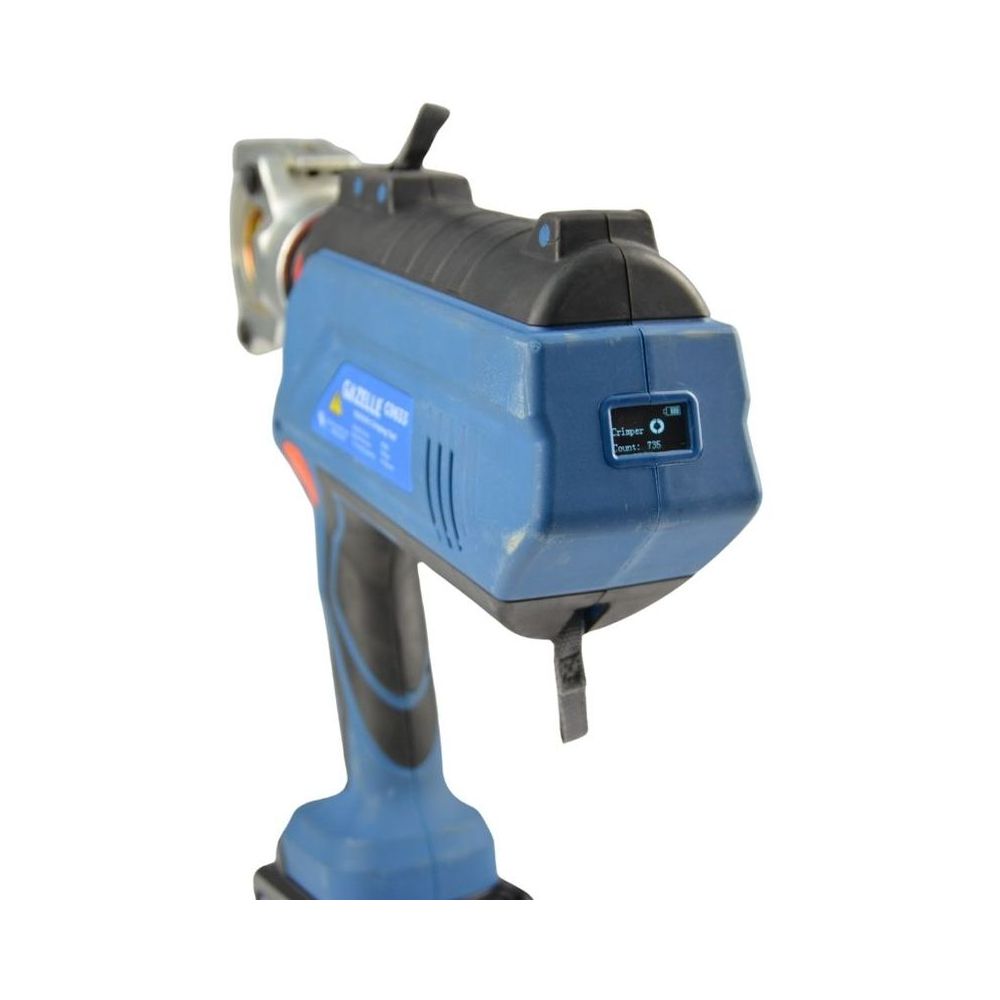

• Integrated LCD Screen: Displays crimping times for enhanced monitoring and precision.

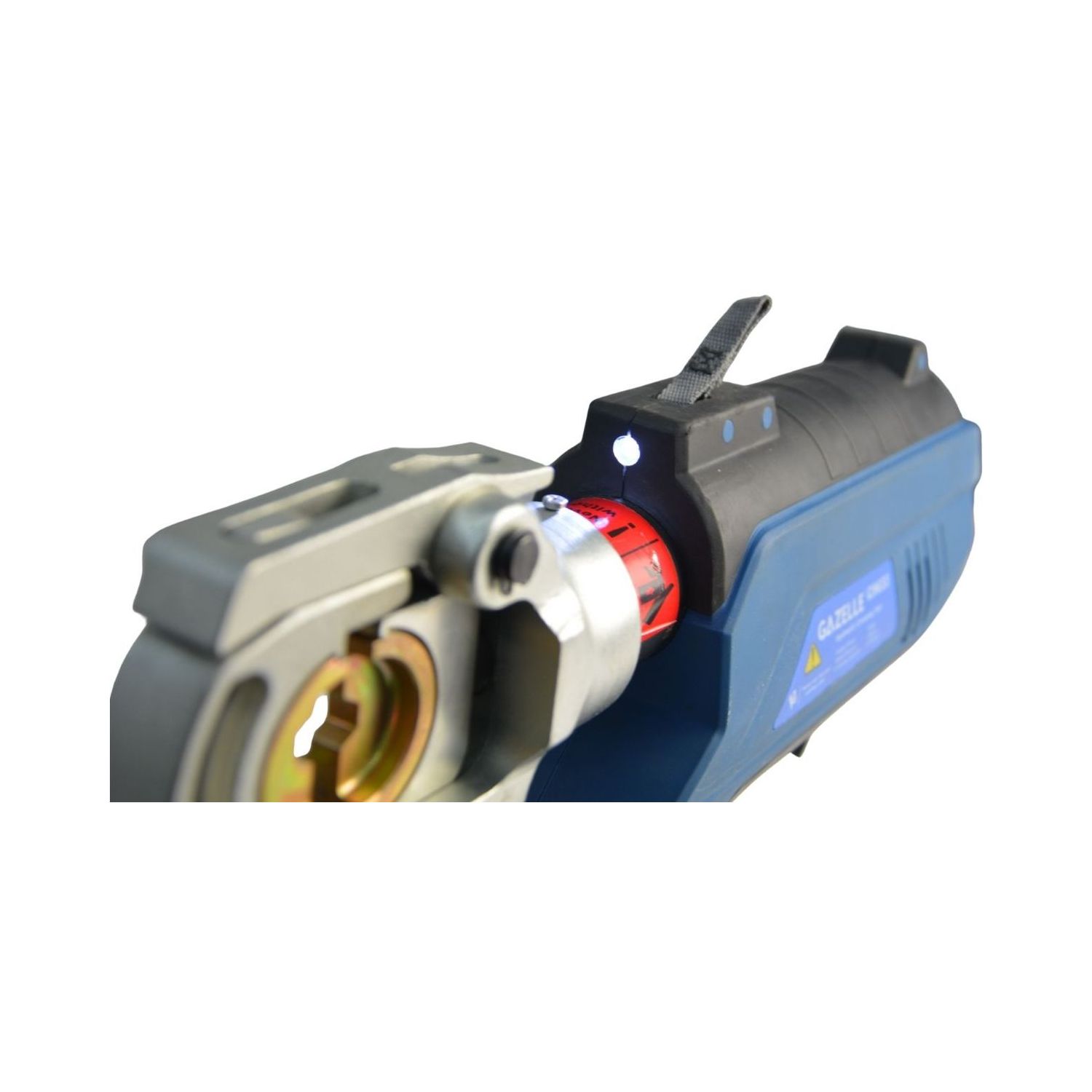

• LED Work Lights: Illuminates the workspace, ensuring accuracy in low-light conditions.
• High-Capacity 18V Lithium Battery: Includes a power-on display and fast charger for extended and reliable operation.
• Durable Construction: Made with PP plastic for impact resistance and long-lasting performance.
• Wide Crimping Capacity: Supports cables up to 300 mm², suitable for various industrial applications.

Technical Information

• Crimping Force6T
• Stroke17 mm
• Rated Pressure700 bar
• Crimping Capacity300 mm²
• Net Weight4.2 kg
• Standard DiesCu 50-300 mm²
• Dimensions28 x 7 x 29 cm
• Package Size59 x 51 x 14 cm

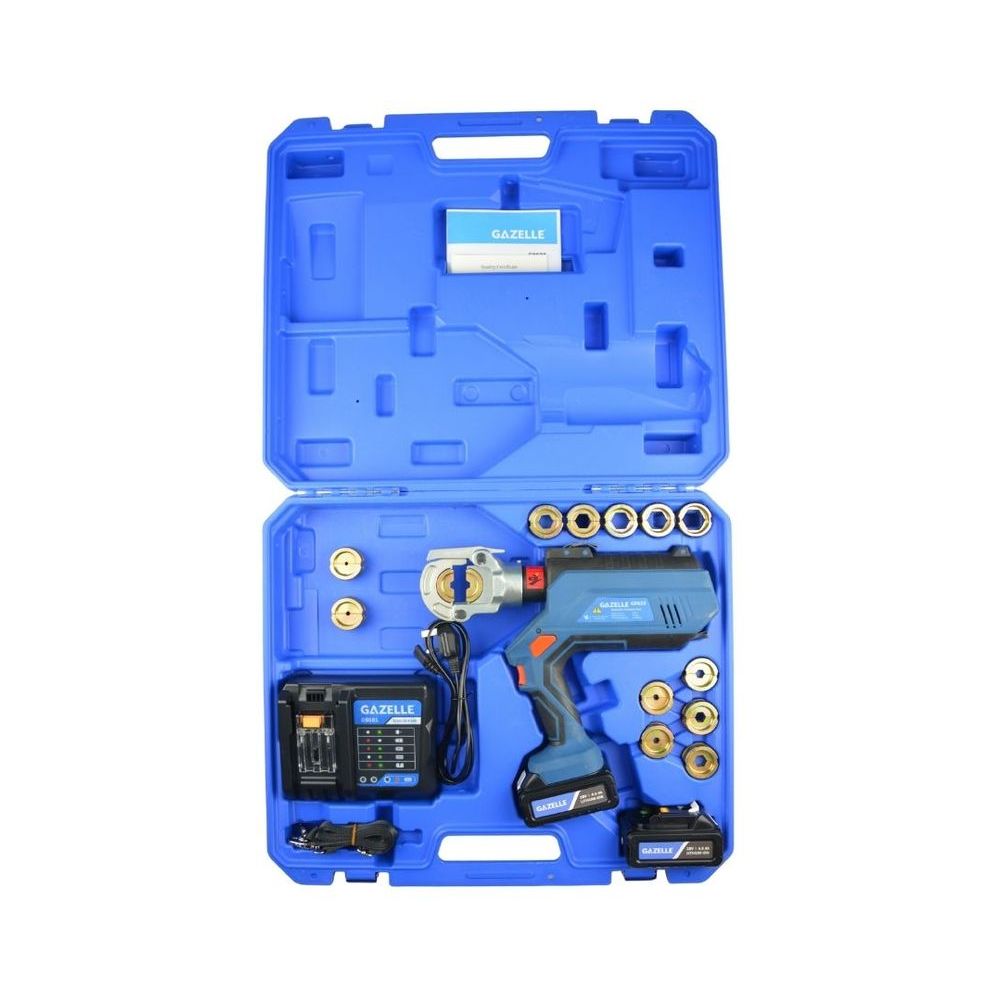

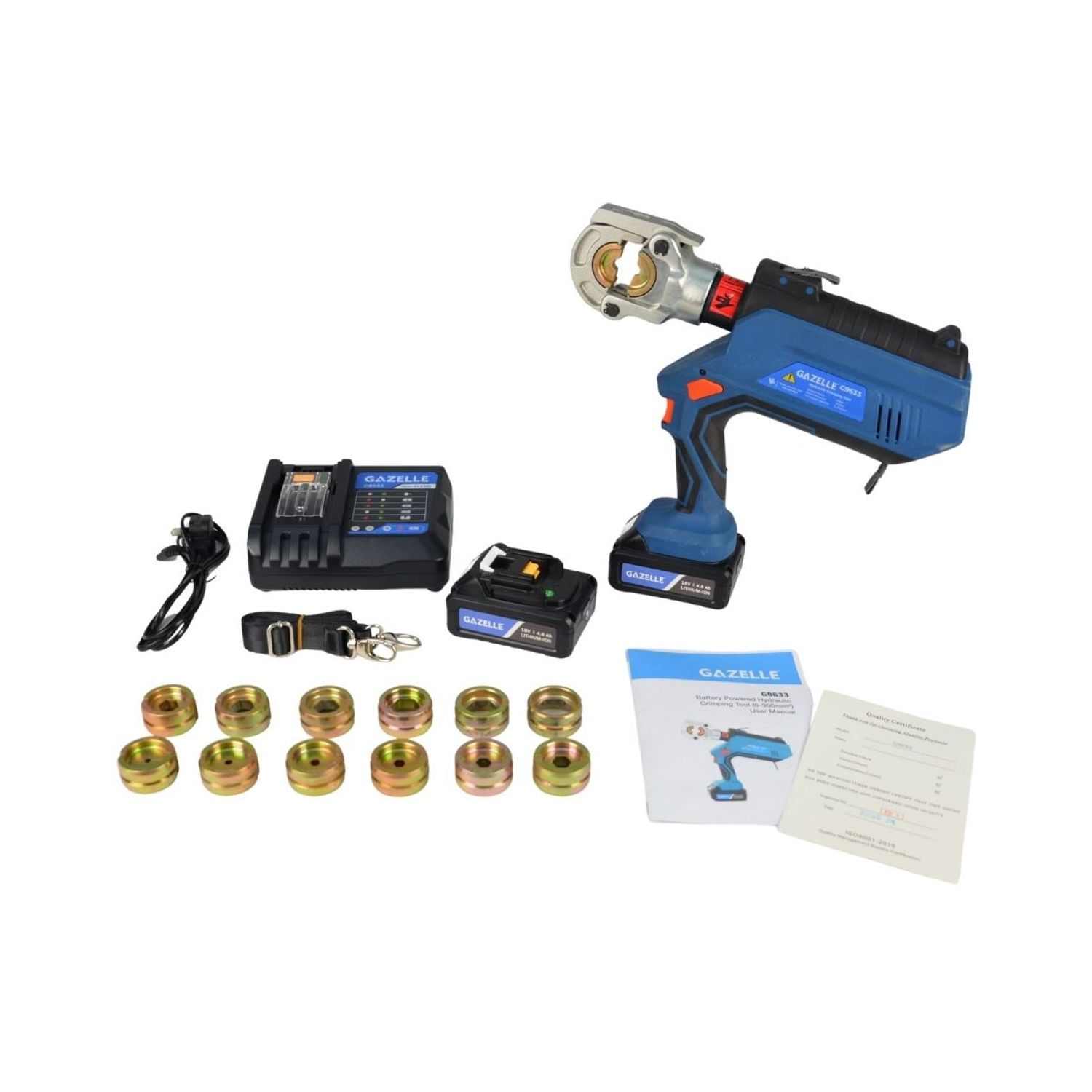

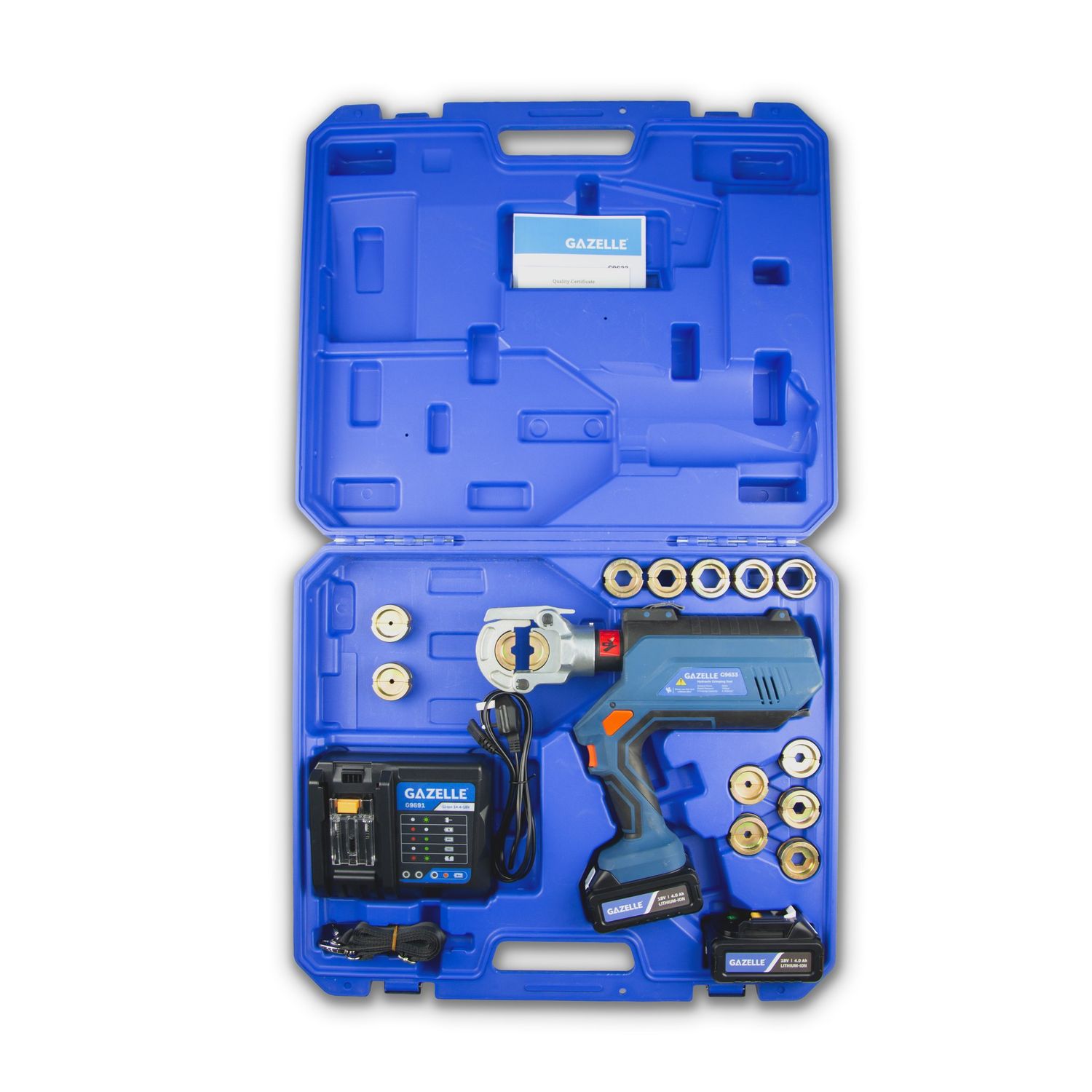

Items Included

• Crimping tools
• Crimping dies 6-300mm2 (6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300)
• Battery x 2pcs 18V, 4.0Ah)
• Charger x 1pc (UK plug)

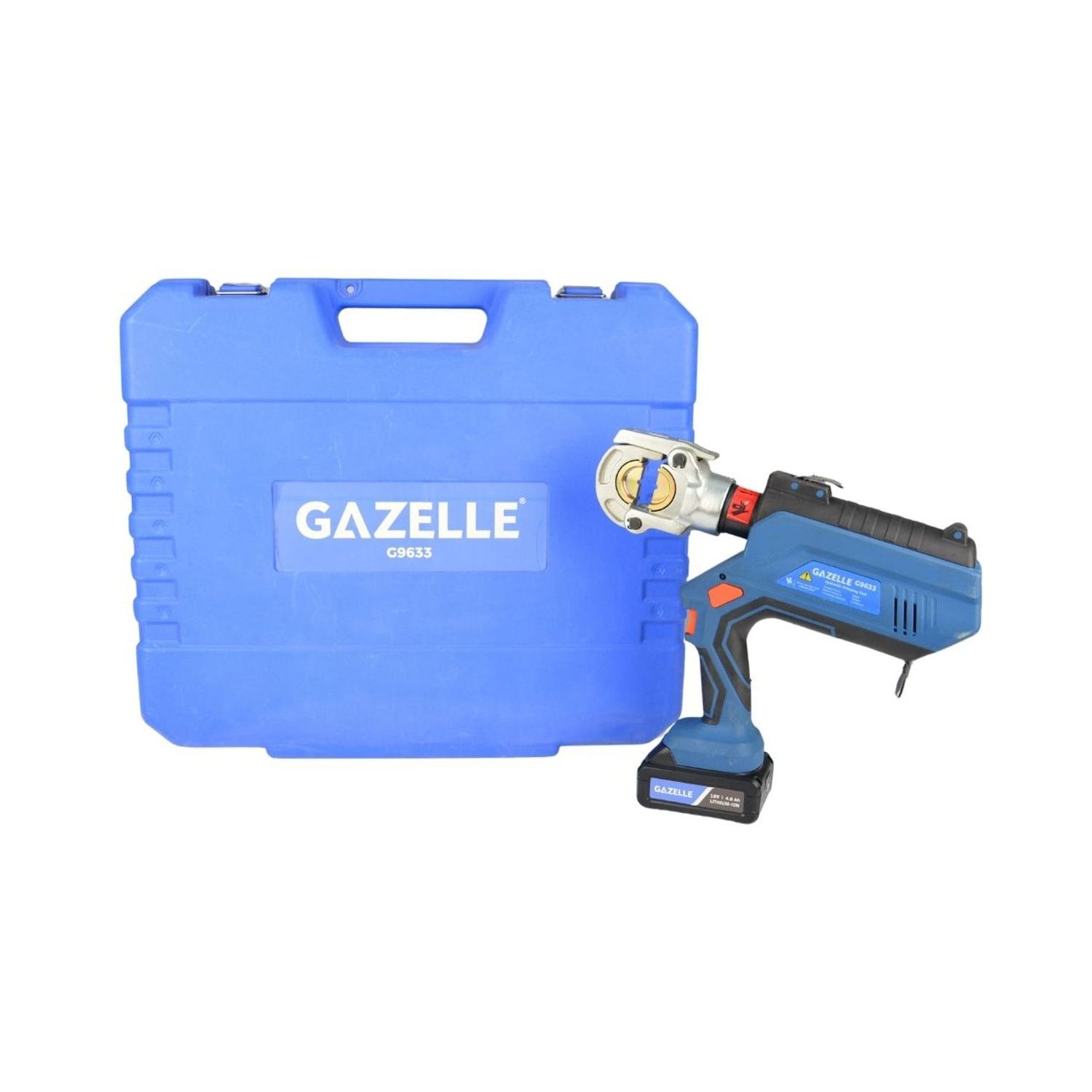

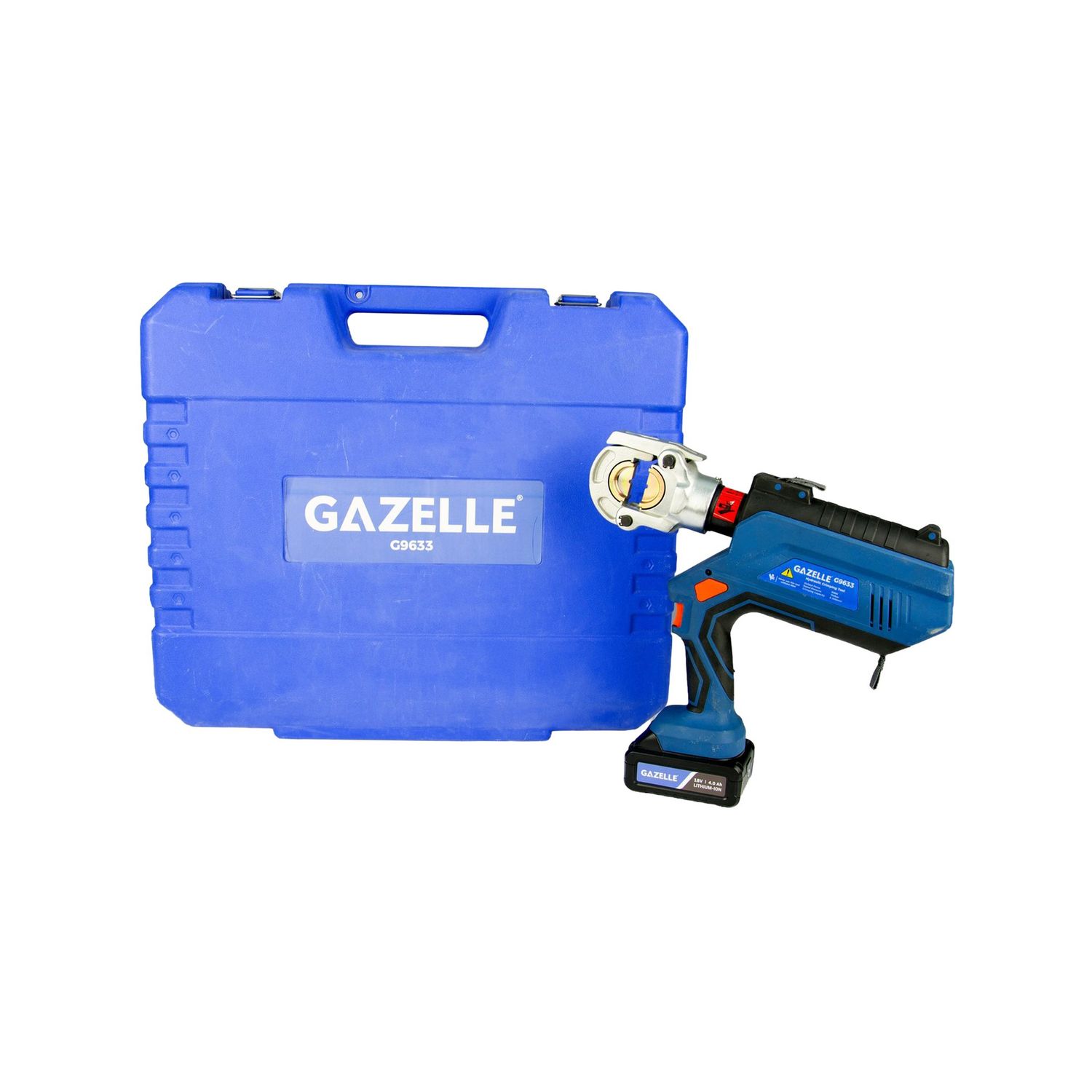

• Carry case
• User manual
