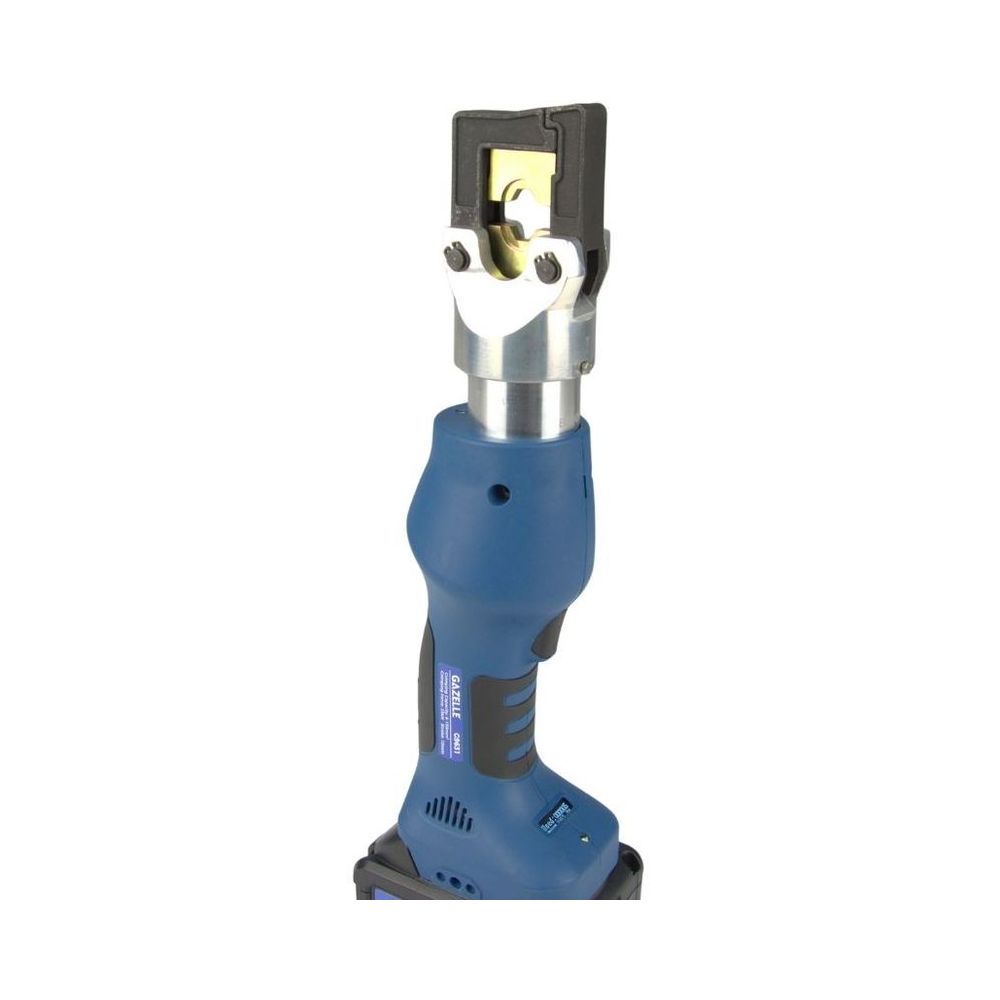

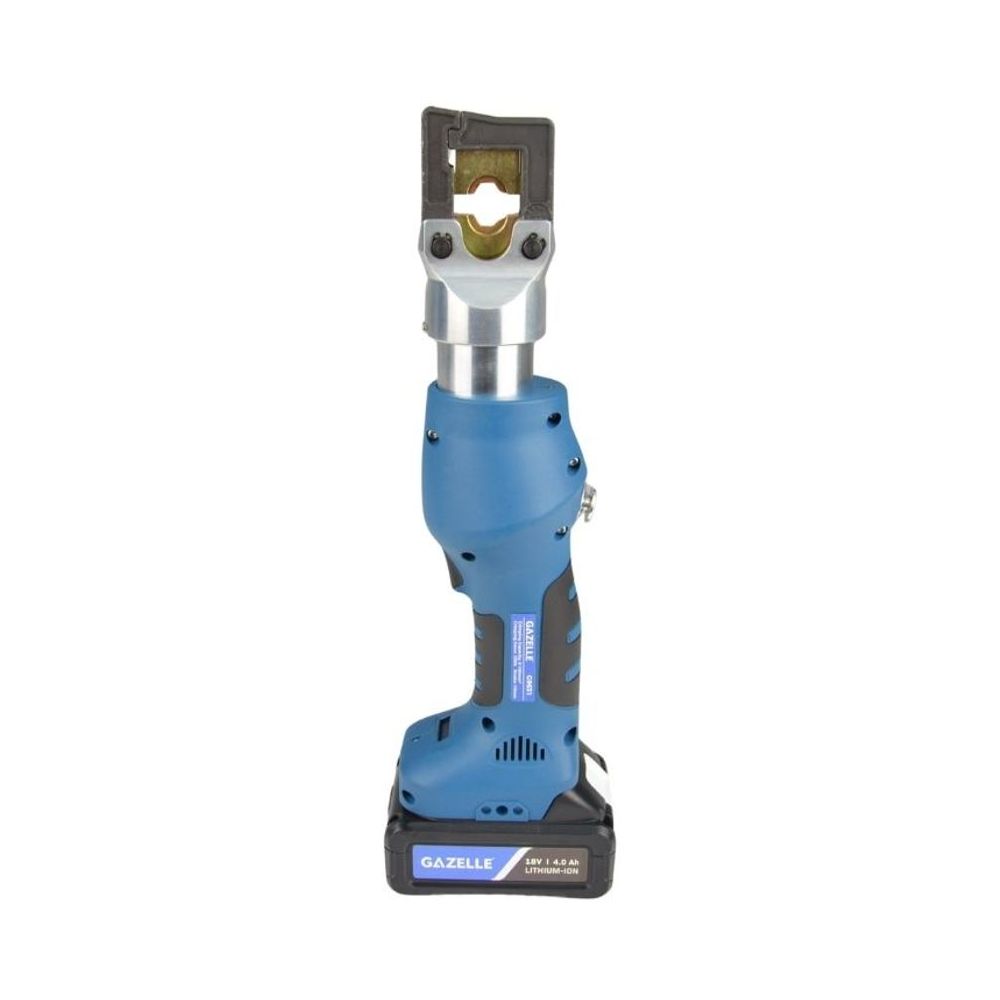

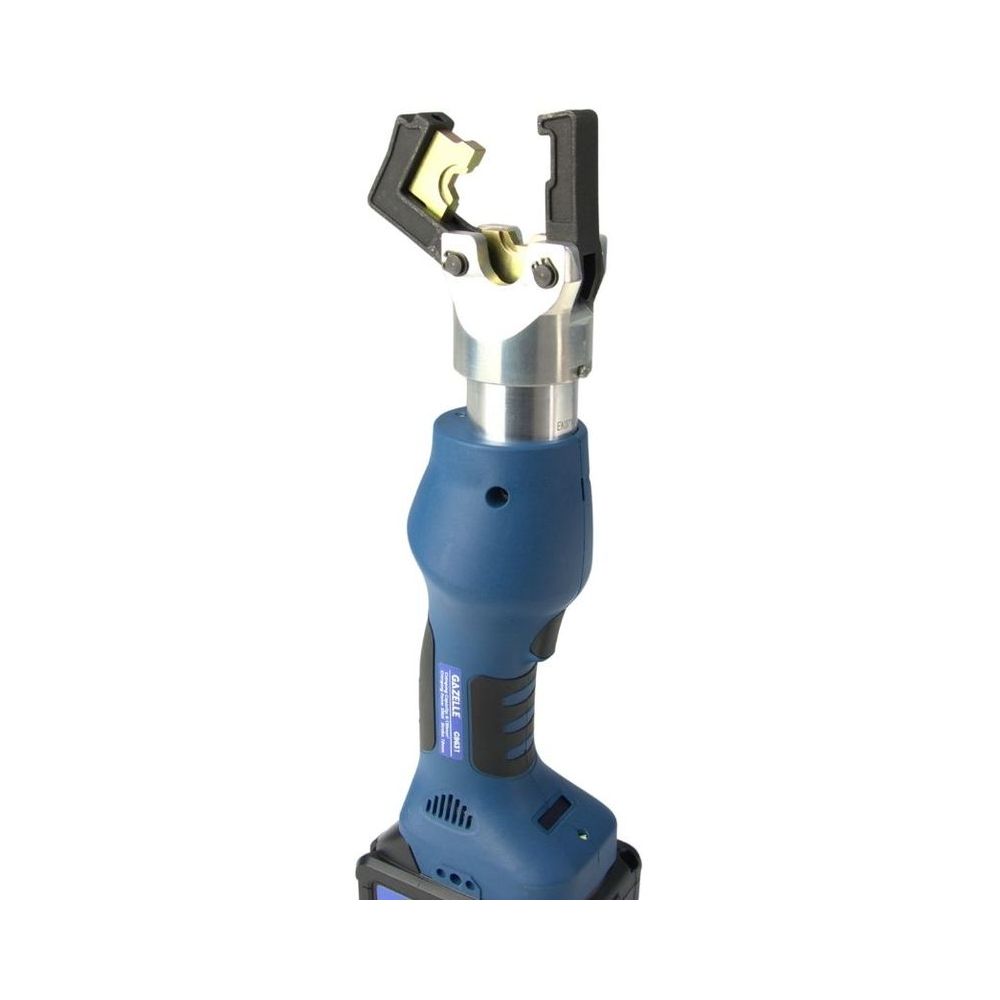

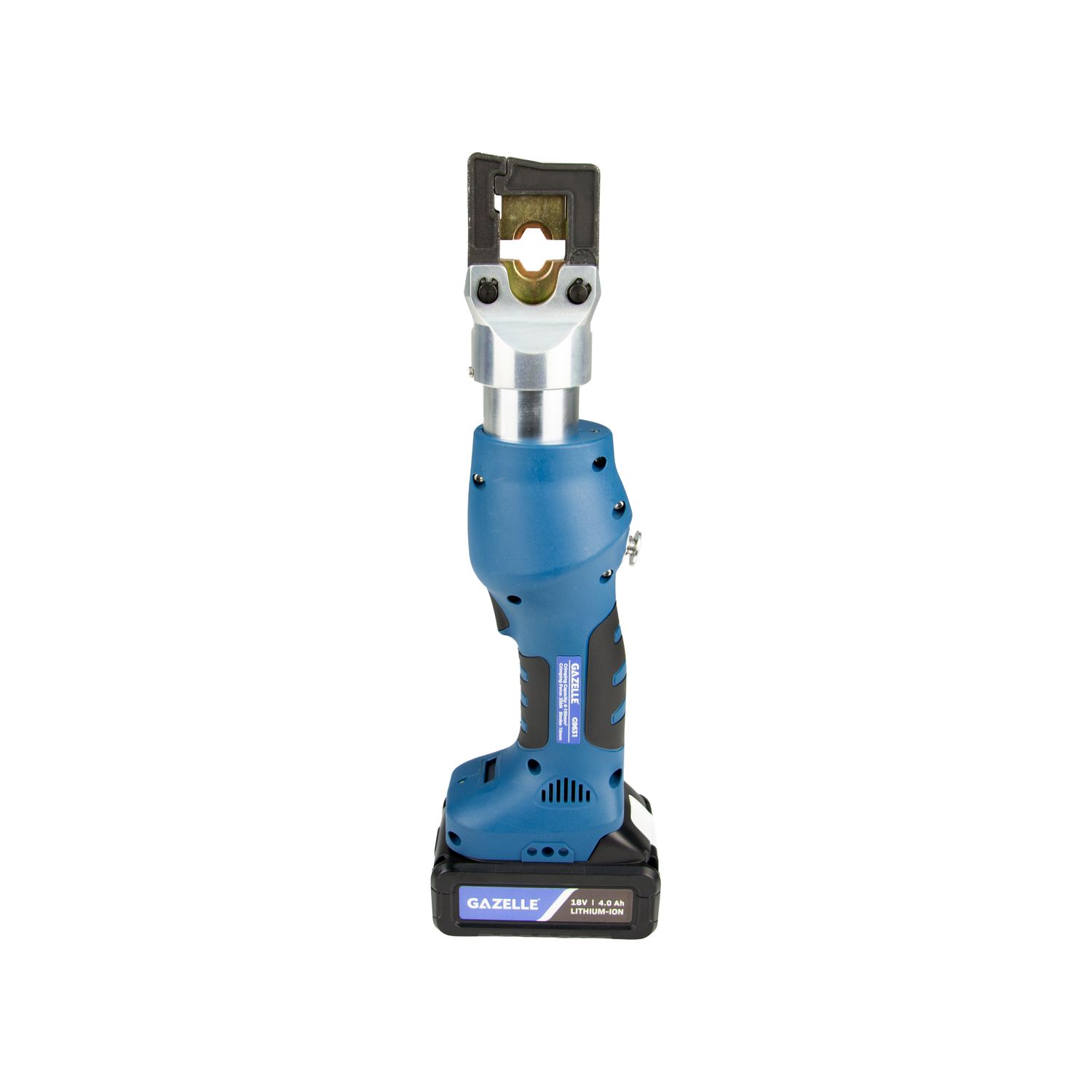

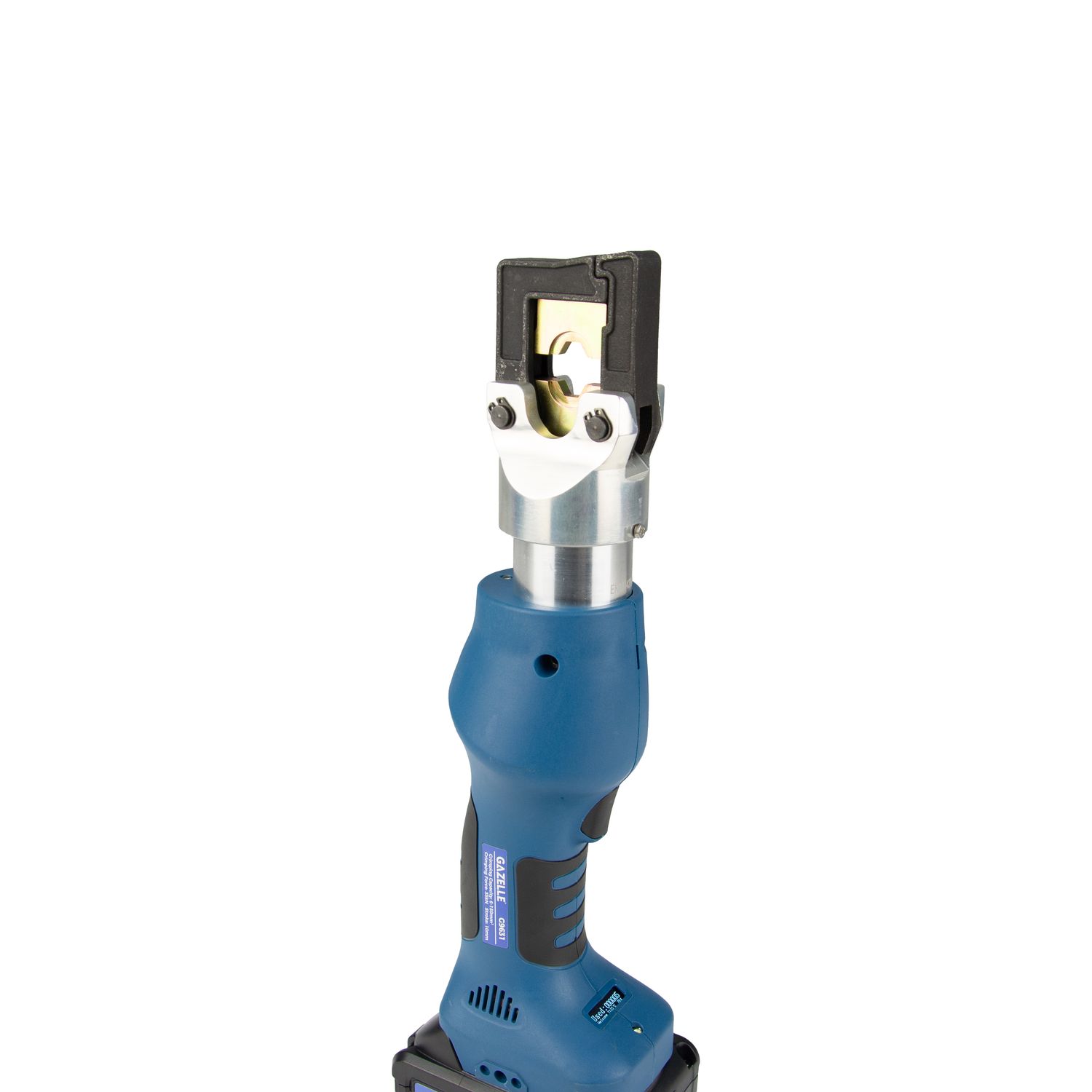

Gazelle G9631 18V Cordless Mini Crimping Tool, 6-150mm² with Dies
Key Features
?
Question about this product?
Features
- Cordless Operation: Automatic pressure release hydraulic system, powered by an 18V battery for enhanced mobility and convenience in the field.
- Compact and Lightweight Design: Weighs only 1.8 kg, making it ideal for extended use without fatigue.
- High Crimping Force: Delivers 3.5 tons of crimping power for reliable performance.
- Wide Crimping Capacity: Supports cables up to 150 mm², suitable for diverse industrial applications.
- Efficient Stroke: 10 mm stroke ensures precise and consistent crimping results.

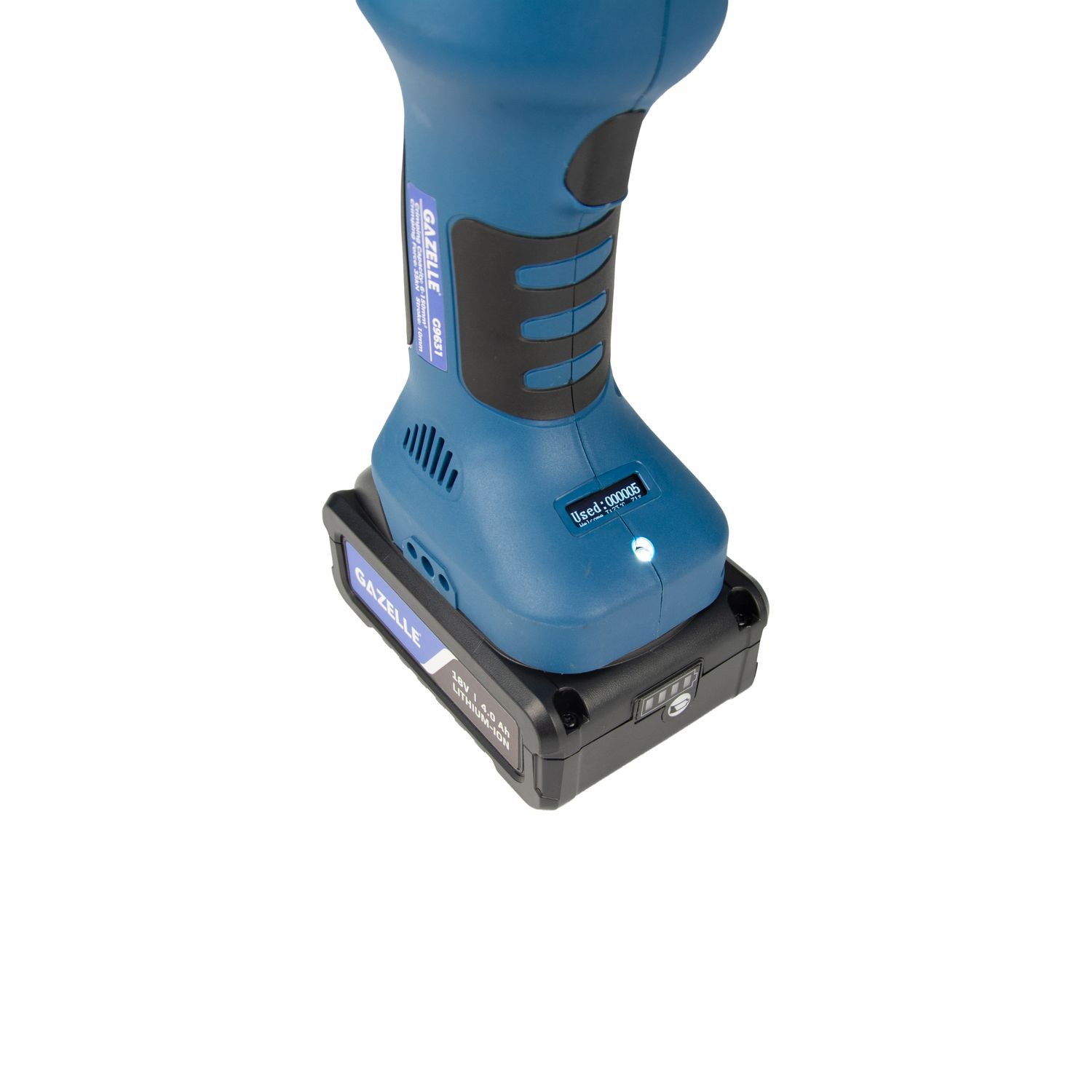

- Dual Battery System: Includes two batteries (2.0Ah and 4.0Ah) for uninterrupted operation.
- Comprehensive Die Set: Comes with standard dies for Cu 6-150 mm², covering a wide range of needs.

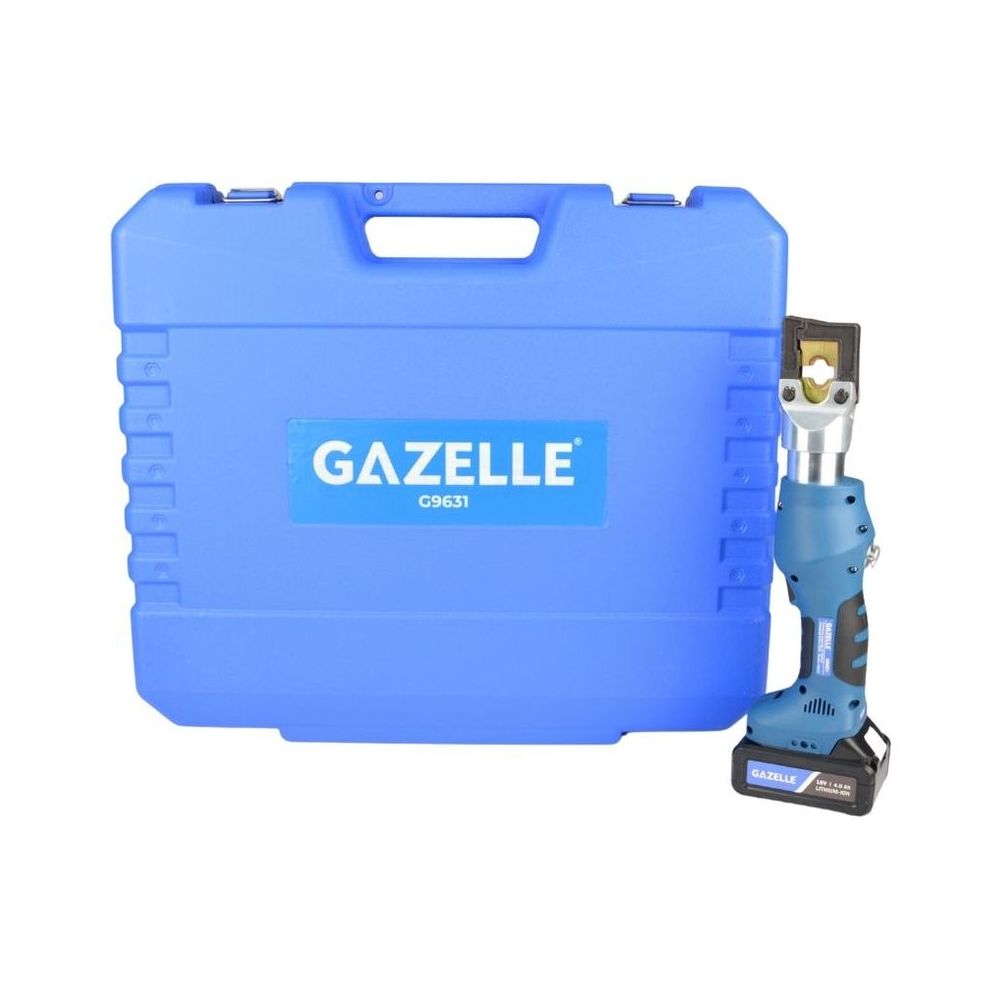

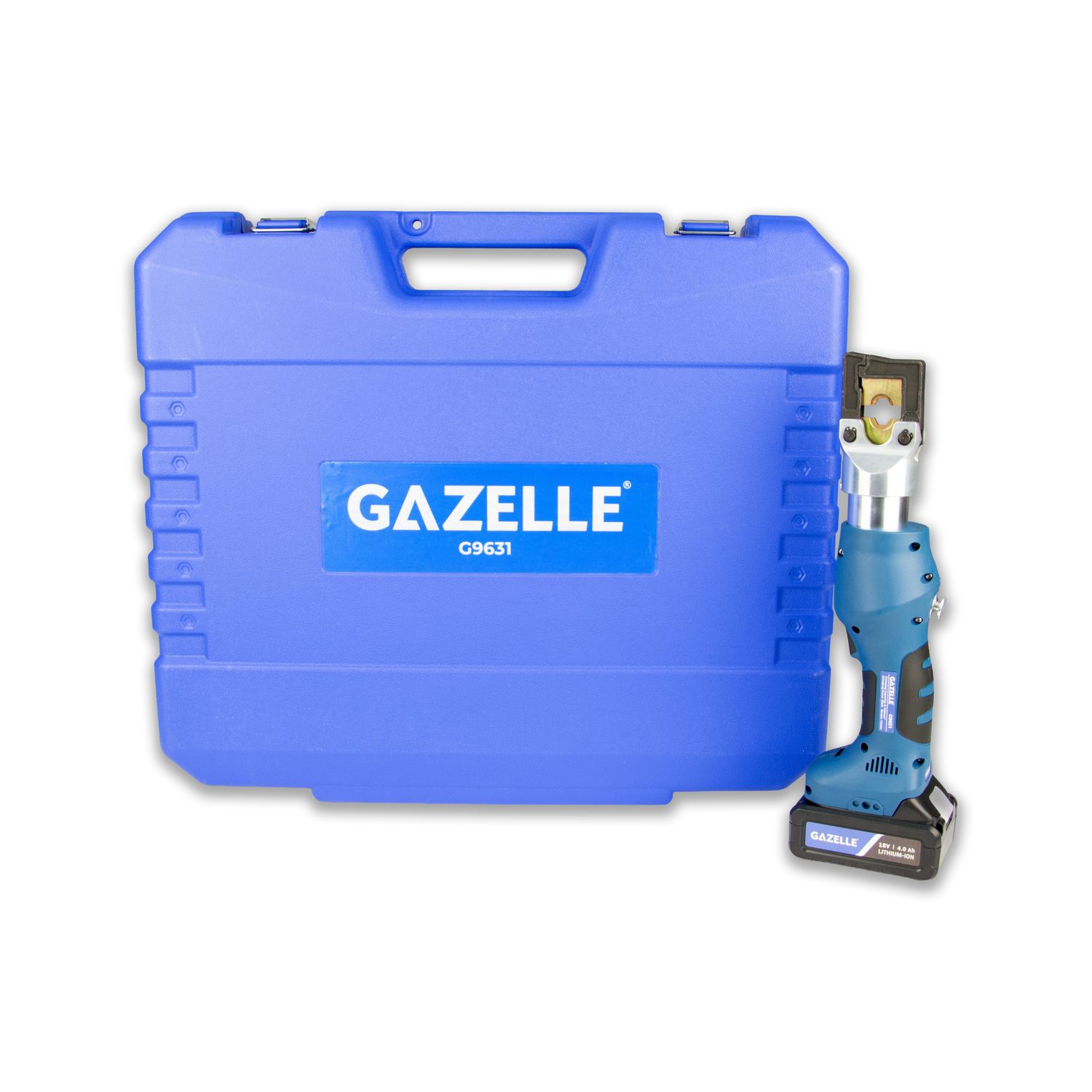

- Durable Carry Case: Provides secure storage and easy transport of the tool and accessories.
Technical Information
- Crimping Force3.5T
- Rated Pressure700bar
- Stroke10 mm
- Oil Reservoir50 ml
- Crimping Capacity150 mm²
- Standard DiesCu 6-150 mm²
- Head Rotation360°
- Dimensions480 x 420 x 120 cm
- Net Weight1.8kg

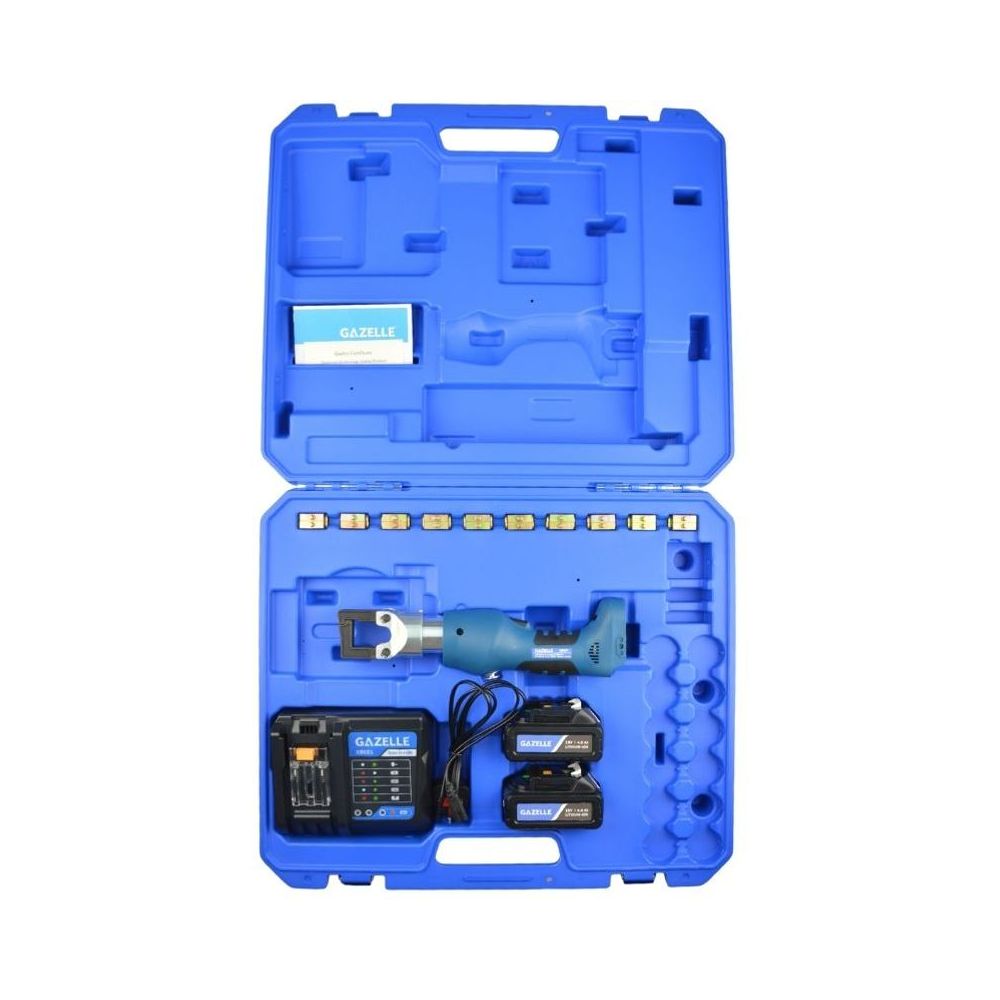

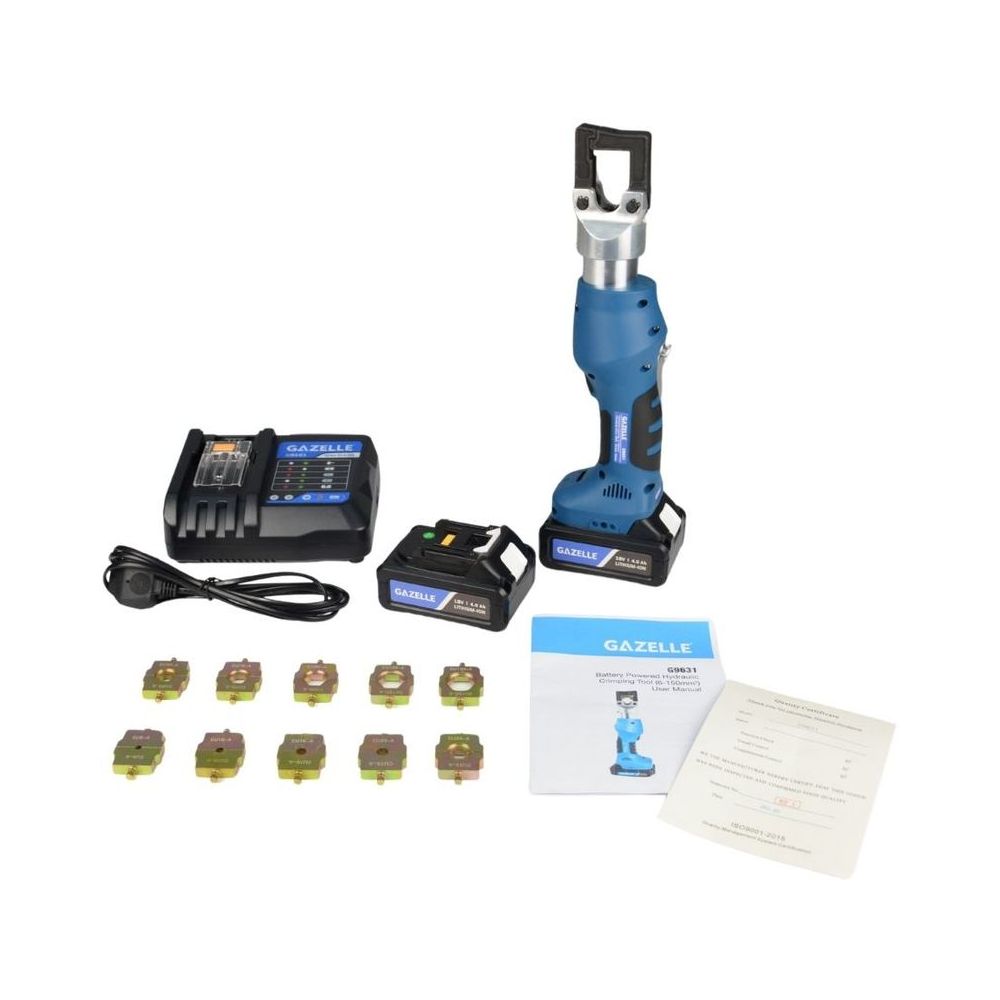

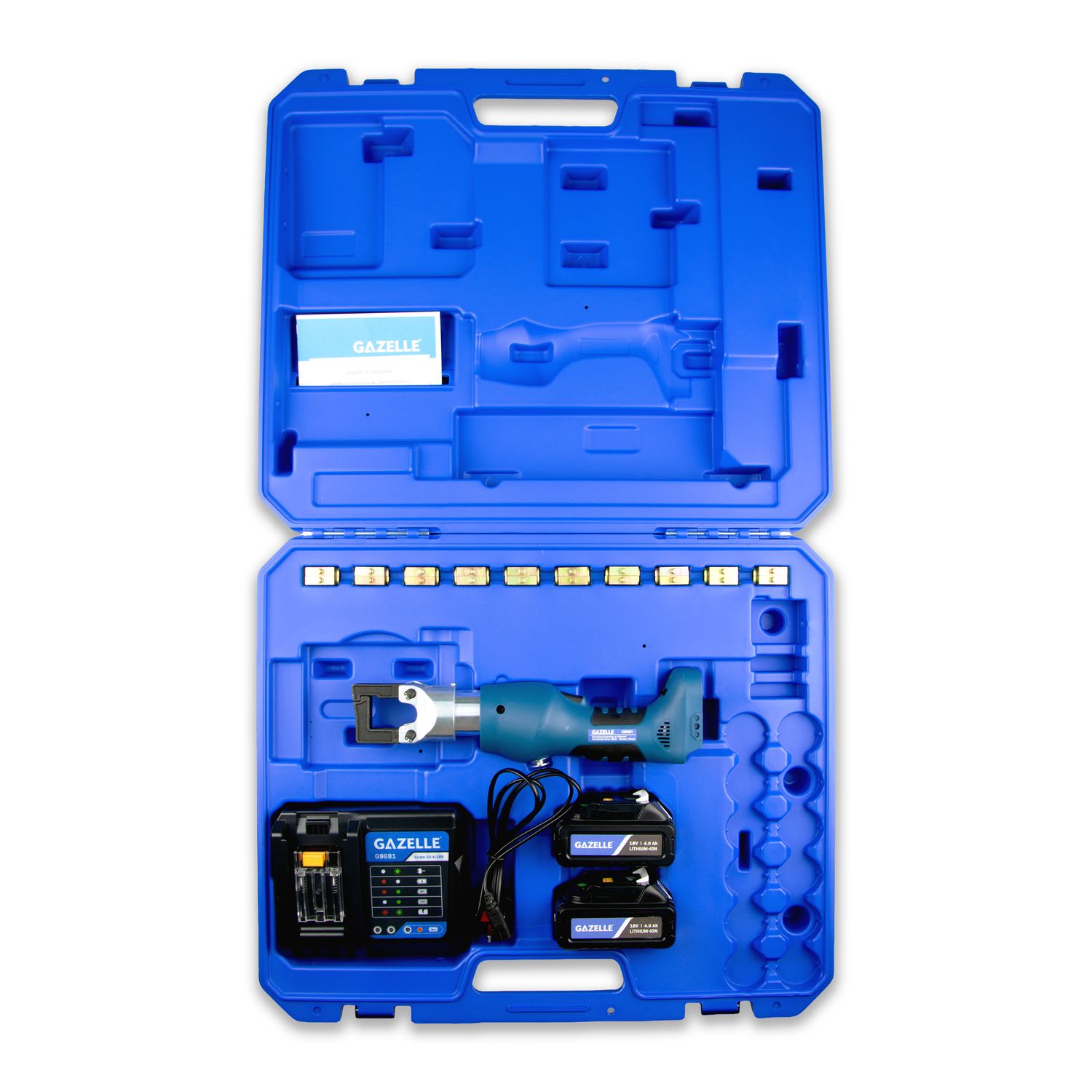

Items Included
- Hydraulic Crimping tool
- Crimping dies 6-150mm2 (6, 10, 16, 25, 35, 50, 70, 95, 120, 150)
- Battery x 2pcs (2.0Ah x1pc and 4.0Ah x 1pc)
- Charger x 1pc (UK plug)
- Carry case
- User manual
