Gazelle G9622 Hand Hydraulic Crimping Tool, 6-400mm² with Dies

Features

• 360° Rotating Crimping Head: Provides flexibility for crimping in confined or hard-to-reach areas.
• High Crimping Force: Delivers 12 tons of power for heavy-duty applications.
• Two-Stage Hydraulic System: Ensures efficient operation with automatic pressure release for safety.
• C-Head Design with 42mm Opening: Allows easy access to fittings and simplifies the crimping process.
• Wide Crimping Capacity: Supports cables up to 400 mm², accommodating diverse industrial needs.
• Comprehensive Die Set: Includes standard dies for Cu 6-400 mm², offering versatility for various tasks.
• Durable and Portable: Weighs 6.1 kg and comes with a robust PP plastic case for secure storage and transport.
• Precision Engineering: Rated pressure of 700 bar and a stroke of 70 mm for consistent and reliable performance.

Technical Information

• Crimping Force12T
• Stroke70 mm
• Rated Pressure700 bar
• Crimping Capacity400 mm²
• Net Weight6.1 kg
• Standard DiesCu 6-400 mm²
• Dimensions50 x 17 x 7 cm
• PP Plastic Case67 x 30 x 12 cm

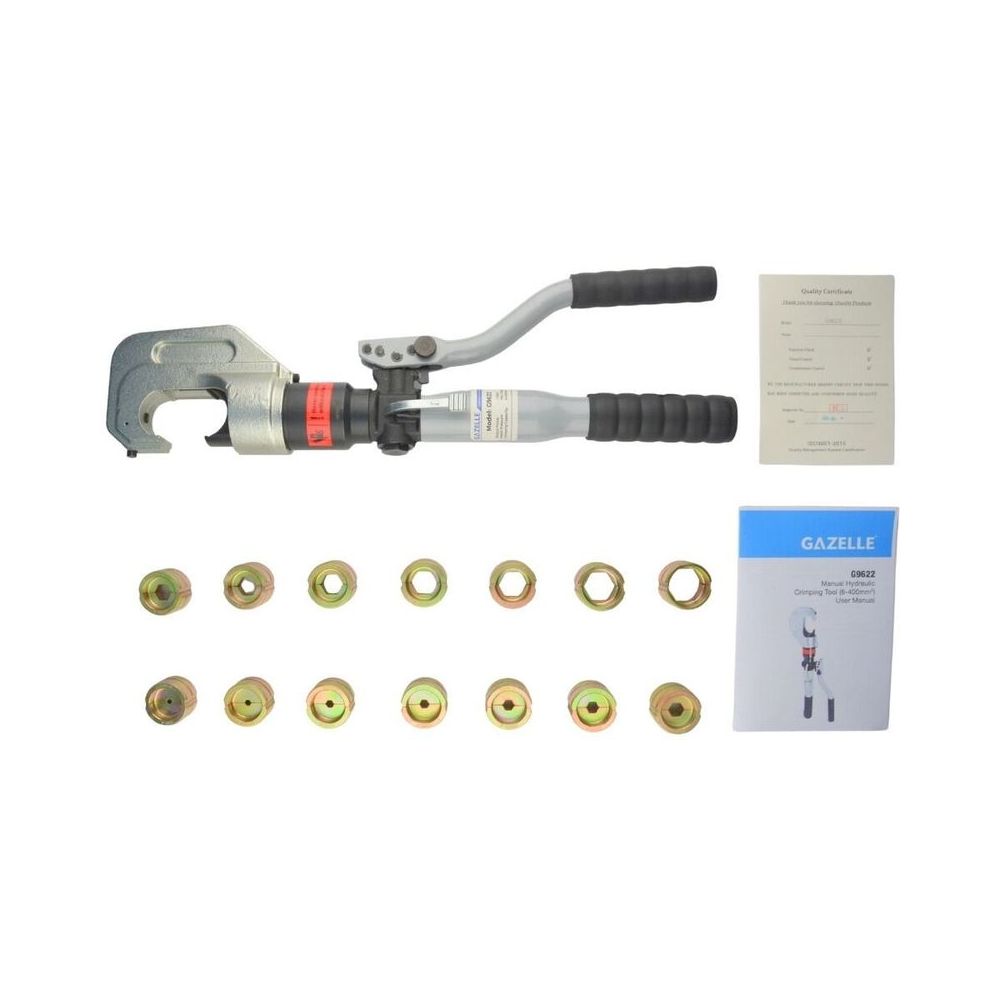

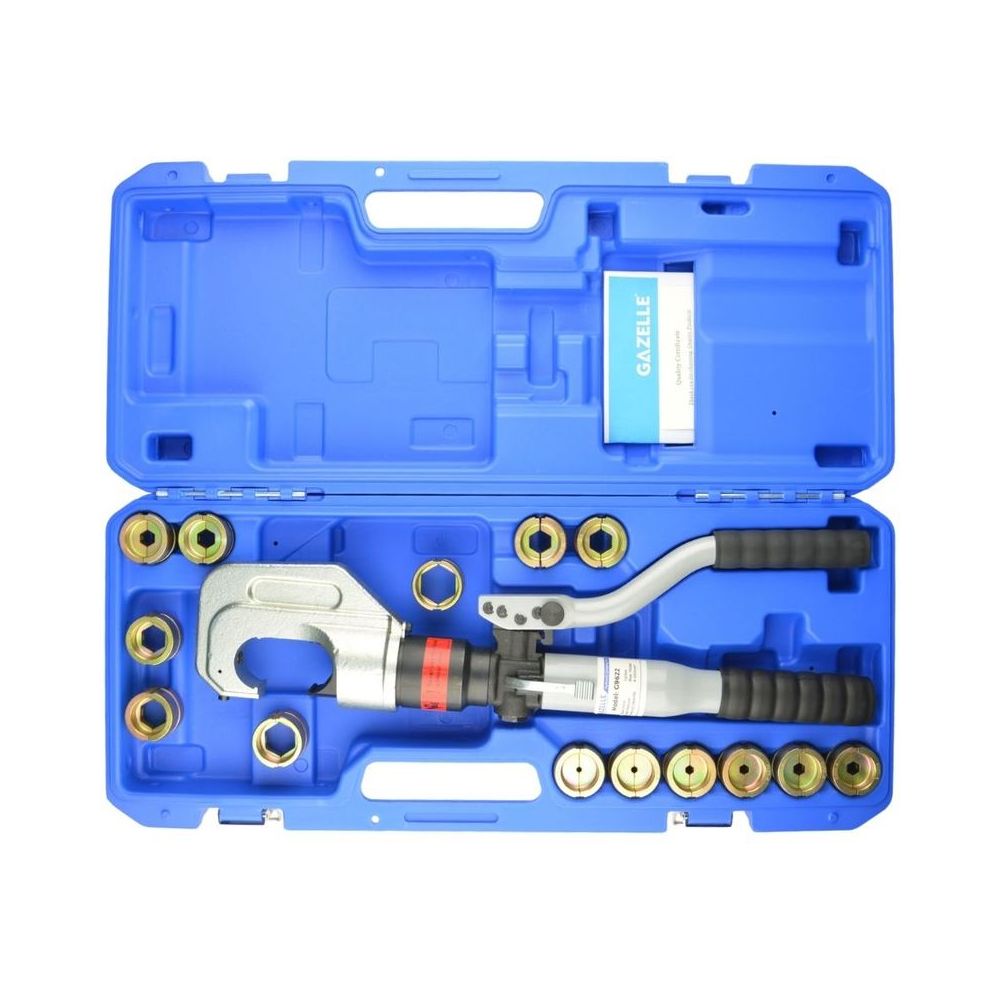

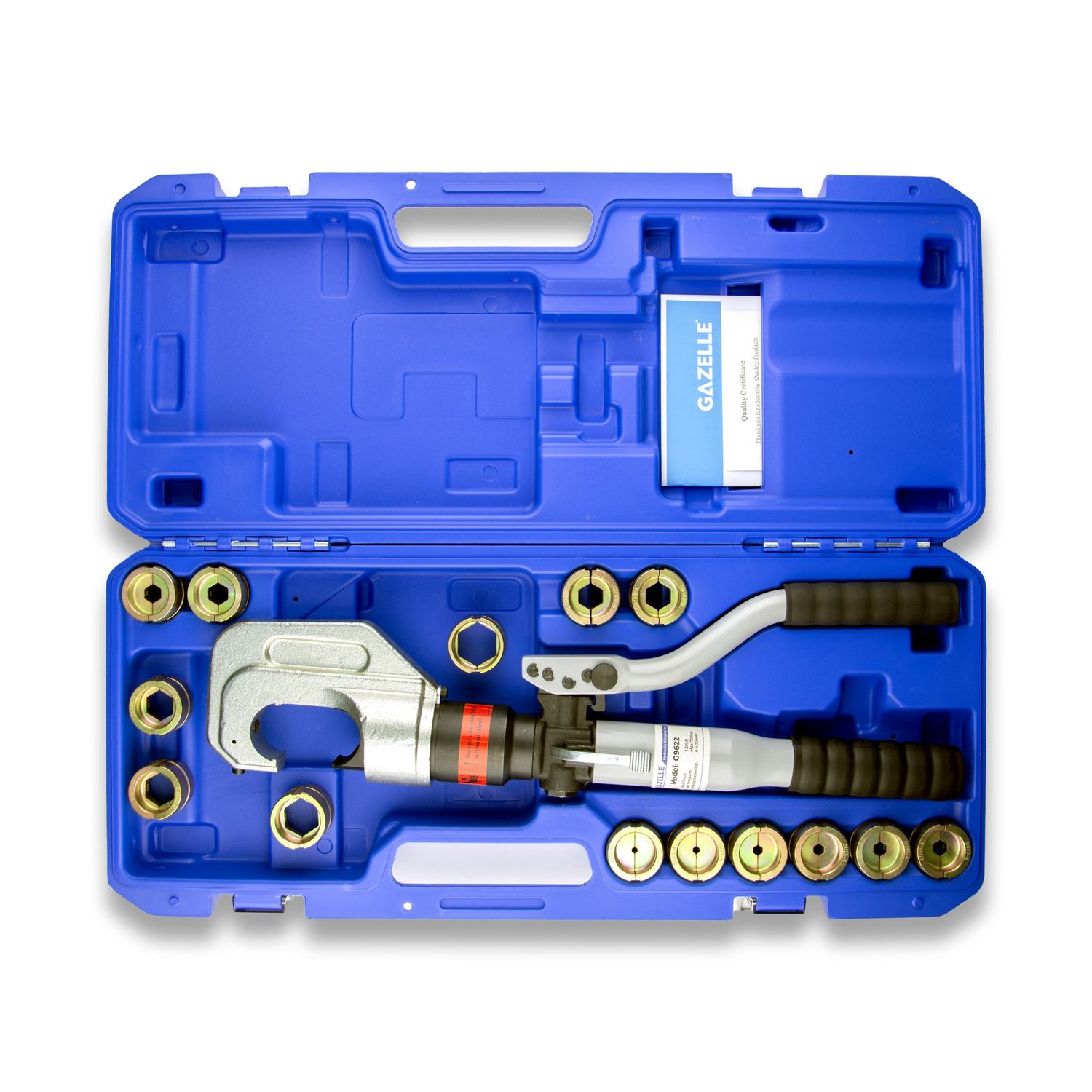

Items Included

• Hydraulic Crimping tool
• Crimping dies 6-400 mm² (6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400)
• Carry case
• User manual

Downloads

User ManualDatasheet
