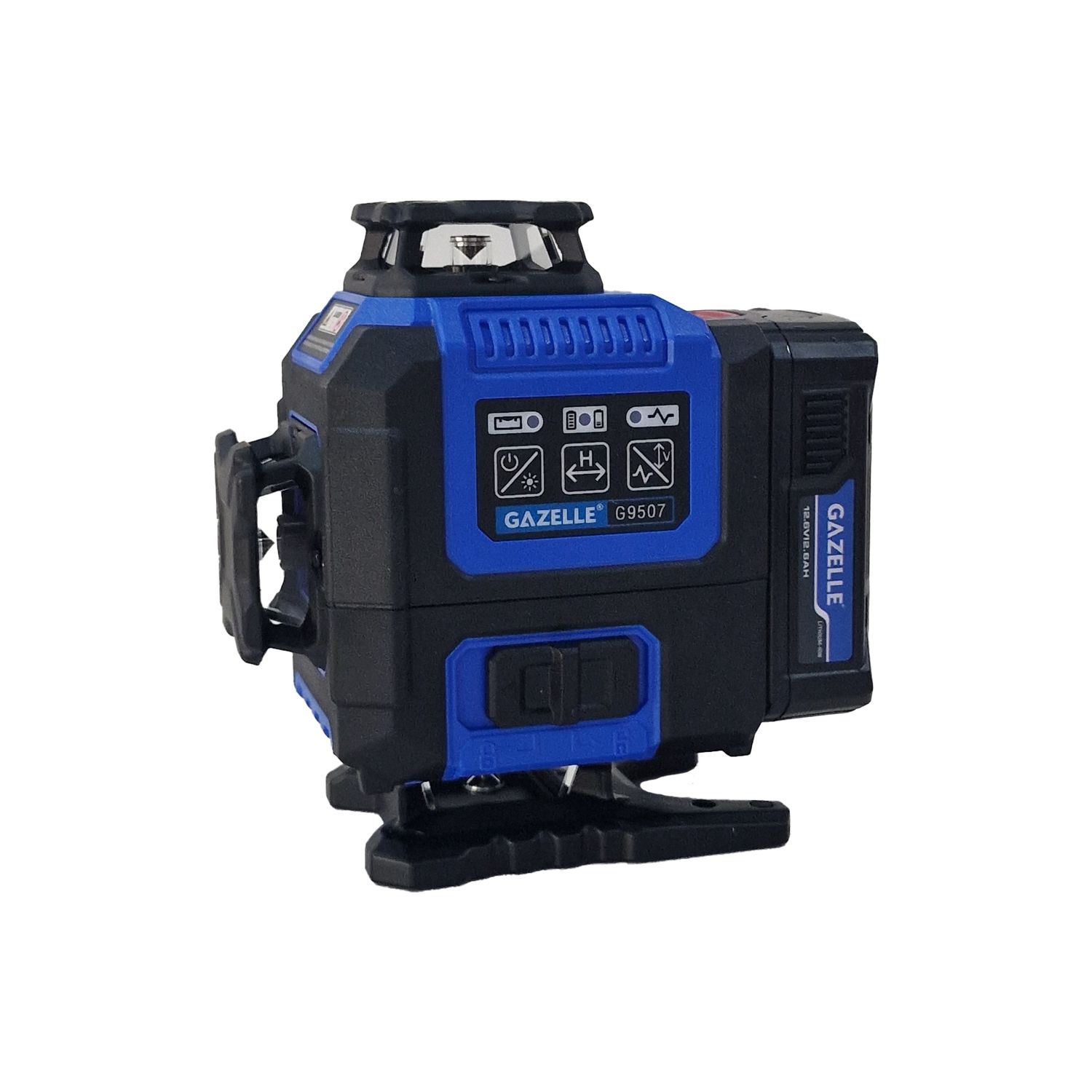

Gazelle G9507 4D 16-Line Green Laser Level, 30m
Model # G9507Key Features
?
Question about this product?
Features
- The laser level body is ergonomic, comfortable to hold
- Protection class: IP54, the instrument is waterproof, shockproof and dustproof
- Detachable lithium battery pack
- Self leveling: self-level up to 4 degrees automatically, accompanied by an optical cue that exceeds the self-leveling range, the laser line flashes
- Manual mode: Support for tilting laser lines manually at any angle, it is convenient for decoration or suspended ceilings etc, manually obtains slashes at any angle
- Pulse mode: Work with laser detector (the laser detector is not included and needs to be purchased separately) to extend further working distance range
- Power saving mode: 3 gears of adjustable brightness, adapt to different working environment brightness and reasonably extend instrument working time
- Power Display: Real time battery level display shows the residual power state
Technical Information
- Range30m
- Laser Class2
- Laser Lines16
- Laser ColorGreen
- Laser Wavelength510-530nm
- Leveling Accuracy±3mm/10m
- H/V Accuracy±3mm/10m
- Leveling Duration≤3s
- Leveling/Compensation Range4°±1°
- Operating TimeFirst gear - 10 hrs, Second gear - 18 hrs, Third Gear - 30 hrs
- Power Source12V Li-ion battery 2600mAh
- IP RatingIP54
- Operating Temperature-20°C to 40°C
- Storage Temperature-20°C to 60°C
- Mount Size1/4" -20 mounting thread
- Product Net Weight(without battery)0.48 kg
- Product Size100mm x 77.3mm x 112mm

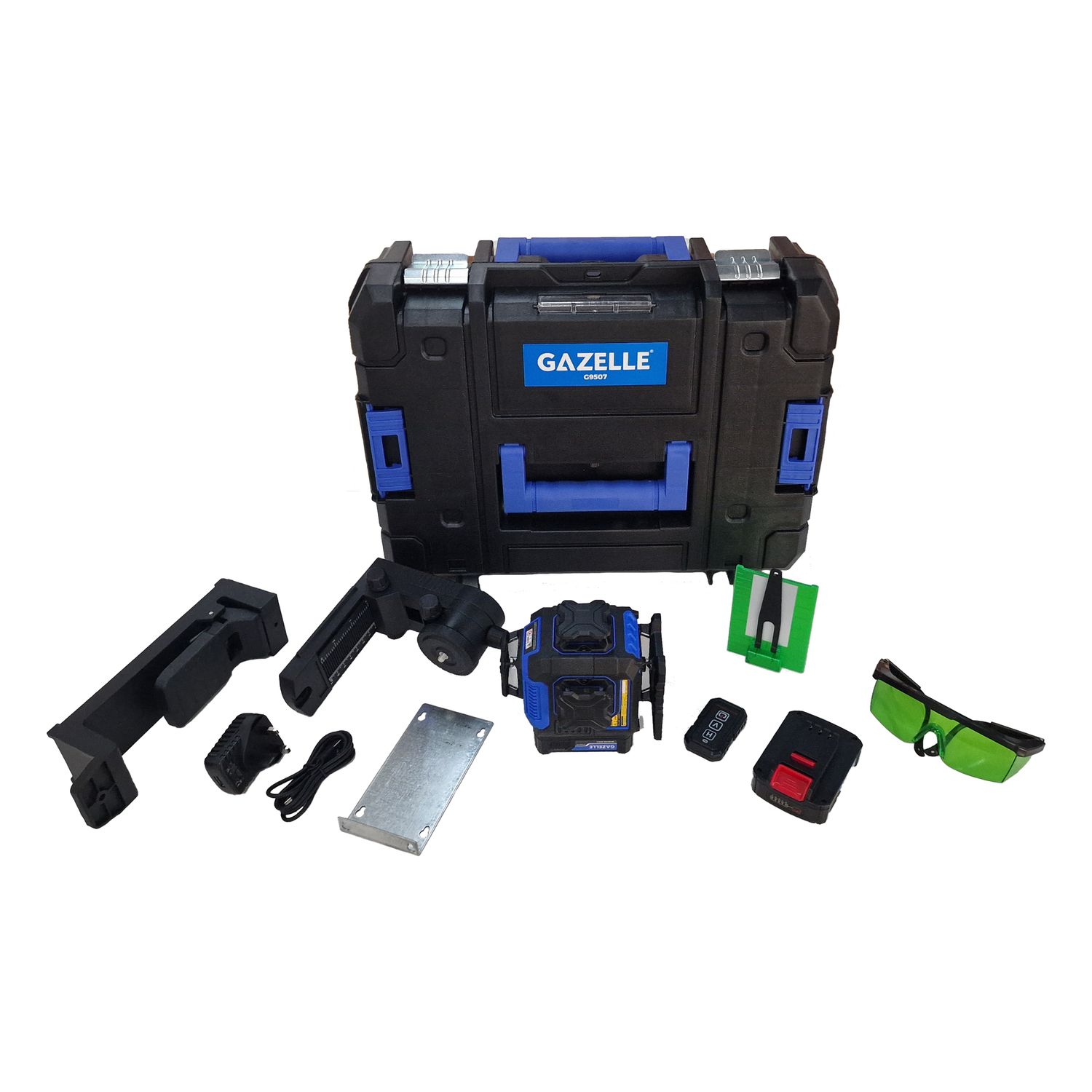

Items Included

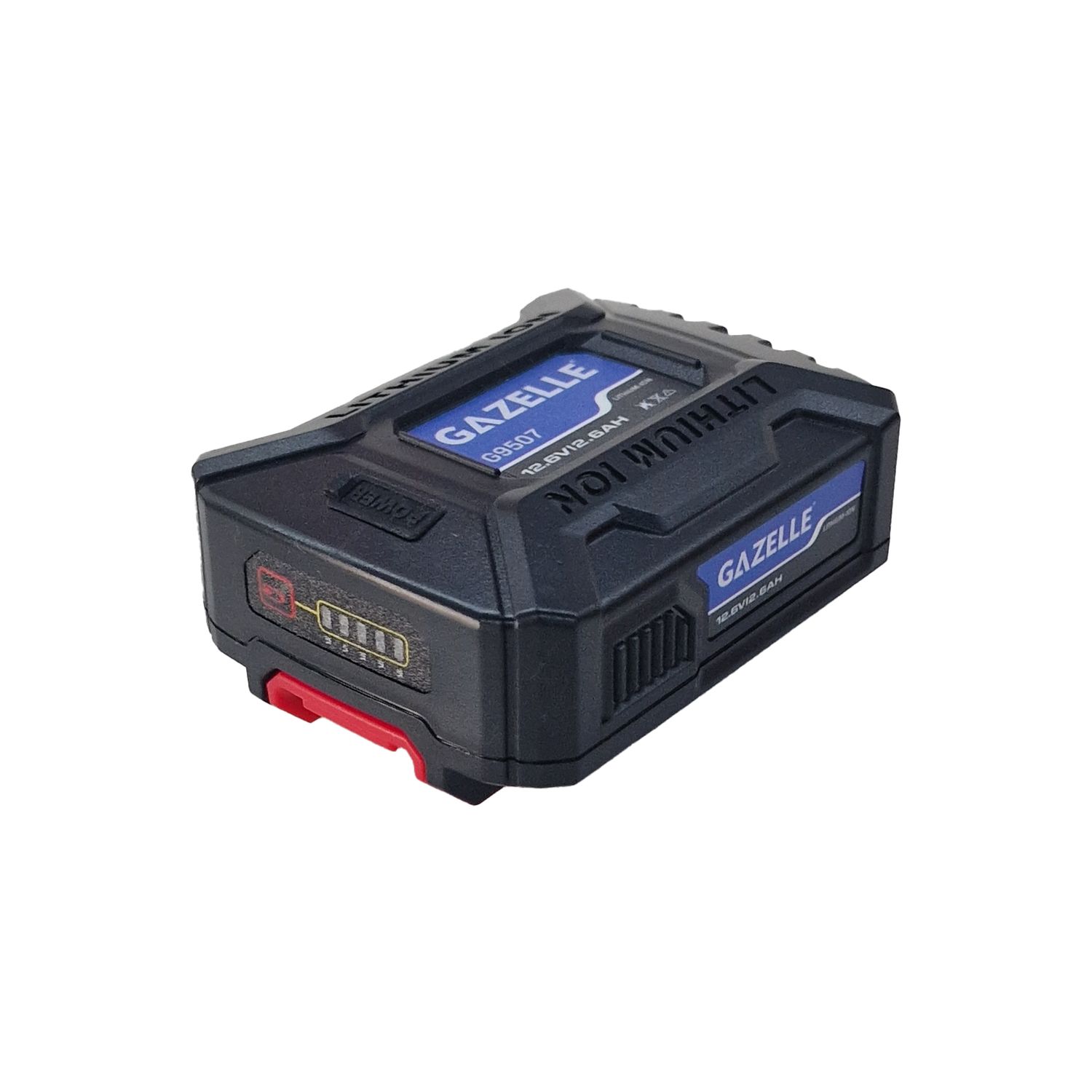

- Removable battery pack, 12.6V Battery, 2600mAh 2pcs

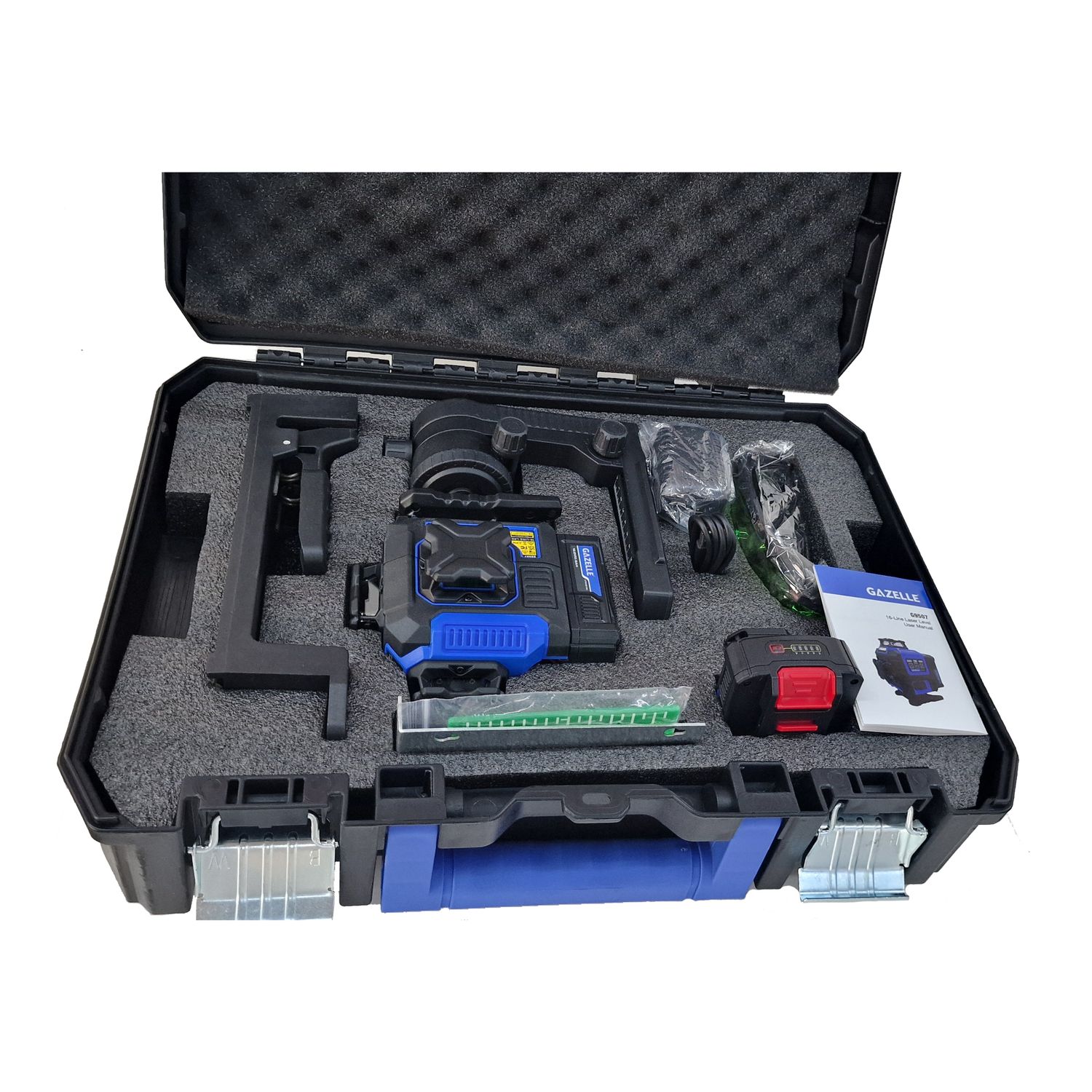

- Plastic carry case

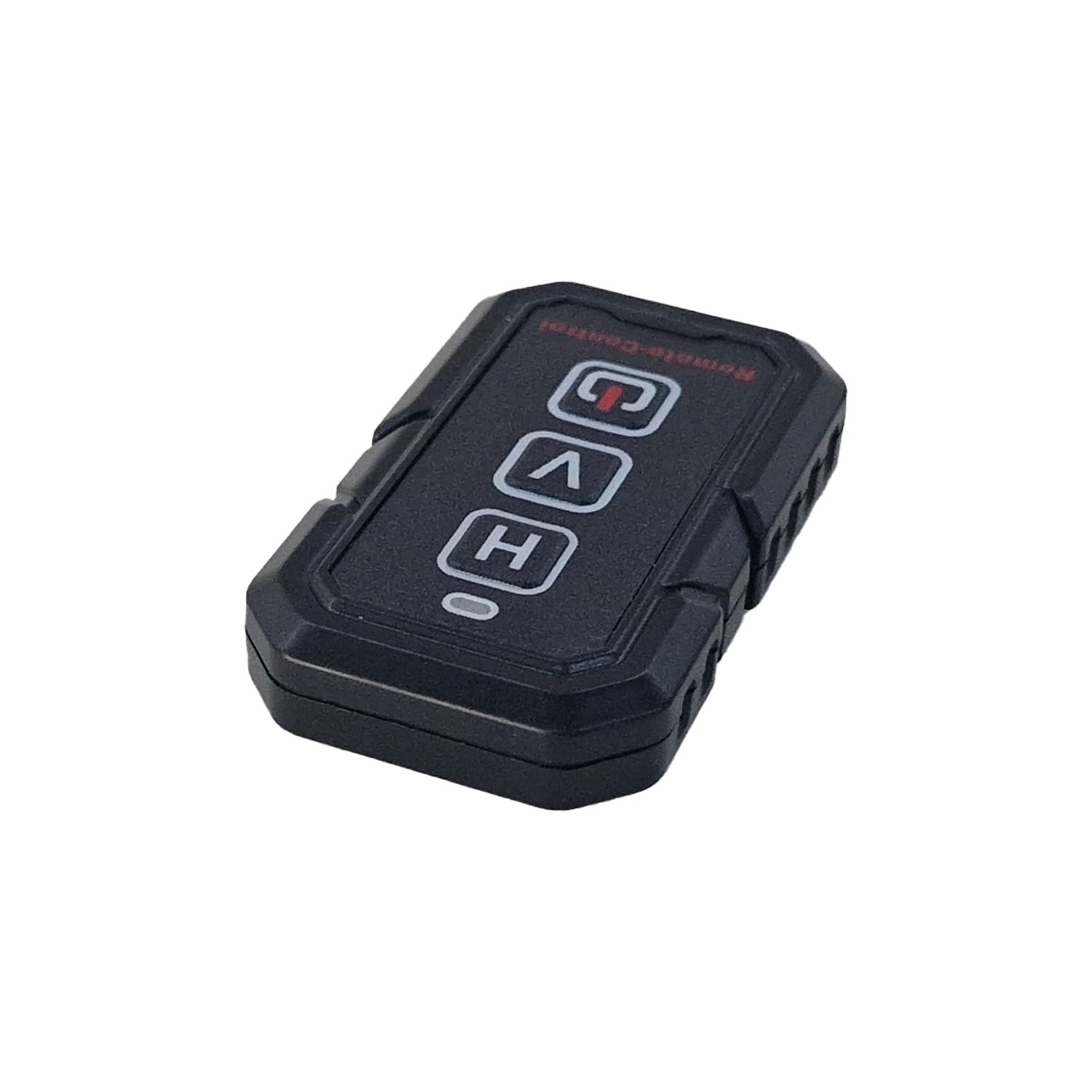

- Remote control

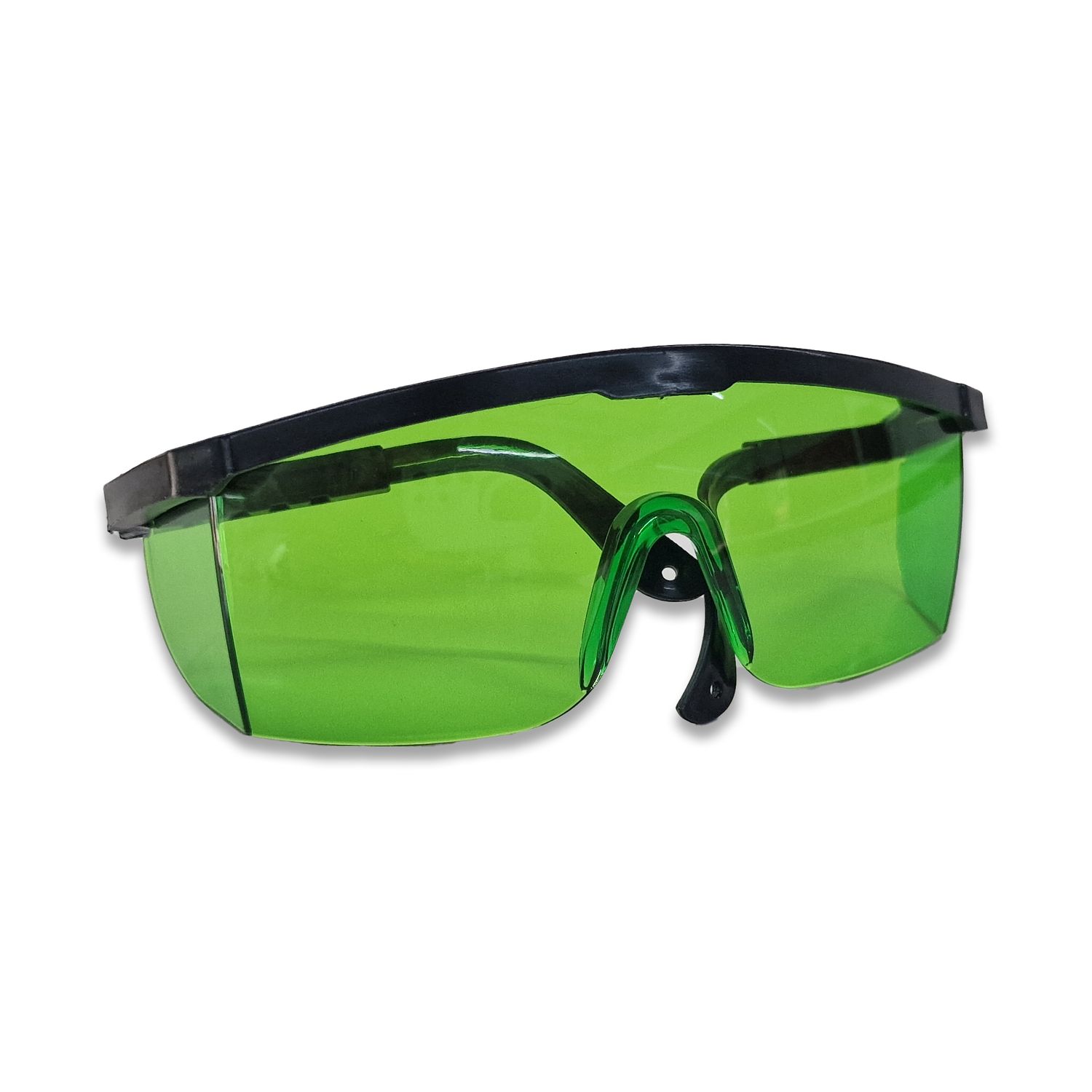

- Protective goggles
- Metal Base plate

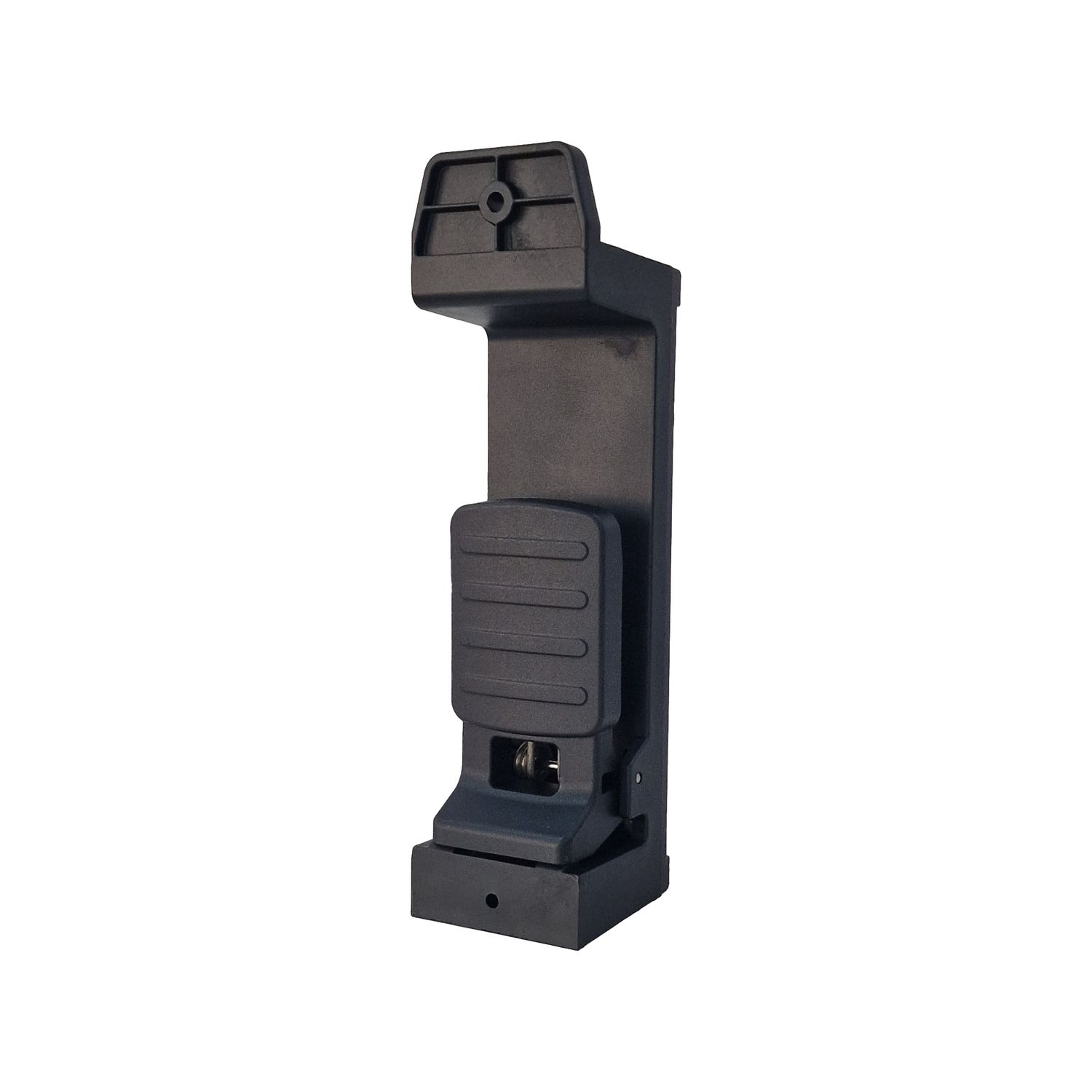

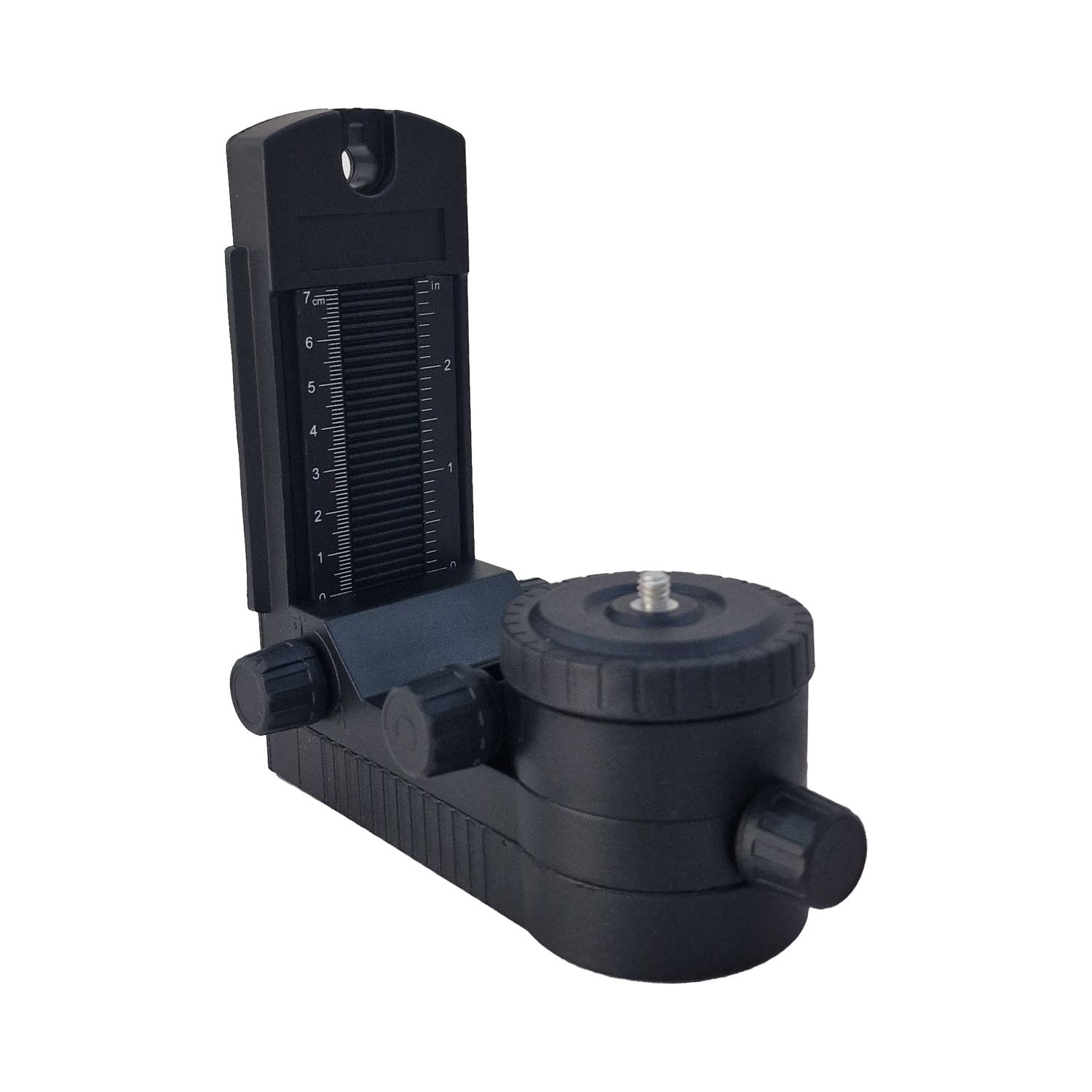

- Bracket

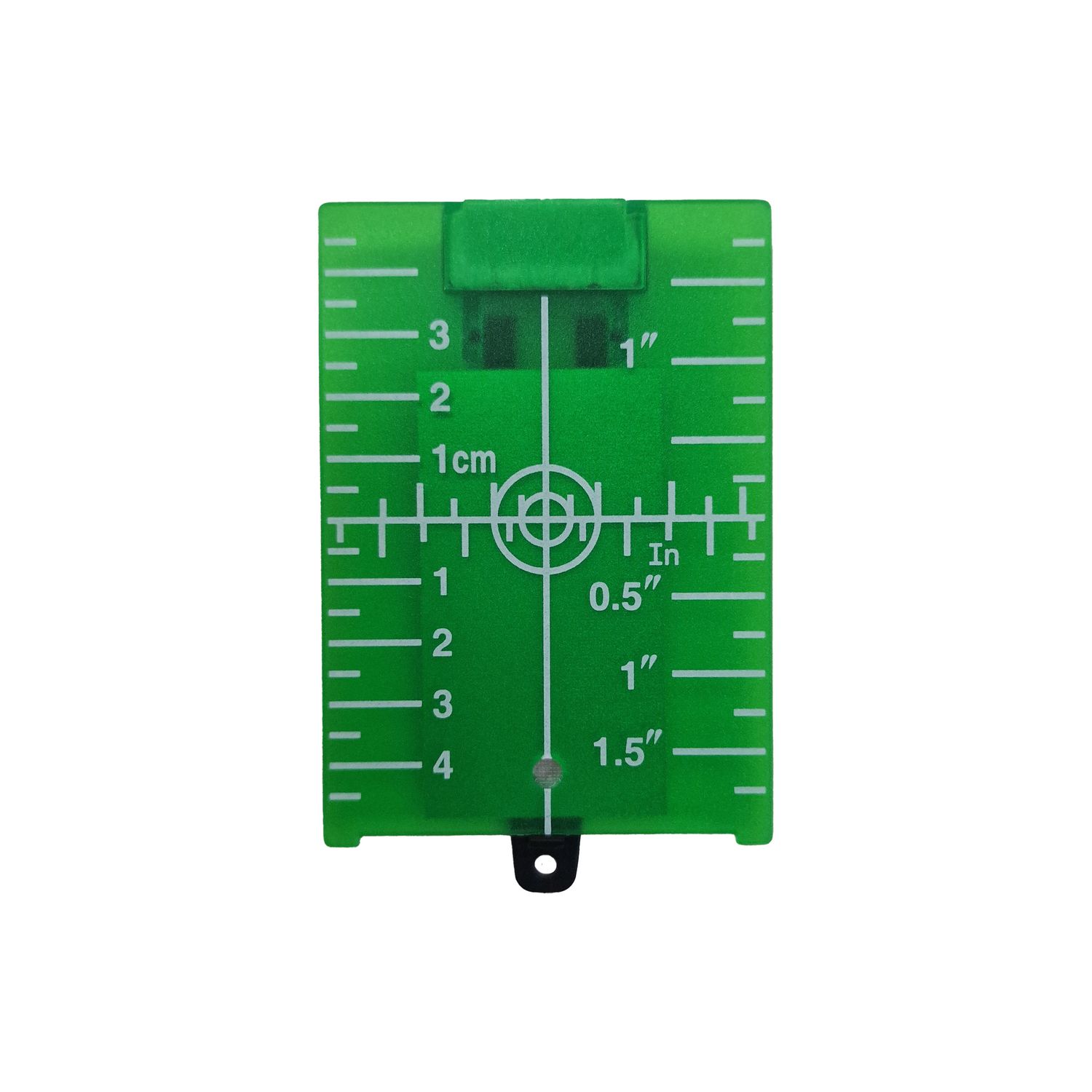

- Target point
- Charger and cable
