Gazelle G9506-II 60m Green Laser Level, Self Leveling, 12 3D Lines with Horizontal, Vertical and Crossline Projections

Features

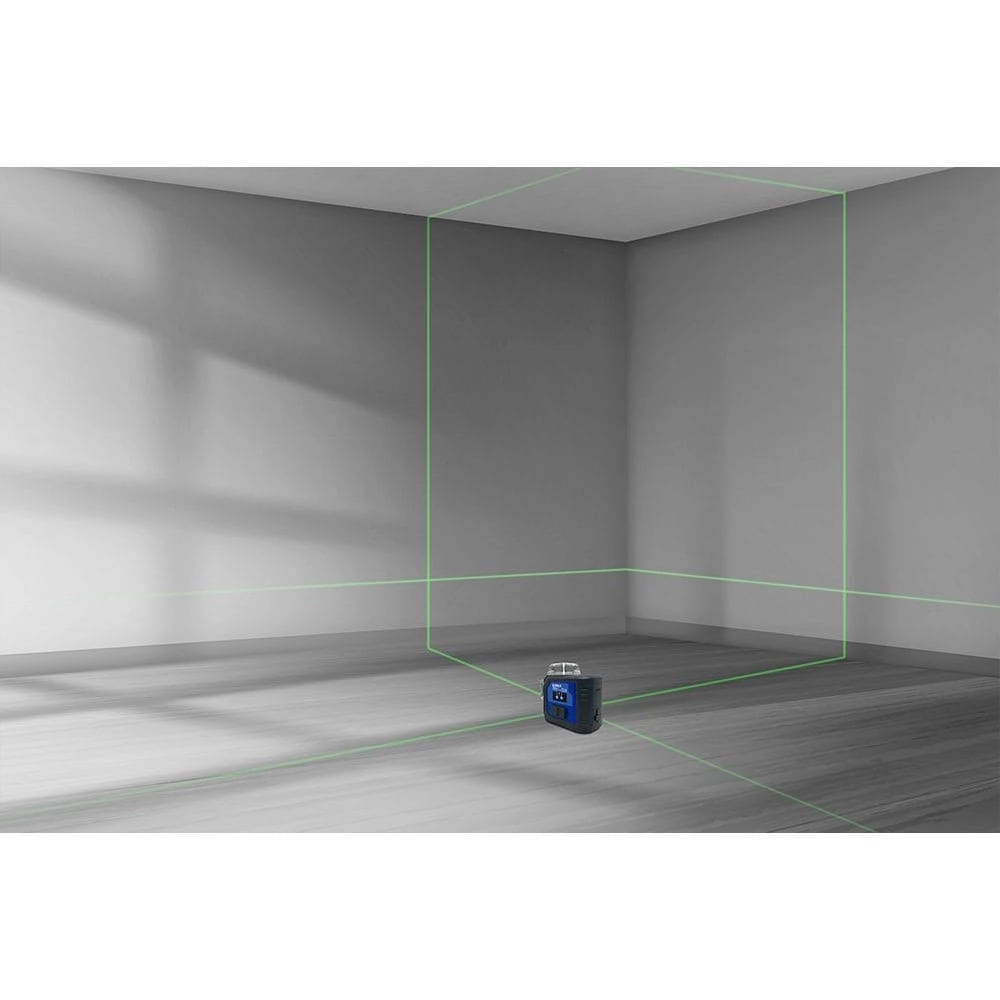

• Laser Coverage: Projects 3 x 360° 3D green laser lines for full-room horizontal and vertical coverage.
• Range & Accuracy: Extended range up to 60 meters in pulse mode with ±3mm/10m leveling accuracy.

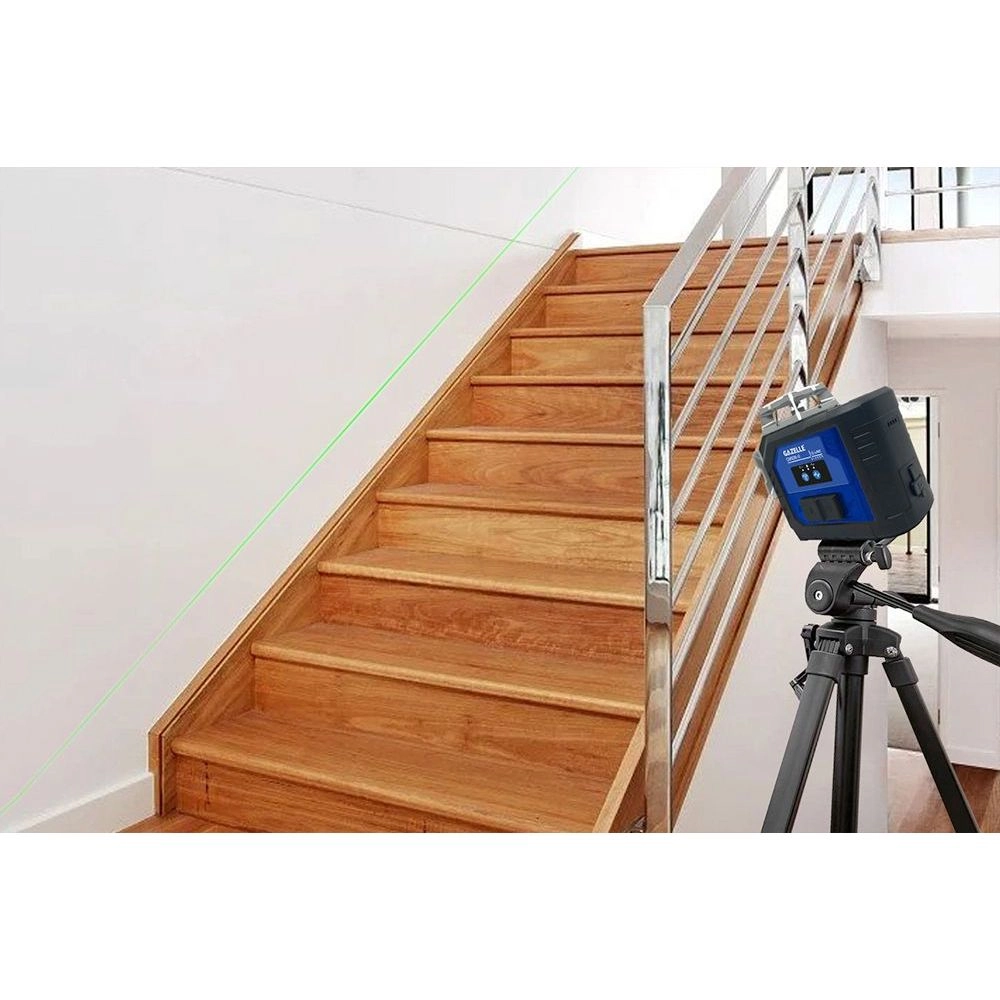

• Dual Modes: Automatic self-leveling and manual tilt mode for angled layout tasks.
• Outdoor Visibility: Equipped with outdoor pulse mode for enhanced clarity in high ambient light.
• Battery Life: Up to 25 hours of continuous runtime on pulse mode with high-capacity 7800mAh Li-ion battery.
• Charging Port: Type-C charging port for fast and efficient power replenishment.

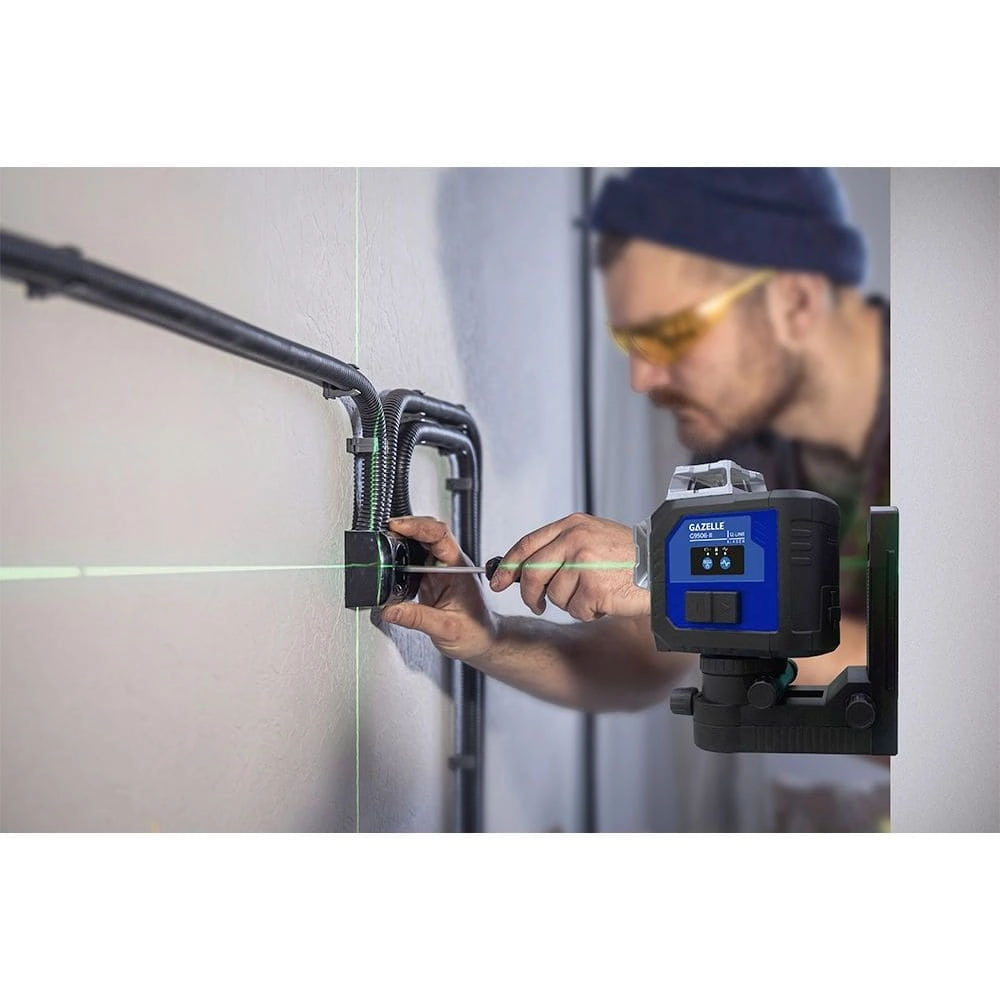

• Durability: Over-molded metal laser window with IP54 rating for dust and splash resistance.
• Mounting Compatibility: Supports both 1/4” and 5/8” mounting threads—compatible with a wide range of tripods and accessories.
• Leveling Speed: Fast leveling response in under 3 seconds for efficient setup.
• Environmental Tolerance: Built to perform in extreme temperatures from -10°C to 50°C with up to 90% humidity tolerance.

Technical Information

• Range30m, 60m pulse mode

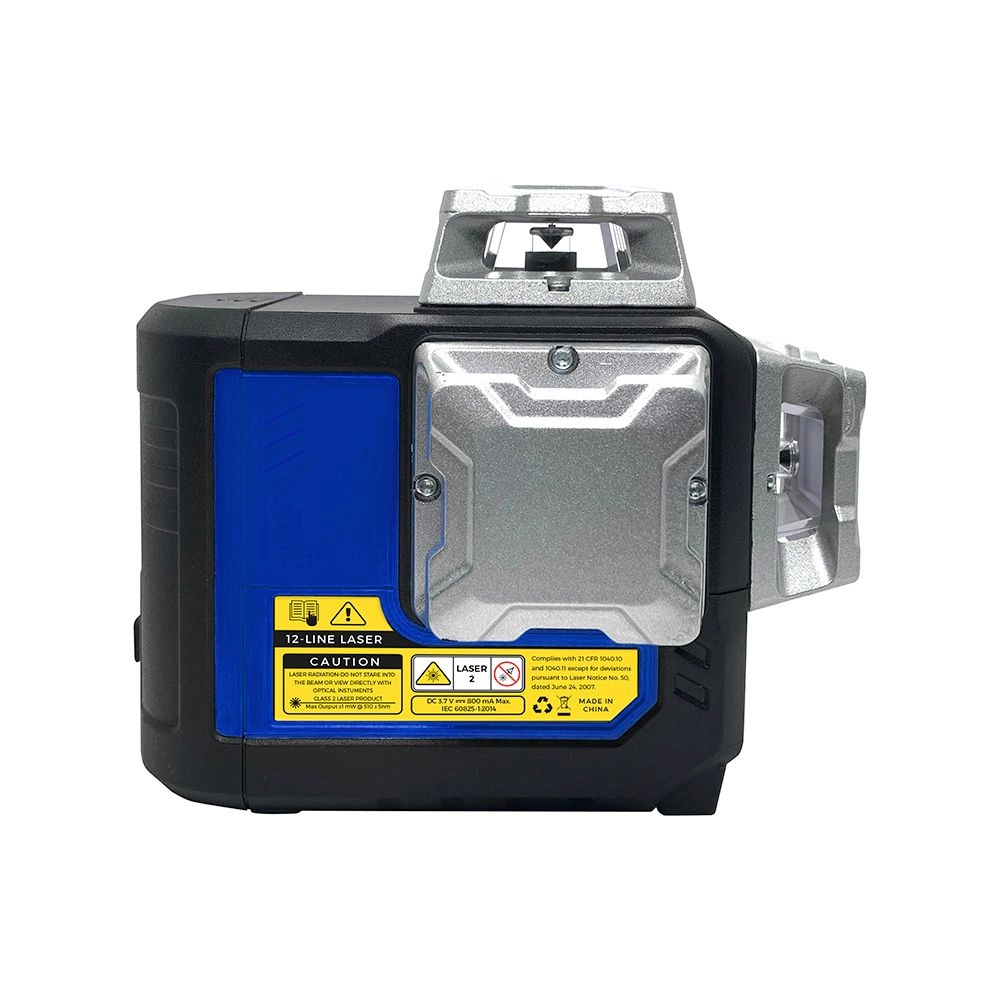

• Laser Class2
• Laser Lines12
• Laser ColorGreen
• Laser Wavelength520nm
• Leveling Accuracy±3mm/10m
• H/V Accuracy±3mm/10m
• Leveling Duration≤3s
• Leveling/Compensation Range4°±1°
• Operating Time (All beams)~12.5 hours
• Operating Time (Pulse)~25 hours
• Power SourceLi-ion battery 7800Mah
• IP RatingIP54
• Operating Temperature-10°C to 50°C
• Storage Temperature-25°C to 75°C
• Max relative air humidity90%

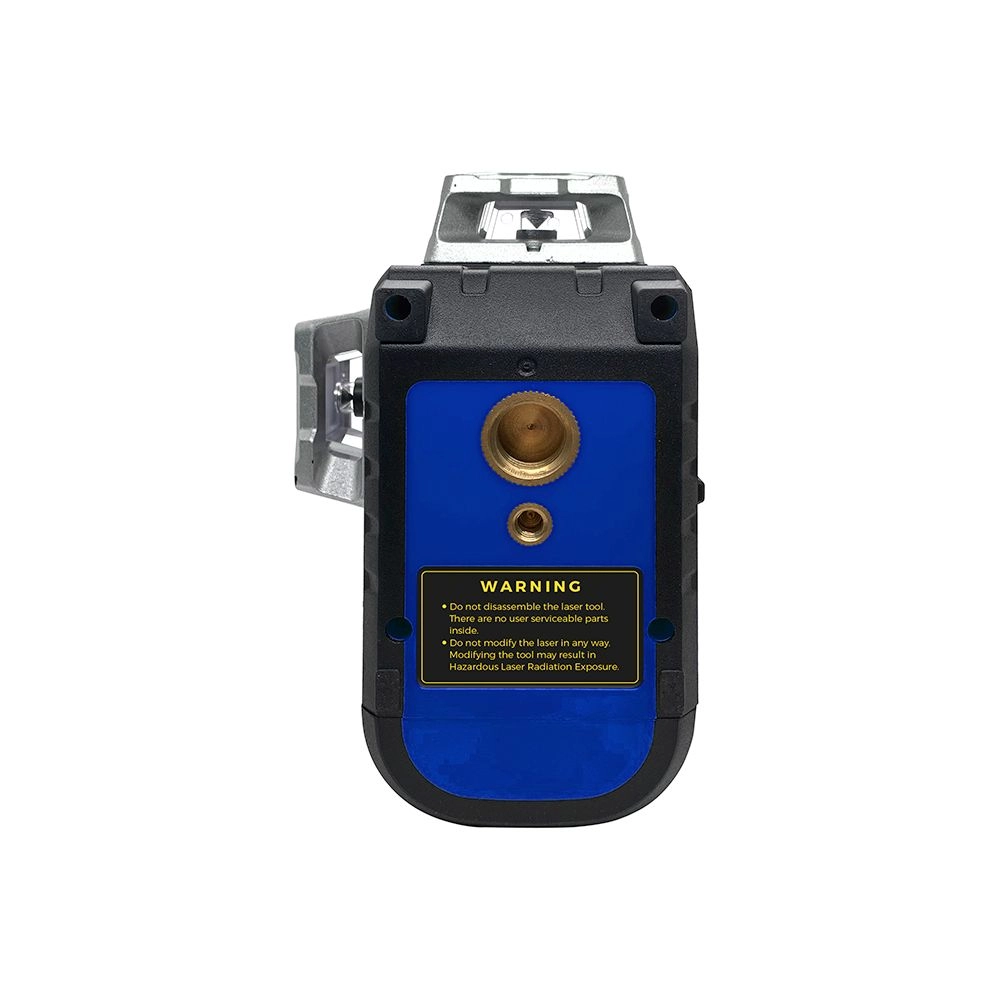

• Mount Size1/4 and 5/8"
• Product Net Weight1.05 kg
• Product Size139mm x 188mm x 99mm

Items Included

• 1x Operating manual
• 1x Magnetic mounting bracket
• 1x USB cable and adapter
• 2x 7800 mAH battery
• 1x Eye glasses
• 1x Target plate
• 1x Hard carry case
