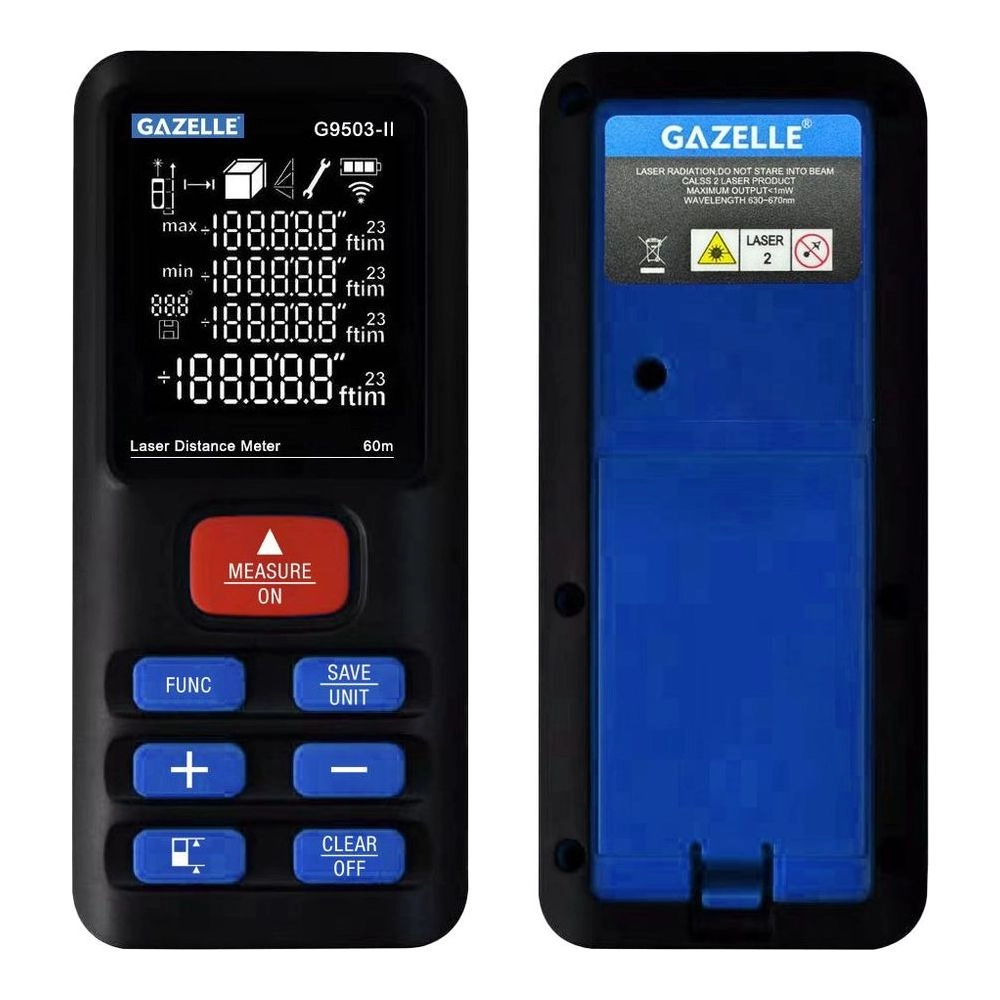

Gazelle G9503-II Red Laser Distance Meter, 60m, with 3x 1.5V AAA Batteries

Features

• Accurate Measurement: Offers a measuring range of up to 60m with an exceptional accuracy of ±0.2mm, ensuring precise results for professional applications.
• Versatile Measurement Units: Supports multiple units (meters, feet, inches) and surface area calculations (m², ft², in²) for diverse measurement needs.
• Fast and Efficient: Single measurement time of just 0.25 seconds, enabling quick and efficient operations.
• Advanced Laser Technology: Equipped with a Class II red laser (620-690nm, <1mW) for precise targeting and measurement.
• Long Battery Life: Powered by 3x1.5V AAA alkaline batteries, capable of approximately 5,000 measurements per battery set.
• Compact and Lightweight: Weighs approximately 85g (without battery) and features a compact design (115x50x25mm) for easy portability.
• Energy Efficient: Includes battery level indication and auto-power off to conserve energy during extended use.
• Durable Build: Operates in temperatures ranging from 0°C to 40°C and is designed for rugged industrial environments.

Technical Information

• Range60m
• Accuracy±0.2mm
• Measurement Unitsm, ft, in
• Surface Unitsm², ft², in²
• Laser Type620-690nm, <1mW
• Laser ClassClass II Red Laser
• Single Measurement Time0.25s
• Battery TypeAlkaline AAA, 3x1.5V
• Measurement per BatteryApprox 5,000
• Operating Temperature0 to 40°C
• Storage Temperature-20 to 65°C
• Dimensions115 x 50 x 25 mm
• Weight (w/o Battery)Approx 85g

Items Included

• Operating Manual
• Batteries

Downloads

Datasheet
