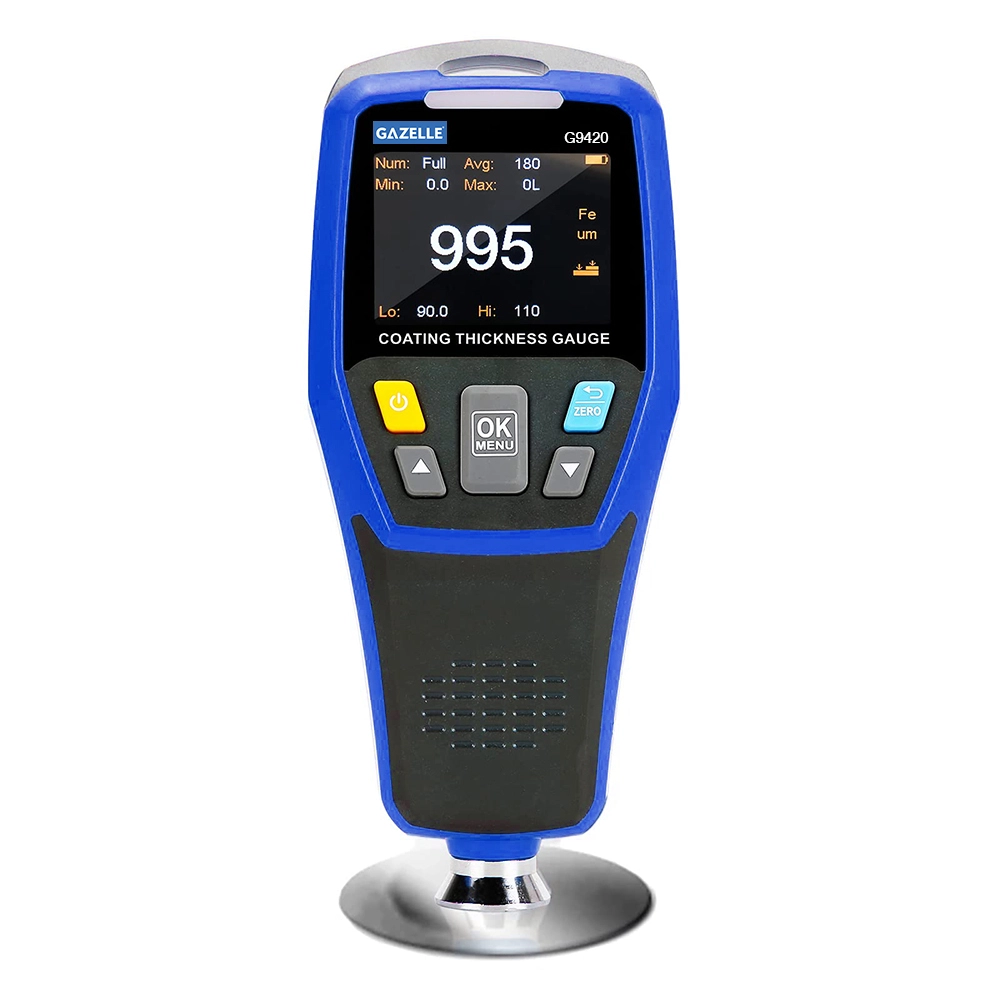

Gazelle G9420 Coating Thickness Gauge

Model #   G9420

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Wide Measurement Range: Measures coating thickness from 0 to 1250µm with high accuracy (±(3%H+1)µm).
  • Dual Metal Compatibility: Suitable for both ferrous and non-ferrous materials.
  • High-Resolution Display: 2.0-inch TFT LCD with 320 x 240 pixels for clear and detailed readings.
  • Quick Test Mode: Allows users to set thickness ranges for rapid assessments.
  • Multi-Mode Measurement: Offers single, continuous, and Max/Min/Avg measurement modes for versatile applications.
  • Visual and Audio Alerts: Features 3-color LED and audio alarms to indicate preset range compliance.
  • Auto Rotating Screen: Ensures easy readability from any angle with brightness control.
  • Data Storage: Stores up to 500 groups of measurement data for analysis and reporting.
  • PC Connectivity: Includes USB communication and PC analysis software for advanced data management.
  • Energy-Efficient Design: Auto power-off and low battery indication to conserve energy.
  • Portable and Lightweight: Compact design weighing only 175g for easy handling.

Technical Information

  • Measuring range0~1250µm
  • Accuracy±(3%H+1)µm
  • Resolution0.1µm (0~99.9µm); 1µm (100~1250µm)
  • Measurement methodSingle/Continuous
  • Measurement modeMax/Min/Avg
  • Metal typeFerrous/ non-ferrous
  • Display type2.0-inches TFT LCD (320 x 240 pixels)
  • LCD brightness controlYes
  • Auto rotatable screenYes
  • Unit conversionYes
  • Audio alarmYes
  • LED alarmYes
  • PC analysis softwareYes
  • USB communicationYes
  • Quick test modeYes
  • Data storage500 groups
  • Auto power offYes
  • Low battery indicationYes
  • Power1.5V AA battery x 2
  • Display48mm x 36mm
  • Product net weight175g
  • Product size153.5mm x 64.5mm x 41mm
