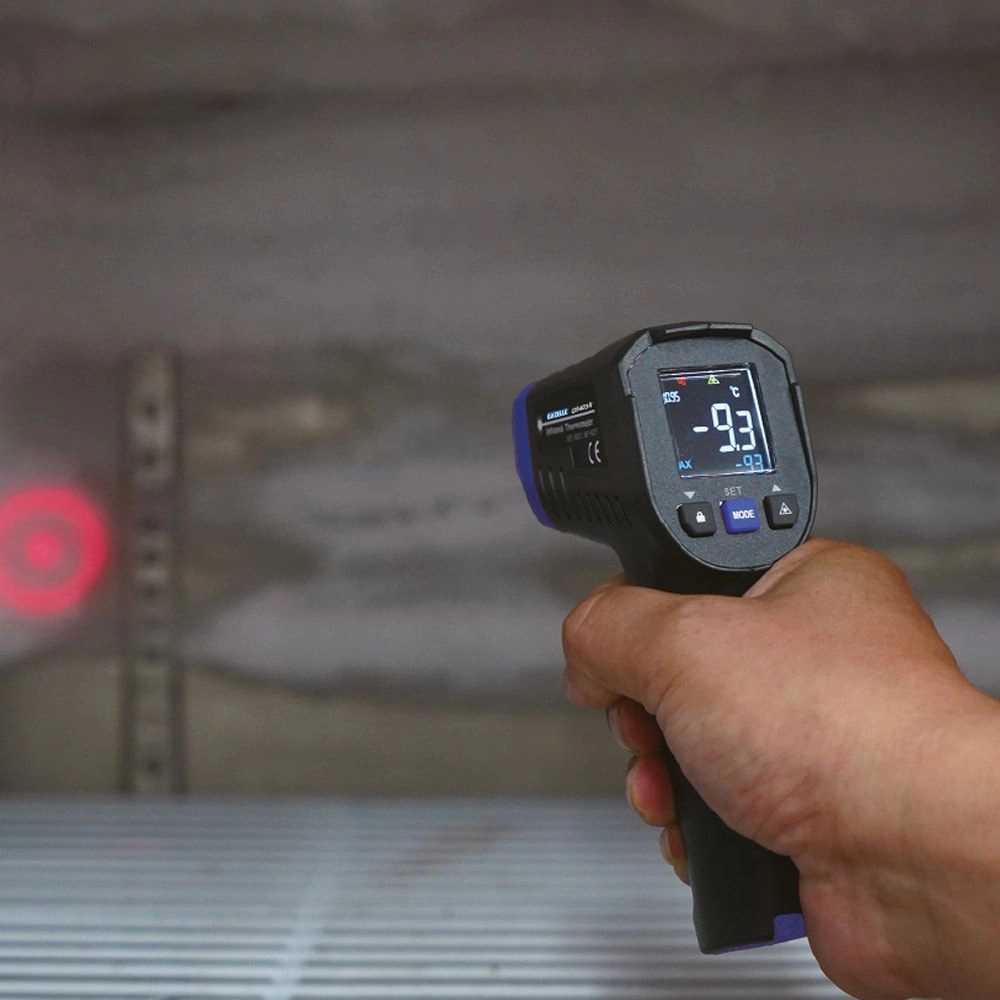

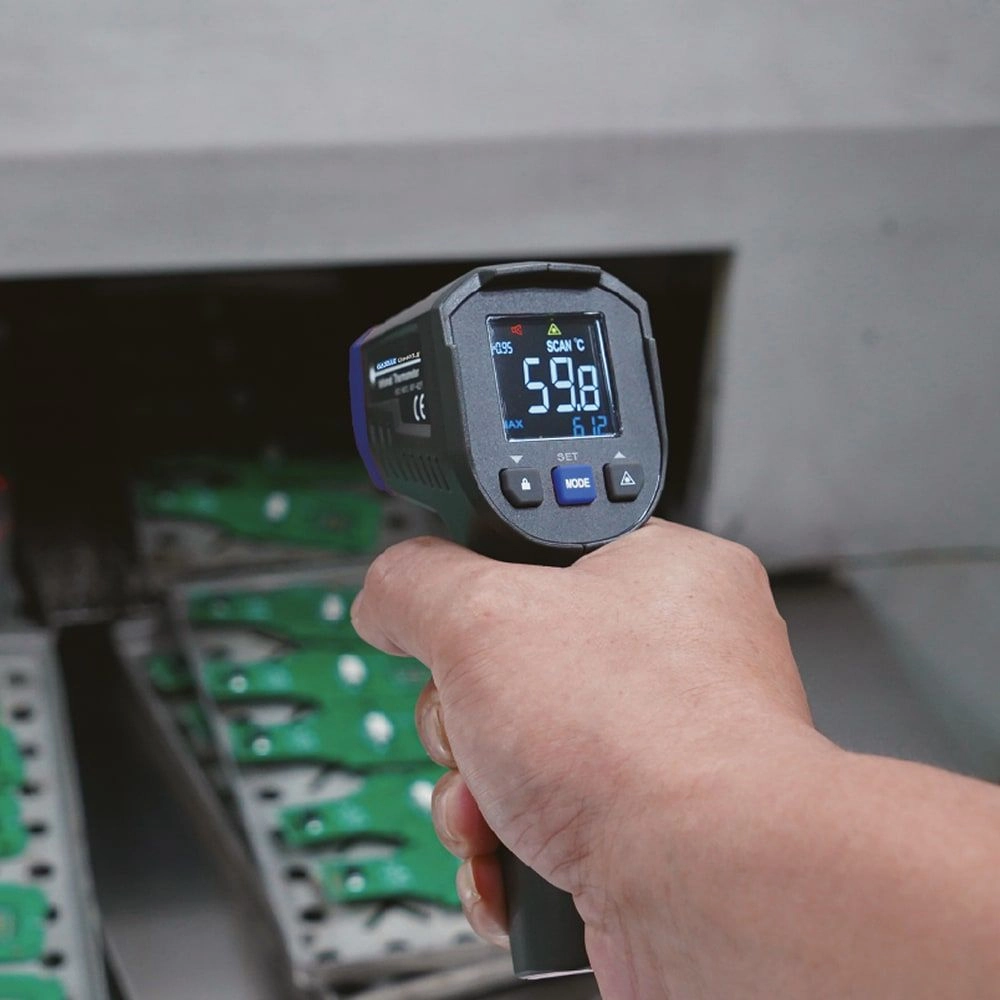

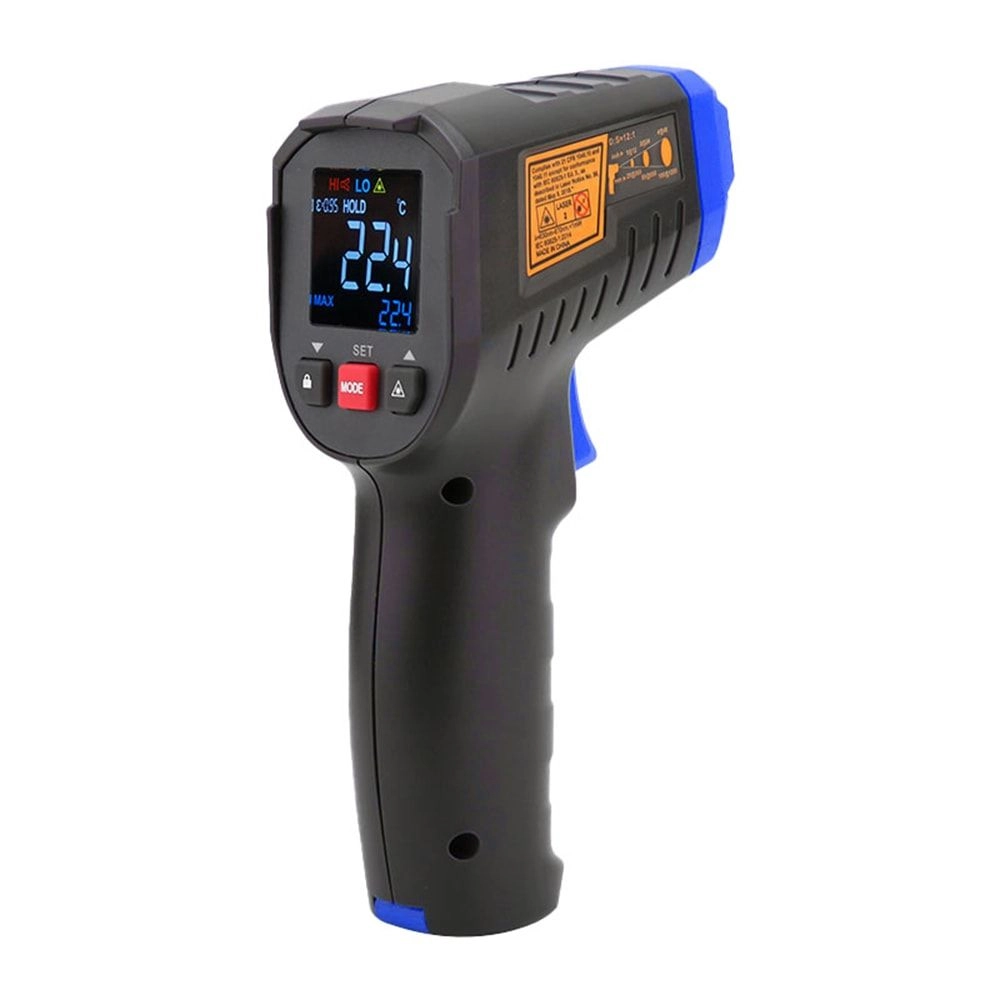

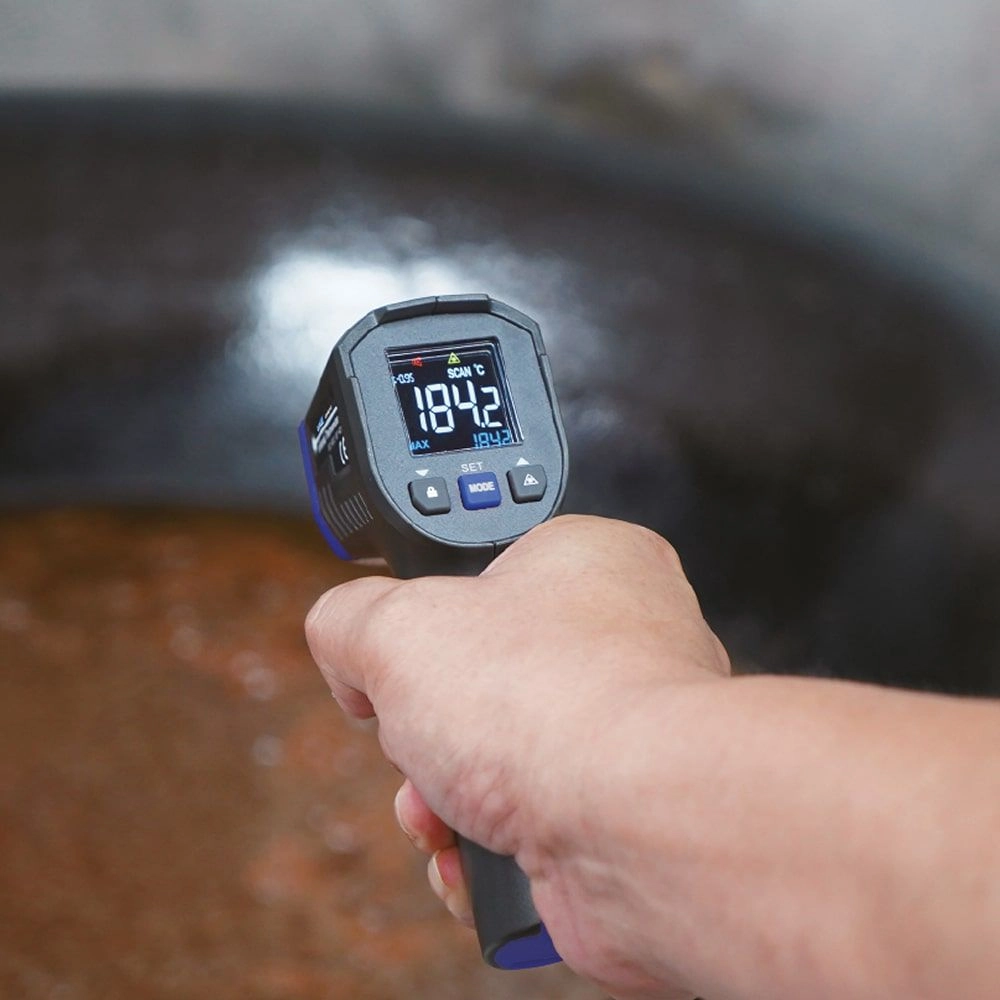

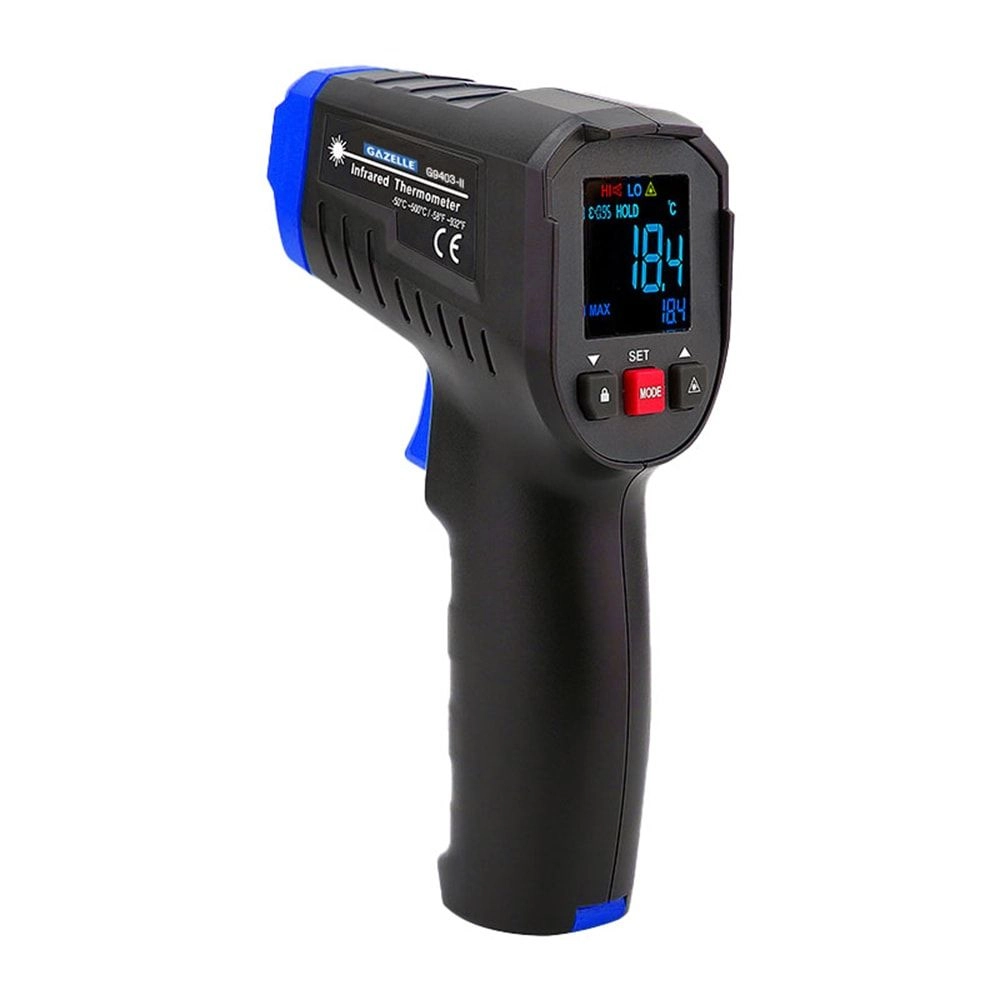

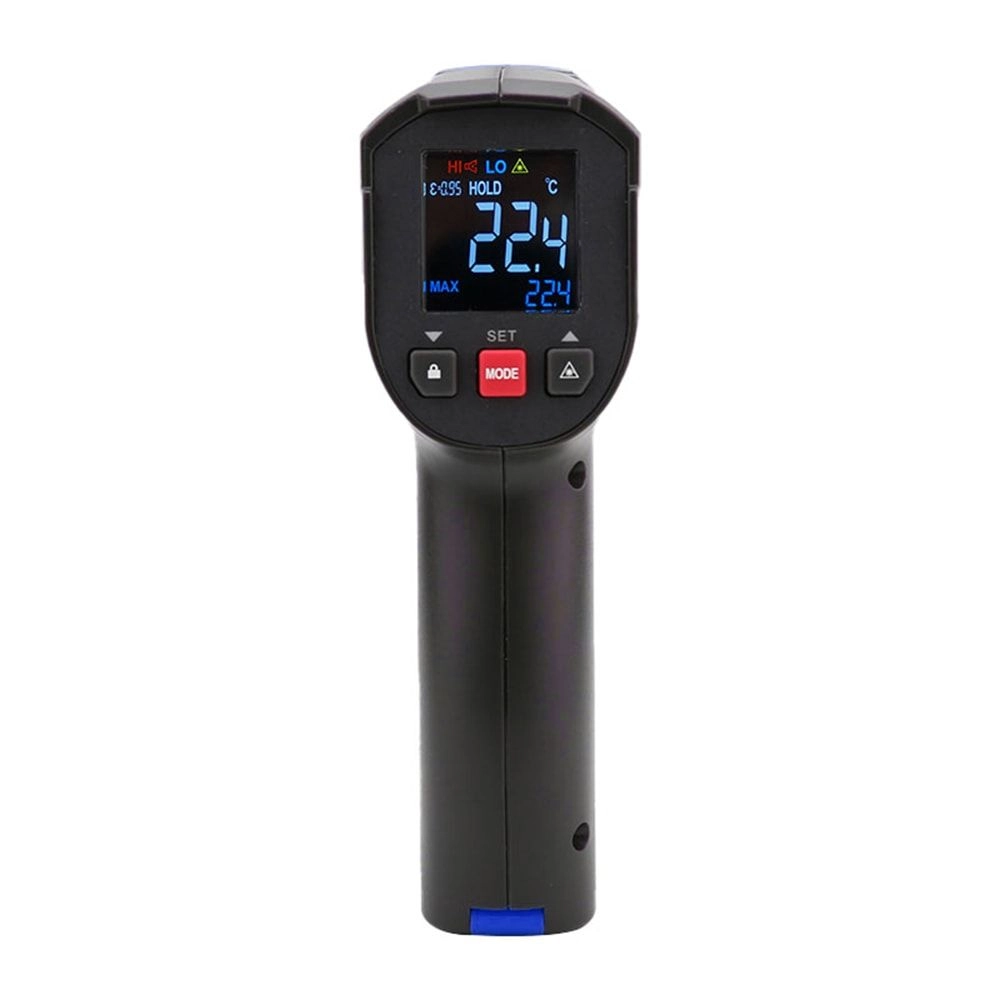

Gazelle G9403-II Contactless Infrared Thermometer, -50 to 500°C, Circle Laser, ETBN-LCD Screen, Class 2 Red Laser

Features

• Wide Temperature Range: Measures temperatures from -50 to 500°C, suitable for a variety of applications.
• Adjustable Emissivity: Ranges from 0.10 to 1.00 for accurate readings on different surfaces.
• 12:1 Distance-to-Spot Ratio: Ensures precise measurements from a safe distance.
• Circle Laser Targeting: Provides clear and accurate targeting for temperature measurement.
• Fast Response Time: Delivers results in ≤250ms for quick diagnostics.
• High Resolution: Offers a resolution of 0.1°C for detailed temperature monitoring.
• Multiple Modes: Includes maximum, minimum, average, and differential temperature modes.
• Energy-Efficient: Features auto power-off and low battery indication to conserve energy.
• Durable Design: Drop-proof up to 1 meter for reliable use in tough environments.
• Class 2 Laser: Safe and effective for professional use.
• Compact and Lightweight: Ergonomic design for portability and ease of use.

Technical Information

• Temperature Range-50 to 500°C
• Laser TypeCircle
• Accuracy±2°C or ±2%
• Resolution0.1°C
• Distance to spot ratio12:1
• Response time≤250ms
• Emissivity0.10:1.00 Adjustable
• Laser classClass 2
• Laser power<1mW
• Laser wavelength630-670nm
• Spectral response8-14μm
• Data HoldYes
• Auto Power OffYes
• Low Battery IndicationYes
• Drop test1m

Items Included

• 1x G9403-II Infrared Thermometer
• 2x 1.5V AAA Batteries
• 1x Manual

Downloads

Datasheet
