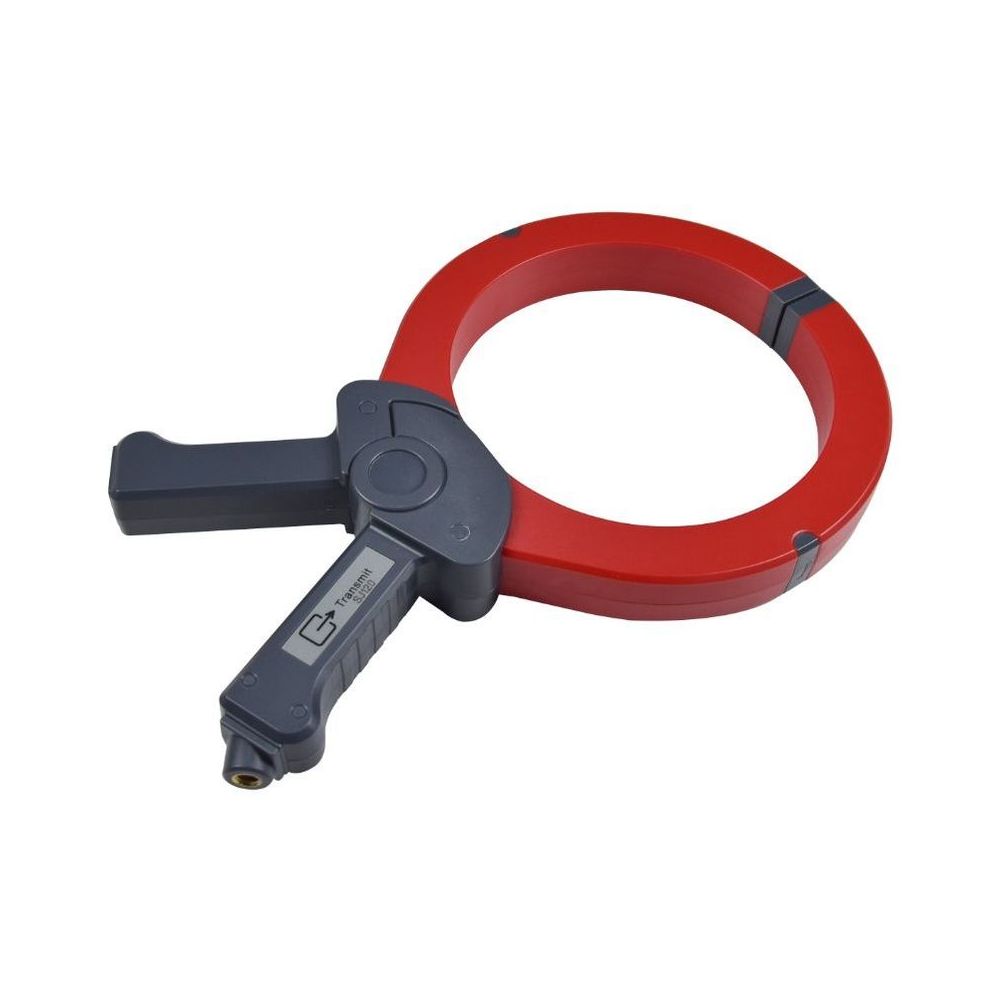

Gazelle G9327 Transmitter Clamp

Features

• Transmitter Clamp Function: Couples signals to running cables effectively
• Non-Intrusive Operation: Does not require direct electrical connection, avoiding disruption of pipe or cable operation
• Signal Interference Consideration: When using clamp method, radiated signals may interfere with receiving; maintain 2–5 m distance between transmitting and receiving clamps during reference setup
• Accessibility Advantage: Ideal for situations where direct access to the metal part of the pipeline or cable is difficult or impossible

Technical Information

• Reference Distance:2–5 m between transmitting clamp and receiving clamp to avoid signal interference
• Minimum Identification Current: > 1 mA for reliable cable identification
• Coupling Method: Clamp coupling (no direct electrical connection required)
• Ideal Use Case: When direct access to metal pipeline or cable is not possible
