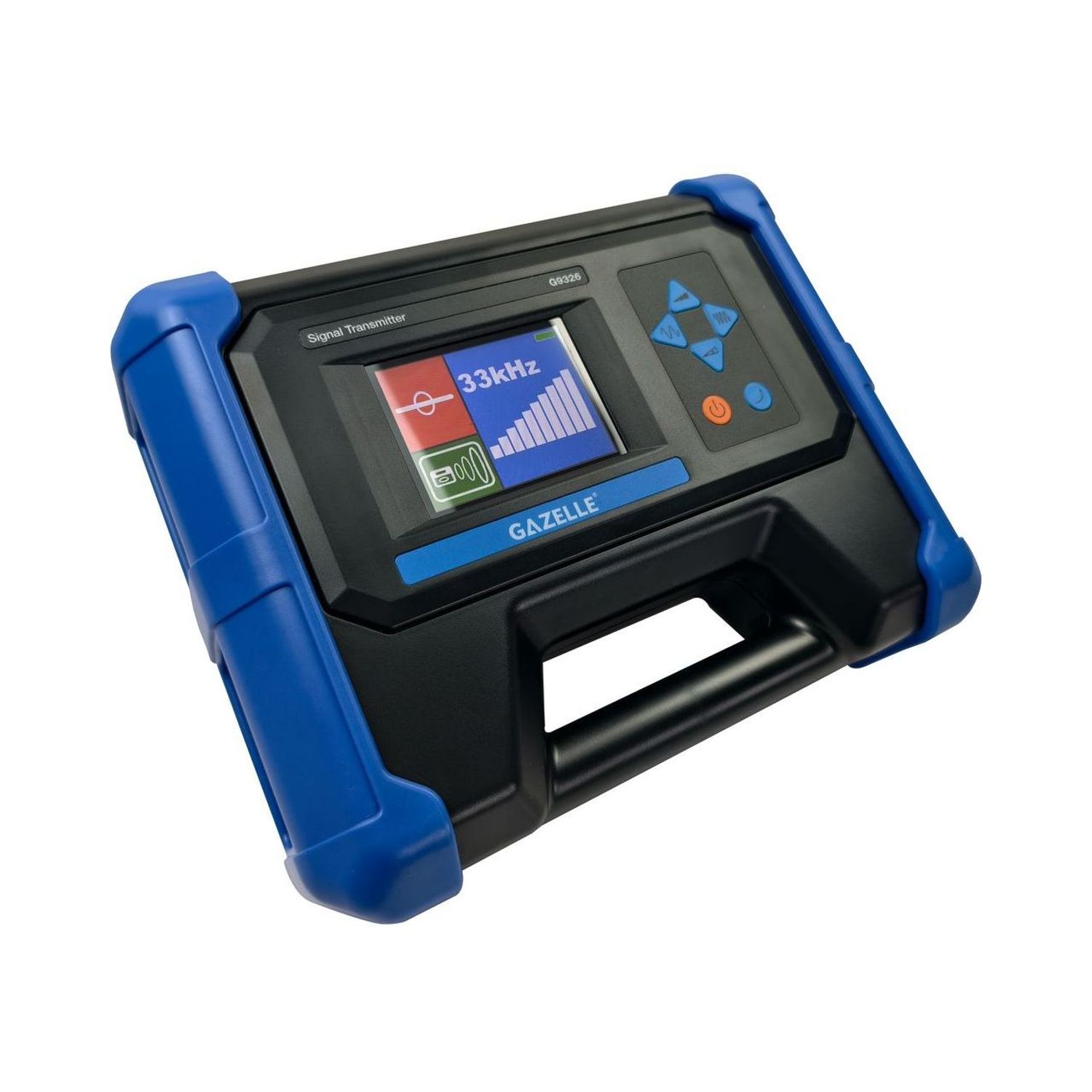

Gazelle G9326 Line Transmitter (with Rechargeable Battery)

Features

• Versatile Output Modes: Supports direct connection, clamp coupling, radiation, and booster modes for a wide range of applications.
• Adjustable Power Output: Delivers up to 15W of power with 10 adjustable levels, allowing for precise control based on operational needs.
• Wide Frequency Range: Configurable output frequencies from 640Hz to 197kHz, ensuring compatibility with various detection systems.
• Automatic Protection: Features fully automatic overvoltage and overcurrent protection, along with automatic impedance matching for safe and efficient operation.
• Enhanced Digital Display: Equipped with a 320×240 dot matrix color LCD for clear visibility in all lighting conditions.
• Long-Lasting Battery: Integrated lithium-ion battery (7.4V, >6Ah) provides extended runtime, ensuring uninterrupted field operations.
• Compact and Rugged Design: Weighs only 2.3kg with dimensions of 280×220×90mm, and is IP65-rated for durability in harsh environments.
• Field-Ready Performance: Operates reliably in temperatures from -25°C to 60°C, withstanding humidity levels below 90% and altitudes up to 4500 meters.

Technical Information

• Output Modes Direct connection, clamp coupling, radiation, booster mode
• Output Frequency Range 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
• Output Power Capacity 15W (maximum), 10 adjustable levels
• Impedance Matching Fully automatic
• Overvoltage/Overcurrent Protection Fully automatic
• Display Interface 320×240 dot matrix color LCD
• Battery Type and Capacity Lithium-ion, 7.4V nominal, >6Ah
• Charger Input AC 100-240V, 50/60Hz
• Charger Output DC 8.4V, 2A
• Dimensions 280×220×90 mm
• Weight 2.3 kg
• IP Rating IP65
• Operating Conditions Temperature -25°C to 60°C; Humidity <90%; Altitude <4500m

Items Included

• Transmitter
• G9333 Charger
• G9332 Direct Connection Cable
• G9334 Ground Rod x2
