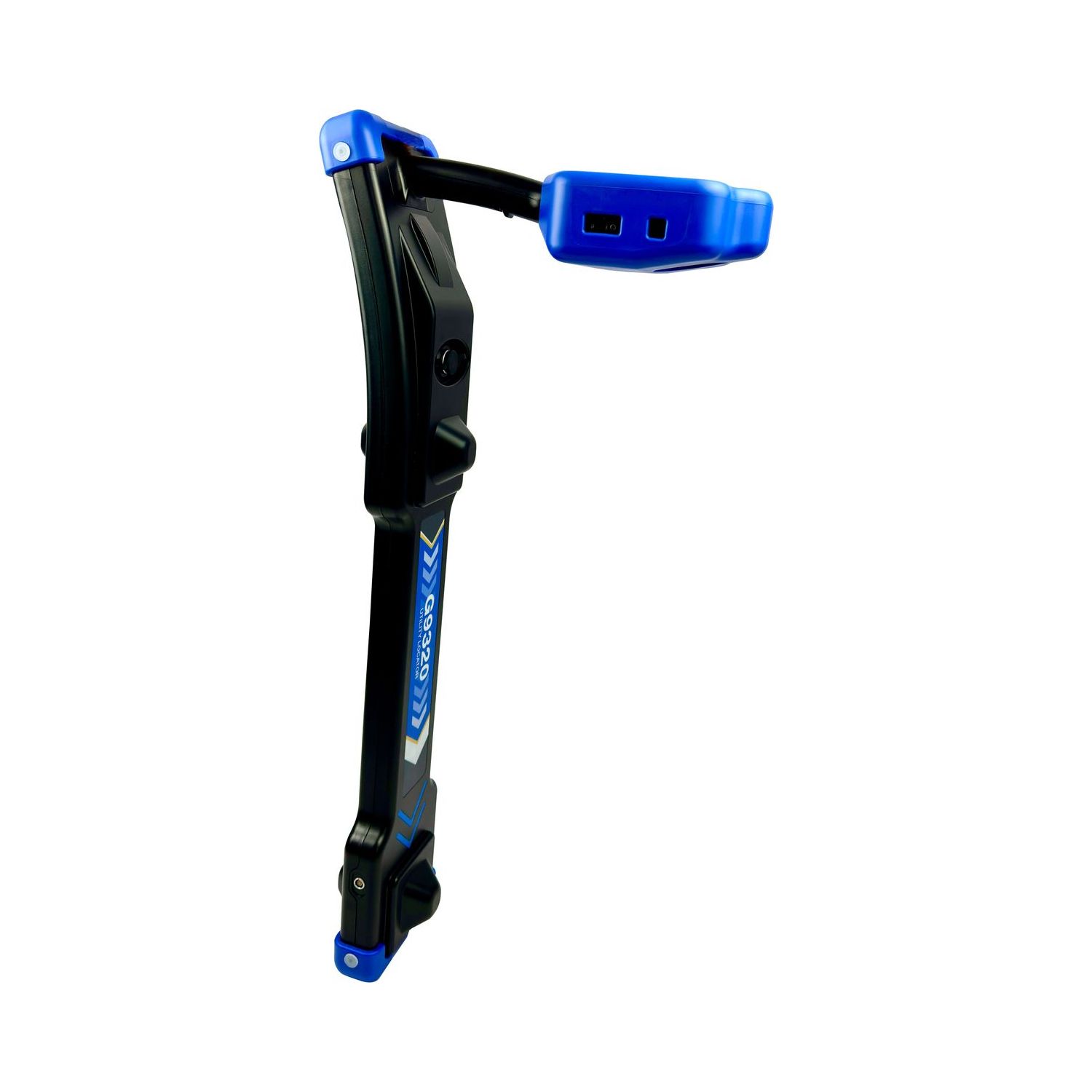

Gazelle G9320 Underground Utility Locator, Max Depth 25m

Model # G9320

Key Features

Brand: Gazelle
Model: G9320
Warranty: 1 Year

Qty:

Qty:

?

Question about this product?

Speak to an expert

Learn how to use

Features

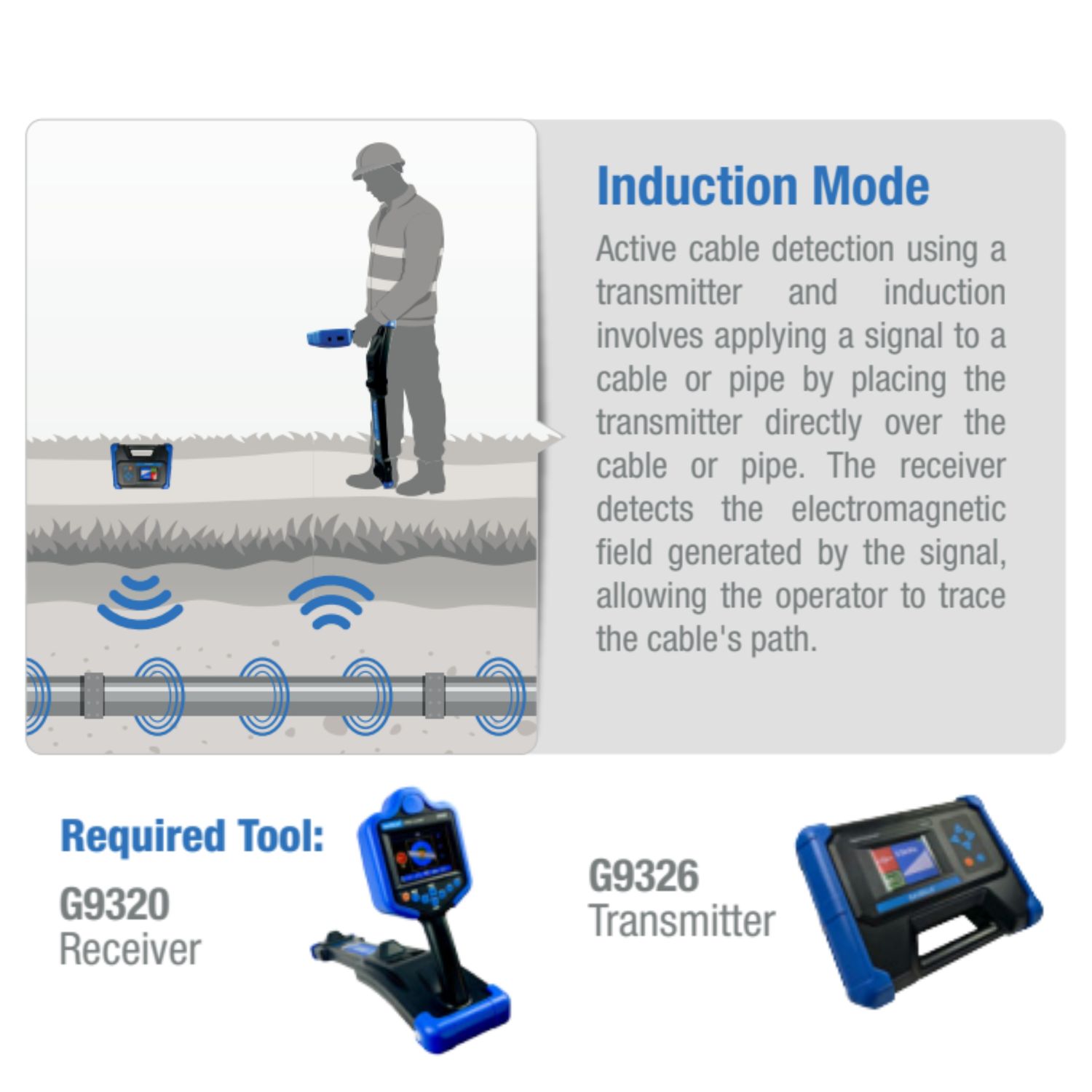

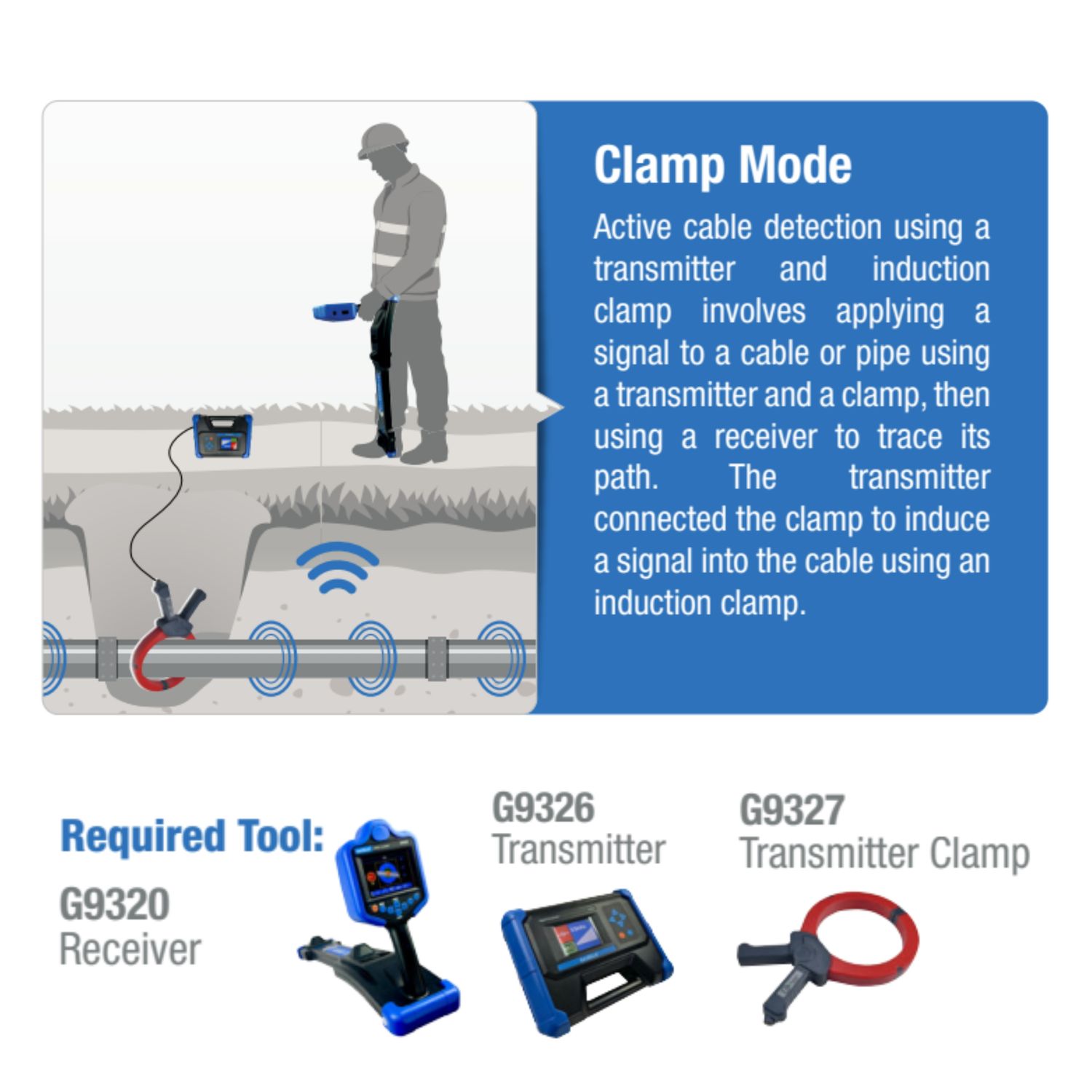

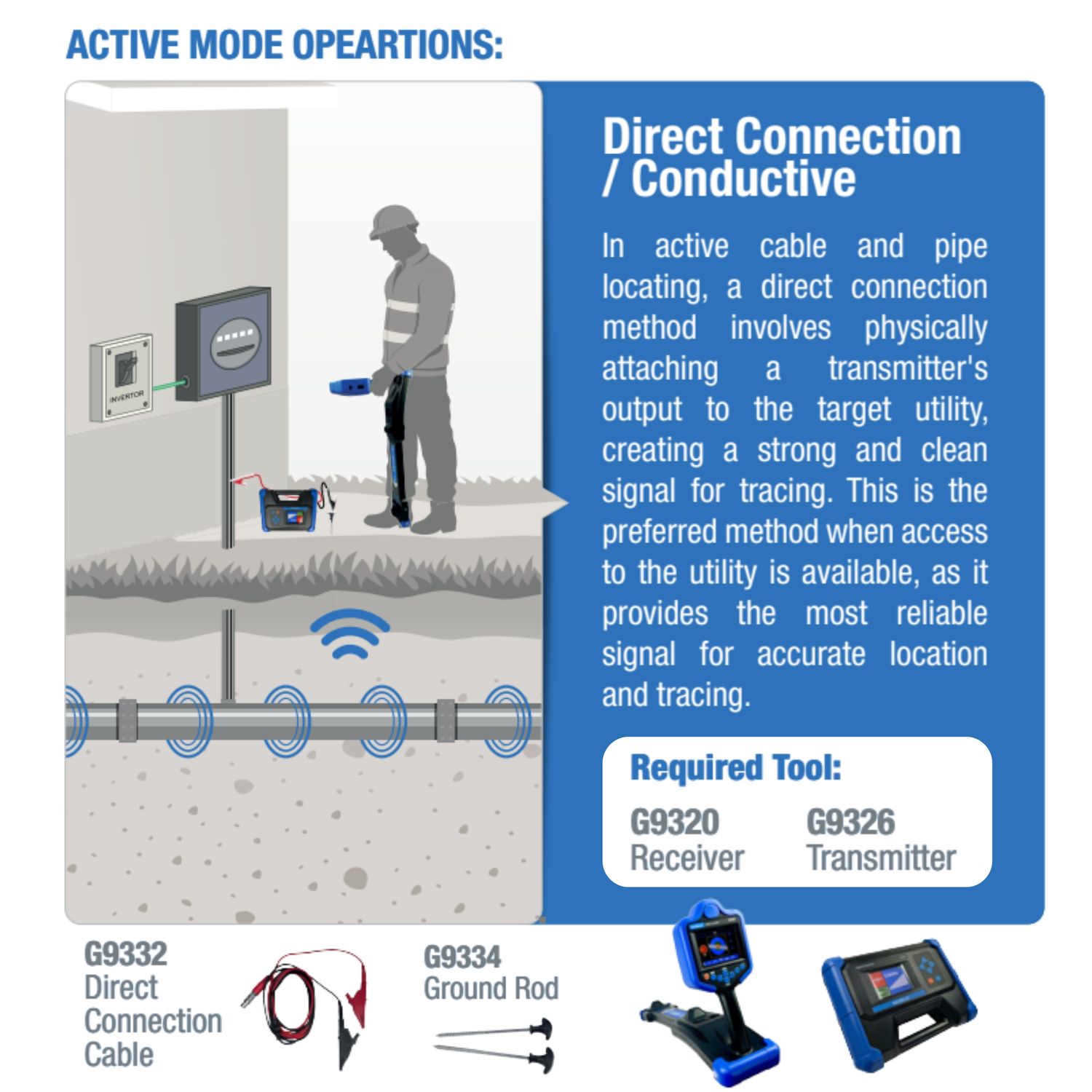

Multi-Mode Operation: Offers direct connection, clamp coupling, radiation, and booster modes for versatile utility detection.
Advanced Detection Modes: Includes wide peak, narrow peak, valley mode, historical curve, and frequency spectrum for precise and detailed analysis.
Comprehensive Frequency Support: Active frequencies range from 640Hz to 197kHz, with passive support for power frequencies, harmonics, and radio frequency bands.

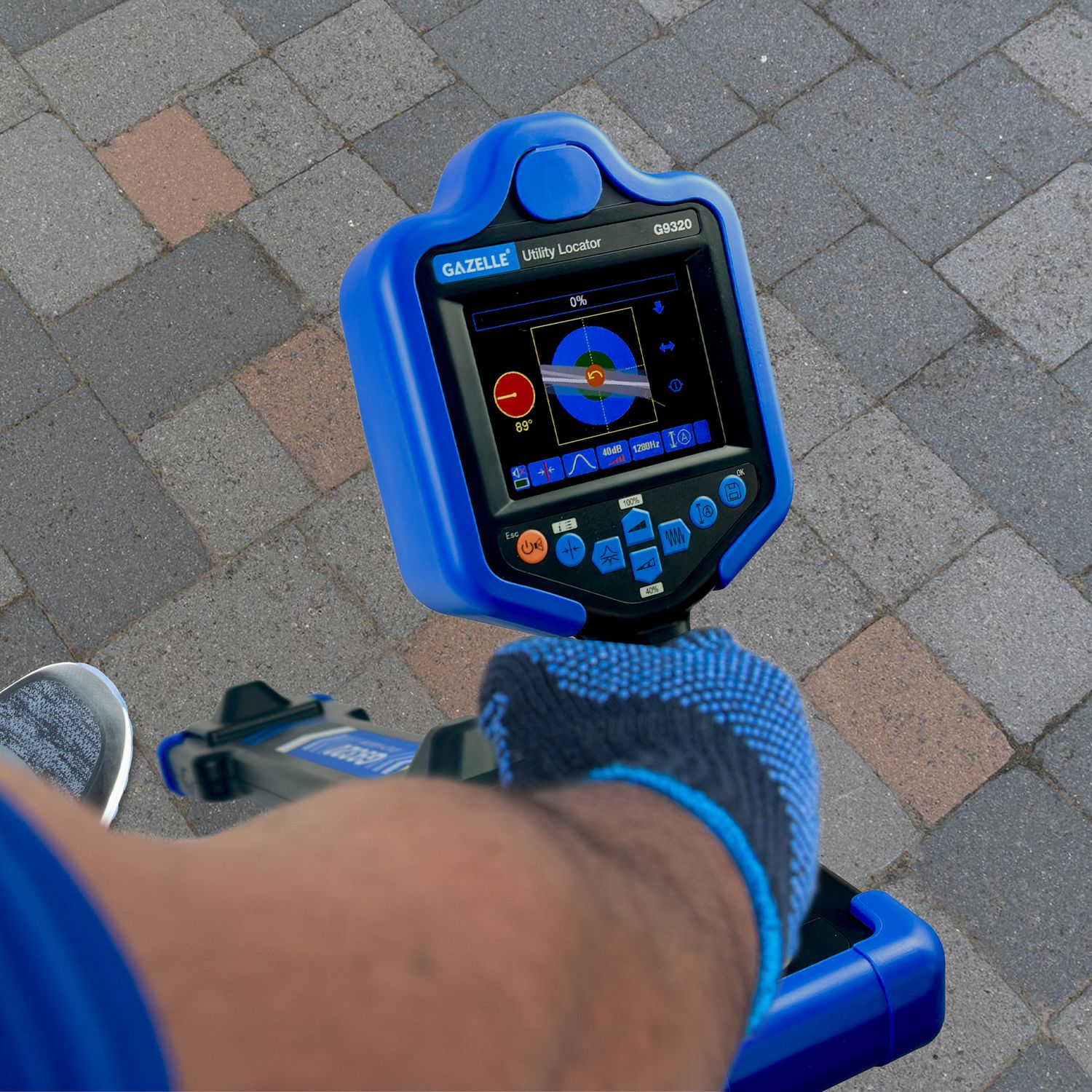

High-Visibility Display: Equipped with a 320×240 dot matrix color LCD, ensuring clear readability even in bright sunlight.
Durable Battery Backup: Features a built-in lithium-ion battery (7.4V, >3Ah) for extended operational hours, with a fast-charging capability.
Robust Build for Extreme Conditions: IP65-rated protection ensures reliability in harsh environments, with operational temperatures from -25°C to 60°C and altitudes up to 4500 meters.

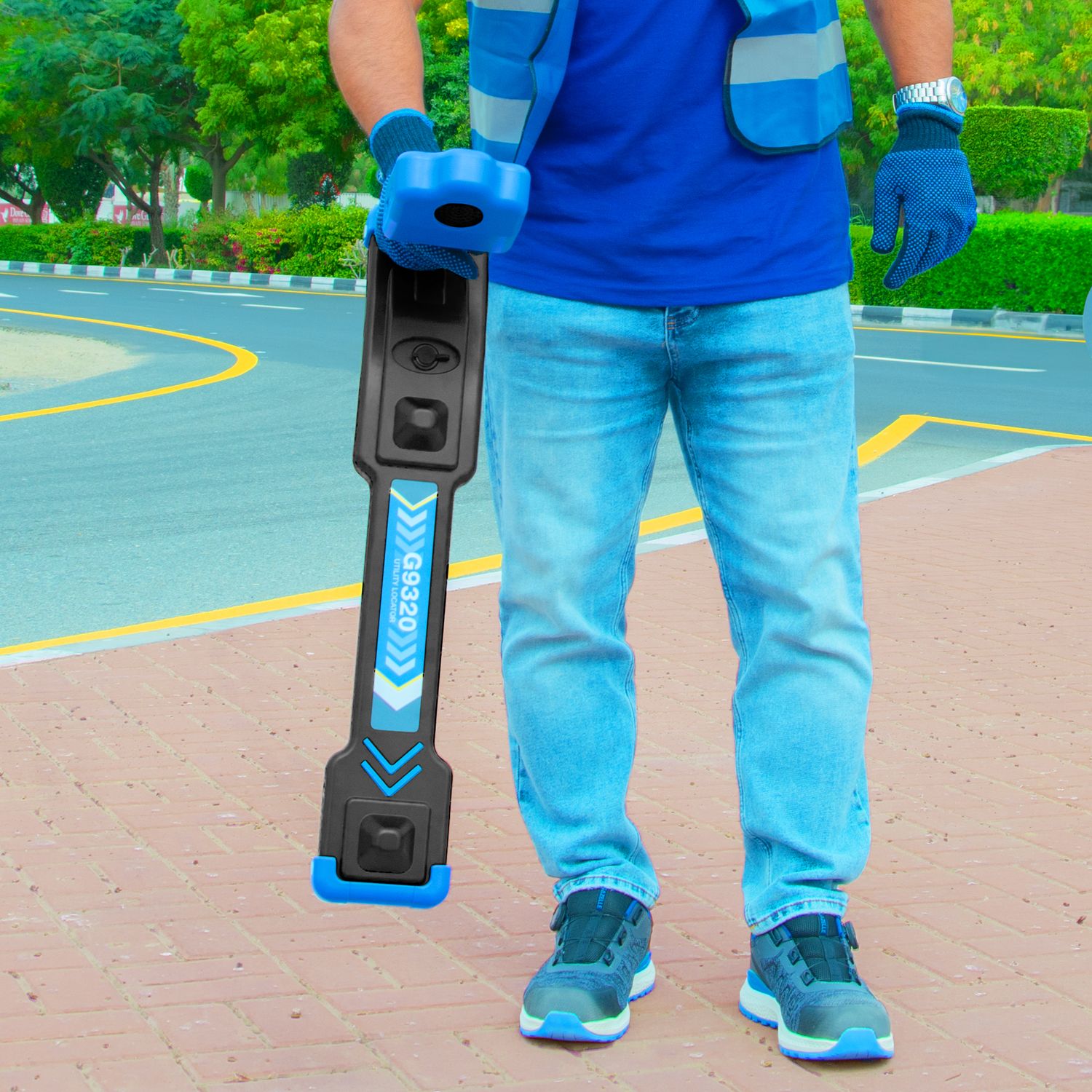

Compact and Lightweight: Weighs only 2.0kg with dimensions of 680×120×277mm, making it portable and easy to handle.
Deep Detection Capability: Measures depths up to 25 meters in active mode, providing accurate underground utility mapping.

Technical Information

Receiver Modes Direct connection, clamp coupling, radiation, booster mode
Detection Modes Wide peak, narrow peak, valley mode, historical curve, frequency spectrum
Active Frequencies 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz

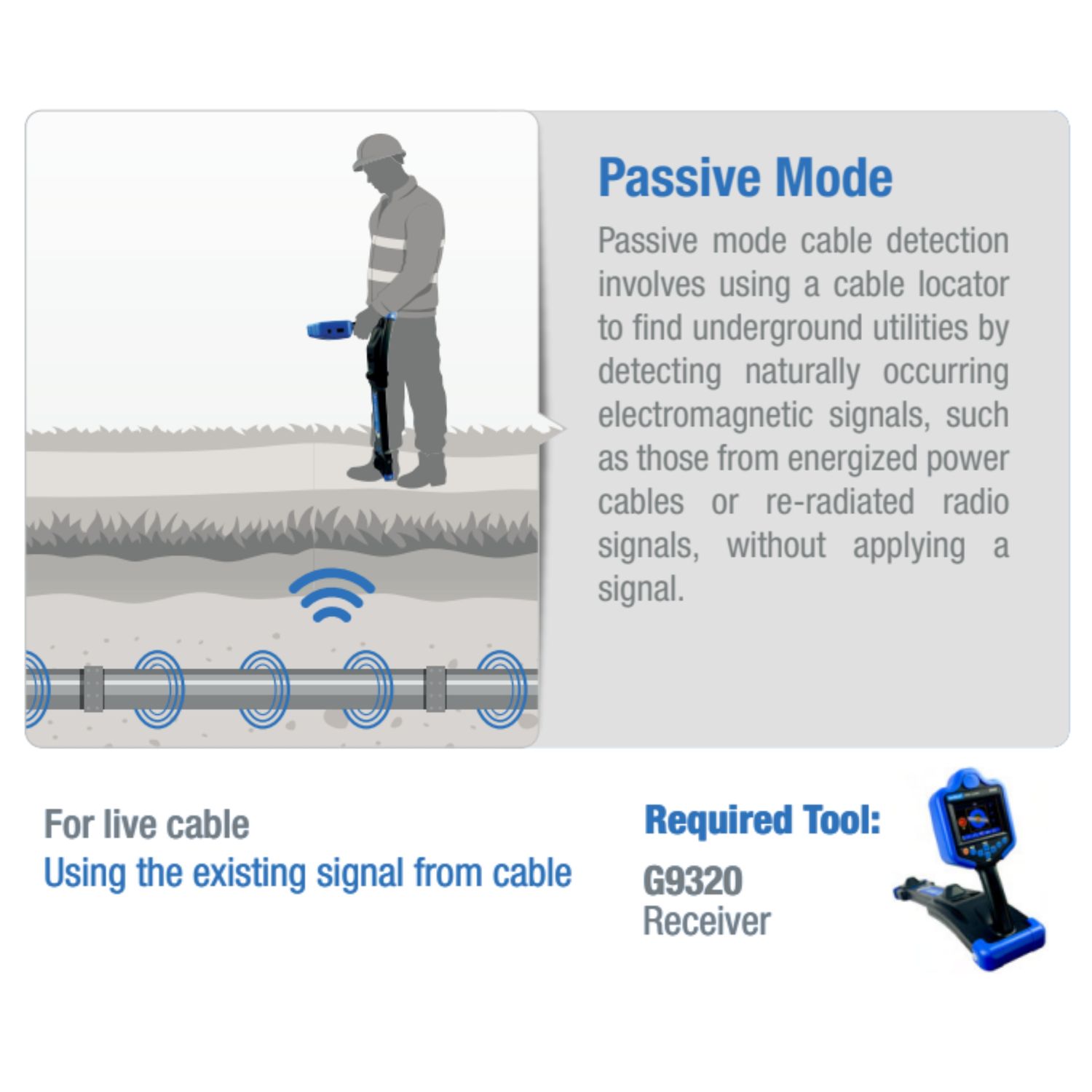

Passive Frequencies Power frequency and harmonics, radio frequency

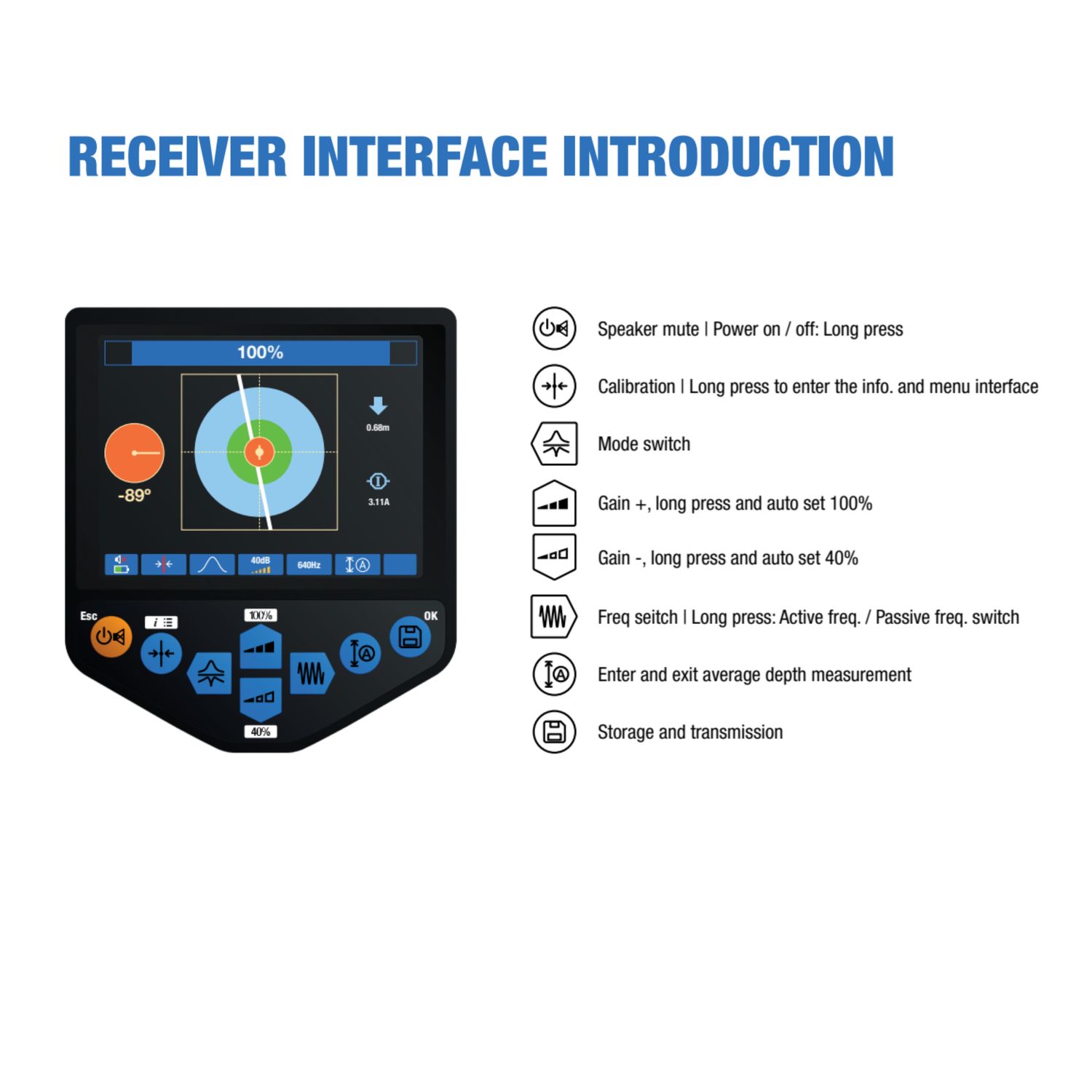

Display Interface 320×240 dot matrix color LCD
Battery Type and Capacity Lithium-ion, 7.4V nominal, >3Ah
Charger Input AC 100-240V, 50/60Hz
Charger Output DC 8.4V, 2A
Dimensions 680×120×277 mm
Weight 2.0 kg
Protection Rating IP65
Max depth measurement25 meters (Active Mode)
Operating Conditions Temperature -25°C to 60°C; humidity <90%; altitude <4500m

Items Included

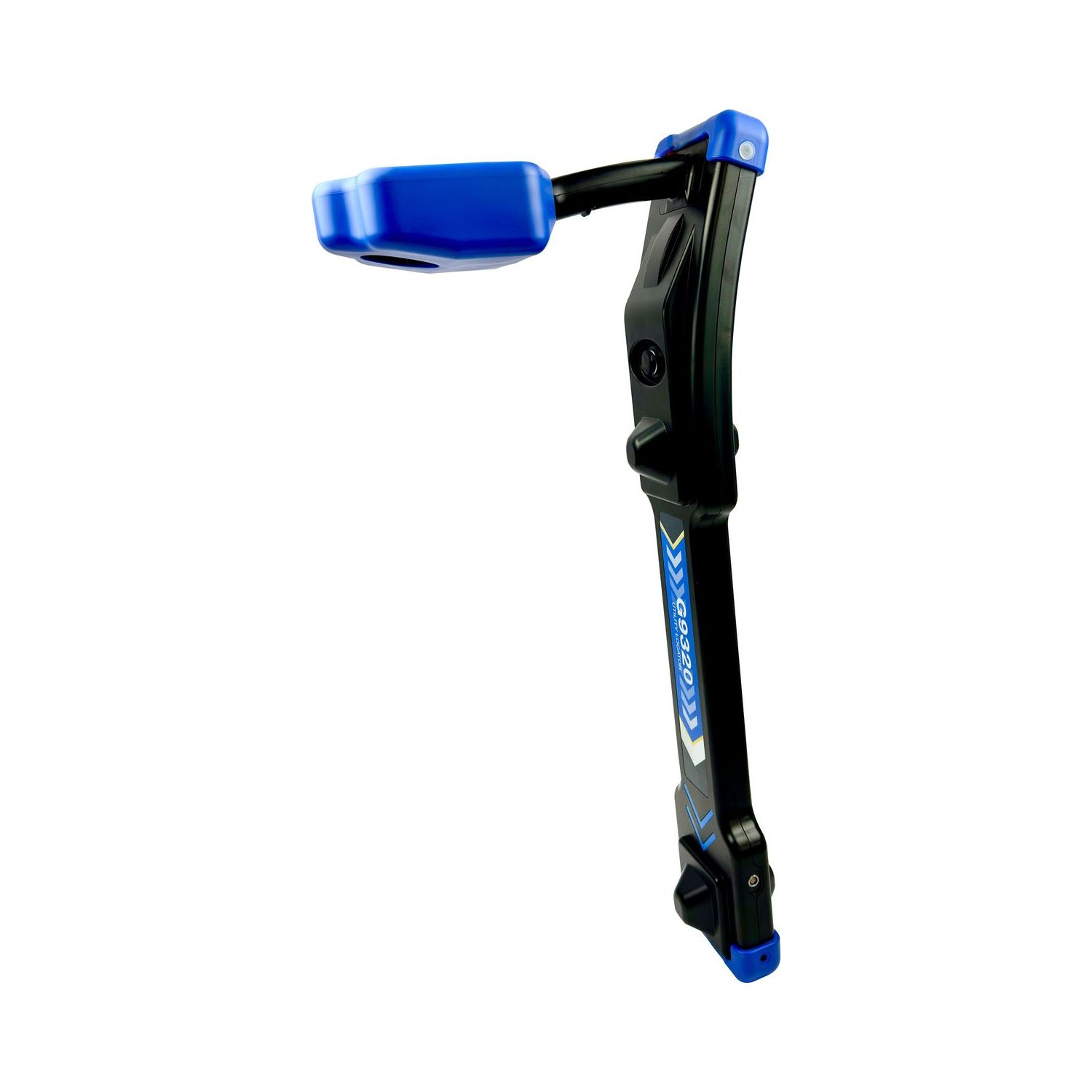

G9320 Utility Locator
G9333 Receiver Charger
G9335 Depth Measurement Auxiliary Sensory
Soft Carry Case
