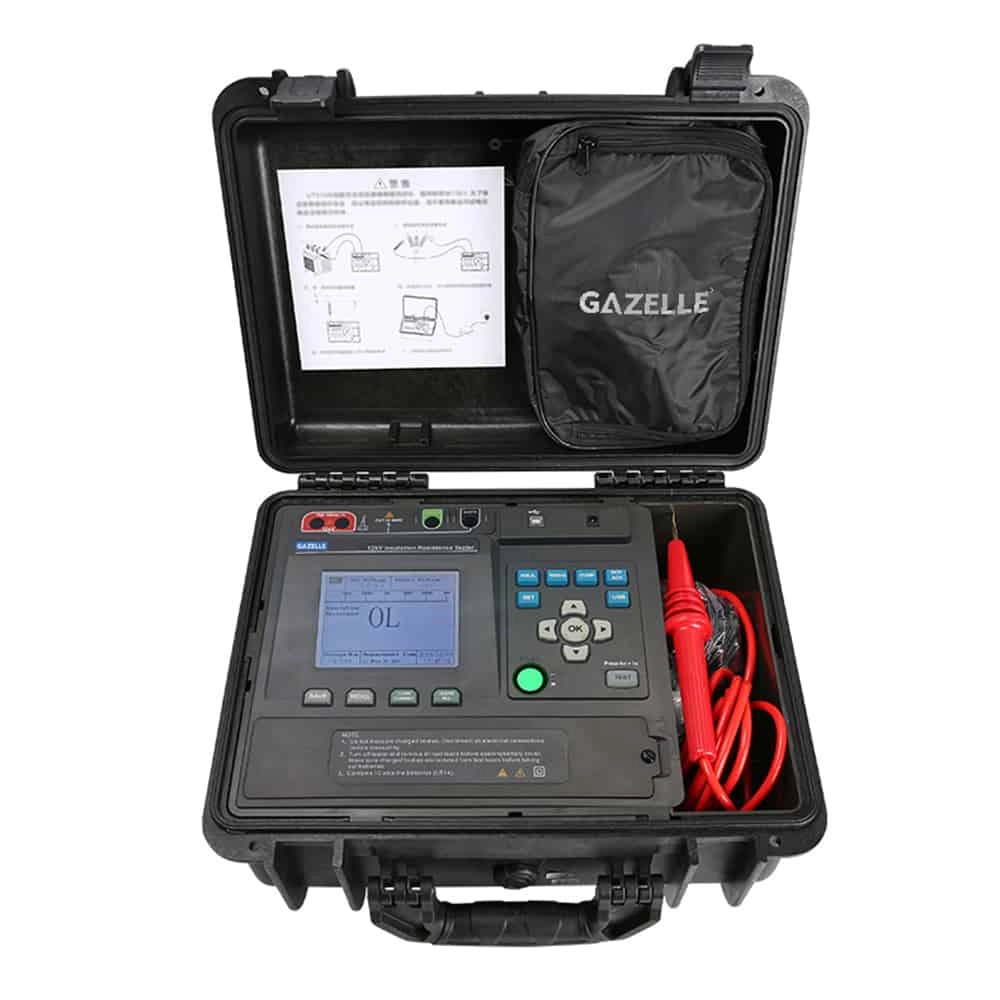

Gazelle G9312 Insulation Resistance Tester, 12kV

Model #   G9312

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Insulation Resistance: Measures insulation resistance from 0.5MΩ to 10TΩ with exceptional accuracy.
  • Test Voltage Range: Test voltages ranging from 500V to 12kV for high-voltage applications.
  • Voltage Measurement: Capable of measuring AC voltage from 30V to 750V and DC voltage from 30V to 1000V.
  • Display: Large 9999 display with a 30-segment analog bar graph for clear and detailed readings.
  • Advanced Diagnostics: PI/DAR measurements for advanced diagnostics and system evaluation.
  • Measurement Modes: Continuous measurement mode and comparison functions with upper and lower limit settings.
  • Data Management: USB interface and PC software for data analysis and reporting, with 18-group data storage.
  • Safety Features: Auto power-off, auto current discharge, and over-range indications for enhanced safety and convenience.
  • Durability: Rugged design for reliable performance in demanding industrial environments.

Technical Information

  • Insulation Resistance0.5MΩ-10TΩ
  • Test Voltages500V-12kV
  • AC Voltage30-750V
  • DC Voltage30 - 1000 V
  • Dimensions410x342x204mm
  • Weight6.6kg

Items Included

  • User Manual
  • Test Leads
  • USB Cable
  • Power Adaptor
  • 1.5V Batteries
