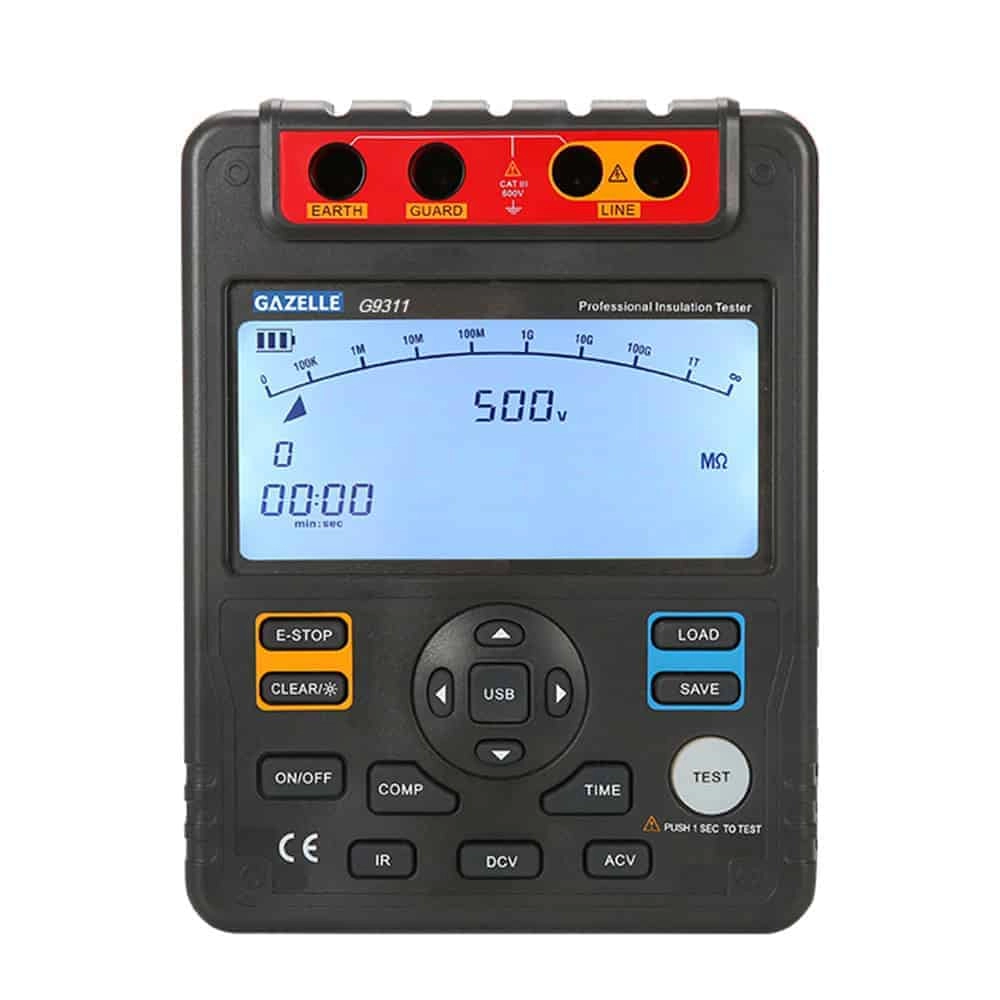

Gazelle G9311 Insulation Resistance Tester, 5kV

Model #   G9311

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Insulation Resistance: Measures insulation resistance from 0.1MΩ to 1000GΩ with high precision.
  • Test Voltage Range: Test voltages ranging from 100V to 5kV for versatile applications.
  • Voltage Measurement: Capable of measuring AC and DC voltage up to 600V.
  • Display: Large 9999 display with a 30-segment analog bar graph for clear and detailed readings.
  • Advanced Diagnostics: PI/DAR measurements and continuous measurement mode for advanced diagnostics.
  • Data Management: Comparison, upper and lower limit functions with 18-group data storage for efficient data management.
  • User Convenience: Auto power-off, backlight, and low battery & over-range indications for user convenience.
  • Safety Features: Auto current discharge and high-voltage output alarm for enhanced safety.
  • Connectivity: Includes a power adapter, USB interface, and PC software for data analysis and reporting.
  • Durability: Rugged design for reliable performance in demanding industrial environments.

Technical Information

  • Insulation Resistance0.1MΩ-1000GΩ
  • Test Voltages100V-5kV
  • AC Voltage600V
  • DC Voltage600 V
  • Short-circuit current>3.0mA
  • Dimensions202x155x94mm
  • Weight2kg

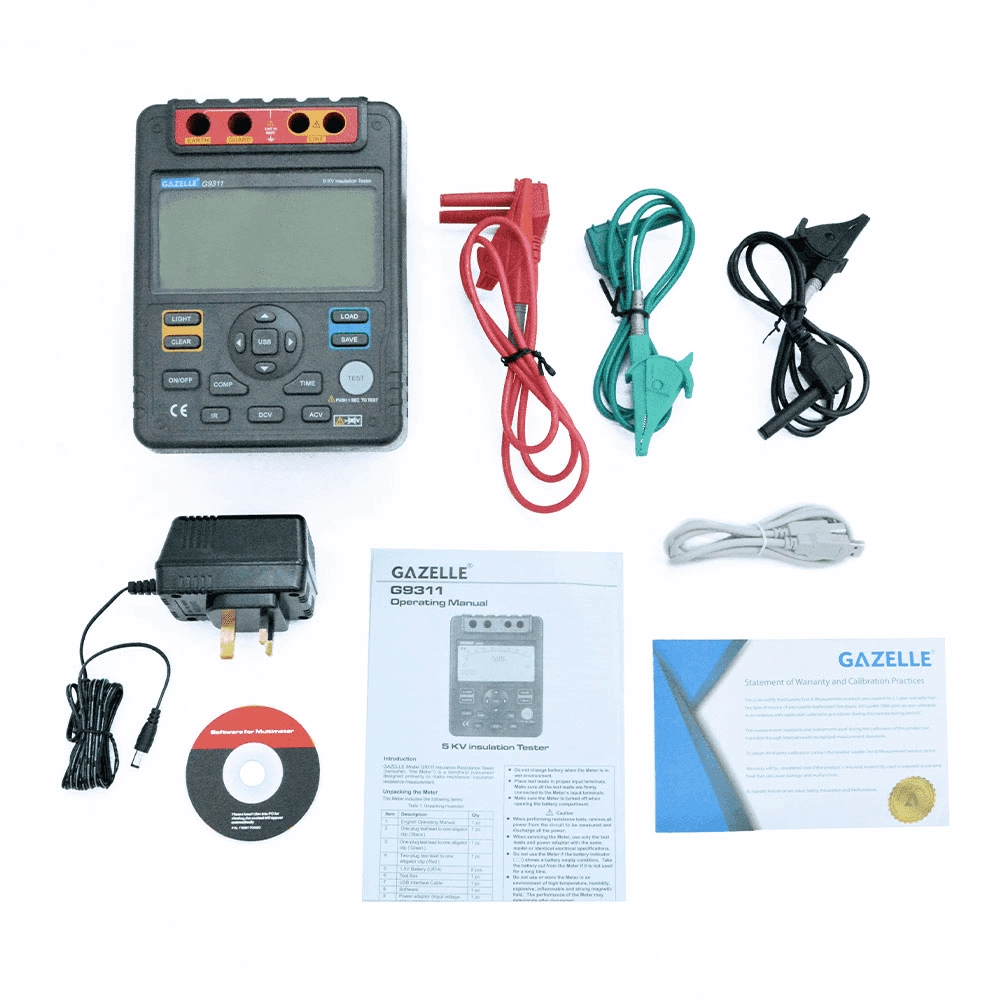

Items Included

  • 2 pcs. 1 Plug Test Lead to 1 Alligator Clip
  • 1 pc. 2 Plugs Test Lead to 1 Alligator Clip
  • Batteries
  • USB Cable
  • PC Software CD
  • Power Adaptor
