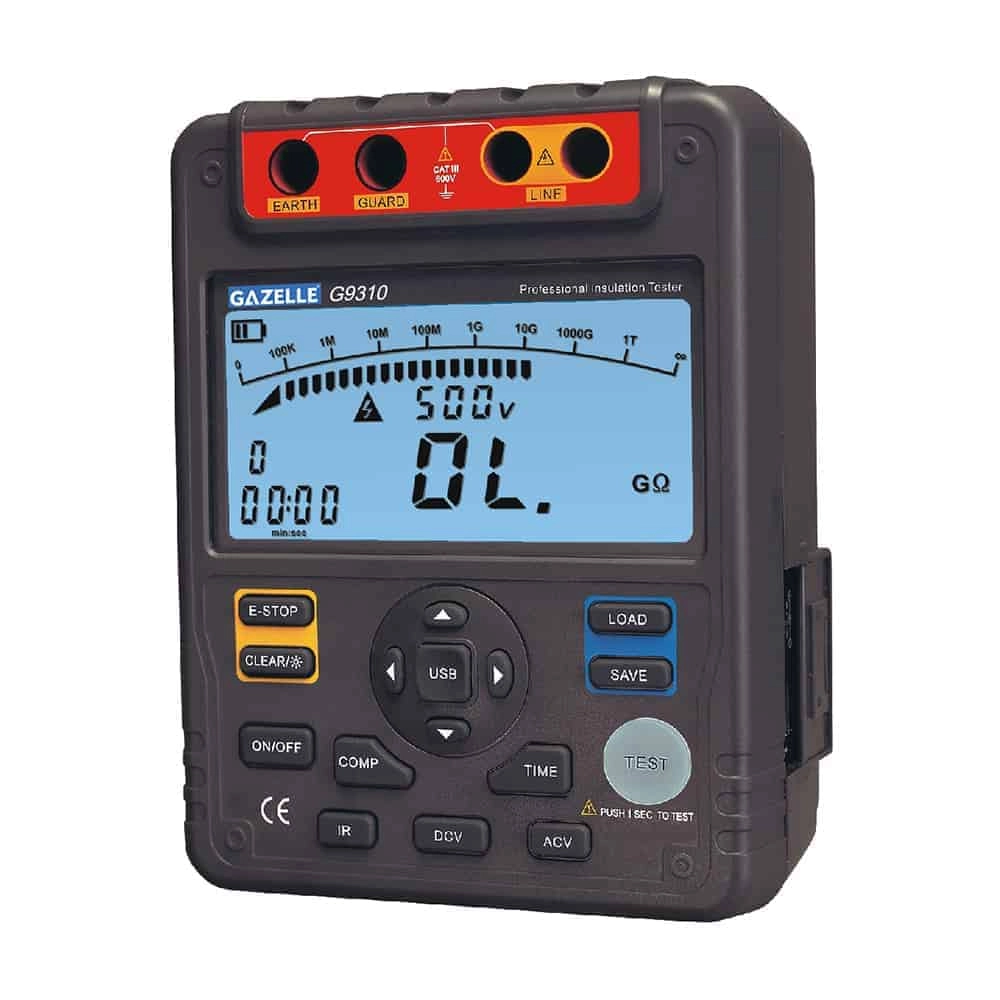

Gazelle G9310 Insulation Resistance Tester, 2.5kV

Features

• Insulation Resistance: Measures insulation resistance from 0.1MΩ to 100GΩ with high accuracy.
• Test Voltage Range: Test voltages ranging from 500V to 2.5kV for versatile applications.
• Voltage Measurement: Capable of measuring AC and DC voltage up to 600V.
• Low Resistance: Low resistance measurement range from 0.1Ω to 999.9Ω for detailed diagnostics.
• Display: Large 9999 display with a 30-segment analog bar graph for clear readings.
• Advanced Testing: PI/DAR measurements and continuous measurement mode for advanced testing.
• Data Management: Comparison, upper and lower limit functions with 18-group data storage for efficient data management.
• User Convenience: Auto power-off, backlight, and low battery & over-range indications for user convenience.
• Safety Features: Auto current discharge and high-voltage output alarm for enhanced safety.
• Connectivity: Includes a power adapter, USB interface, and PC software for data analysis and reporting.

Technical Information

• Insulation Resistance0.1MΩ-100GΩ
• Test Voltages500V-2.5kV
• AC Voltage600V
• DC Voltage600 V
• Low Resistance0.1-999.9Ω
• Short-circuit current<1.8 mA
• Dimensions202x155x94mm
• Weight1.8kg

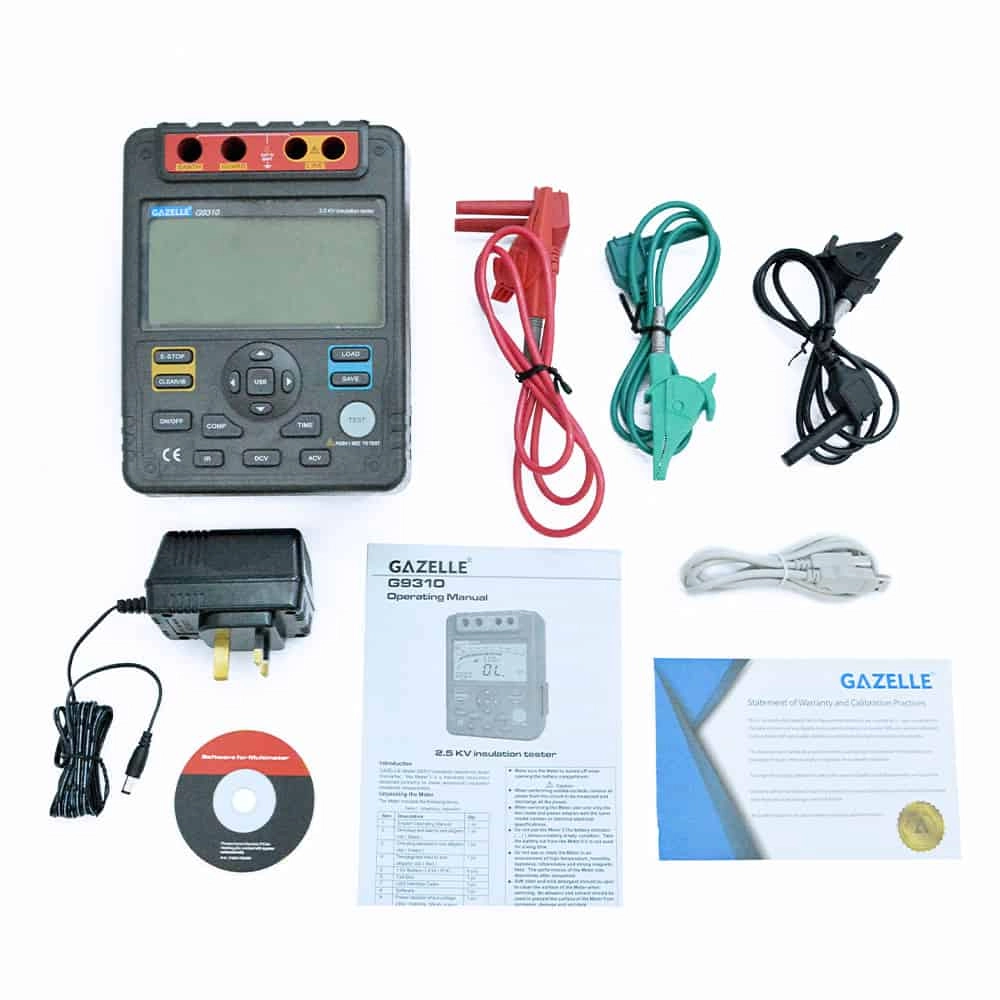

Items Included

• 2 pcs. 1 Plug Test Lead to 1 Alligator Clip
• 1 pc. 2 Plugs Test Lead to 1 Alligator Clip
• Batteries
• USB Cable
• PC Software CD
• Power Adaptor

Downloads

Datasheet
