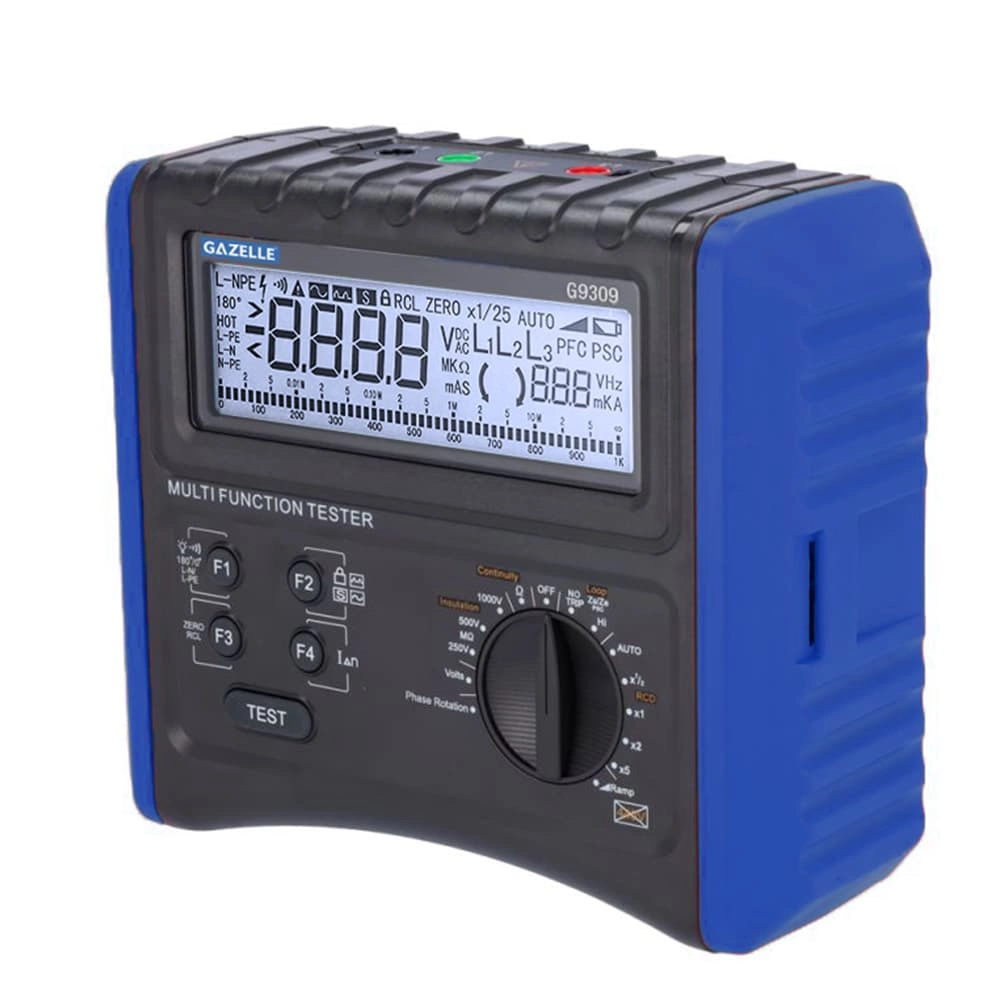

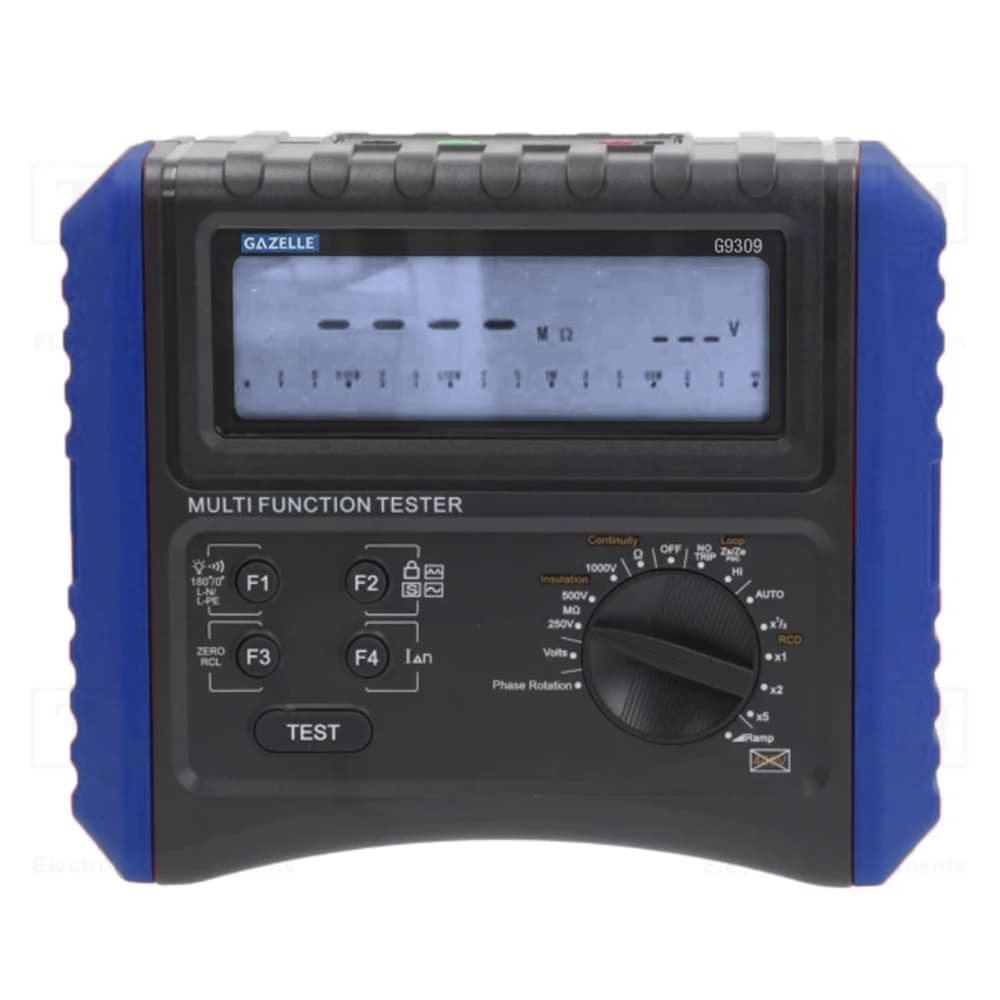

Gazelle G9309 Multifunction Installation Tester

Features

• RCD Testing: Measures RCD test currents (10, 30, 100, 300, 500 mA) with high precision.
• Impedance Testing: Performs loop and line impedance tests with 20A/20ms current and time settings.
• Insulation Resistance: Selectable test voltages—250V (0.05–250MΩ), 500V (0.05–500MΩ), and 1000V (0.05–1000MΩ).
• Continuity Testing: Test scope from 0.01Ω to 200Ω for detailed diagnostics.
• Voltage & Frequency: Measures AC/DC voltage up to 400V with a frequency range of 20–100Hz.
• Display: 9999-count LCD display for clear and detailed readings.
• Safety Rating: CAT III 300V safety rating for reliable operation in industrial environments.
• Design: Compact design with integrated analog and digital circuits for stable performance.
• Applications: Ideal for testing, inspection, and maintenance work across various applications.

Technical Information

• RCD Test Current10, 30, 100, 300, 500 mA
• Loop Impedence Test (Current/Time)20A/20 ms
• Line Impedence Test (Current/Time)20A/20 ms
• Insulation Resistance (250V)0.05 - 250 MΩ
• Insulation Resistance (500V)0.05 - 500 MΩ
• Insulation Resistance (1000V)0.05 - 1000 MΩ
• Frequency Range20 - 100 Hz
• Continuity Test Scope0.01 - 200 Ω
• Voltage Range (AC/DC)0 - 400V
• Display TypeLCD
• Display Count9999
• Safety RatingCAT III 300V
• Dimensions (LxWxD)210 x 175 x 90mm

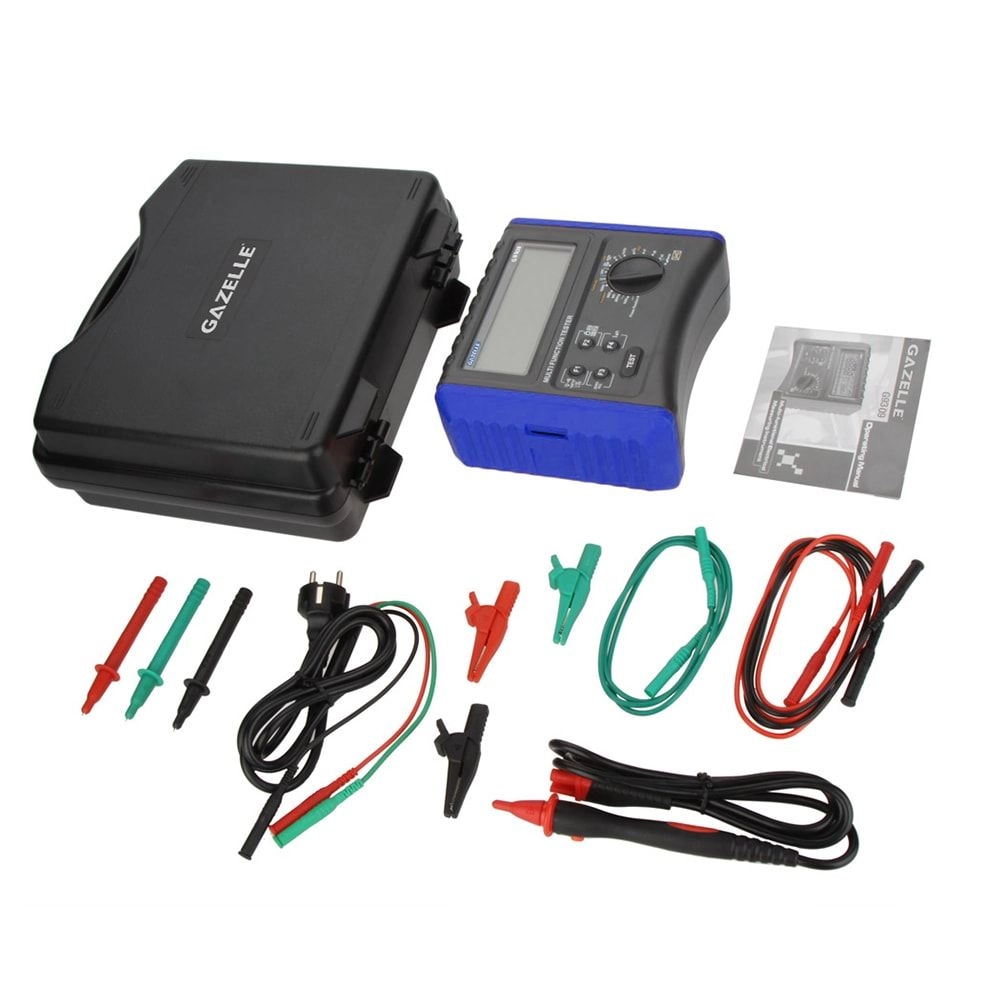

Items Included

• 1x Installation Tester
• 8x 1.5V AA Alkaline Batteries
• 1x Operating Manual
• 1x Pair of test leads
• 1x Carry bag
